ELP AR0144 1280*720 60fps global shutter usb camera black and white with 5-50mm varifocal lens for industrial inspection
Features
Features:
* High quality Aptina AR0144 Sensor for high quality image
* Shutter Type -Global shutter for fast computer vision
* High frame rate - deliver 1280X720MJPEG@ 60fps
* Black & white image

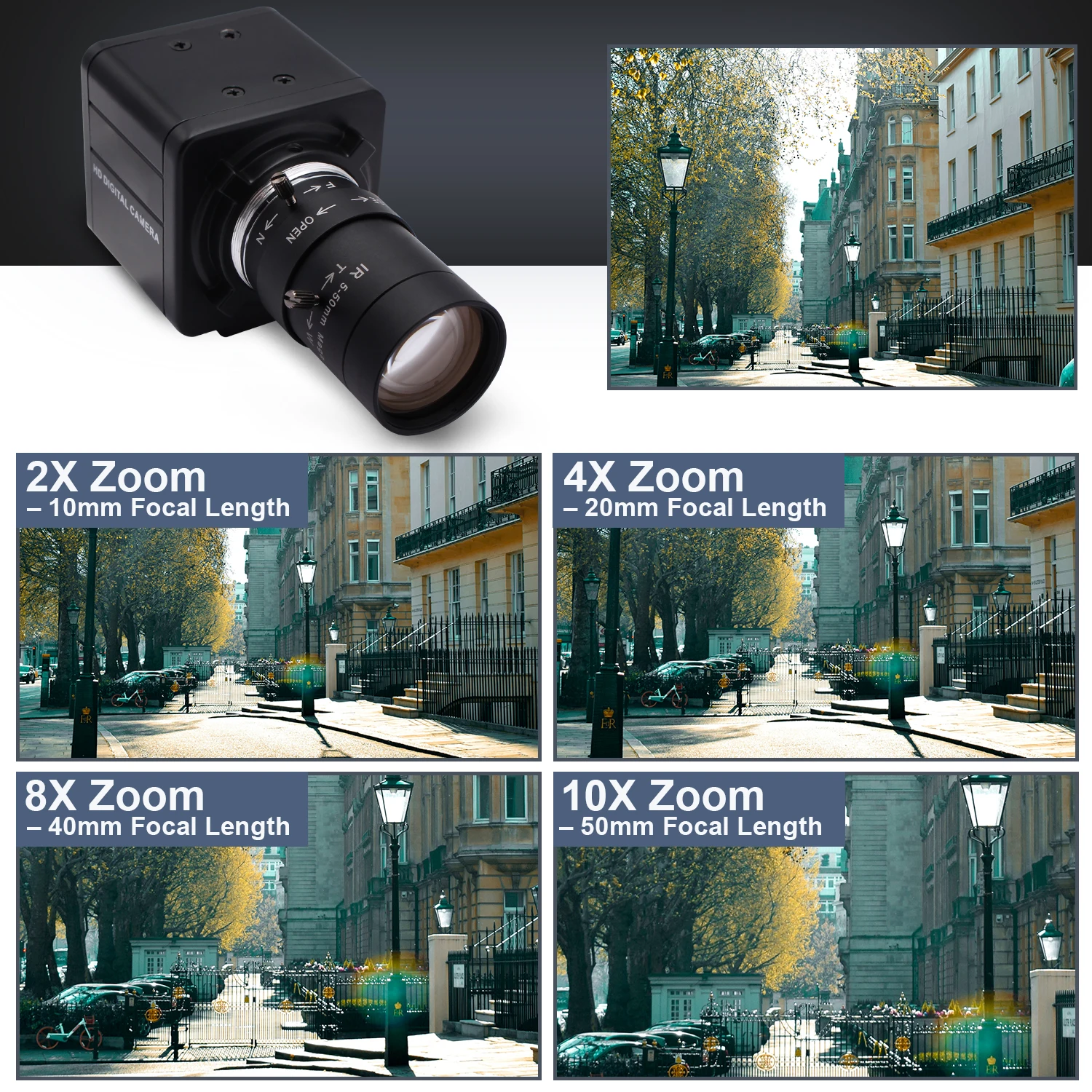

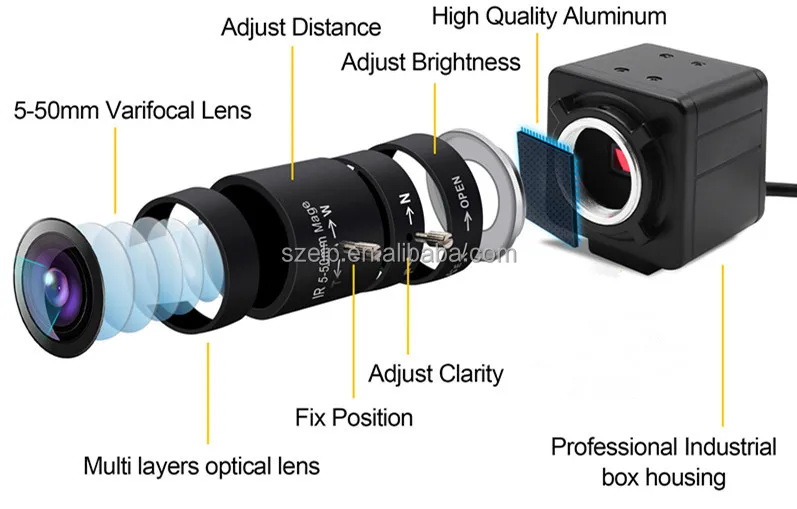

* 5-50mm varifocal lens
* Allumina Box housing, suitable for industrial use

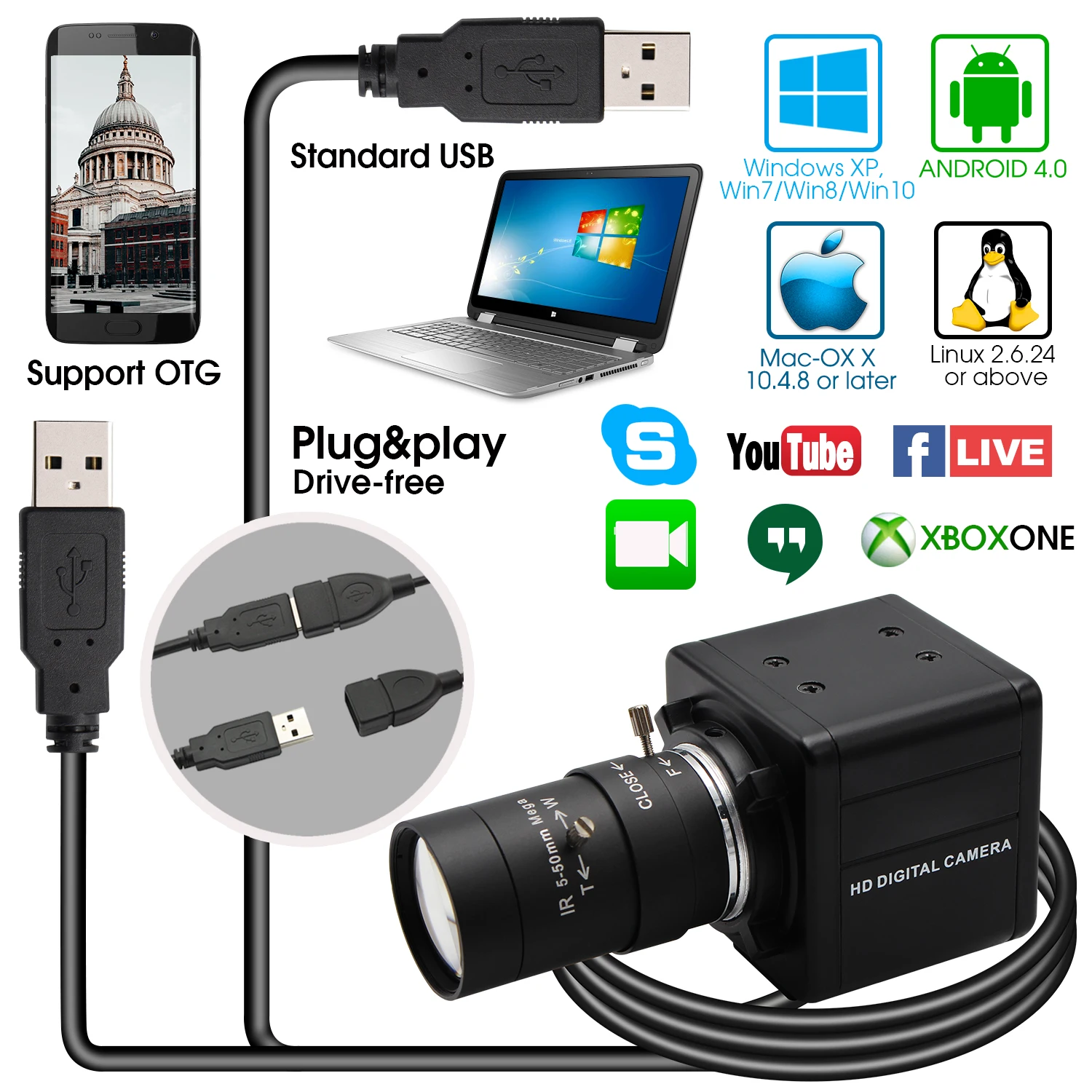

* UVC compliance for use in OS Windows,Linux, Android

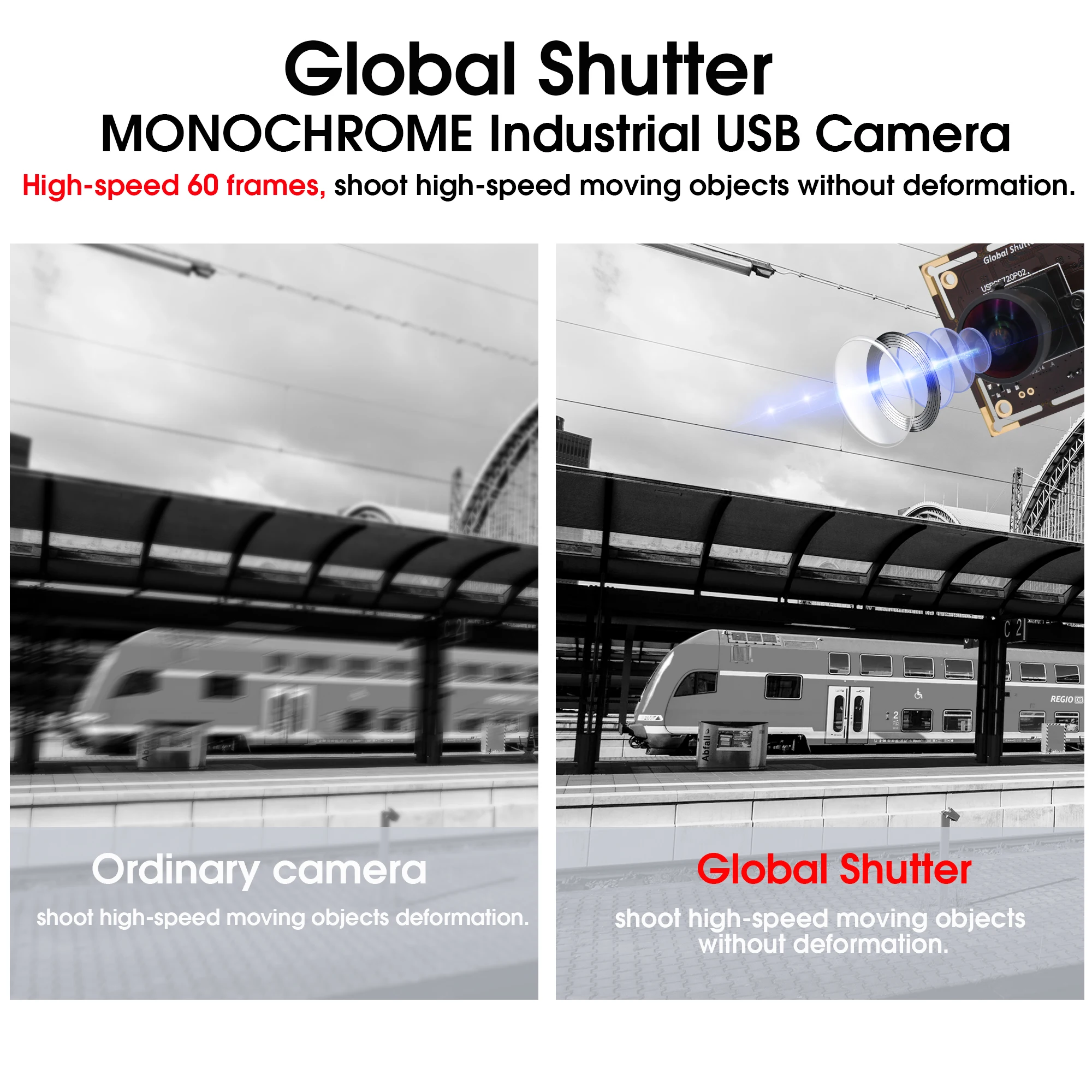

Global shutter camera advantages:
Improved image quality for fast moving objects
Total Noise Floor Reduction, SNR Improvement
High Dynamic Range
Ideal for battery powered applications
Ideal for space constrained applications like Handheld Scanners
Specifications
Specification:
Model | ELP-USBGS720P02-MFV(5-50mm) |
Sensor | Aptina AR0144 |
Lens Size | 1/4 inches |
Pixel Size | 3.0µm |
Effective Pixels | 1280(H)X720(V) 1MP |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution & frame | 1280X720MJPEG@ 60fps YUY2@5fps |
S/N Ratio | 38dB |
Dynamic Range | 63.9dB |
Sensitivity | 3.1V/lux-sec@550nm |
Mini illumination | 0.2 Lux |
Shutter Type | Global Shutter |
Connecting Port type | USB2.0 High Speed |
OTG protocol | USB2.0 OTG |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | 5-50mm CS lens (2.8-12mm lens optional) |
Power supply connector | USB BUS POWER 4P-2.0mm socket |
Work Power Voltage | DC5V |
Work Power Current | 110mA~160mA |
Working temperature | -10~70℃ |
Storage temperature | -20~75℃ |

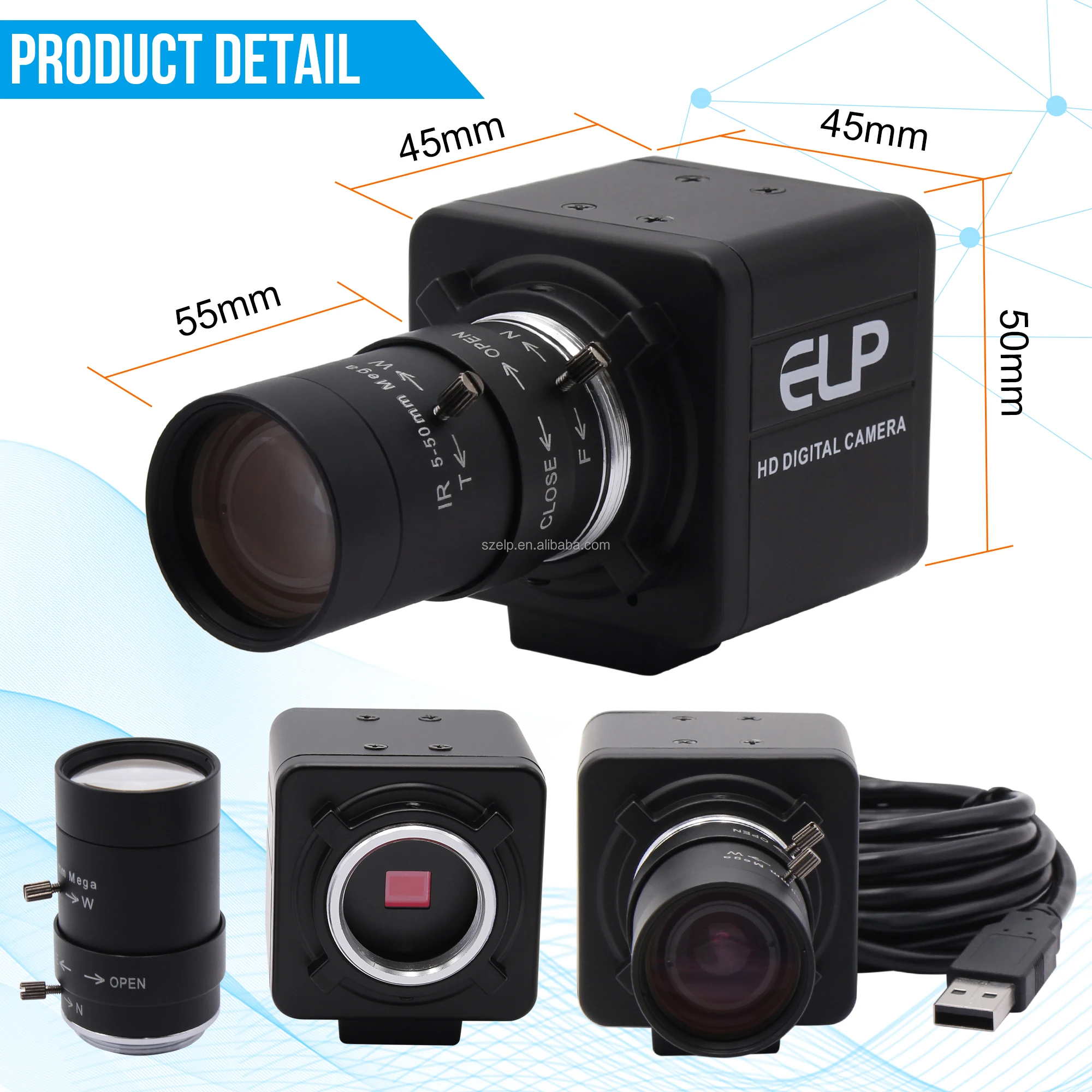

Board size /Weight | 38*38/32*32mm / About 30g |
Cable | Standard 1m cables (2M,3M,5M optional ) |
Support OS | Win7 Win8 Linux 2.6 or above Android 4.0 or above |
Pictures:
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
