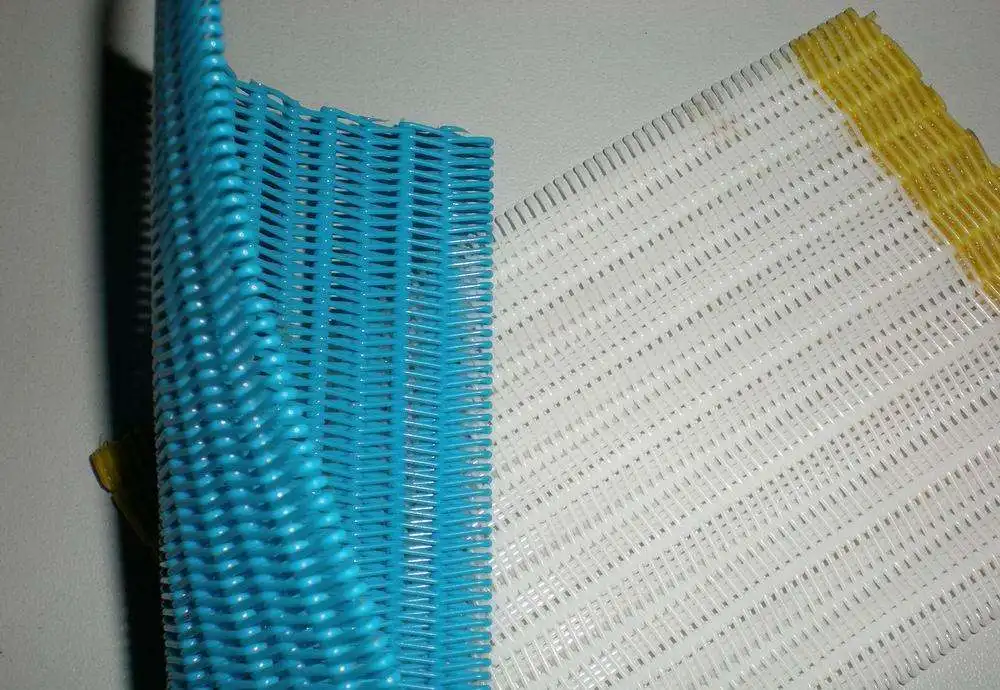

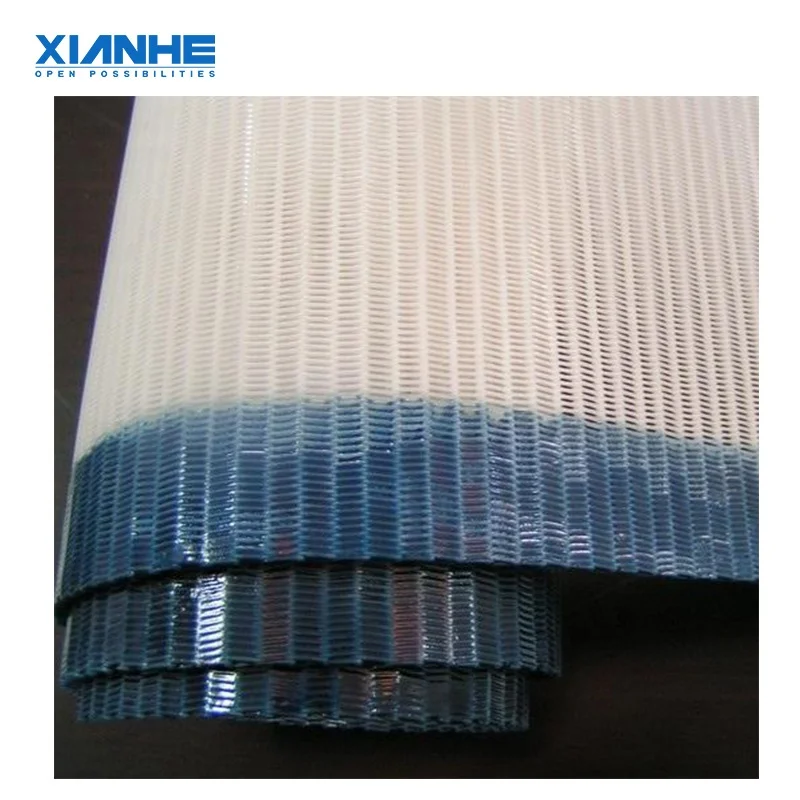

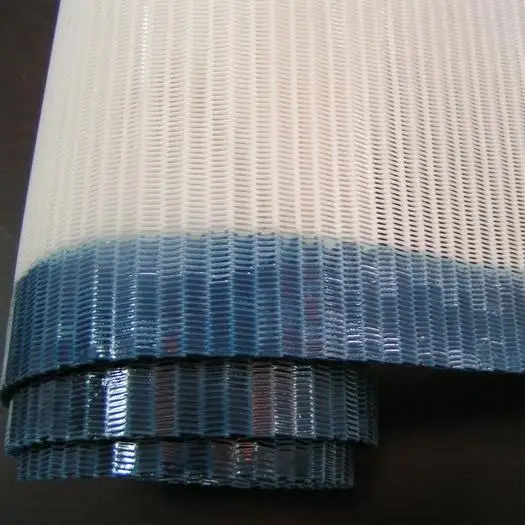

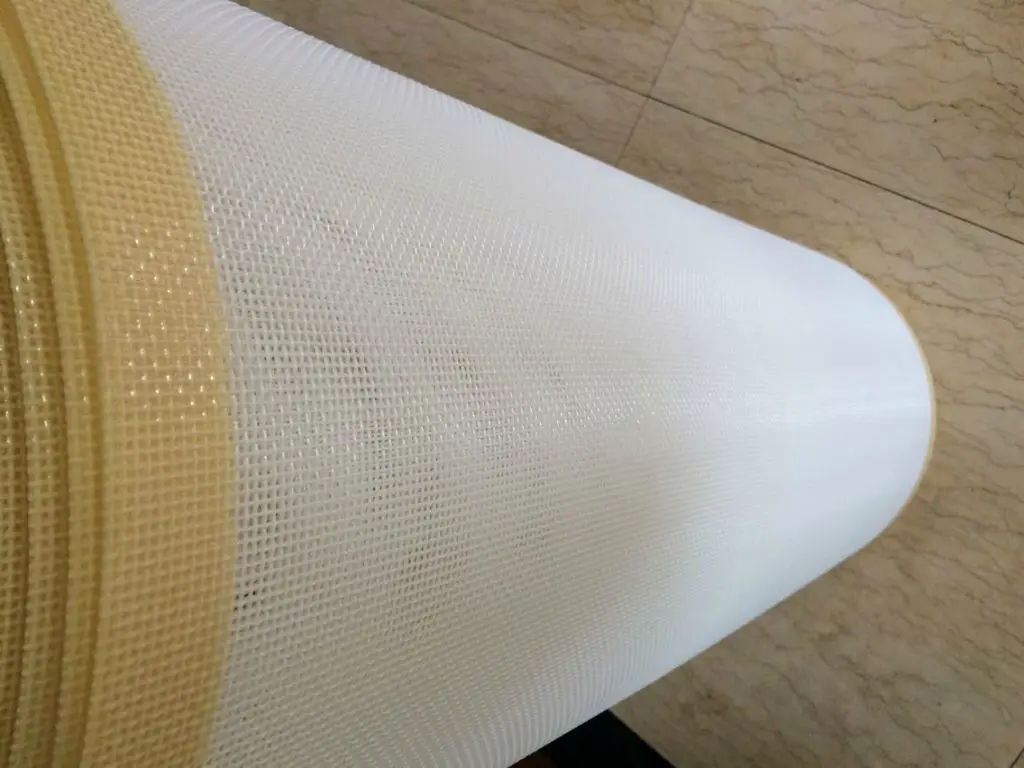

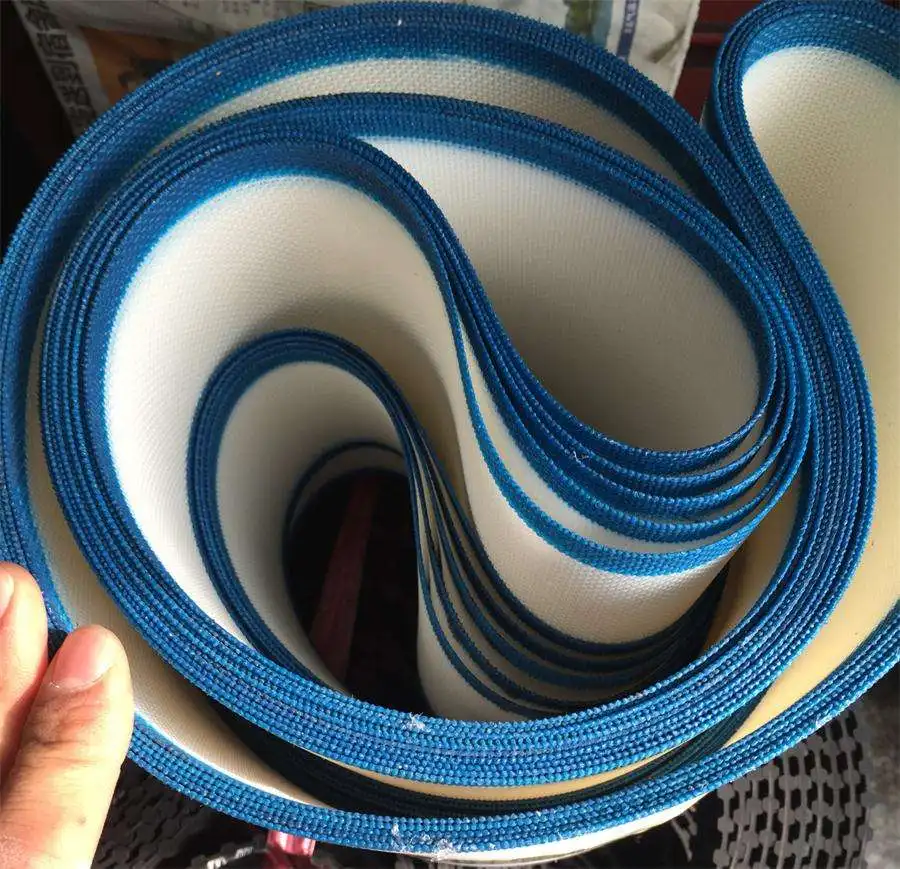

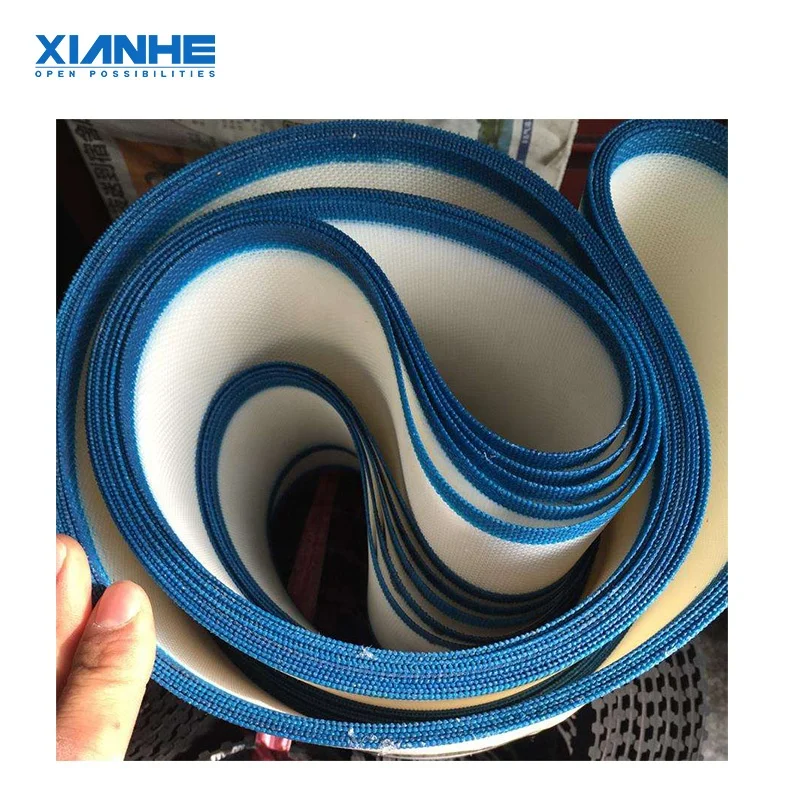

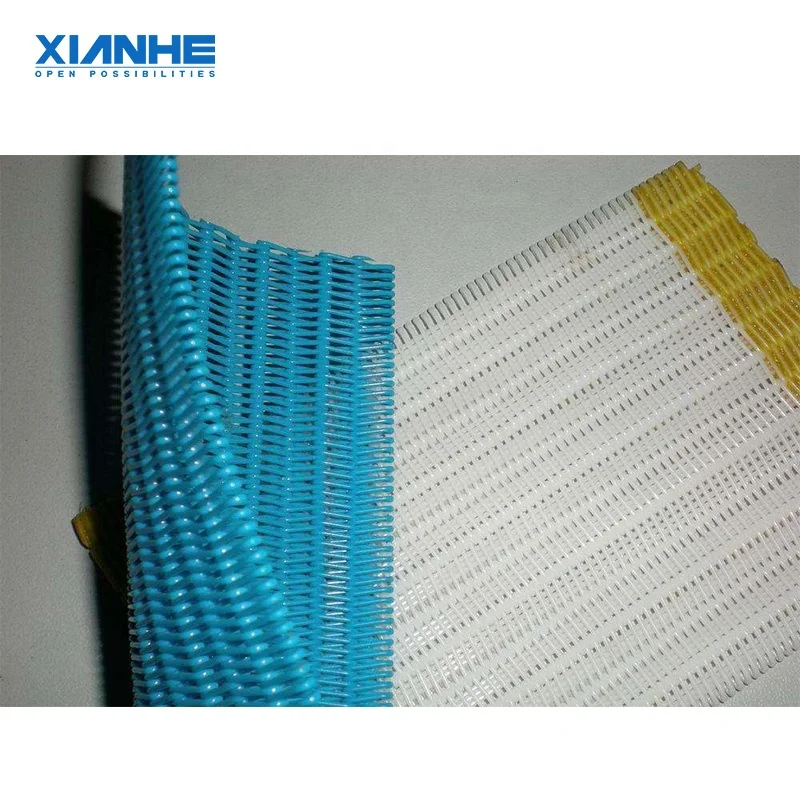

High Quality Polyester Spiral Dryer Belt Filter Cloth Mesh Fabrics Conveyor Belt

Application:

Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets and single whiteboard paper.

1. Drying of textile printing and dyeing products
2. Filtration and sieving in varies filed
3. Foodstuff processing
4. Fruit pressing
5. In coal mining, food, medicine and other industries of conveyor equipment



Feature:

1. High strength

2. Good air permeability

3. Low thermal shriking

4. Against heat and moisture,dry the wet web from 60% moisture to 2% moisture with help of drying fabrics

5. Flat surface

6. Stable property

7. Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc

8. A long lefespon(running life of three to Twelve months (even more than this which is depending on the usage and many more machine parameters)



Specifications:



Type	Specification of single loop mm	Monofil diamater mm		Strength N/cm	Thickness mm
		Spiral loop monofil	Threading
Super loop	4.8X10	0.9	1.1	2300	3.03
Large loop	3.8X7.0	0.68	0.9	2000	2.45
Medium loop	3.5X6.0	0.68	0.9	2000	2.45
Small loop	3.2X5.2	0.5	0.8	1800	1.87
