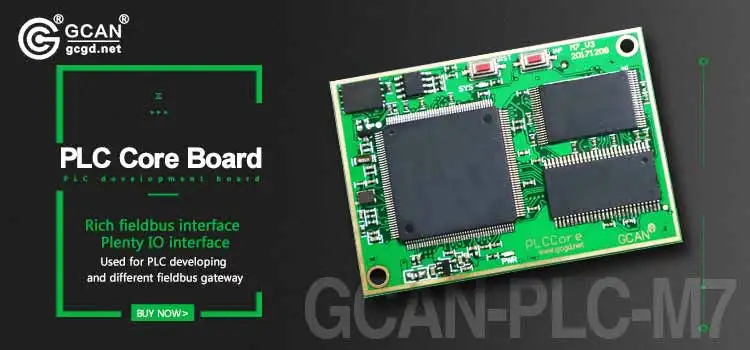

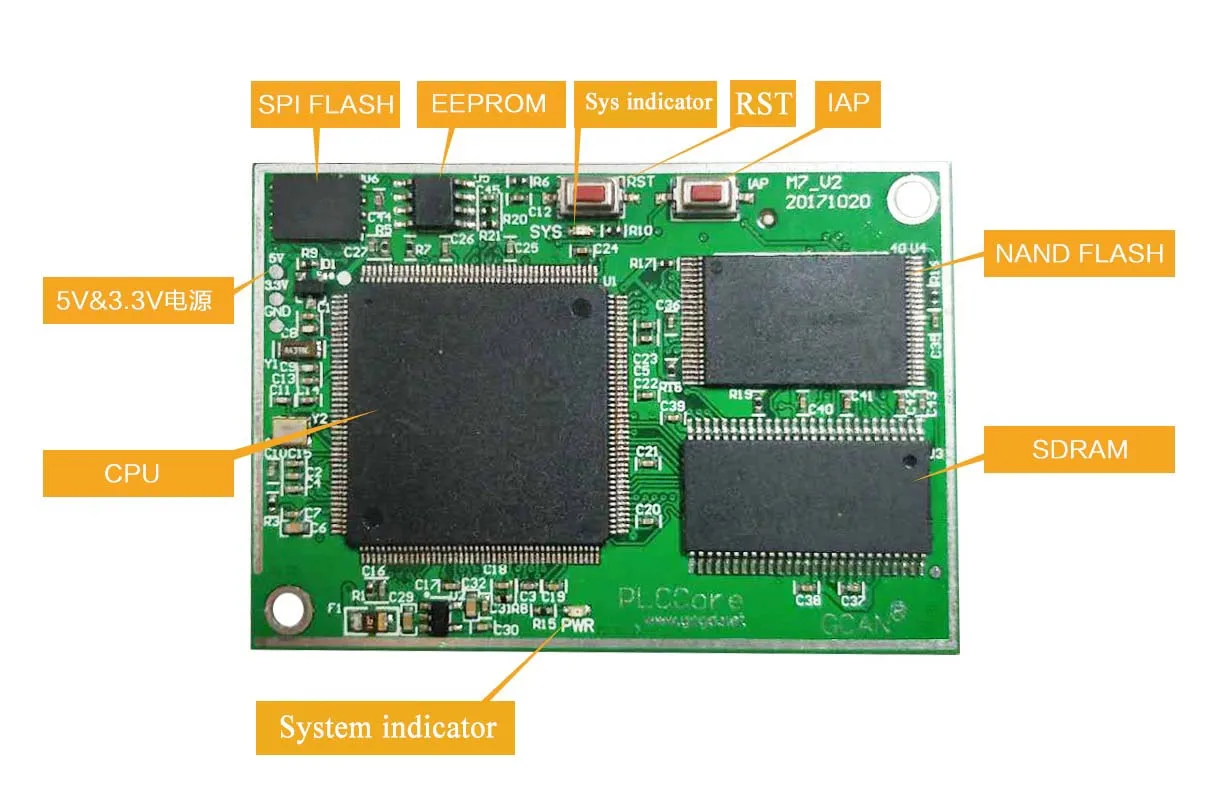

GCAN-PLCcore-M7 is a plug-and-play core module. The module CPU adapts high-speed Cortex M7 processor and leads to all pins ofCPU,which not only support rich digital/analog,input/outout functions ,but also support CAN,Ethernet,serial,several kinds of industrial fiedbus.In addition to this,the core module has intergrated several kinds of storage equipment to use.
GCAN-PLCcore-M7 module has pre-installed IEC 61131-3 runtime kernel,and program it with using OpenPCS software.this software support 5 lanfuages including SFC,LD,FBD,ST,IL.users can use this core module to build PLC control system by flexible development environment and rich functions to decrease development cost.This core module support OEM and custom product you want.
PLC core - M7 Controller feature
Controller
STM32F7
Kernel
ARM® 32-bit Cortex®-M7
Processor frequency
216MHz
PLC procedure storage space
256MB
RAM
256MB
Data storage space
1GB
Interface feature
Ethernet
1 channel, 10/100Mbps
RS232/RS485
4 channels, 600bps~115200bps
CAN interface
2channels, conform to ISO 11898 standard, support CAN2.0A/B
Digital input/output
50 channels DI/DO（multiplex）
Analog input
6 channels（multiplex）
Analog output
2 channels（multiplex）
Onboard interface
Double 60pin socket, 0.8mm pin spacing
Software
Integrated IEC61131-3 runtime kernel
Programming interface
RS232, TCP（optional）, CAN（optional）
RTC
Onboard real-time clock, need connect external battery

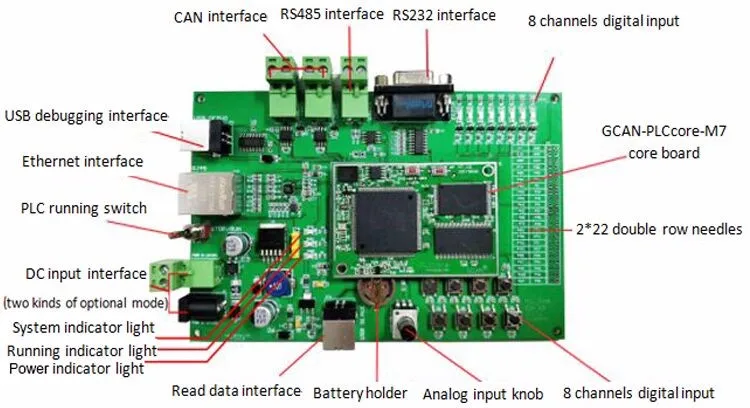

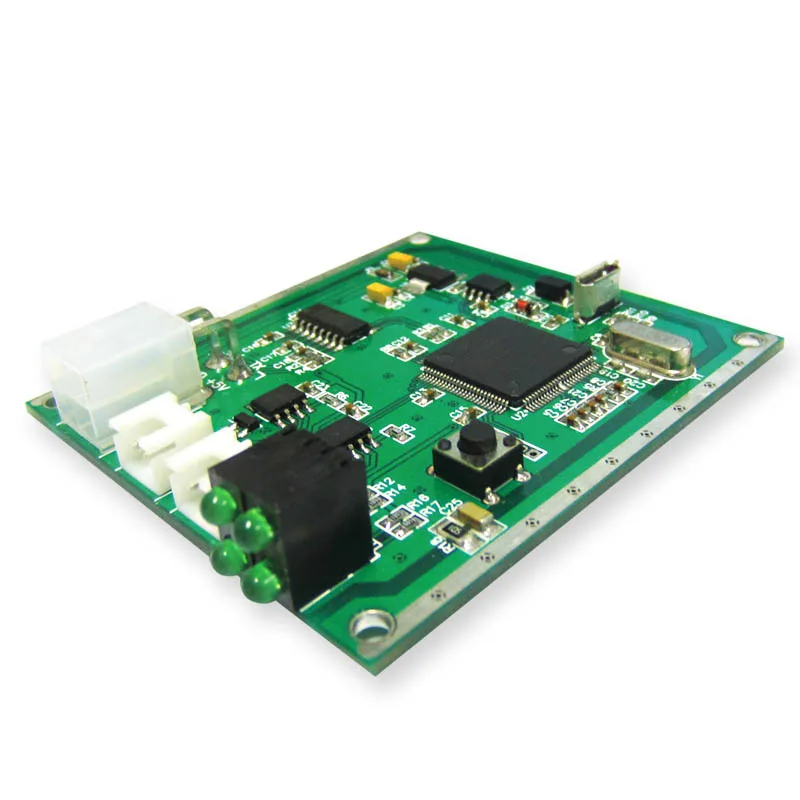

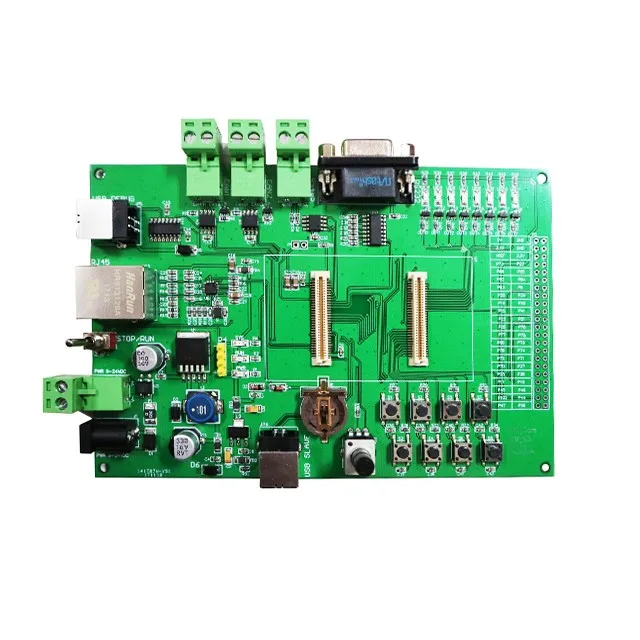

GCAN-PLCcore-M7 + development suite GCAN-PLCcore-M7 development suite uses for running GCAN-PLCcore-M7 module rapidly.The circuit we offer can simplify the hardware design user develop.The suit had several kinds of function interface including power interface,one-channel Ethernet interface,one-channel RS232 interface,one-channel RS485 interface,two channels CAN interfaces,8-channels DI interfaces,8-channels DO interfaces,one-channel USB serial,one RTC battery holder. The board also has a 2*22 double row needles and uses for leading the rest pins in the module including power and IO interface. User can connect signal to external circuit you developed to satisfy all kinds of demands.
Core board feature
Core board
GCAN-PLCcore-M7
Kernel
ARM® 32-bit Cortex®-M7
Interface feature
Ethernet
1 channel, 10/100Mbps
RS232/RS485
1 channel, 600bps~115200bps
CAN interface
2channels, conform to ISO 11898 standard, support CAN2.0A/B
CAN baud rate
1000K, 500K, 250K, 200K, 125K, 100K, 50K, 20K
Digital input
8 channels DI,pushbutton input
Digital output
8 channels DO,LED indicator light
Onboard interface
Double 60pin socket, 0.8mm pin spacing
Programming interface
RS232
RTC
Onboard real-time clock, need connect external battery
Supply power
Voltage
+9-30V DC
Environmental testing
Working temperature
-40℃~+85℃
Working humidness
15%~90%RH, without condensation
EMC test
EN 55024:2011-09
EN 55022:2011-12
IP grade
IP 20
Basic information
Dimension
150mm *100mm
Weight
100g
Our Company
Our Service
After-sale service Our main products are all independent research and development.We provide one year free after-sales warranty, lifetime free software and technical support if you have any question，our after-sales engineer will answer for you, please feel free to purchase.
