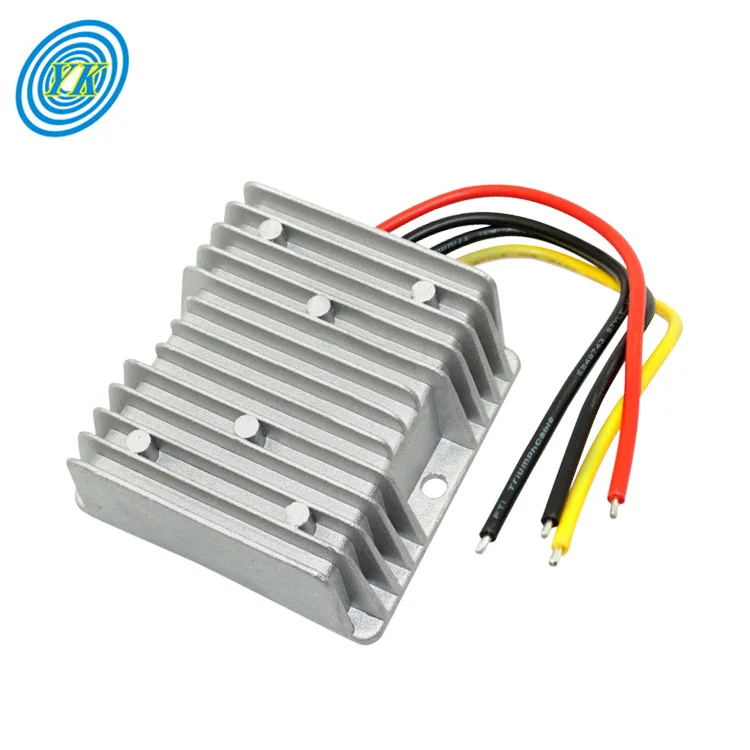

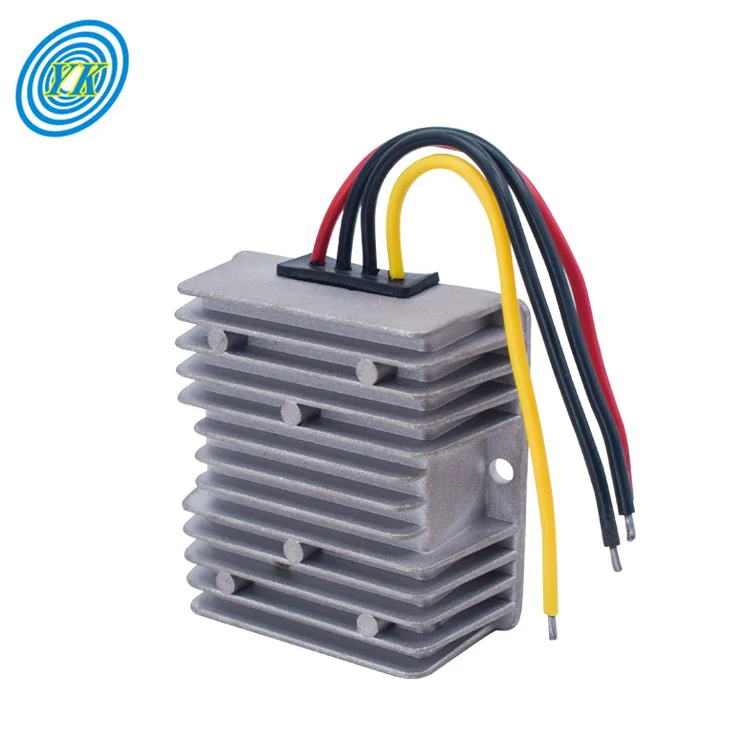

Step down voltage regulator 30 90v to 12v 10A dc dc buck converter
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (62329843684):
Product Overview
Description
Products Description
1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. Wide input range
5. Built-in EMI filter, low ripple noise
6. 100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage / Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours
2. SMT Process
3. Non-Isolated Module
4. Wide input range
5. Built-in EMI filter, low ripple noise
6. 100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage / Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours
Product Paramenters
Product Name | DC DC Converter |
Model | YK-DD80S1210 |
Input voltage | 80V(30--90V) |
Output voltage | 12V |
Output current | 10A |
Power | 120W |
Efficiency | 90% |
Working temperature | -40℃~~+80℃ |
Waterproof rating | IP68 |
Weight | 260G |
Size | 74*74*32mm |
Installation length | 13-15cm |

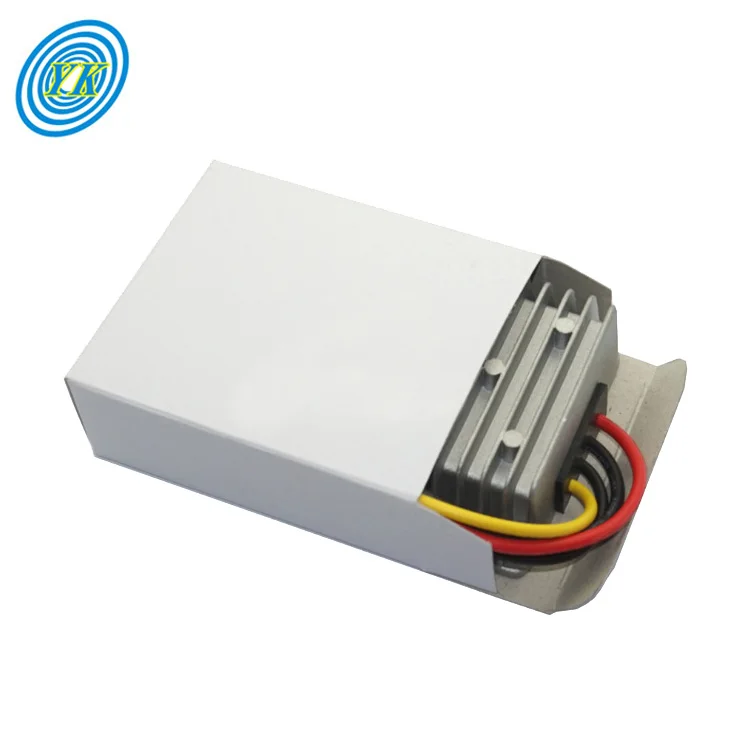

Details Images
Recommend Products Range
BUCK DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD1224S5** | 12V/24V | 5V | 3A|5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD24S12** | 24V | 12V | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A | |||
YK-DD24S13.8** | 24V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD24S19** | 24V | 19V | 5A|10A|15A | |||
YK-DD36S12** | 36V | 12V | 5A|10A|15A|20A|30A|50A|60A | |||
YK-DD48S5** | 48V | 5V | 5A|10A|15A|20A | |||
YK-DD48S12** | 48V | 12V | 5A|10A|15A|20A|30A|50A|60A | |||
YK-DD48S13.8** | 48V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD48S19** | 48V | 19V | 5A|8A|10A | |||
YK-DD48S24** | 48V | 24V | 3A|5A|10A|15A|20A|30A|40A|50A | |||
YK-DD60S12** | 60V | 12V | 5A|10A|15A | |||
YK-DD60S24** | 60V | 24V | 5A|10A | |||
BOOST DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD12S24** | 12V | 24V | 1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A | |||
YK-DD12S19** | 12V | 19V | 5A|8A|10A|15A|20A | |||
YK-DD12S28** | 12V | 28V | 3A|5A|8A|10A|15A|20A|25A|30A|40A | |||
YK-DD12S48** | 12V | 48V | 1A|2A|3A|4A|8A|10A|15A|20A | |||
YK-DD24S48** | 24V | 48V | 3A|5A|10A|20A|30A|40A | |||
YK-DD24S36** | 24V | 36V | 5A | |||
BUCK& BOOST DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD12S12** | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A | |||
YK-DD12S13.8** | 8-40V | 13.8V | 3A|5A|10A|15A|20A|25A | |||
YK-DD24S24** | 9-40V | 24V | 2A|3A|4A|6A|10A|15A | |||
