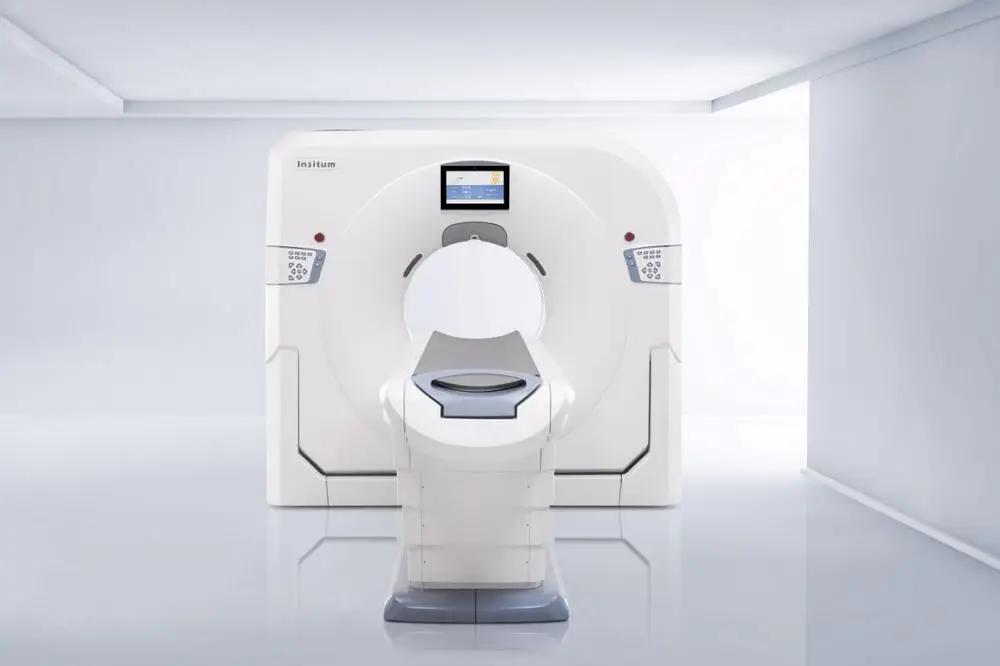

64 Slice Spiral CT Scan with Cardiac Package tomography equipment

Key Features :

l       76cm large bore:Fast workflow and comfortable scan environment

l       64 slice high definition image

l       8.0MHu X-Ray tube heat capacity

l       80kW Generator power rate

l       50cm Scan FOV

l       1950mm Patient table movement range

l       250kg Patient table load capacity

l       Reconstruction Matrix :512×512,768×768,1024×1024

Environment requirements

l       Temperature:scan room:20°C~26°C;operation room 18°C~28°C;

l       Humidity:scan room :30 %~70 %,(Non-condensing);

operation room:20%~80%,(Non-condensing)

l       Atmospheric pressure: 70kPa~106kPa

Power requirements

a)      Power capacity:100kVA.

b)      Voltage:3-phase 380VAC,3-phase imbalance:        less than 10%

c)      Frequency:                        50Hz/60Hz ± 1Hz
