Полу автоматическая машина для упаковки бутылок, мешков, вертикальных картонных коробок

Product Overview

Description

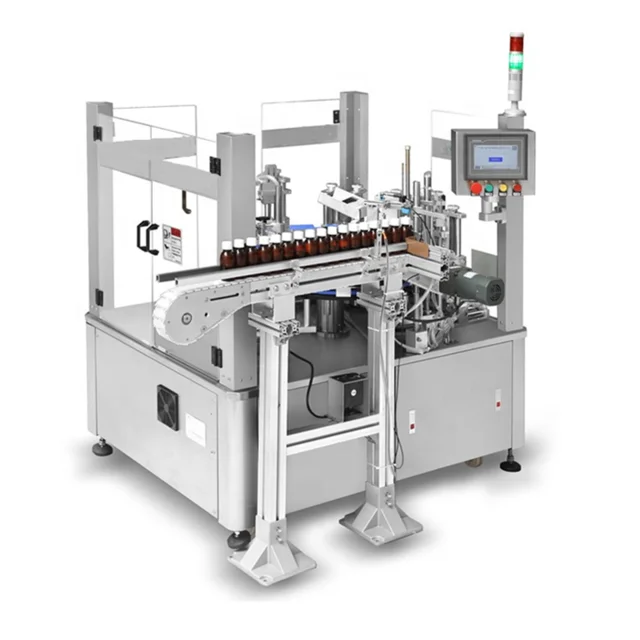

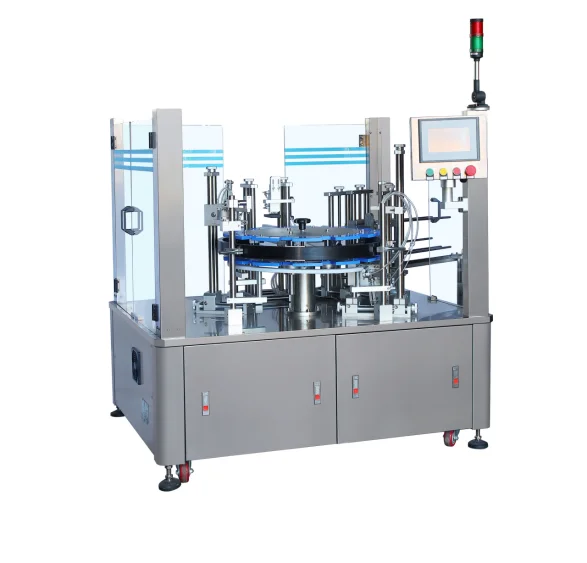

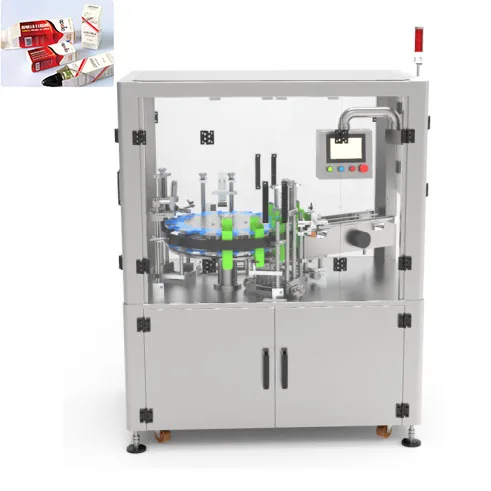

ZH-50 multifunctional semi automatic carton box packing machine

 \\







Application:

 semi automatic small box carton packing machine is widely used  in pharmaceutical industry, food industry, cosmetics industry and auto parts industry to pack the bottle, sachet, bag, plastic tube, alumium tube and lamp or any other product into the carton.

This machine can use in semi autoamtic or fully automatic (both type).



Main Technical Parameters:



Model	ZH-50S
Packing speed	20-50 Cartons/min
Carton size range	L(40-200)mm×W(12-100)mm×H(12-100)mm
Carton gram requirements	135-350g/m3
Motor power	2.5KW
Power supply	Three phase 380V /220V 50/60Hz
Machine noise	≤80dB
Air pressure	0.5-0.8 Mpa
Air consumption	150L/min
Dimension	1590×1380×1832 mm
Weight	650Kg



Feature:

1. This equipment is specially designed for small output and multi-size carton packaging.

2. Small footprint, economical and practical and suitable for a variety of boxes.

3. Save labor cost, 40 boxes per person per minute, greatly improving production efficiency.

4.The whole equipment is made of stainless steel 304.

5. The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.

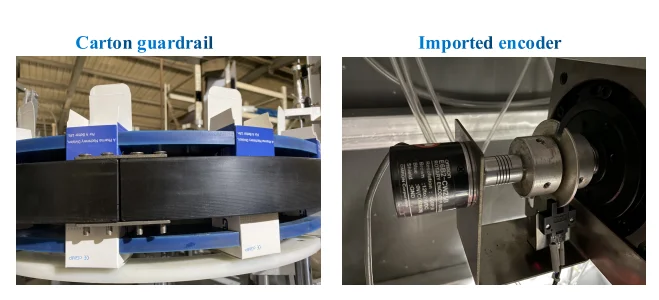

6. Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.

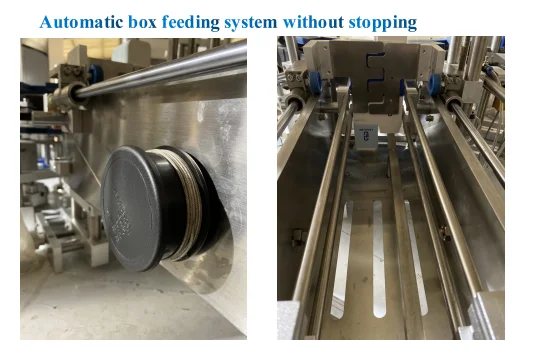

7. The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.

8. This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.

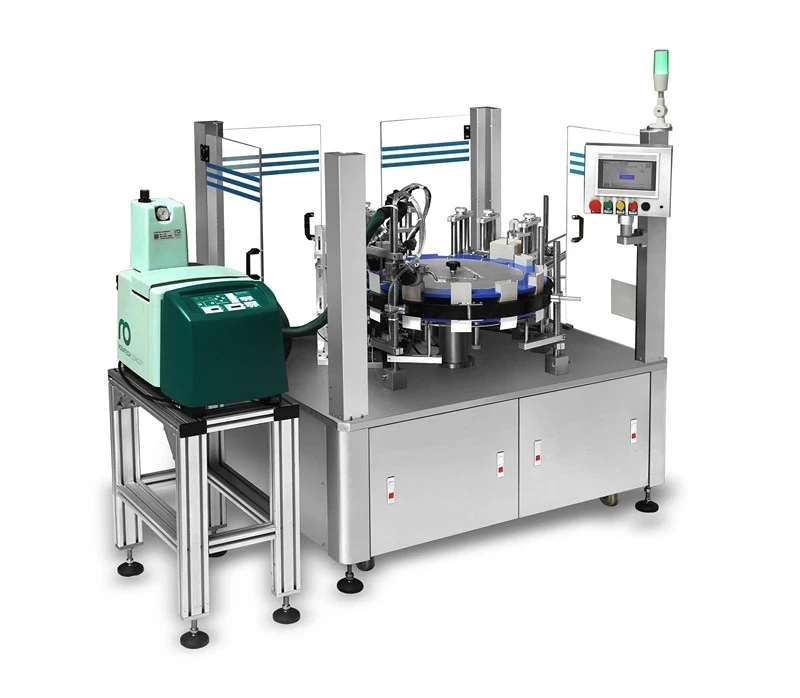

9. Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.

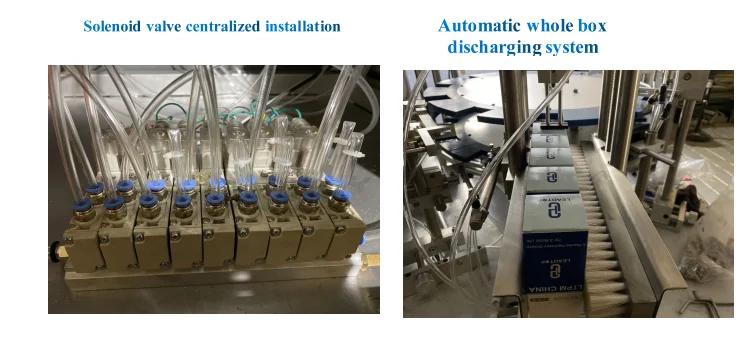

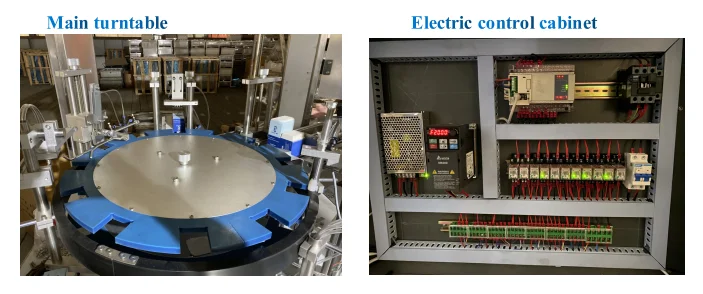

   Machine Detail:

















WORKING ROOM
