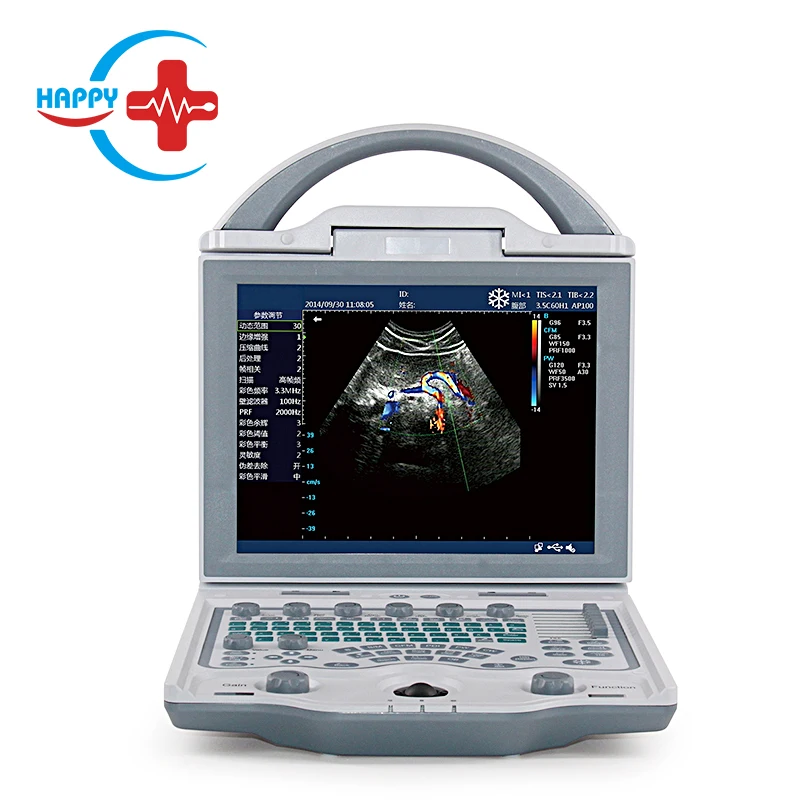

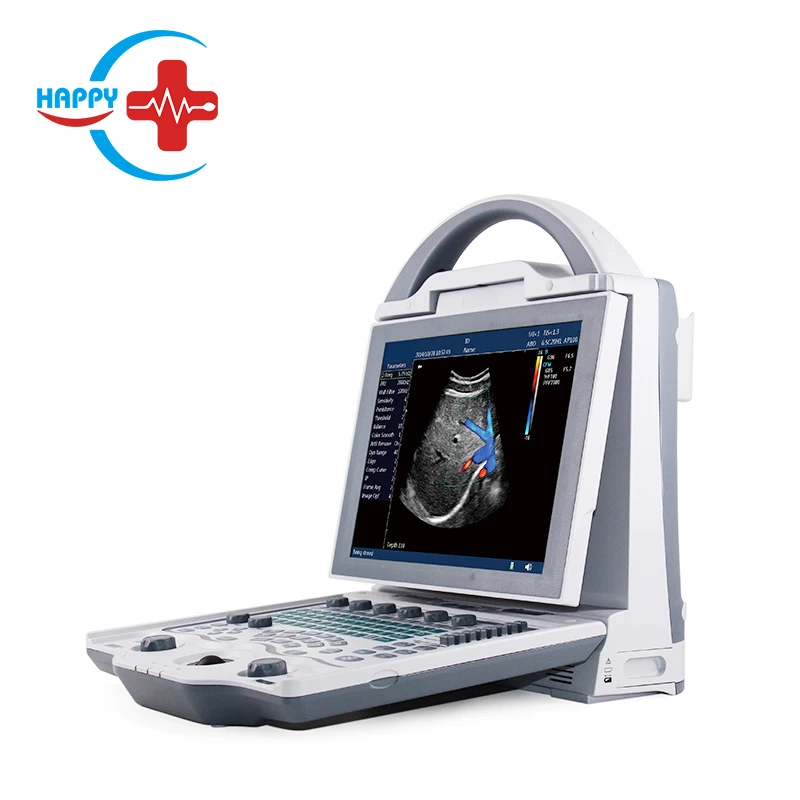

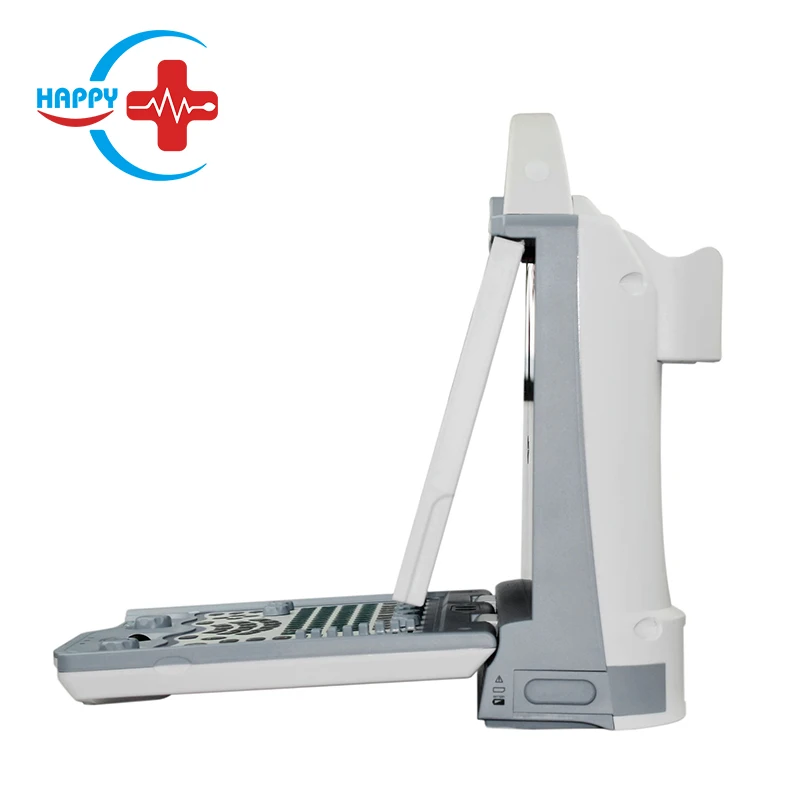

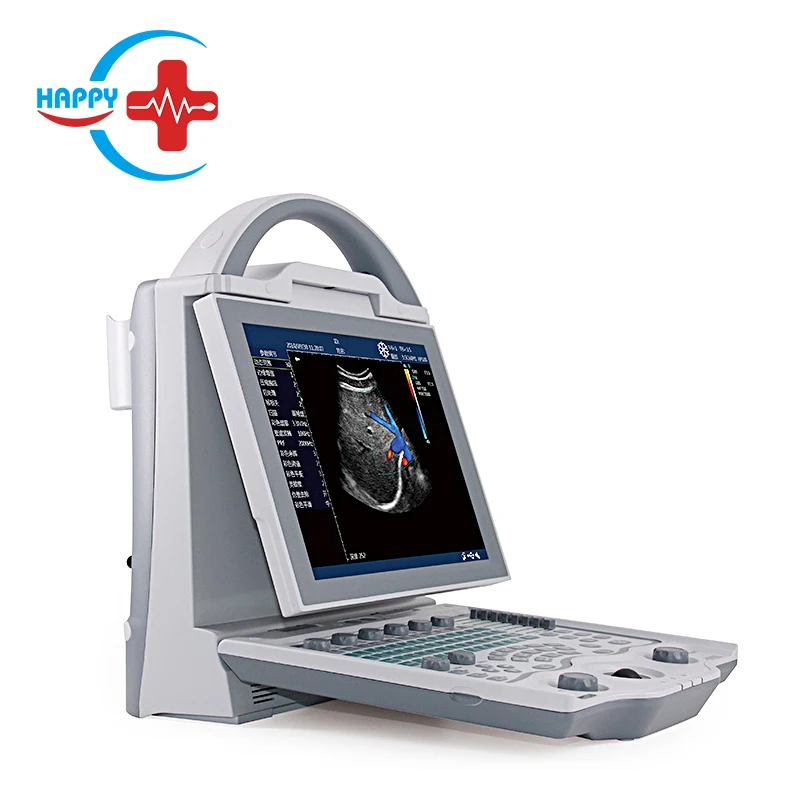

HC A012A Hot Sale Full digital portable Doppler Color Ultrasound scanner

1. General Description
HC-A012A is a portable color doppler, designed and produced by Happycare professional team. Leading image process technical and advanced and practial clinic solution method, It’s highly cost effective and reliability. It’s the ideal option for primary hospitals, clinics, etc.

HC-A012A  adopts advanced image processing techniques and advanced practical clinical solution, which is applicable to diagnosis of abdomen, GYN, OB, superficial organ, cardiac, peripheral vascular, urology department and orthopedic surgery. With scalable design, upgrade continuously, fully satisfy the clinical application extension.

2. Reasonable Humanization Design
 10.4’ color LED full screen display, angle adjustable;

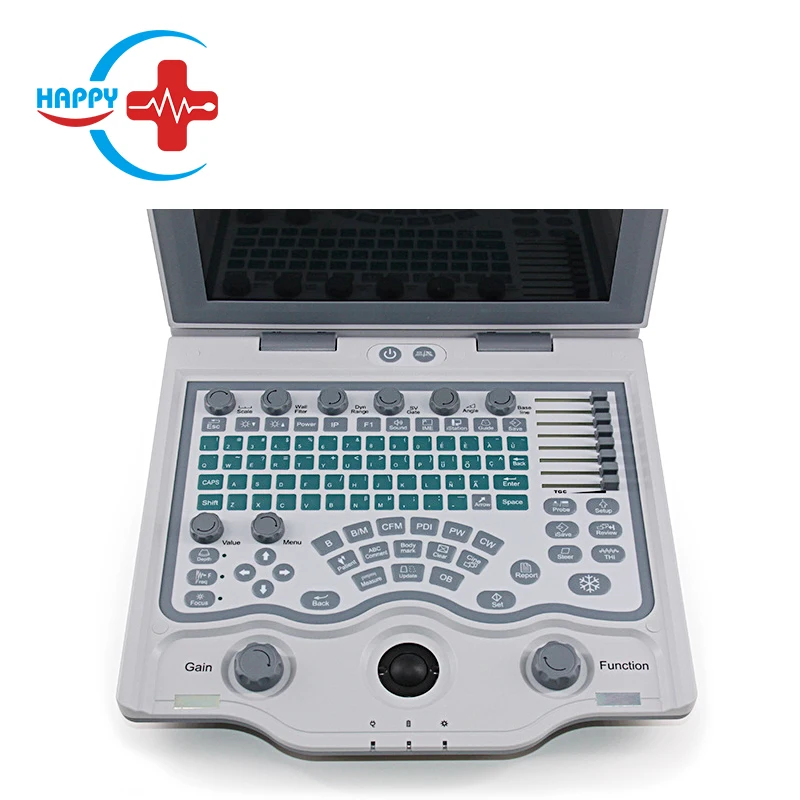

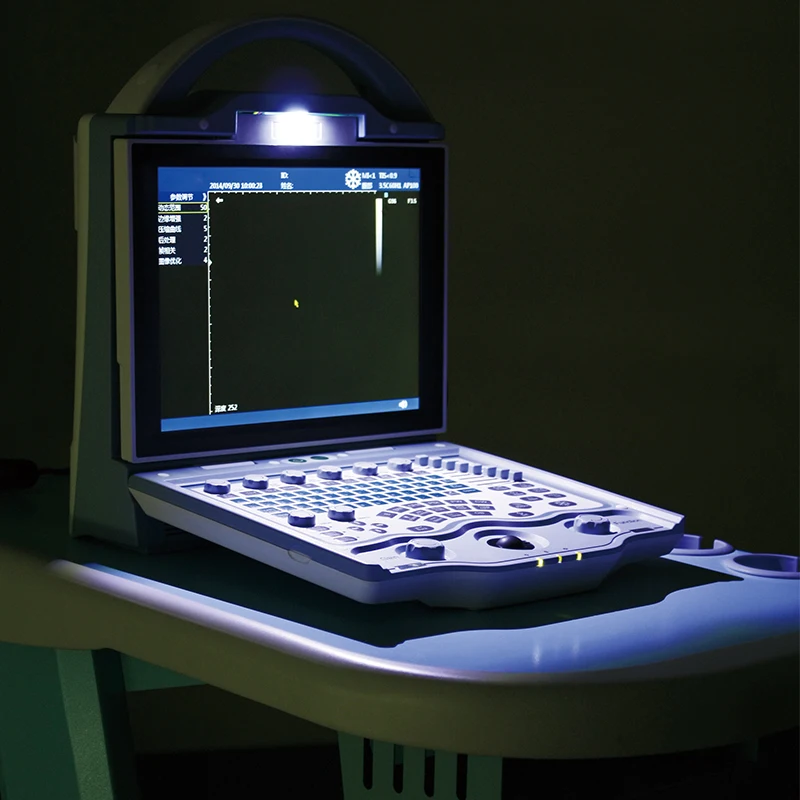

 One-key-light keyboard function for black room use;
 One button operation including one-key storage image, one-key review, one-key print, etc;

Quick look up stored image function,raise working efficiency;
 Multi-functional knob design, realise one-key quick adjustment in multi-mode;

3. Powerful Data Management
 Optimize checking image function, realize 1-2 second response;
 Intelligent user defined, one-key review and storage function;
Neoteric internal workstation multi-plan module, quickly finish data, report, realize process multi medical histories function;

4. Abundant Document Management
 I-Station integral work station, connect to network, realize one-key print;
 Large internal 16G disk storage capacity, permanent massive storage, without loss when power off. BMP format image ≥10,000 frames, PNG format image ≥100,000 frames;

5. The main system Performance Overview
 Built-in embedded A8 platform, totally against virus invasion, with high reliability.
Operating System: Linux operating system, Chinese / English menu switch arbitrarily;
Full digital multi-beam forming technology, precision delay-by-point dynamic receiving focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging;
 Ultra-wideband fully digital beamformer: Dynamic Focus;
 Gray-scale imaging unit;
 M-mode imaging unit;
 Visual and adjustable dynamic range;
 Gray-scale imaging unit, gray scale ≥256 level, with excellent contrast resolution and overall uniformity;

6. Technical parameters
6.1 Specification parameters
 Gray scale: 256;
 Color bands: 256;

 Display: 10.4 " high resolution, medical dedicated LCD color display;
 Network Power: 100-240V ~ 1.2-0.6A frequency: 50-60Hz;
 Adapter output: DC12.8V 3.0A;
 Power: ≤100VA
 Main unit Size: about 256 × 150 × 326 (mm, length × width × height);
 Net weight: 4.5Kg (no attachments);
 Operation mode
B,B/B,4B mode
M,B/M mode
Color flow mode(CFM)
Power Doppler mode(PDI)
Pulsed-wave Doppler(PW)
Tissue harmonic imaging(THI)

6.2 Multimedia and peripheral equipment
 Video recorder;
 I-Station integrated work stations, support store images, report generation and cloud printing;
 U disk (support file management, software upgrades, and one-key storage), DICOM interface, convenient for doctor's data management, remote transmission;
 Dual-mode TV output: PAL/NTSC

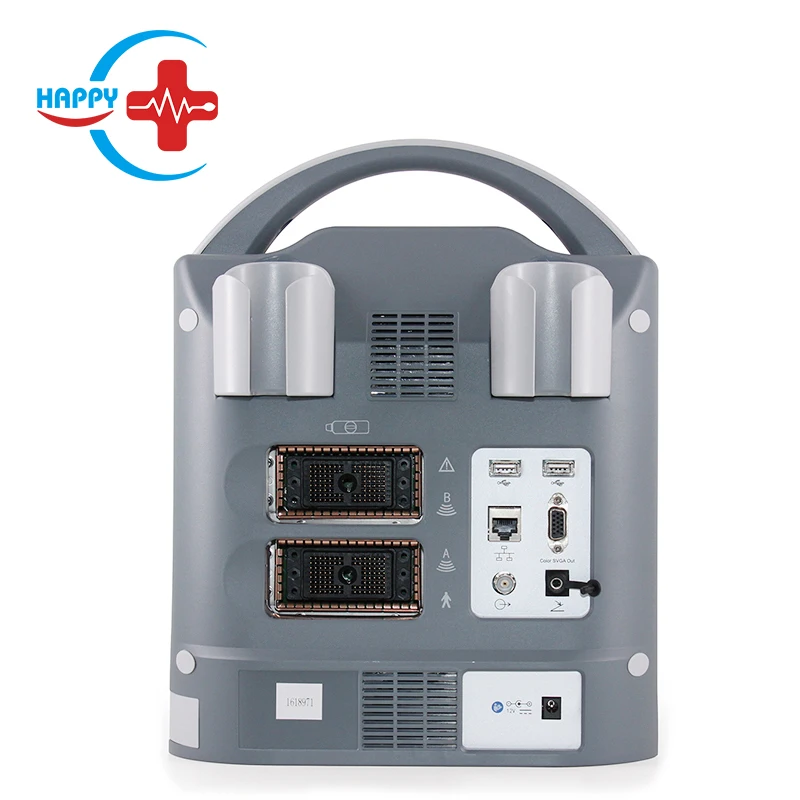

6.3 Probe Interface
 Probe Interface: 2 activation probe interface, with automatic identification technology, support for multiple probe matching;

6.4 Language
 Manu operation:
The interface language: Chinese / English switchable

7. Optional Configuration

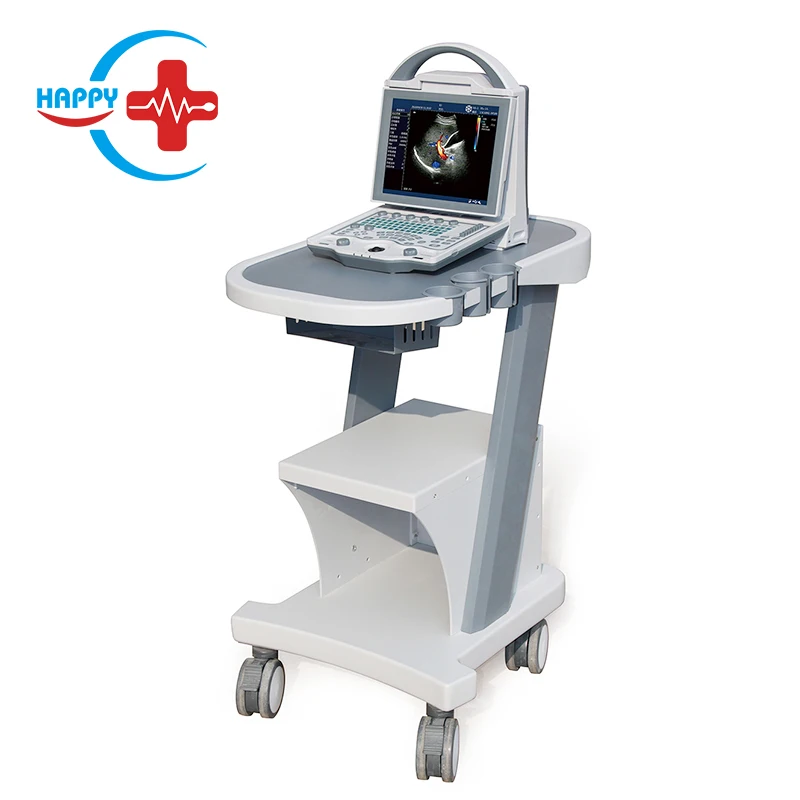

 Trolley
 Foot switch
 Thermal printer (sony UP-897MD)
 Ethernet switch
