6x4 HOWO 25000 liters RHD LHD lpg tanker truck

Product Overview

Description

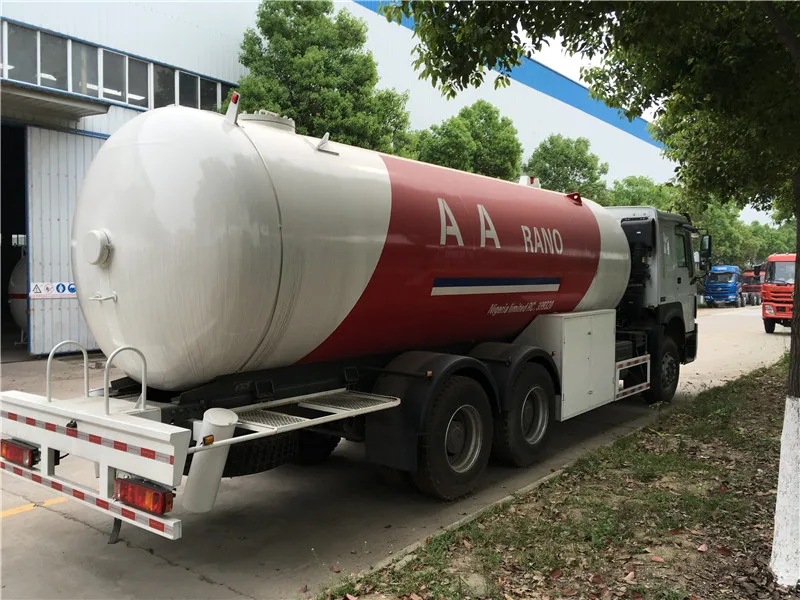

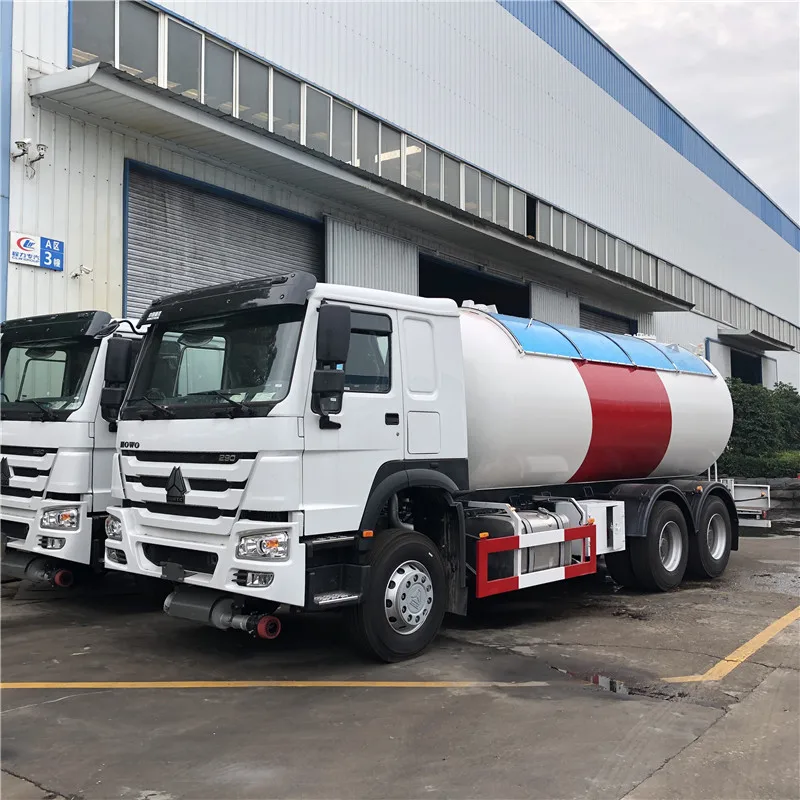

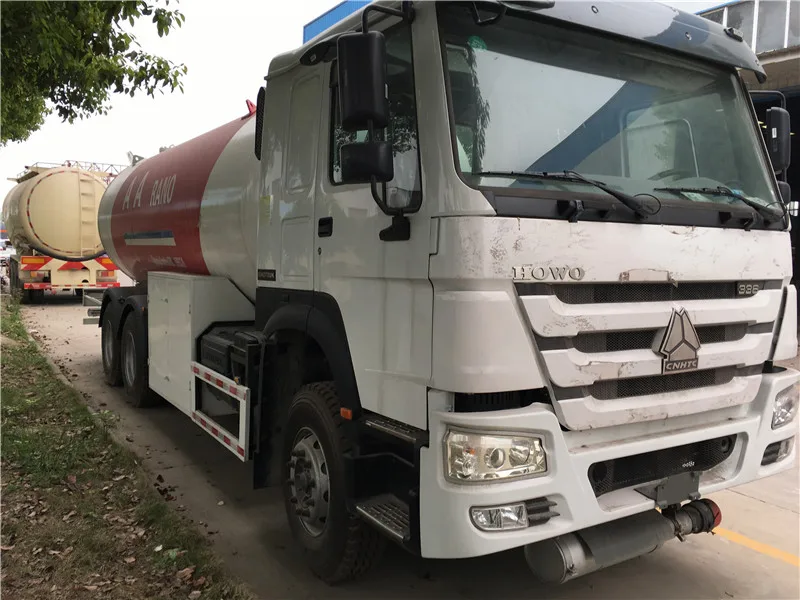

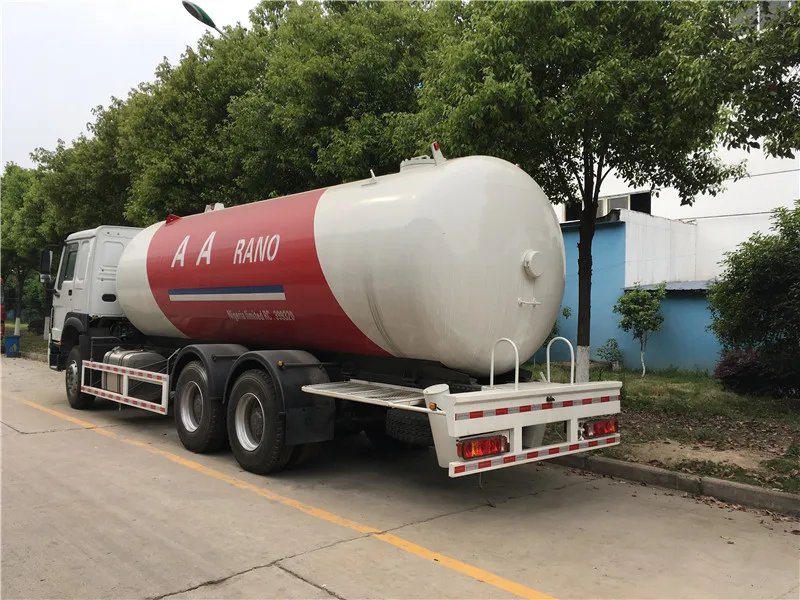

6x4 HOWO 25000 liters RHD LHD lpg tanker truck

Ⅰ. The Product Description

The volumes of the lpg gas tank truck are mainly from 3cbm to 45cbm.



The Parameters of 6x4 LPG Truck
Overview
Name	6x4 LPG Truck
Overall Dimension(LxWxH)	9980X2500X3380(mm)
Total Mass	39005 Kg
Rated Payload	30000 Kg
Kerb Weight	9005 Kg
Passenger	3
Approach/Departure Angle	18/12
The Parameters of Chassis
Manufacture/Model	HOWO
Driving Type	6*4 left/right hand drive
Wheel Base	4350+1300,4350+1350 mm
Gearbox	Seven/Eight speed lever with six/seven speed forward and one reverse, manual
Front/Rear Track	1986,2040/1860,1860(mm)
Tyre	10.00-20
The Number of Tyre	10+1(spare tyre)
Front/Rear Suspension	1460/2350,1460/2300
Leaf Spring Number	8/9,8/10
The Paremeters of Engine
Manufacturer/Model	Weicai
Rated Power	366hp
Fuel Type	Diesel oil
Displacement/Capacity	7800ml
Emission Standard	Euro3
Cylinder	Straight/6/intercooling
Max. torque	700N.m
Velocity	2500rpm
The Parameters of Equipment
Color/LOGO	Customizable
Function	Transporting LPG,ammoina,ether,etc
Volume of Tank	25 cbm
Meterials	Carbon Steel,stainless steel,aluminum,etc.

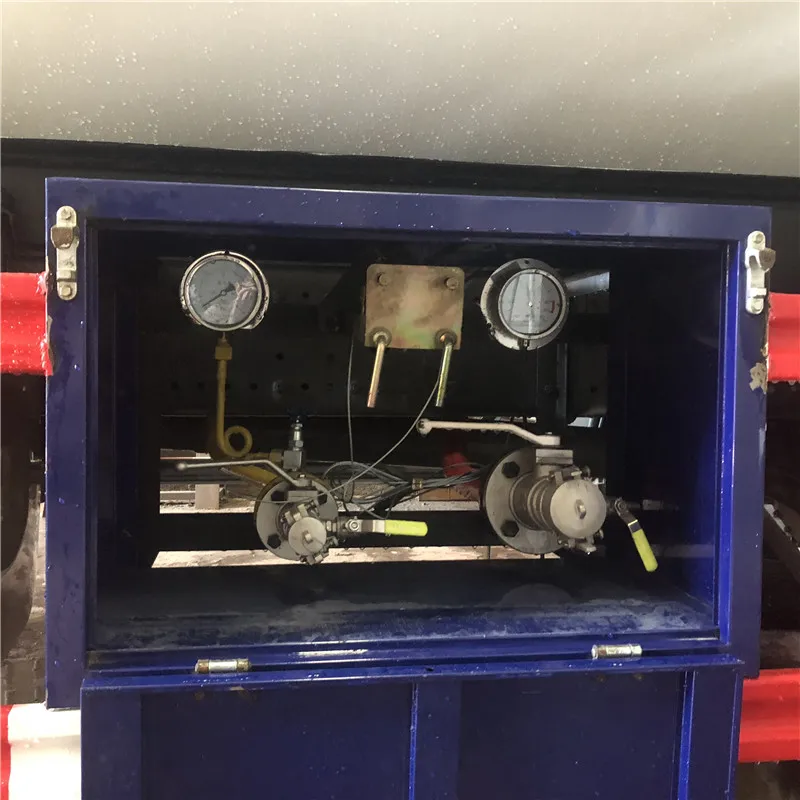

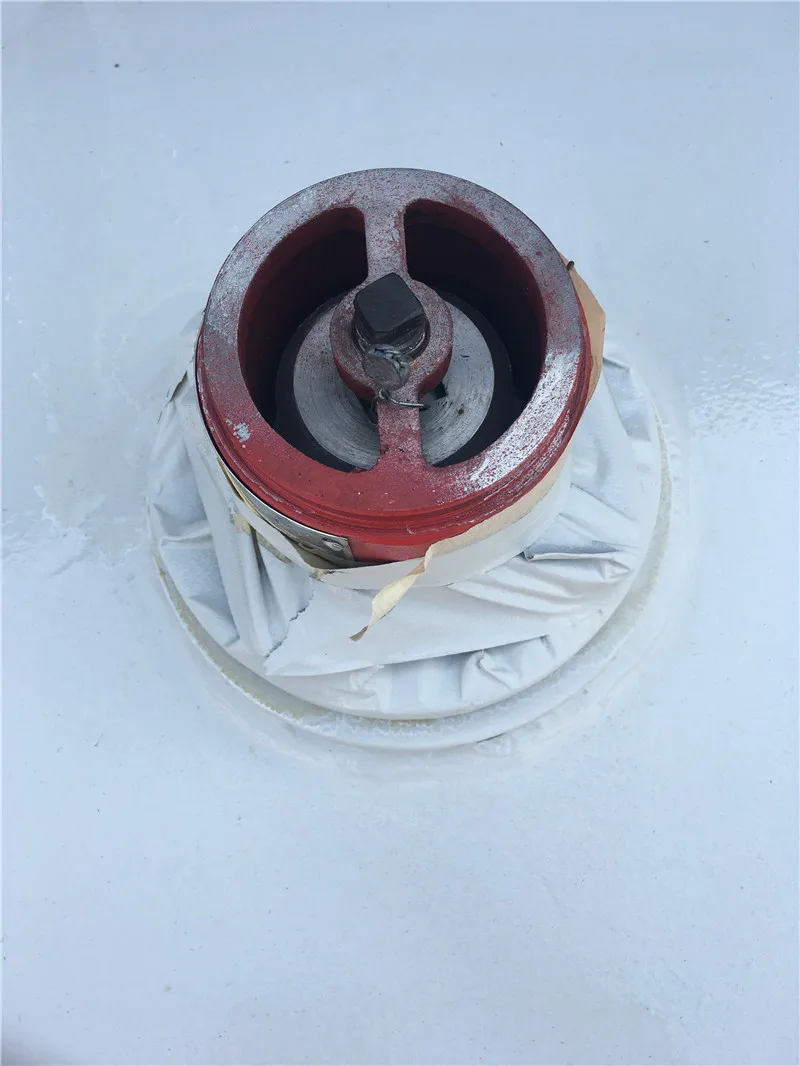

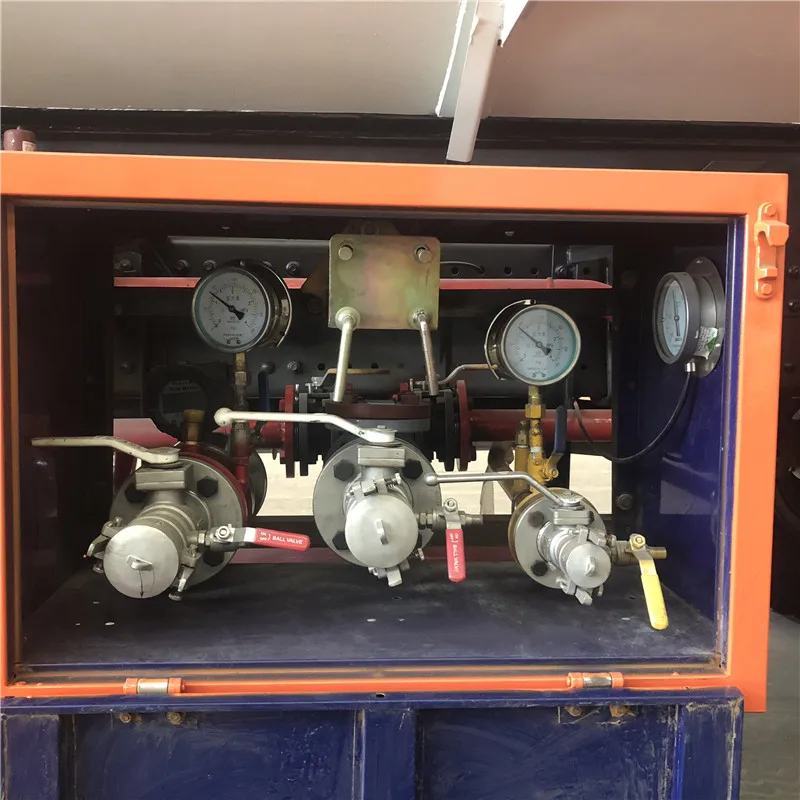

Accessories	Inlet and outlet, double sides loading and unloading, double pumps box, tool box, safety valve, temperature meter, pressure meter, emergency shut valve, 1 pcs spare tire, fire extinguisher, static electricity protection ground tape, etc.



The working medium of the lpg truck includes LPG, ammonia, ether, etc.



The materials of the lpg truck could be carbon steel, aluminum, stainless steel, etc.





The dimension of the lpg truck is customizable. The color/LOGO of the lpg truck is customizable.

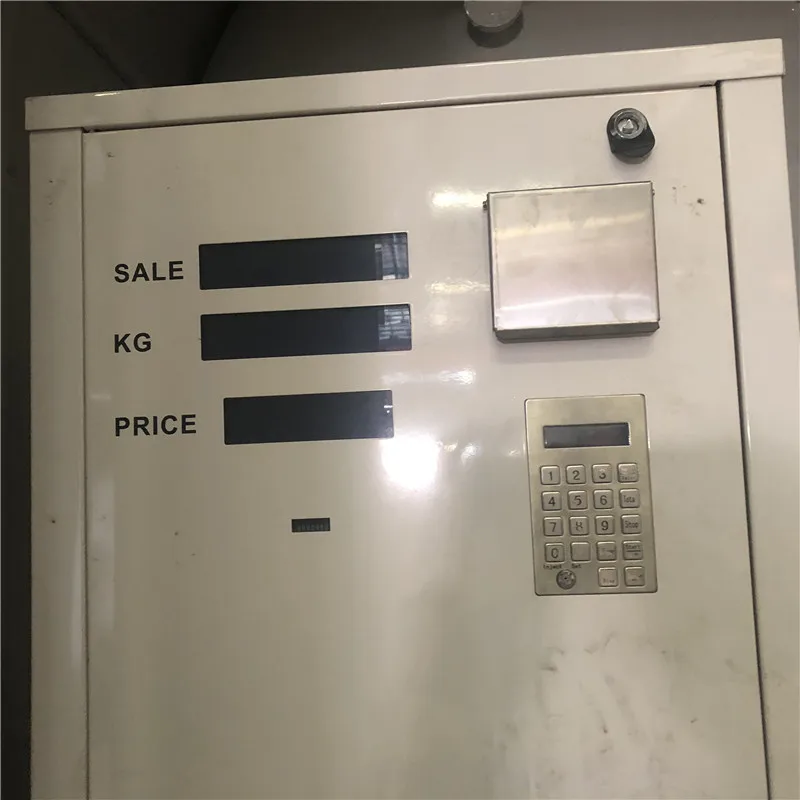

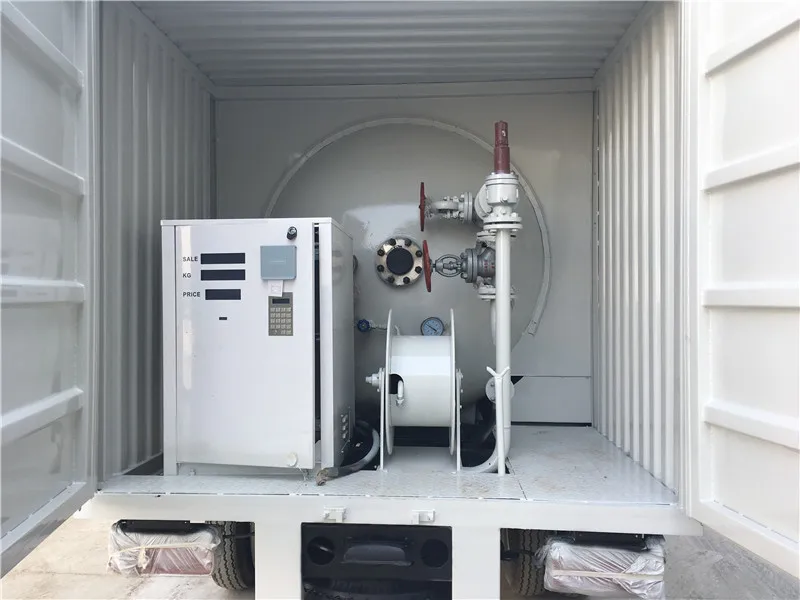

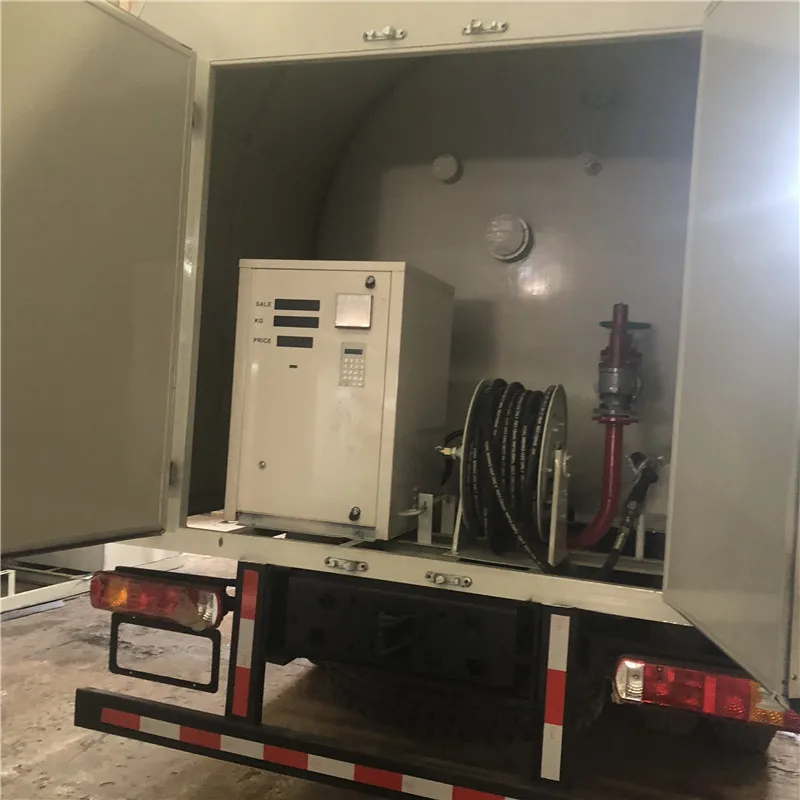

The basic equipment of the lpg gas tank truck includes liquid level indicator, gas dispenser, inlet and outlet, pump box, tool box, safety valve, temperature meter, pressure meter, emergency shut valve, 1 pcs spare tire, fire extinguisher, static electricity protection ground tape, etc.



The optional equipment of the lpg gas tank truck includes air compressor, ASME standard, etc.



For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.



 Ⅱ. Packaging&Shipping

We provide Ro-Ro, container and bulk shipping.

Ⅲ. Our Factory&Certificate

Hubei Dali Special Automobile Manufacturing Co,. ltd. is located in the China special automobile industry city-Suizhou, Hubei Province. The company is the first domestic private enterprise entering the special automobile industry, which is also the first pressure tank vehicle manufacturing private enterprise and got the quarantine license from General Administration of Quality Supervision of China. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service. Dali Special is a high-tech enterprise in Hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.
