OEM TB Series Sublimation Heat Transfer Printing Paper Polyester Film Release Layer Silicone Oil Comma Blade Coating Machine
- Category: >>>
- Supplier: Wenzhou Dayu Machine Co. Ltd.
Share on (62329961213):
Product Overview
Description
OEM Customizable Automatic PLC Control TB Series Sublimation Heat Transfer Printing Paper Polyester Film Release Layer Silicone Oil Comma Blade Coating Machine
Why Choose Us
(1) OEM or Customizable Coating Laminating Machines from 2000.
(2) “Quality is our Culture.” QC team to strive to provide superior-quality machines.
(3) Customer’s factory visit and machine performance inspection available.
(4) Machine operation training, technician dispatch are available.
(5) Satisfactory service with professional English-spoken workers.
(6) One year guarantee, Lifetime service.
(7) 100% Recommended by old customers.
(8) Certificate ISO, CE, SGS.
(9) “QUALITY AGREEMNT”, “REFUND MONEY AGREEMENT”
(10) Payment by T/T, L/C at sight, Western Union, Paypal, Moneygram, Cash.
The Complete Production Line Machines and technology for Hot Stamping Foil can be supplied.
(2) “Quality is our Culture.” QC team to strive to provide superior-quality machines.
(3) Customer’s factory visit and machine performance inspection available.
(4) Machine operation training, technician dispatch are available.
(5) Satisfactory service with professional English-spoken workers.
(6) One year guarantee, Lifetime service.
(7) 100% Recommended by old customers.
(8) Certificate ISO, CE, SGS.
(9) “QUALITY AGREEMNT”, “REFUND MONEY AGREEMENT”
(10) Payment by T/T, L/C at sight, Western Union, Paypal, Moneygram, Cash.
The Complete Production Line Machines and technology for Hot Stamping Foil can be supplied.

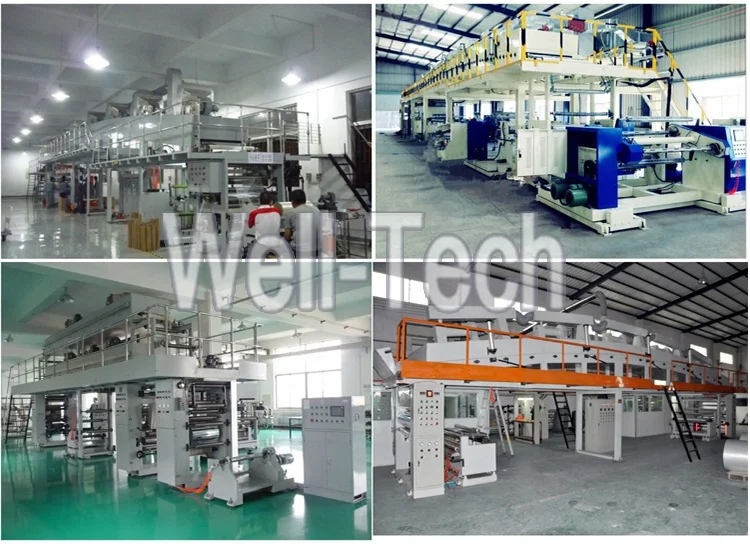

Machine Photos
Products Description
The machine is suitable for sublimation paper coating etc production
Main raw material: 40-50gsm paper
Coating material: water based (solid content 15%)
Coating method: Transfer roller, rod blade coating, comma blade coating
Main Parameters:
- unwinding unit 1set
- coating unit
- oven frame
- traction dryer cylinder frame
- rewinding cooling frame
- drive system
- Buyer's facilities and responsibility
-device list
Spec.
1 Effective width:1900mm
2 Roller width 1950mm
3 Machine speed 80m/min
4 Work speed 5-50m/min
5 Max. unwinding diameter 600-1000mm
6 Max. rewinding diameter 600-1200mm
7 Heating method: electric heating (heating 216kw, working 150kw)
8 Temperature max. 150+/-2 degree
9 Edge trimness: end side accuracy 1.5mm
10 Coating uniformity wet glue
11 Overall machine motor power 105kw
12 Machine weight 25tons
13 Machine dimension: (L*W*H) 28*4.1*5.2m
Main raw material: 40-50gsm paper
Coating material: water based (solid content 15%)
Coating method: Transfer roller, rod blade coating, comma blade coating
Main Parameters:
- unwinding unit 1set
- coating unit
- oven frame
- traction dryer cylinder frame
- rewinding cooling frame
- drive system
- Buyer's facilities and responsibility
-device list
Spec.
1 Effective width:1900mm
2 Roller width 1950mm
3 Machine speed 80m/min
4 Work speed 5-50m/min
5 Max. unwinding diameter 600-1000mm
6 Max. rewinding diameter 600-1200mm
7 Heating method: electric heating (heating 216kw, working 150kw)
8 Temperature max. 150+/-2 degree
9 Edge trimness: end side accuracy 1.5mm
10 Coating uniformity wet glue
11 Overall machine motor power 105kw
12 Machine weight 25tons
13 Machine dimension: (L*W*H) 28*4.1*5.2m
OEM Customizable Coating Laminating Machine
Application
Film coating: release film, protective film, scratch-resistant film. Hot stamping film, laser holographic film, aluminized
transfer, thermal transfer film, coating and other coating products, production, BOPP,CPP ,PET ,PP ,PVC tape, foam stickers, PE,
non-woven, PU coating, Metallic yarn coating.
Paper coating: It’s suitable for the production of paper, white cardboard, duplex cardboard, synthetic paper, PP paper, PET
sheet, high light waterproof photo paper, matte photo paper, cast coated photo paper, RC high glossy photo paper, carbonless
paper, PP Synthetic Paper and other high-tech information industry paper.
Foil coating: Household Foil, Pharmacy Foil, Cold Forming Medicine Package Foil, Food Soft Packing Foil, Container Foil, Beer
Mark, Air-conditioner Foil, Decoration Foil
transfer, thermal transfer film, coating and other coating products, production, BOPP,CPP ,PET ,PP ,PVC tape, foam stickers, PE,
non-woven, PU coating, Metallic yarn coating.
Paper coating: It’s suitable for the production of paper, white cardboard, duplex cardboard, synthetic paper, PP paper, PET
sheet, high light waterproof photo paper, matte photo paper, cast coated photo paper, RC high glossy photo paper, carbonless
paper, PP Synthetic Paper and other high-tech information industry paper.
Foil coating: Household Foil, Pharmacy Foil, Cold Forming Medicine Package Foil, Food Soft Packing Foil, Container Foil, Beer
Mark, Air-conditioner Foil, Decoration Foil
Attention Please
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating Process
Requirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating Process
Requirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products

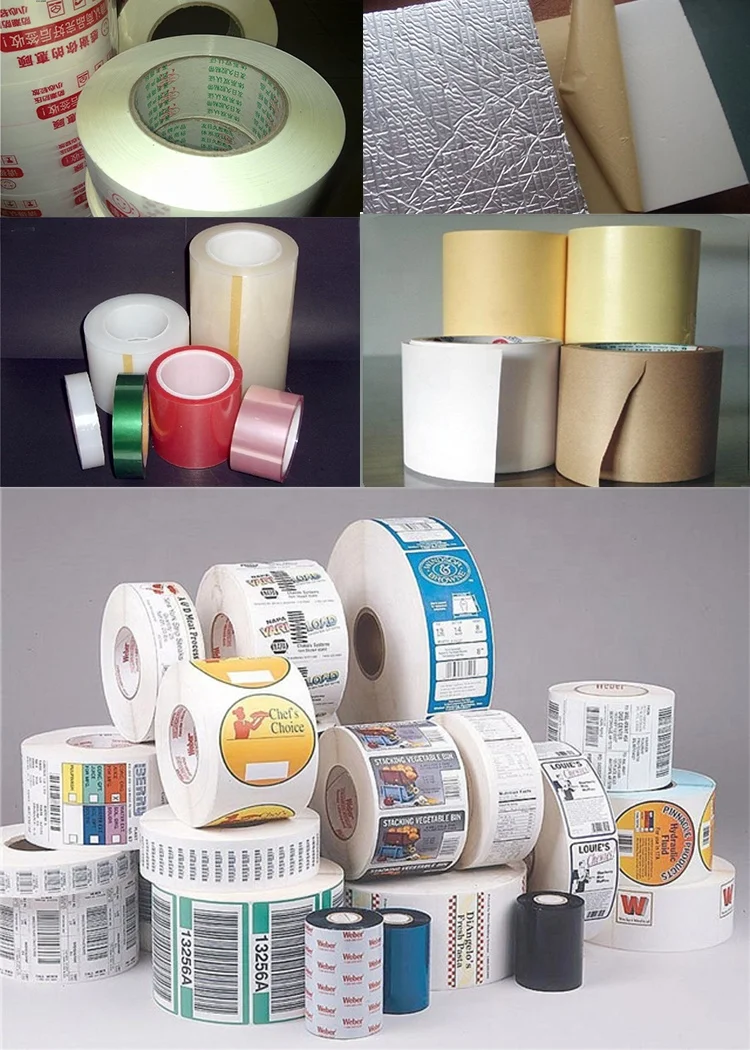

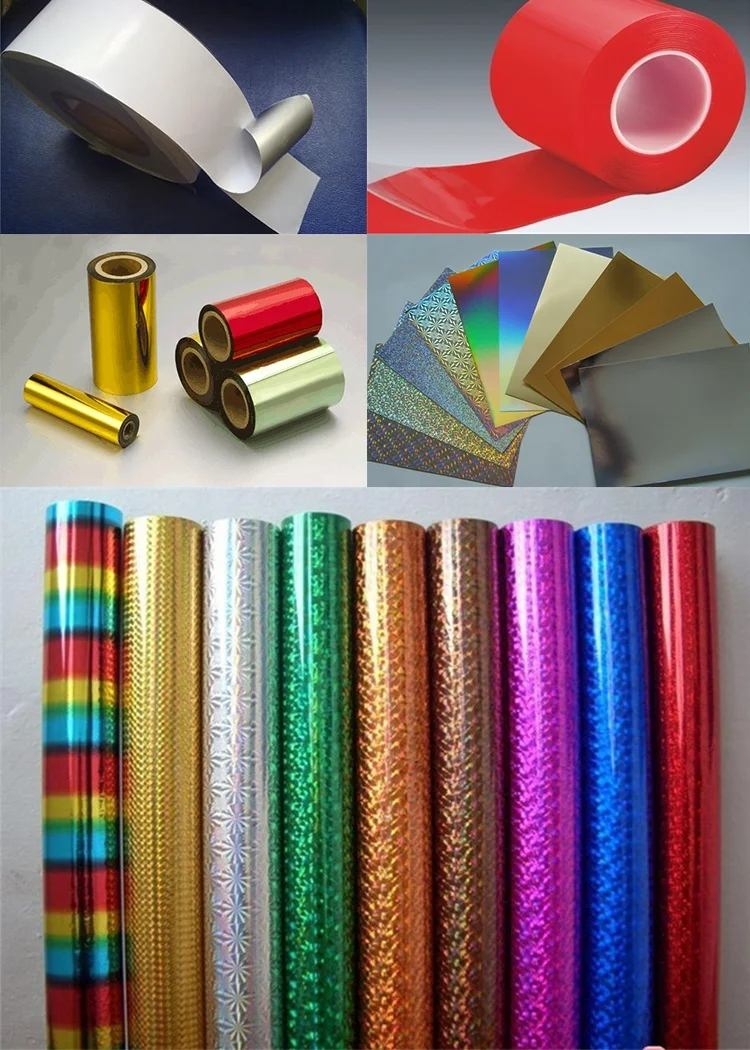

Final Products Samples
Product Paramenters
Model | TB-A (Economical type) | TB-B (Improvement type) | |
Apply to raw materials | OPP, PET, PVC, PA, CPP film, Aluminum foil and other types of plastic film , fabric and paper, etc. | ||
Width of material | 600mm to 2000mm | ||
Functions | Coating, Laminating | ||
Max. mechanical speed | 80-180m/min | ||
5Max. Speed of laminating | 50-160m/min | ||
Dry oven length | 5 meters to 35 meters, customizable | ||
Operation or control system | Operation button panel | PLC, touch screen panel | |
Mode of unwinding and rewinding | Single shaft, shaftless unwinding, Or double-station rotary rollers for unwinding, options available | ||
Max. Diameter of unwinding and rewinding | 600mm-1500mm | ||
Unwinding brake | Magnetic powder brake or air brake | ||
Tension controller | Automatic constant tension control for unwinding, torque motor or variable frequency motor for rewinding | ||
Edge position system | E.P.C or L.P.C automatic edge system, control accuracy≤1mm | ||
Coating modes | Cob-webbing rollers (Anilox roller) coating, Three-roller, steel wire, rod blade, comma blade coating, or anti-comma coating, etc. | ||
Heating modes | Electric heating ,Conduction Oil heating ,Steaming heating, etc. | ||
Oven | Arc top-opening door (controlled by pneumatic), explosionproof oven optional | ||
Reflector cover | Stainless steel | ||
Temperature control system | PID intelligent temperature controller, temperature control accuracy≤±2℃ | ||
Machines Delivered
Company Profile
Contact Us
Well-Tech
Your Best Choice!
Attention Please
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating ProcessRequirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Contact Us
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
Welcome to contact us.
“With us your MONEY in SAFE; Your BUSINESS in SAFE.”
