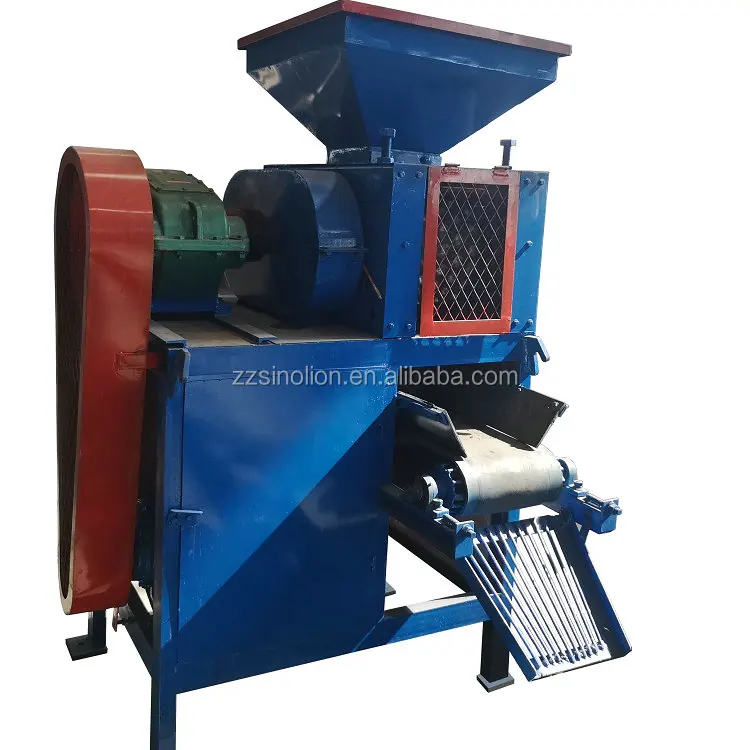

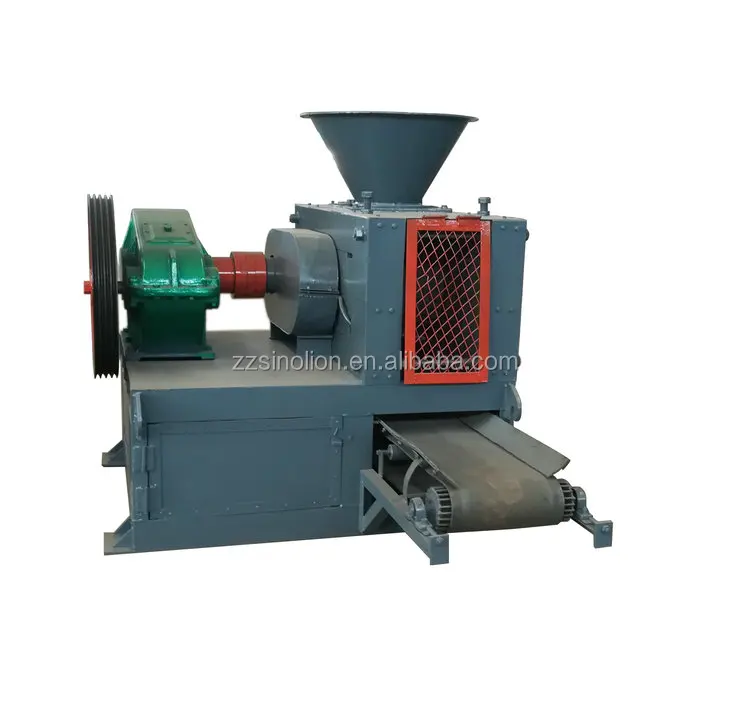

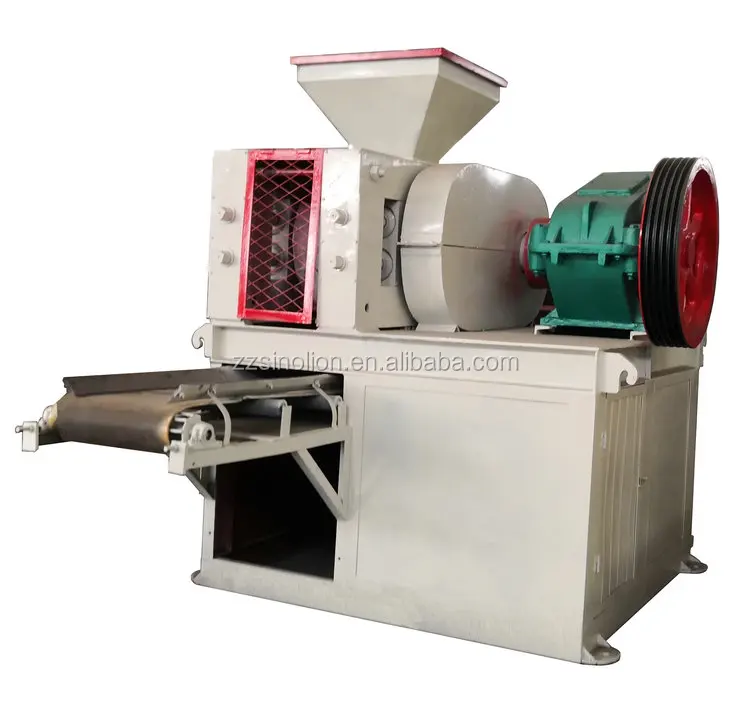

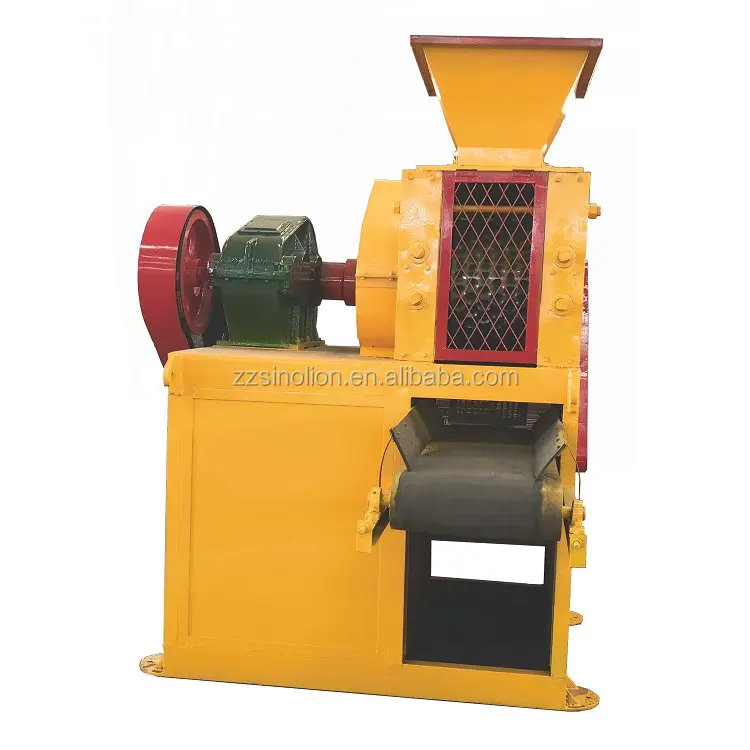

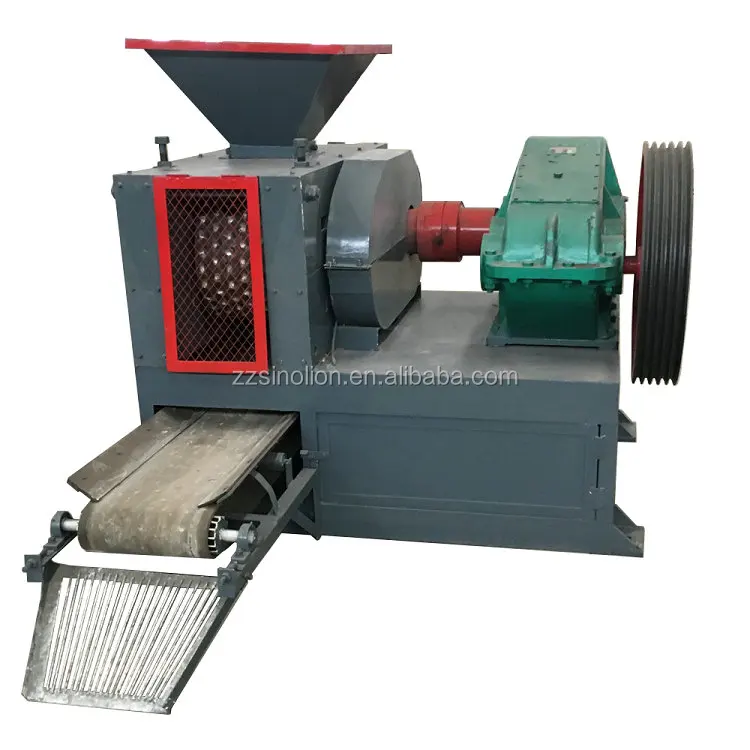

Brief introduction of briket press machine

The briket press machine is widely used in industries such as refractories, power plants, metallurgy, chemical industry, energy, transportation, and heating, etc. The shaped products made by coke briquette machine factory is energy-saving, environmentally friendly, easy to transport, and improves the utilization of waste materials, with good economic and social benefits.  Besides, the molded materials produced by the ball pressing machine are energy-saving and environment-friendly and convenient to transport. It improves the utilization rate of waste materials, and have good economic benefits and social benefits.



Working principle of briket press machine:

This series of briket press machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.





Features of briket press machine

1.The final products are smokeless, non toxic, non peculiar and environmental protection.
2.Strong and stable structure, easy, operation and maintain easily.
3.high density, high strength & high hardness because the reasonable design.

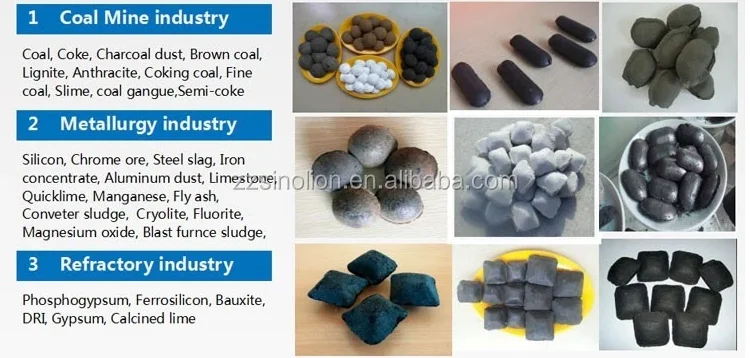

4.Final product size 25-70mm and shape can be round,pillow & square shape.
5.Roller material can be 65Mn, 9Cr2Mo, alloy Steel, high-chromium alloy and so on.
6.The final briquettes are energy saving, easy to transport and higher utilization of waste.



Main technical parameter of briket press machine




Model
Reducer
Roller Size (mm)
Main Shaft Speed(r/min)
Matched Power(kw)
Capacity(t/h)
XM290
ZQ350
290*200
12-14
5.5
0.9-1.0
XM360
ZQ350
360*250
12-14
7.5
1.5-2.0
XM400
ZQ400
400*250
12-14
7.5
2.5-3.5
XM430
ZQ400
430*250
12-14
11
3.5-4.5
XM500
ZQ650
500*470
10-12
37
7.5-8.5
XM650
ZQ850
650*470
9-11
45
9-10
XM750
ZQ1000
750*570
9-11
90
13-14
XM850
ZQ1250
850*570
8-10
110
15-17

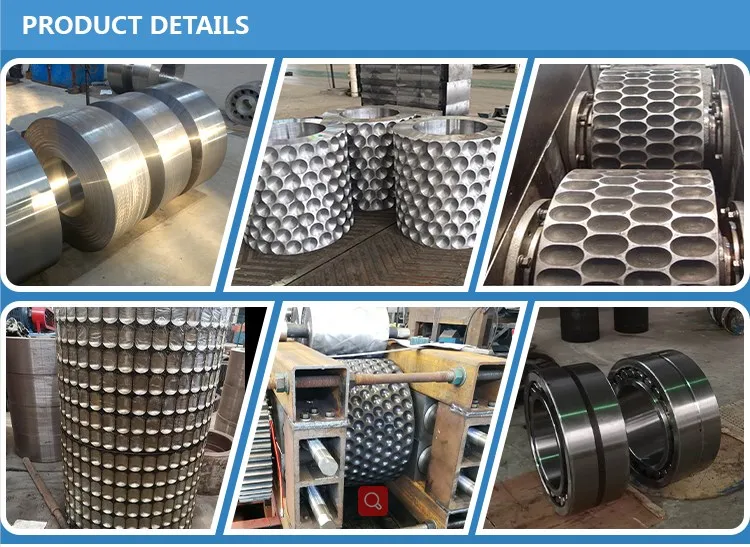

Detailed Images
