Tobee Effluent Handling
$12,600
Stainless Steel Food Grade Magnetic Driven Transfer Pump For Water Circulation
- Category: >>>
- Supplier: Jinshuo Environmental Protection Equipment Co. Ltd.
Share on (62330009578):
Product Overview
Description

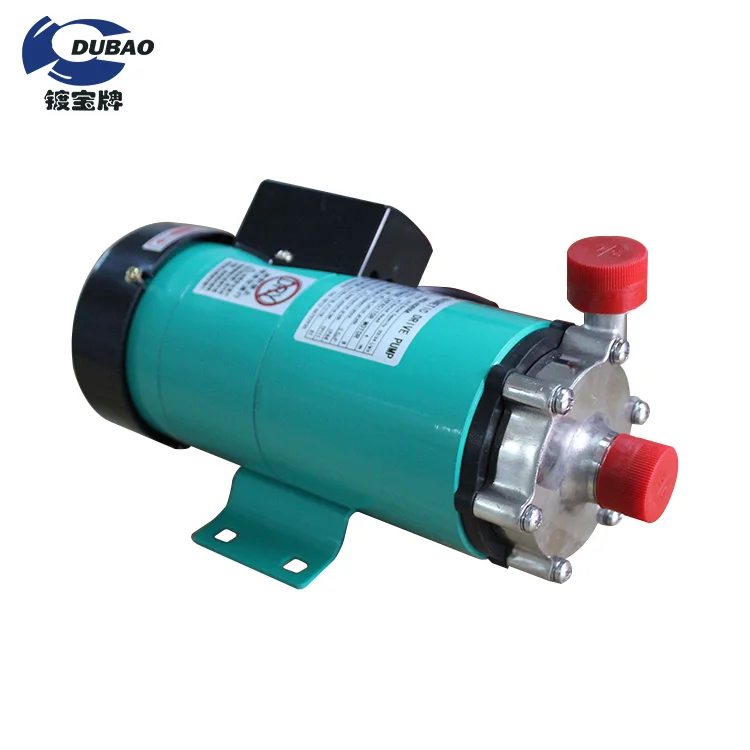

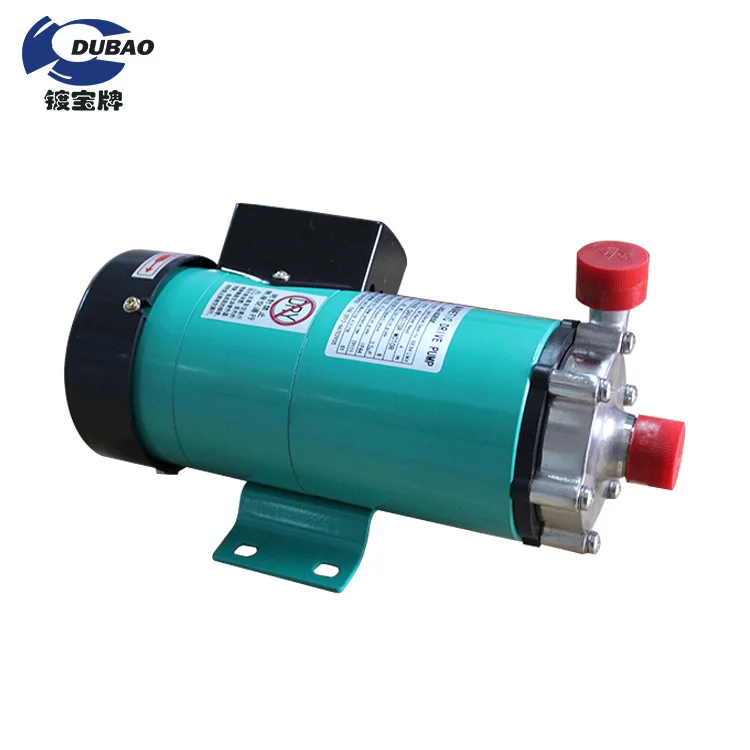

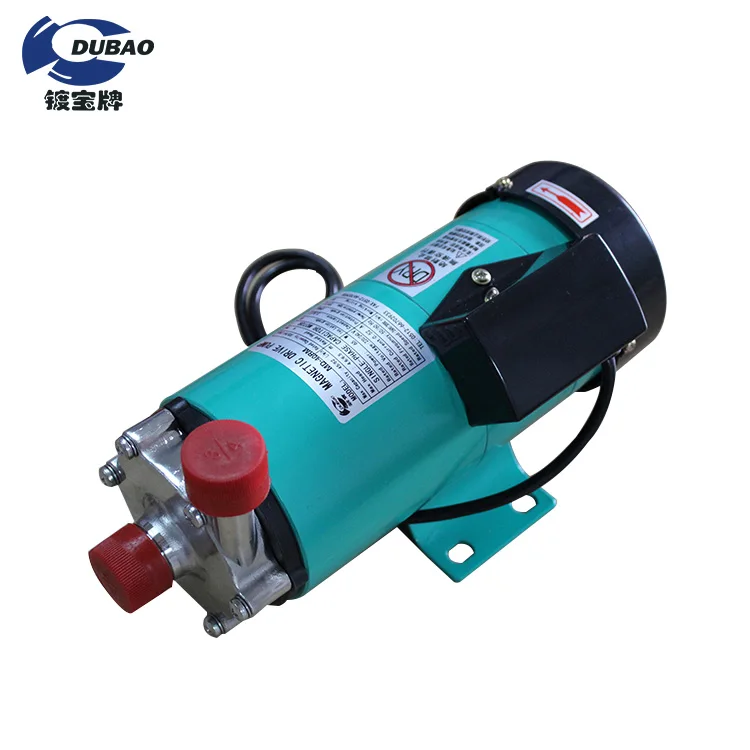

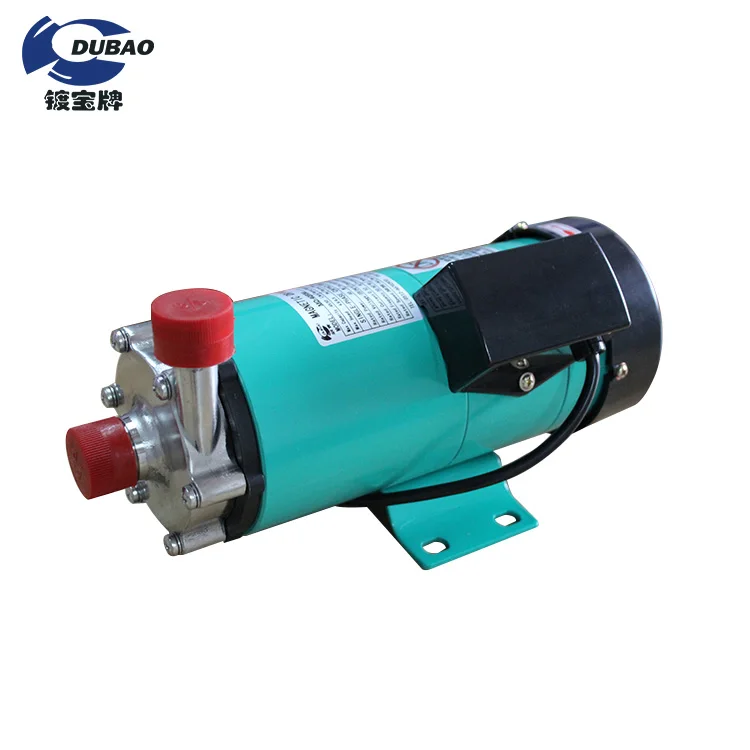

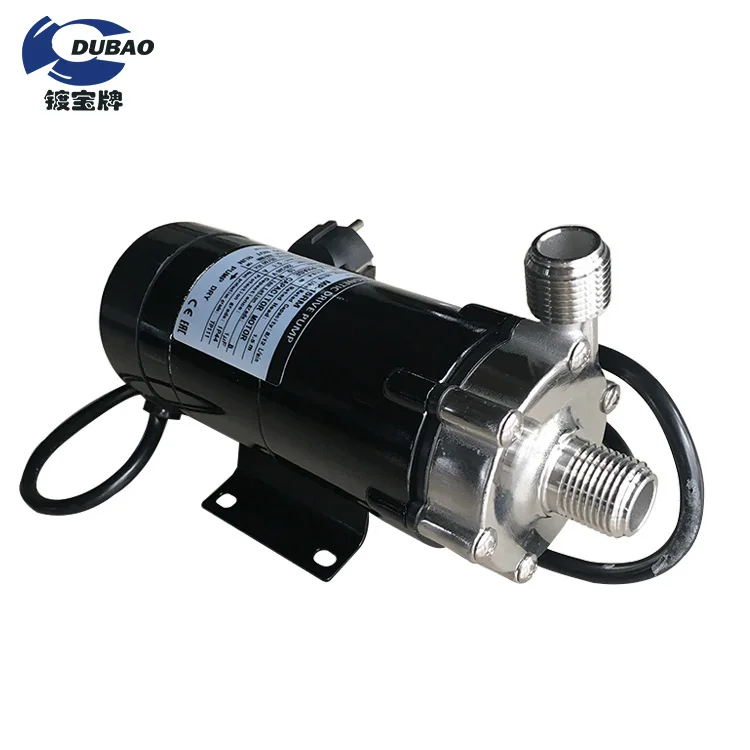

Stainless Steel Food Grade Magnetic Driven Transfer Pump For Water Circulation
Model | Hose Connection | Thread Connection | Max. Capacity L/MIN | Max. Head m | Standard M-L/min | Temperature | S.G | Motor | ||||
Inlet | Outlet | Inlet/ Outlet | Union | Output W | Input W | Voltage | ||||||
MD-10R | 14mm | 14mm | - | - | 11 | 1.5 | 1-5 | 0-70 | 1.1 | 6 | 35 | 220 |
MD-15R(M)-N | 14mm | 14mm | G3/4 | 13mm | 16 | 2.4 | 1.5-8 | 0-80 | 1.3 | 10 | 26 | 220 |
MD-20R(M)-N | 18mm | 17mm | G3/4 | 16mm | 27 | 3.1 | 2-17 | 0-80 | 1.1 | 20 | 40 | 220 |
MD-30R(M)-N | 20mm | 20mm | G3/4 | 16mm | 32 | 3.8 | 2.5-16 | 0-80 | 1.3 | 45 | 60 | 220 |
MD-40R(M)-N | 20mm | 20mm | G3/4 | 16mm | 45 | 4.6 | 4-22 | 0-80 | 1.1 | 65 | 90 | 220 |
Product Characterist
• use magnetic drive, no shaft seal design, pump body fully sealed.• use food grade SUS304 material and food grade engineering plastic, suitable for both chemical industry and food industry
• impeller and magnet integrated injection molding, in high-speed operation and high temperature is not easy to damage.
• this series of pumps because of its innovative design of resistance to idling, the magnetic pump running without water for a long time without damage, improve product durability. Pump bearings are made of silicon carbide, ceramic and titanium materials, which can meet the needs of different workplaces.
Product Analysis
Product Display
About us
Other Products
Certificate showing
Workshop Show
1. suitable for all kinds of acid and alkali liquid cooling, spraying and washing equipment, waste gas tower, carving machine, waste water treatment and so on
2. controllable operation, never by air instead of damage
3. dry seal design, can protect the motor to prevent acid gas into the damaged bearing
4. it is suitable for the cyclic transportation of electroless nickel, electroless copper and various special electroplating liquid
5.explosion-proof motor can be used according to the environment
