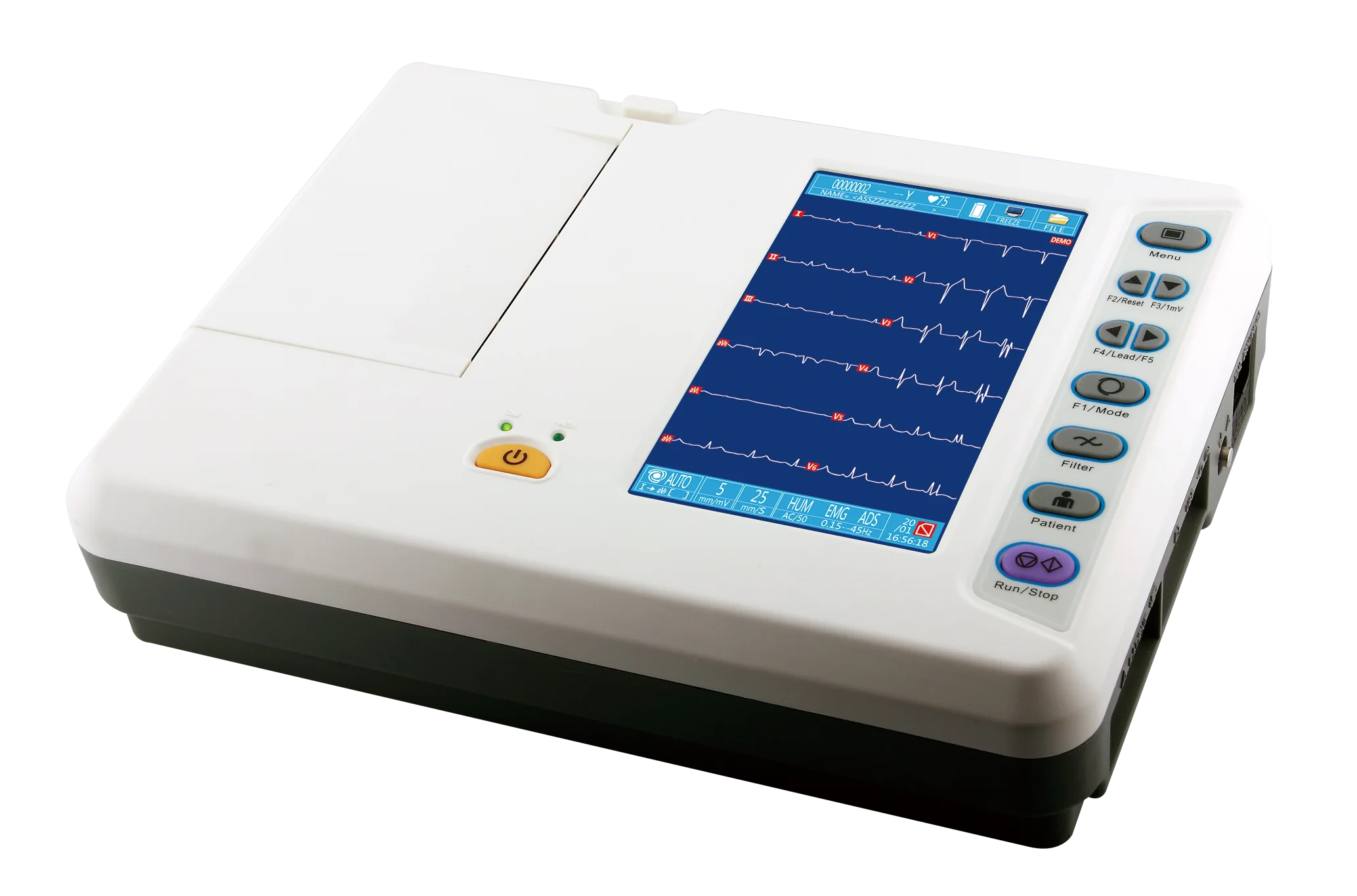

RSD 3306G Portable and delicate design 7 inch touch color LCD 12 leads Six Channel ECG Machine

Share on:

Price:$800.00 - $850.00
Price in USD:Details


Product Overview


ECG Machine
RSD 3306G
Six Channel ECG Machine
Product Details


1product details.jpg

RSD 3306G
Six Channel ECG Machine
1.Portable and delicate design, easy to operate
2.Accurate pulse pace identification function
3.High accuracy digital filter, automatic baseline adjustment
4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage
5.112mm, 6 channel format recording, excellent automatic interpretation
6.800x480 graphic 7 inch touch color LCD to simultaneously display ECG information
7.250 patient cases storage ( SD card storage is optional )
8.Detailed patient information record
9.Freeze function
10.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for to 4 hours.
11.USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )

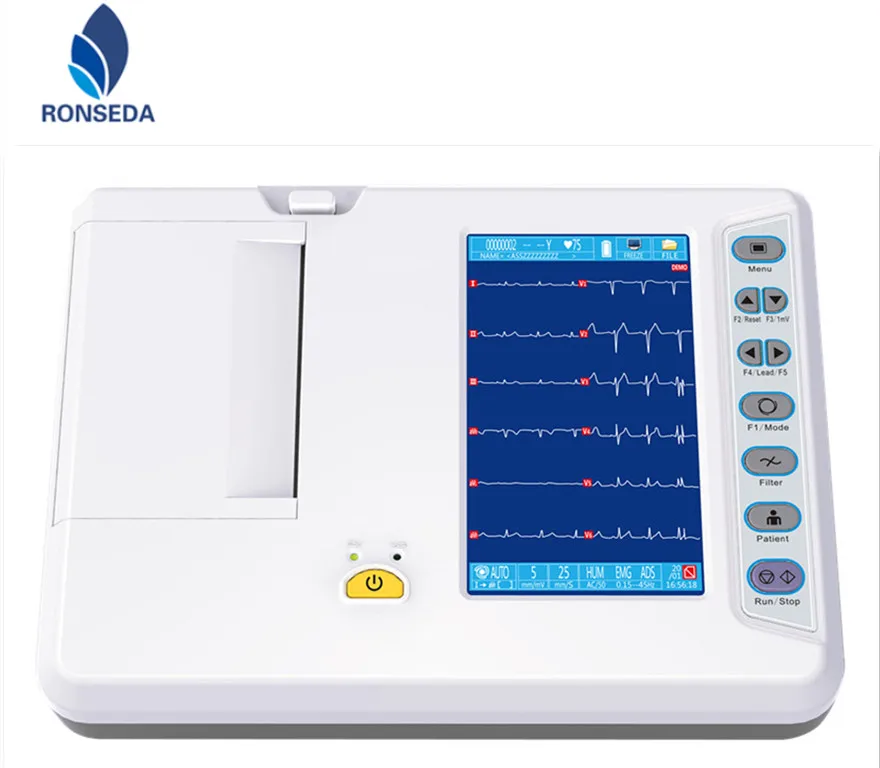

 RS 3306G 6ch Front_.jpg
Technical Specifications:
1.Leads: standard 12 leads
2.Lead acquisition:12bit/1000Hz(synchronously 12 leads )
3.Work mode: Manual, Auto, R-R analysis
  AC filter: 50Hz / 60Hz
  EMG Filter: 25Hz / 45Hz
  Anti-Drift Filter: 0.15Hz (Adaptive)
5.CMMR: ≥120dB (with AC filter)
6.Input circuit: floating; protection circuit against defibrillator effect
7.Input Impedance: ≥50MΩ
8.Input circuit current: ≤0.05μA
9.Patient current leakage: <10μA
10.Calibrating voltage: 1mV±2%
11.Voltage tolerance: ≥±500mV
12.Time constant: ≥3.2s
13.Frequency response: 0.05~160Hz(-3db)
14.Noise level: <15μVp-p
15.Inter-channel Interference: ≤0.5mm
16.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3%)
.Default Man.Mode is 3ch format
.Default Auto.Mode is 6ch+ format
18.Paper speed: 6.25,12.5, 25, 50mm/s(±3%)
19.Paper : 112 mm X 20 M roll paper
20.Input dynamic range:±10Vpp
21.Sensitivity valve: ≤20μV
22.Display: 800x480 graphic 7 inch color LCD
Standard Configuration:
1.Main unit                   1 set
2.Patient cable             1 set
3.Limb electrode          1 set (4pcs)
4.Chest electrodes       1 set (6pcs)
5.Grounding cable       1 pc
6.Paper axis                 1 set
7.Thermal paper           1 roll
8.Fuse                          2 pcs
9.3-cord power cord     1 pc
10.AC Adaptor               1 pc
11.User manual             1 pc
