With 6M Cord for Smartphone Video and DSLR Cameras Collar Microphone Mini Lapel Clip Lavalier Interview Microphone

Product Overview

Description

With 6M Cord for Smartphone Video and DSLR Cameras Collar Microphone Mini Lapel Clip Lavalier Interview Microphone



Specifications

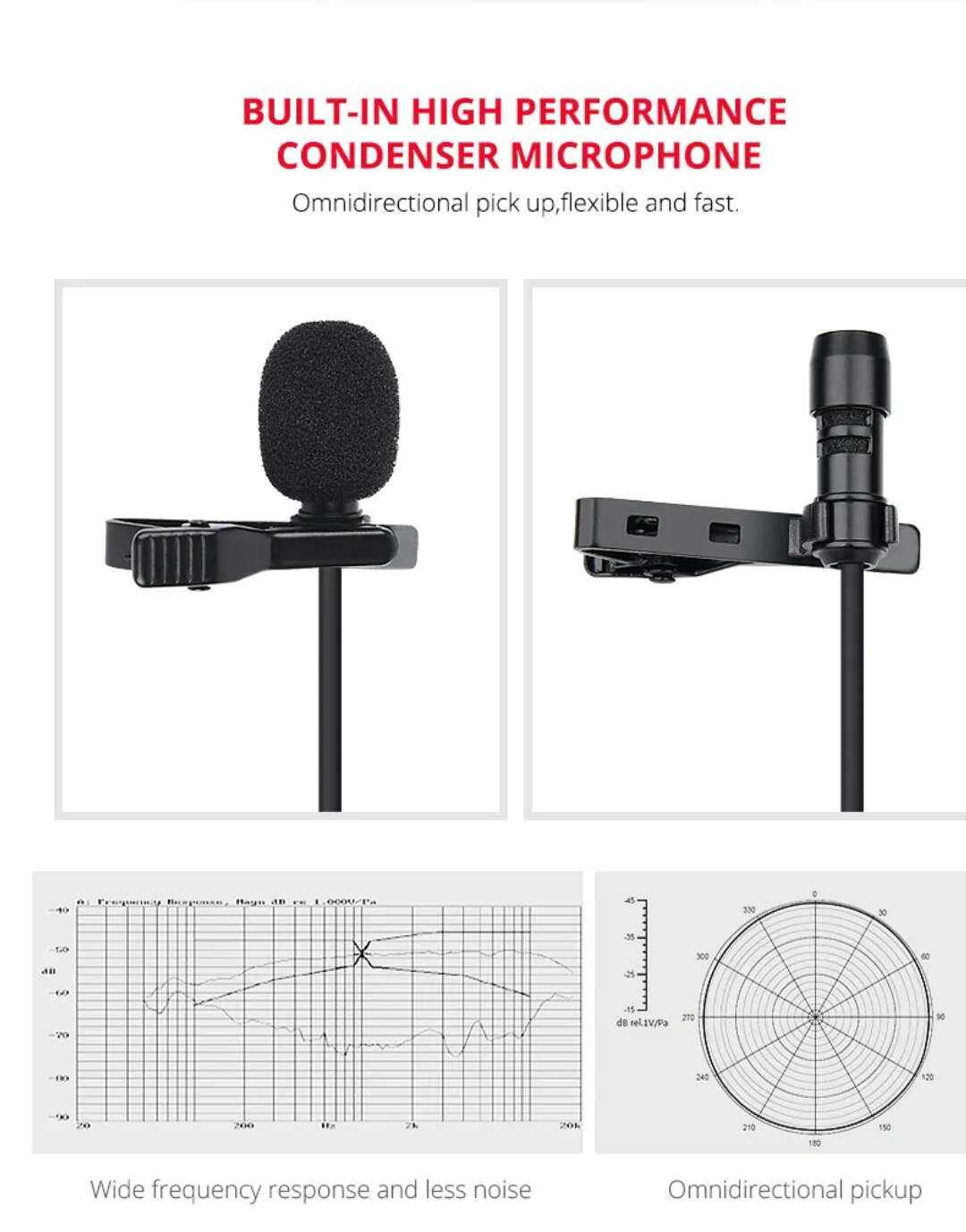

Transducer:Electret condenser



Polar pattern:Omni-directional



Frequency range:65Hz-18KHz



Signal/Noise:74dB SPL



Installation

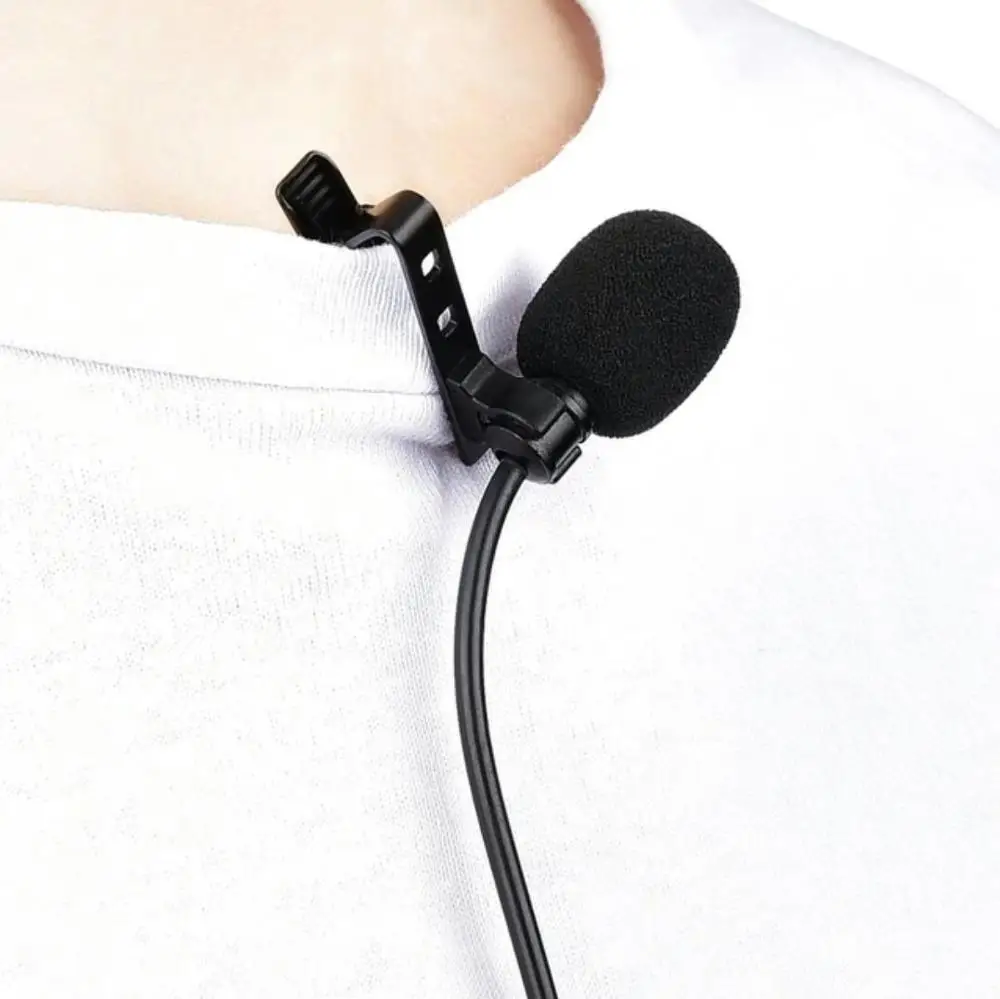

Attach the microphone to the front of your clothing with the clothing clip,about six inched(10-15cm) from your mouth



Tape a loose loop of the microphone cord to the inside of your clothing.This provides additional strain relief for the microphone cord and isolation from unwanted noise.



Before recording an import event,record and play back a shoty lest dip with the microphone attached to ensure audio recording is function properly



Using the microphone with a camera



1.Plug the3.5mm connector into the audio input jack of your DSLR,Point and shoot camera or camcorder



2.Attach the microphone to your clothing(see previous instructions)

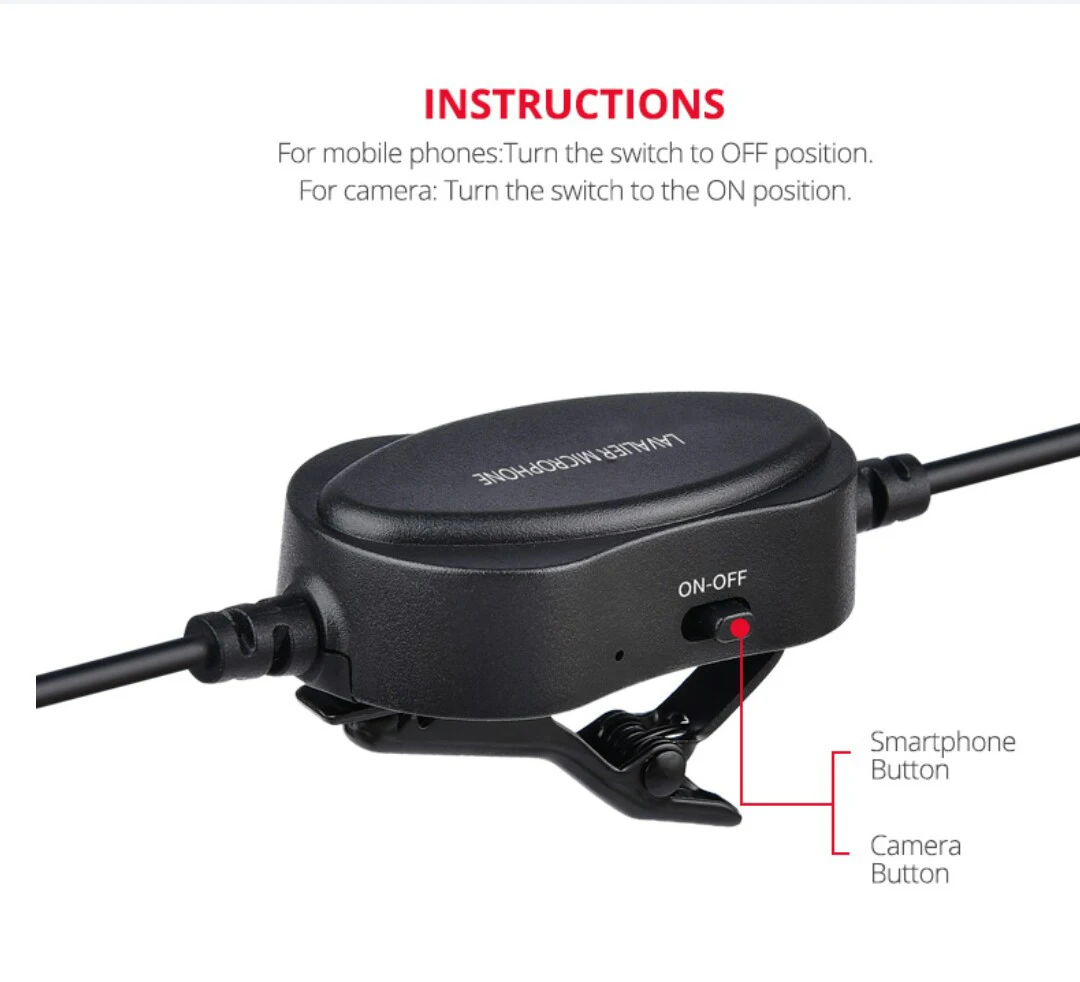

3.Move the switch on the power pack to the camera(on) setting and begin filming



Not all cameras have a microphone input,verify this with your camera manufacturer.Many cameras have headphone,remote control,and other ports that look similar to microphone input.Make sure that you are using the correct one

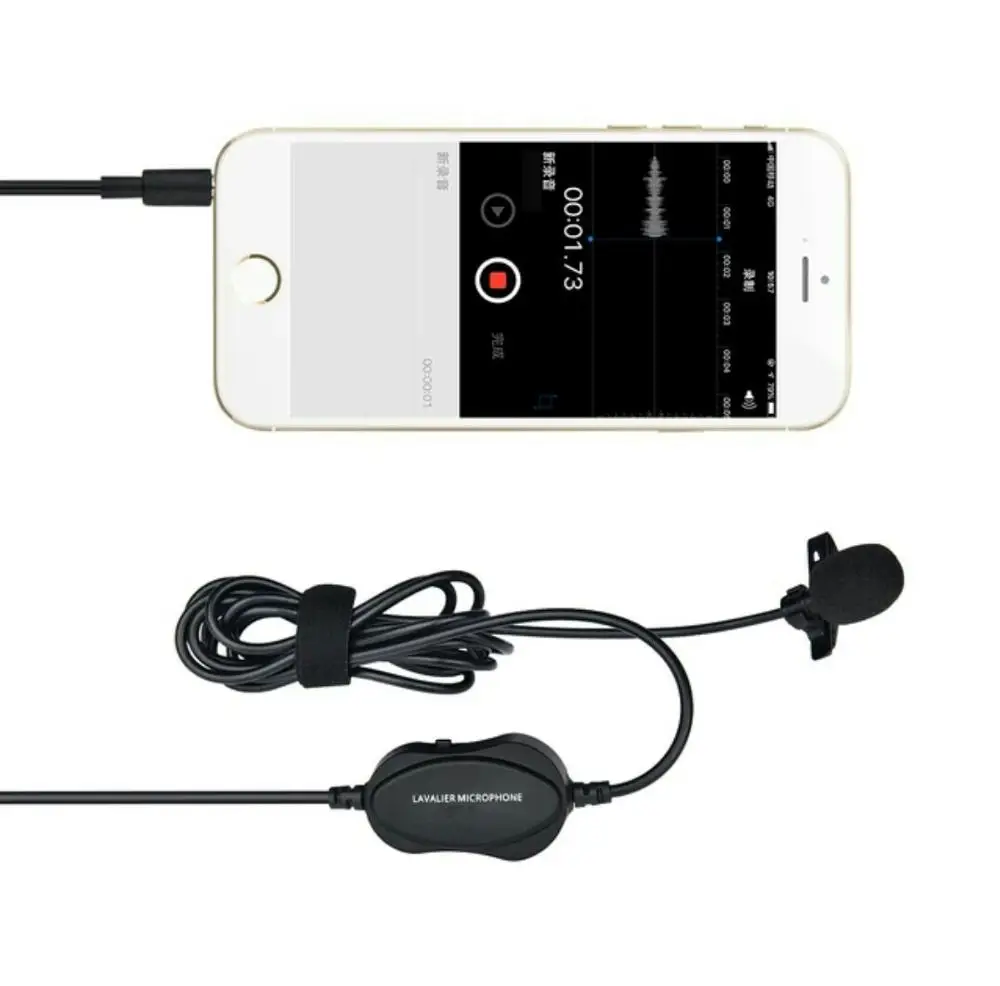

Using the microphone with a smartphone



Make sure that the microphone power pack is set to the OFF/Smartphone setting before plugging it into your smartphone.



1.Plug the 3.5mm connector into the audio jack of your smartphone



2.Attach the microphone to your clothing(see previous instruction)



3.OPen the audio-only or video recording app and begin recording



Using the microphone with other devices



1.Plug the 3.5mm connector into the audio input jack of your device(audio recorder,amplifier,PC,laptop)



2.Move the switch on the power pack to the camera

Model	MP-V3
Transducer	Electret condenser
Polar pattern	Omni-directional
Frequency range	65Hz- 18KHz
Signal/Noise	74 dB SPL
Sensitivity	-30dB+/-3dB/OdB=1V/Pa,1kHz
Output	<1000 Q
Connector	3.5mm gold plug

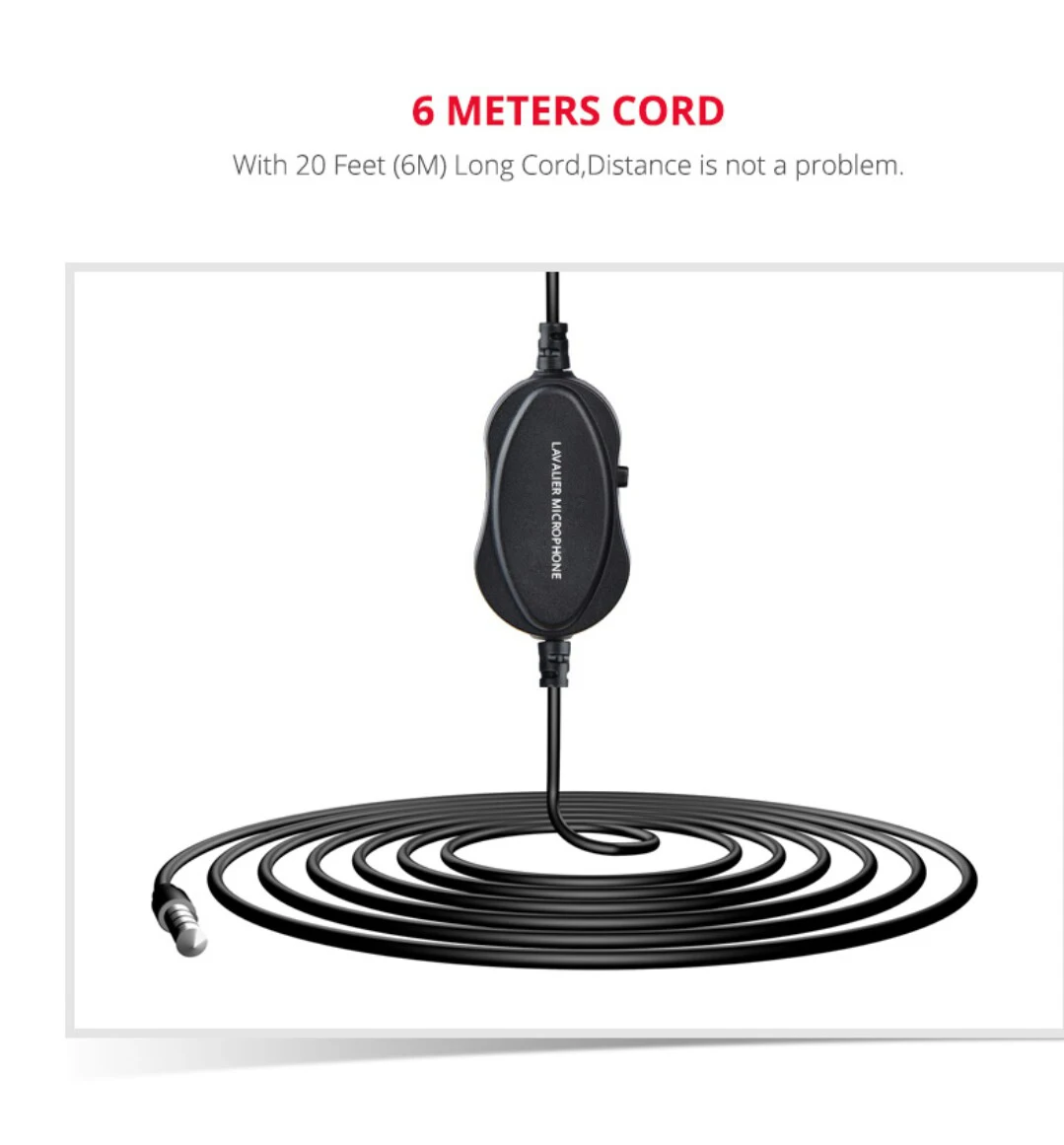

Line length	6M
Weight	120g
