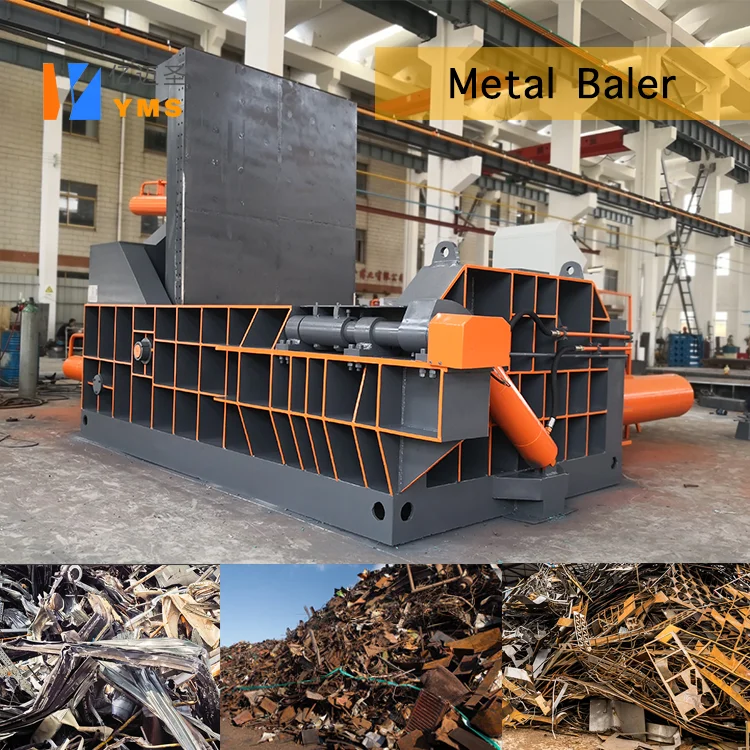

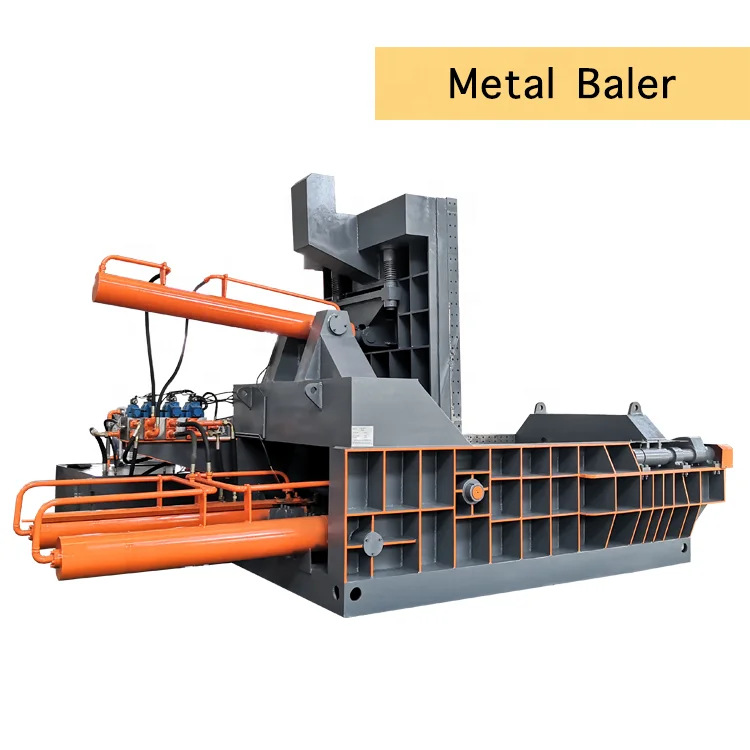

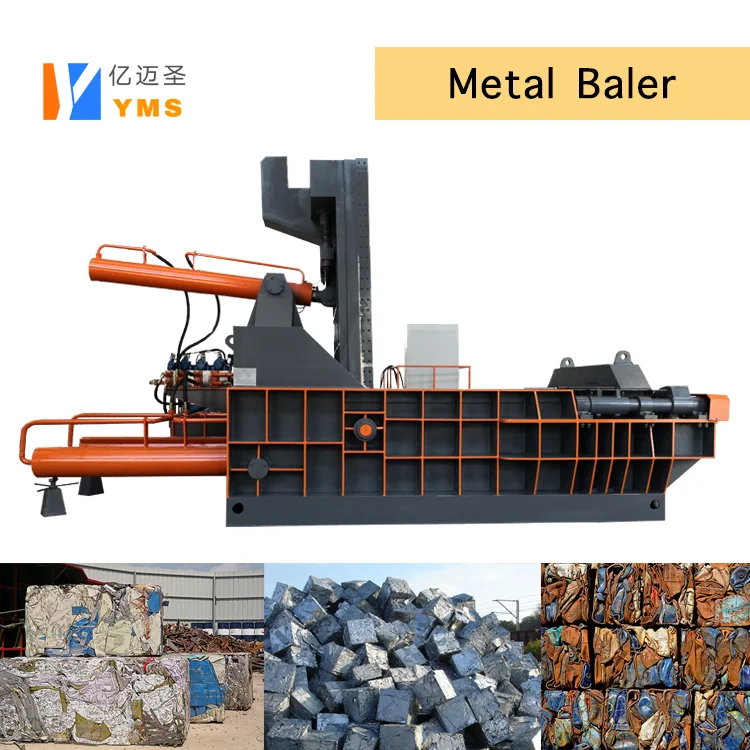

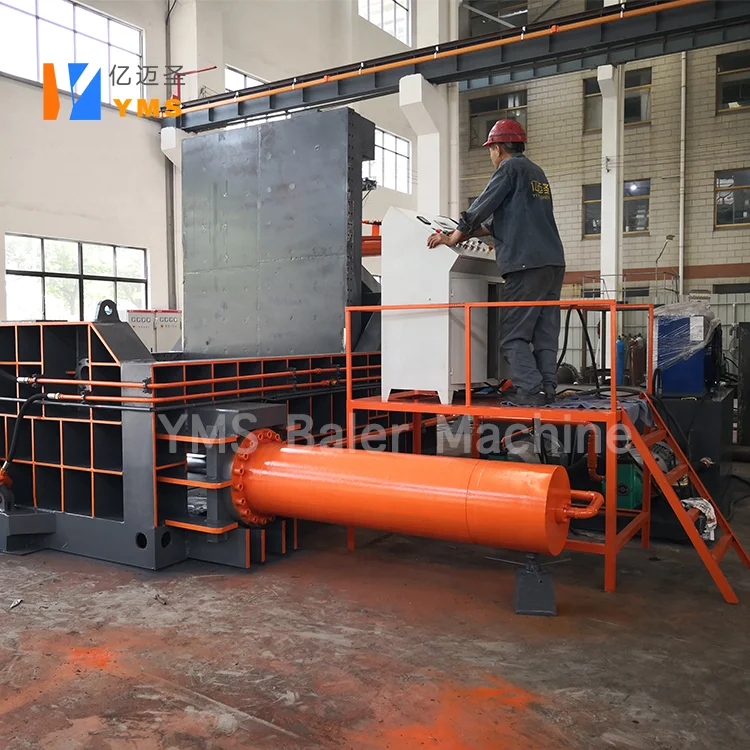

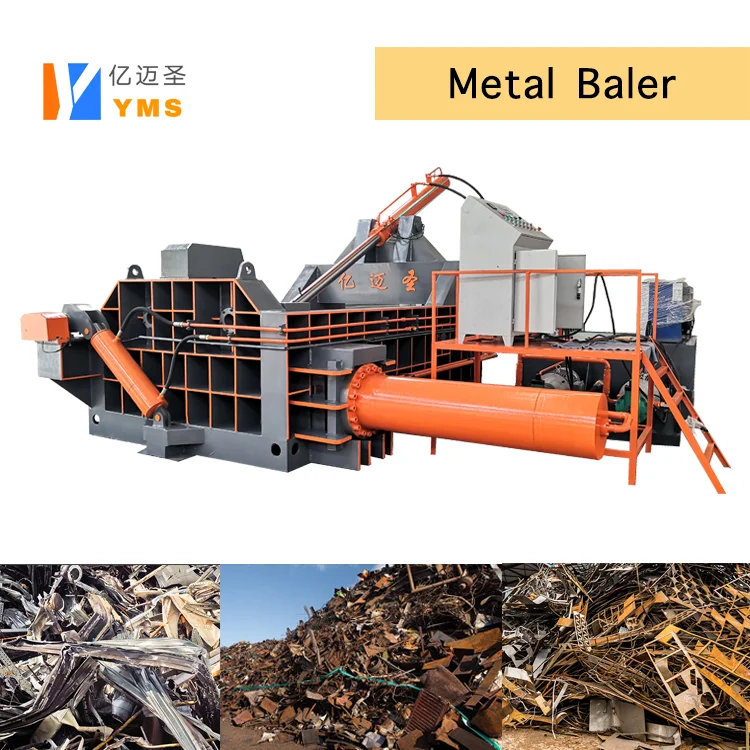

Customized Baling presse for metal waste Automatic machine Scrap compactor
- Category: Scrap Metal Balers >>>
- Supplier: Jiangyin Yimaisheng Hydraulic Machinery Co. Ltd.
Share on (62330184783):
Product Overview
Description
Product Description
2. Specification of the Y81-250
SPECIFICATION | |
Model | Y81-250 |
Main Power | 22Kw*2 |
Oil Pump | 160ml/r*2 |
Voltage Supply | 380V/3phase/50Hz (Customized) |
Main Pressure Force | 2500Kn (250Ton) |
Compression Chamber(L*W*H) | 2000*1400*900mm |
Bale Size (W*H) (Steel Scrap) | 450*450*(500~900)mm |
Bale Weight (Steel Scrap) | ~300Kg |
Bale Density (Steel Scrap) | ~1.8 t/m3(Density varies with what and how much metal scrap to press) |
Bale Capacity (Steel Scrap) | ~4500 kg/hour (Including the feeding time) |
Single Cycle Time (No-Load): | ~120S |
Bale-discharge | Turn-out |
Machine Operation | Manual operation |
Host Overall Dimensions (L*W*H) | ~6000*4400*3200mm |
Machine Weight (Approx.) | 21,000Kg |
Oil Capacity | 2800L ( hydraulic oil ideal working temperature requirement: 20℃~55℃ ) |
Oil Band | 46# or 68# Abrasion-resistant hydraulic oil.(-10℃~60℃ ) |
Loading Container | 20GP+40FR Container could load one set. |
Notes: | |
All mentioned capacity are based on our previous experience and knowledge. A final statement to the capacity is only possible after a test with original material. Bale size, Compression chamber , Bale-discharge and Machine operation could be Customized. | |
3. Feature of the Y81-250
l Fully automatic working cycle
l Customized Compression Chamber and bale size.
l Easy operated by one operator with remote control.
4. Components of the Y81-250
STANDARD COMPONENTS | ||
Mechanics-M | Hydraulics-H | Electrics-E |
M-1.Main unit Frame | H-1.Hydraulic oil tank | E-1.Electrical cabinet |
M-2.Compression chamber | H-2.Motor and Pump | E-2. Operate panel with buttons |
M-3.Main cylinder | H-3.Valve system | E-3. Instrumentation & Safety devices |
M-4.Side cylinder*2 | H-4.Over heating protection |
|
M-5.Turn cylinder | H-5.Oil filter |
|
M-6.Cover cylinder | H-6.Air filter |
|
M-7.Lock cylinder | H-7.Hydraulic gauge |
|
Application
5. Main Application of the Y81-250
Packaging & Shipping
DELIVERY
The standard Automatic baler is about 50 days after receiving the deposit..
If customized machine, delivery time depends on the negotiation with both.
SHIPPING
Before loading, all parts of the automatic baler will be film wrapped, and firmly fixed in the container by the steel wire.
Shipped by sea or train.
WARRANTY
This automatic baler machine is guaranteed for 12 months.
Warranty shall start at time of initial installation at customer’s location, and not later than 15 months from delivery date.
Within the guarantee period, in the event of any malfunction caused by the quality of the commodity, We will replace defective parts free of charge.Defective parts are to be returned to YMS (Seller). Wear parts are exclusive from this warranty. We also provide technical support and parts sell for the whole life span of the automatic baler machine.
Our Services
1.Professional Service
2.Low MOQ
3.Fast Delivery
4.Quality Guarantee
5.Sales Service
FAQ
Q: Are you factory or trade company?
A: We YMS is a Hydraulic Machine Manufacturer located in China, Wuxi City, focus on designing and manufacturing different Hydraulic machines for recycling.
A: We YMS is a Hydraulic Machine Manufacturer located in China, Wuxi City, focus on designing and manufacturing different Hydraulic machines for recycling.
Q: Can i get an test to check quality before order?
A: Of course, you can.Welcome to send your metal chips to do the test and check our quality.I do believe our high quality products will bring more orders for you from your clients!
Q: Can the machine be customized as our need, such as put on our logo?
A: As we design and manufacture the hydraulic machines ourselves with 20 years of experience, we can design and manufacture to suit the customers circumstances. Put on your logo is also available.
Q: After we placing an order, will you arrange the installation of the machine at present?
A: All the machines will be checked and tested well before delivered, after the machine be your side, if you customer needs our assistance, we will be pleased to offer the help online or arrange engineer be your yard for the installation, but all the cost will be be charged by your company.
Q:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A: Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have paypal, alibaba pay,T/T, L/C payment terms options, do business with us, your payment will be in safe, your business will be in safe!
