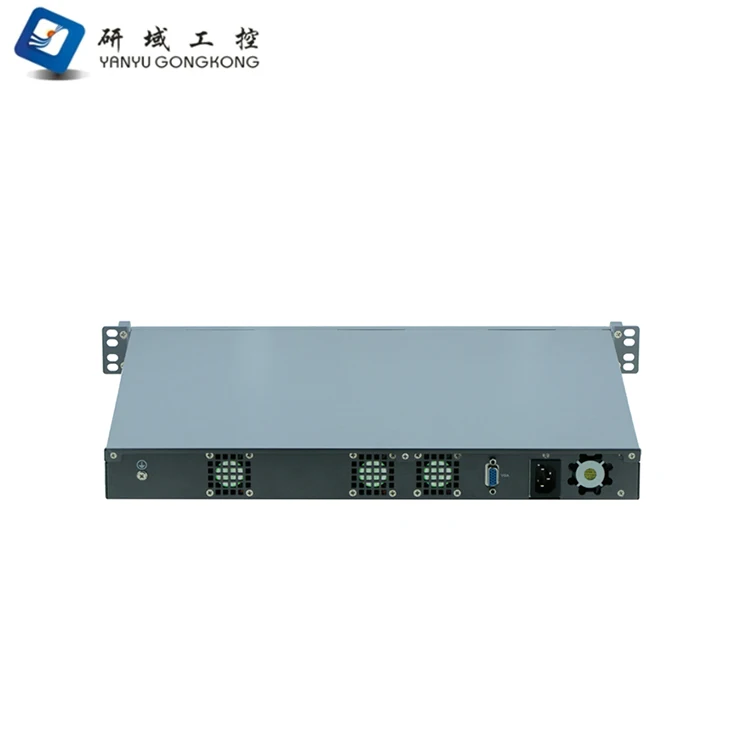

Hot sales Firewall router PC Core I3 I5 I7 VPN firewall case Router PC

Share on (62330280607):


Price:$285.00 - $287.00

Quantity:


Product Overview

Description


1U firewall router  PC 8 Lans Intel I3 I5 I7 server router PC support 8 Lans.






Product Description


We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe






YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.


YANYUGONGKONG also provide the service of custom design to meet your special requirement.


Chassis / PVC membrane etc can custom.


oem network appliance/ Nano computer etc.














1U360A





Features


1Ustandard chassis, high quality galvanized steel sheet


Supports LGA1150 4th Intel®celeron/Pentium Core™ i3/i5/i7 processor


Supports 1xVGA


Supports 8*Intel 82574LGigabit ethernet ports , Supports Wake on LAN/PXE Functions ,4* Gigabit Optical Fiber Ports


Supports 1* CISCO RS232 Serial Port


Supports 2*USB2.0








1U360A2





Intel i3 i5 i7 firewall router PC
























































































































































































Processor



CPU



Supports LGA1150 4th Intel®celeron/Pentium Core™ i3/i5/i7 Processor







Frequency



Optional







TDP



Optional







Chip



Intel® H87







BIOS



AMI 64Mb Flash ROM



Memory



Type



DDR3 1600/1333MHz







Maximum capacity



16GB







Slot



2* SO DDR3



Display



Chipset



Integrated Intel® HD Graphics







Graphics Engine



N/A







HDMI



N/A







CRT



1*VGA ,1920X1200@60Hz







Display



1*VGA



Ethernet



LAN1~LAN4



4*Intel 82574L Gigabit ethernet, Supports Wake on LAN /PXE Function







LAN5~LAN8



4*Intel 82574L Gigabit ethernet, Supports Wake on LAN /PXE Function



Audio



Interface



N/A



I/O Interface



Serial port



1* CISCO RS232 Serial port







USB



2* USB2.0







Optical fiber



4* Gigabit Optical Fiber Ports



Expansion



Mini PCIE



1*Mini-PCIE Slot,Supports WIFI/3G Moudle







Expansion Slots



N/A



Storage



SATA



Supports 2*2.5 inch or 1*3.5 inch hard disk expansion (7-15 mm thickness)







SSD



1* MSATA SSD,the transfer rate is up to 6Gbps



OS



Microsoft Windows



Windows 7/Windows10







Linux



Ubuntu



Power Supply



Type



1*AC power interface







Power Input



ATX power input







Power Adapter



AC TO DC,DC12V5A,60W(Optional)



Firewall Appliance



Structure



1U standard chassis, high quality galvanized steel sheet







Installation



1U Standard rack

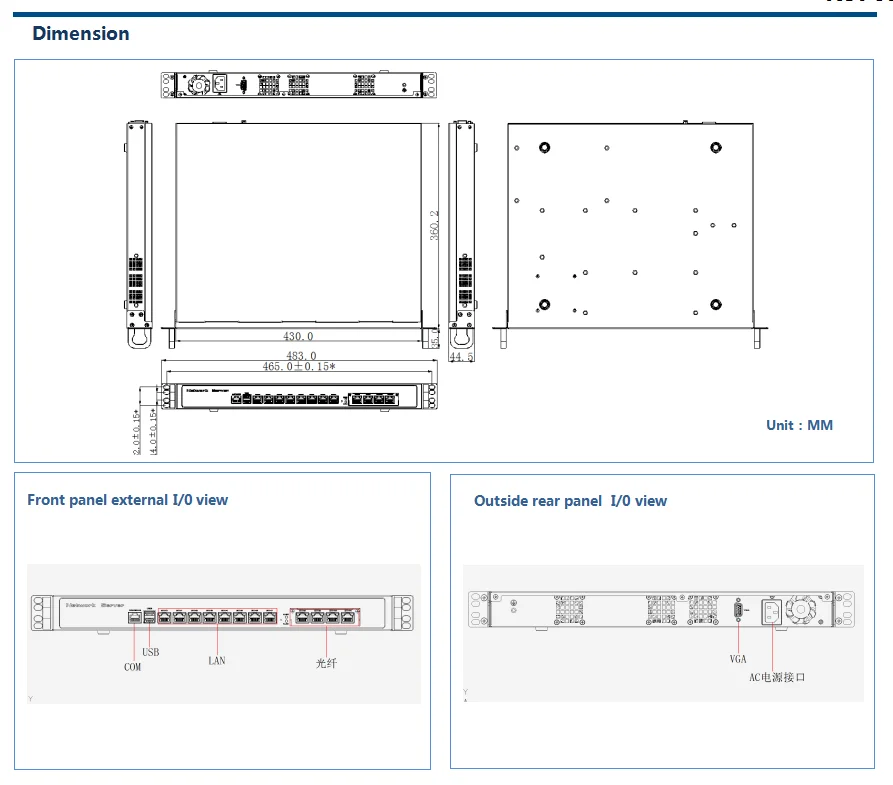

Size(LWH)



430mm*360.2mm*44.5mm



Environment



Working temperature



-10℃~60℃







Storage temperature



-20℃~70℃







Relative humidity



5%-95%(Relative humidity, no condensation)







Vibration



0.5g rms/5-500HZ/random/operating

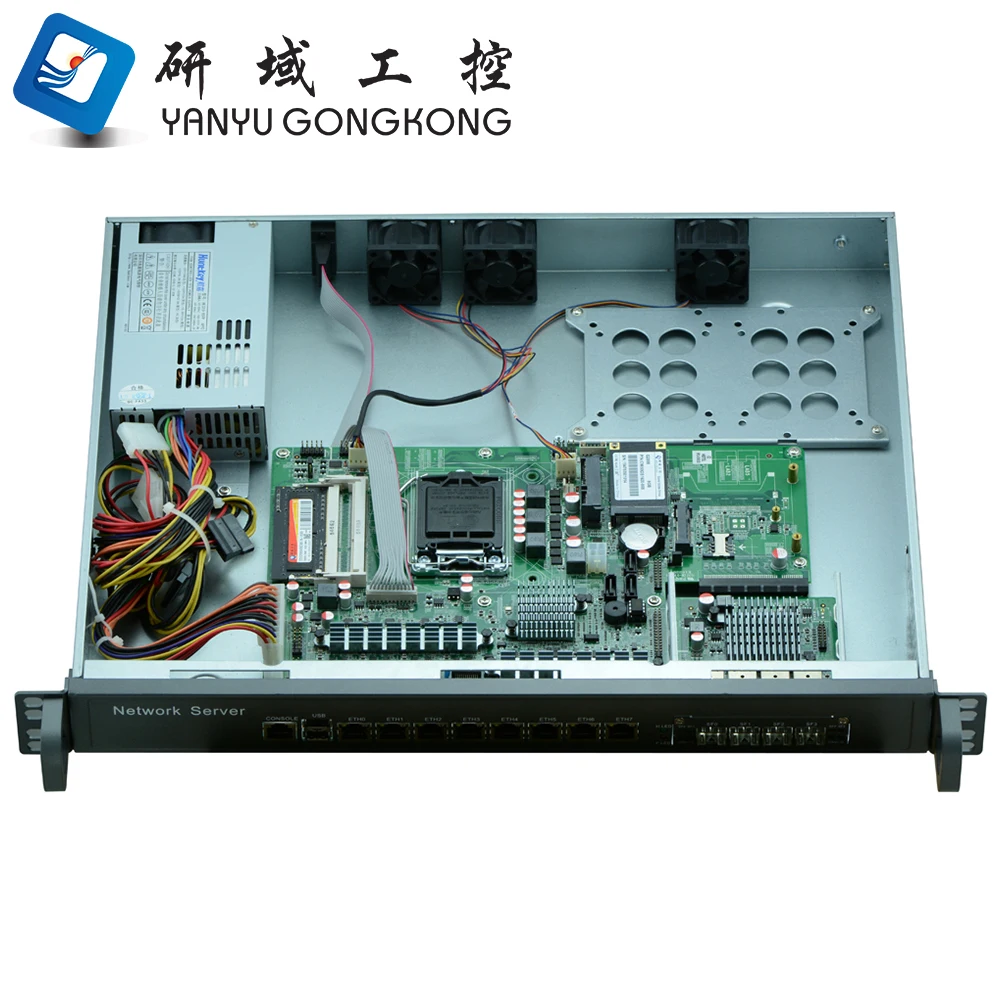

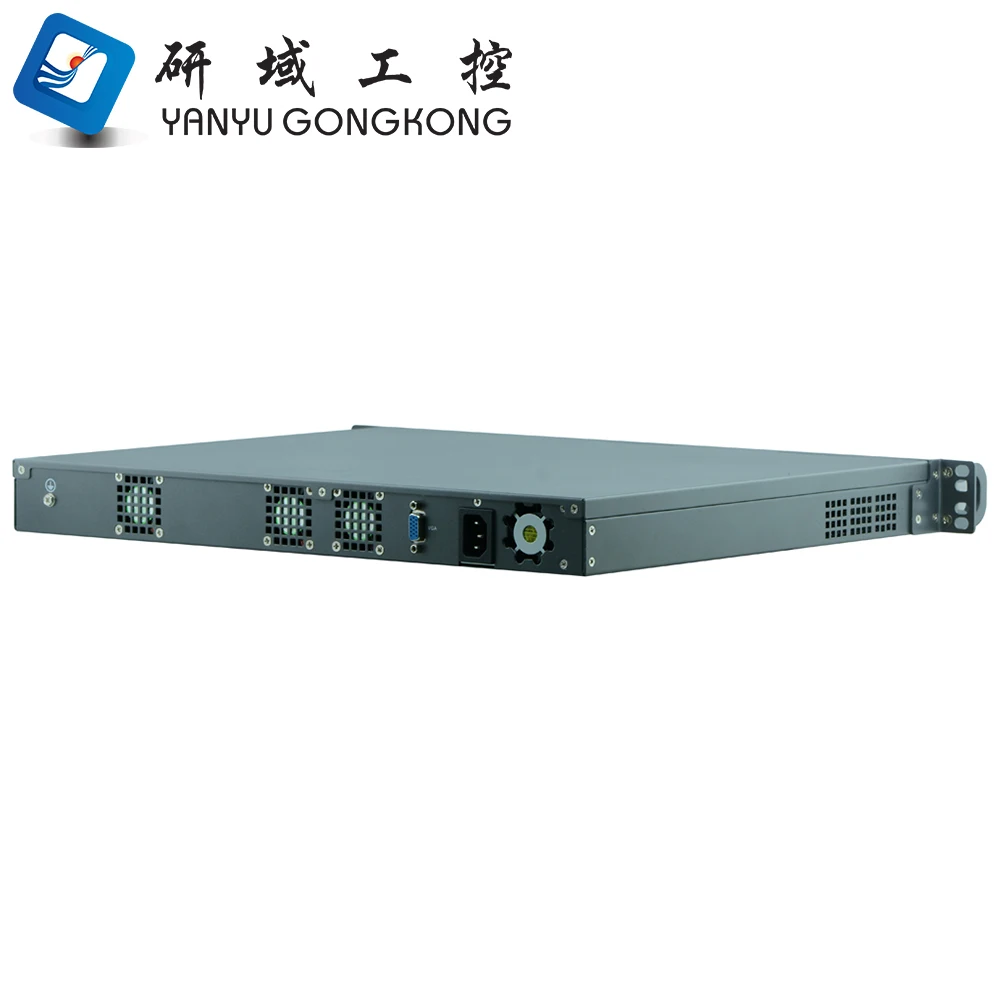

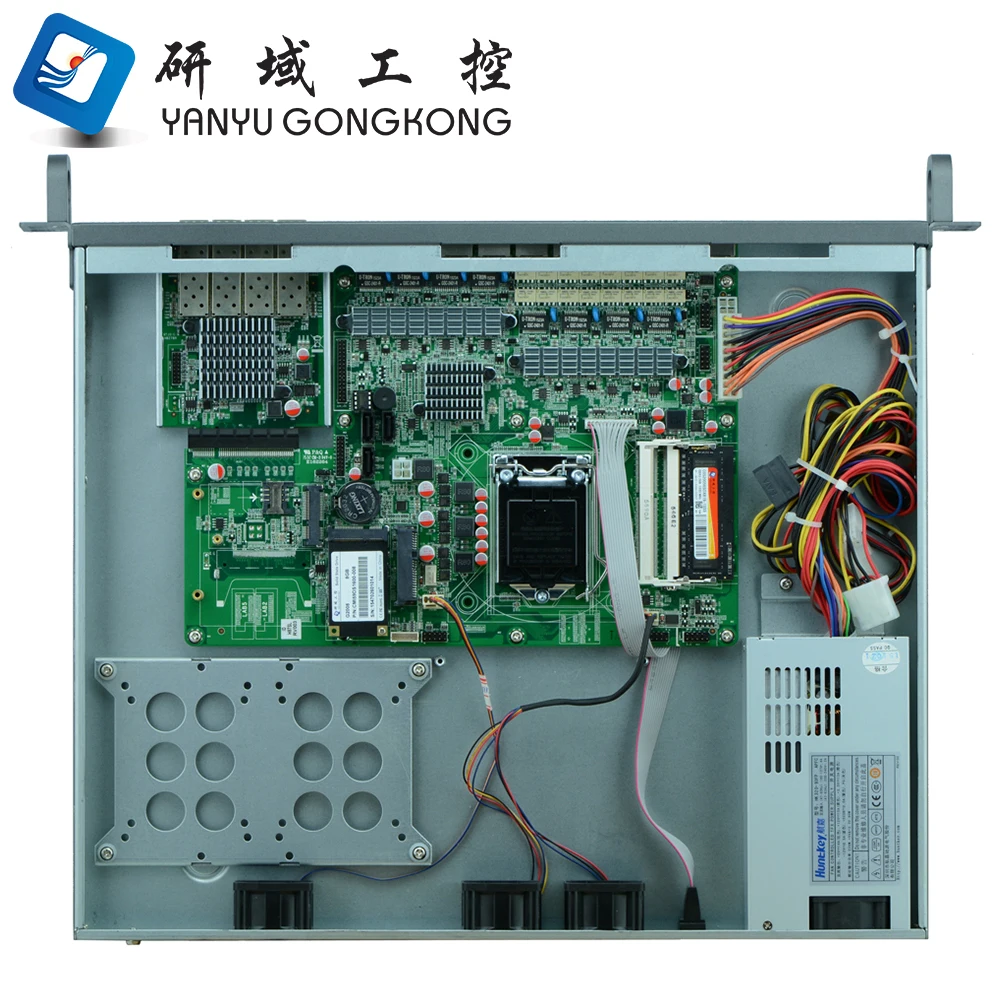

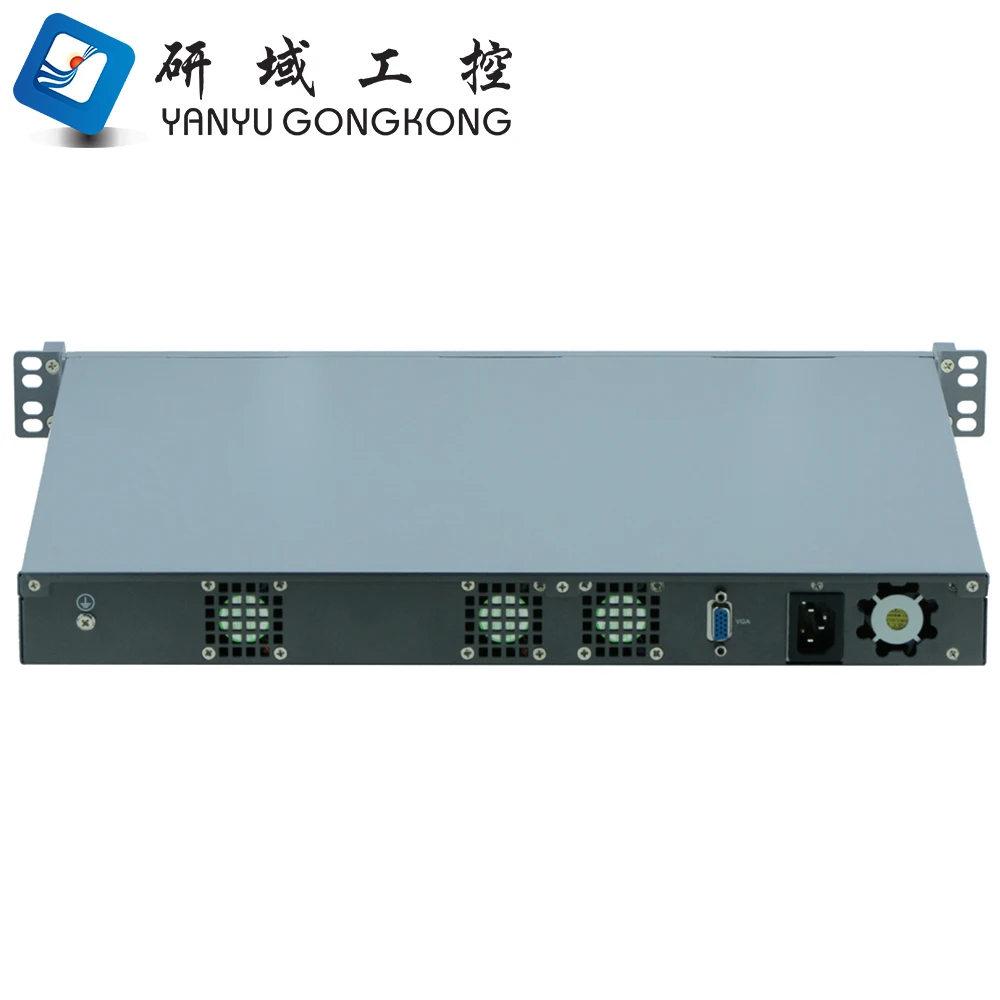

 Pfsence Firewall 1U360SF_04Pfsence Firewall 1U360SF_06Pfsence Firewall 1U360SF_03Pfsence Firewall 1U360SF_02








Order infortaion


































No.



Model



Processor



Motherboard



Memory



HDD



LAN



Fiber



COM



USB



Power



OS



1



R870LZ



LGA1150



H87SL_B



/



/



8*82574L



4*82580EB



1



2



220W/ hangjia



/


















FAQ


Q1: Can you put my brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
         1:provide your specific requirement.    2:our design engineer draw the design draft.
         3:you confirm the design draft.             4.we start produce it.





Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.





Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.





Q4: What is the lead time of your products?
A4: 3 days for one sample, 15 working days for a large quantity.





Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.





Q6: How does your factory do related quality control?

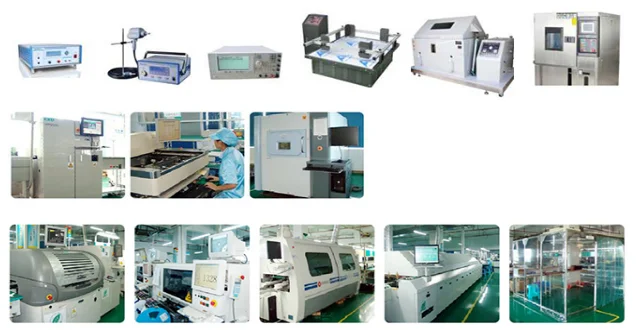

A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
