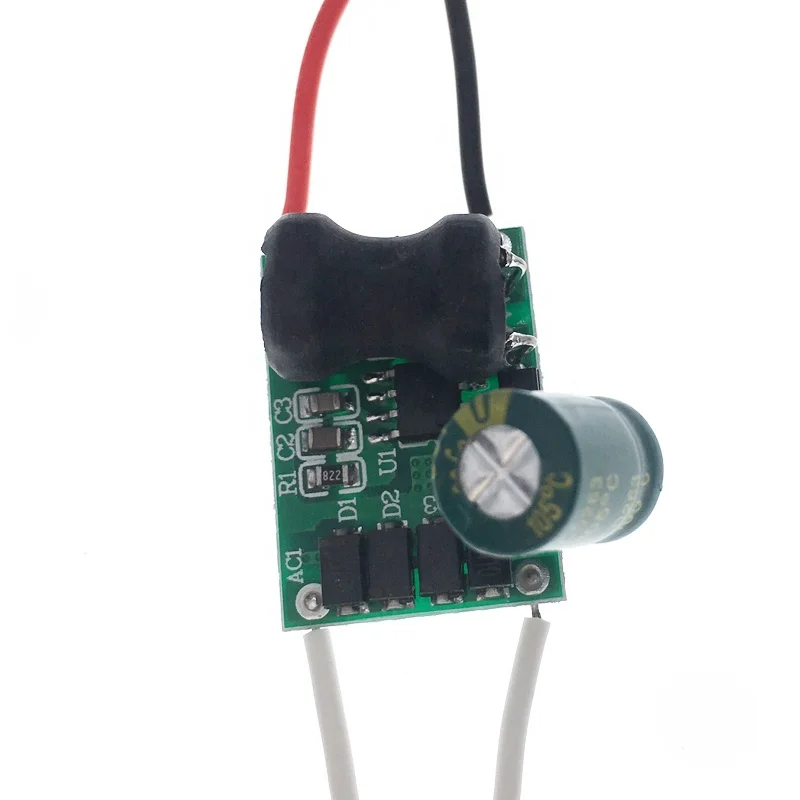

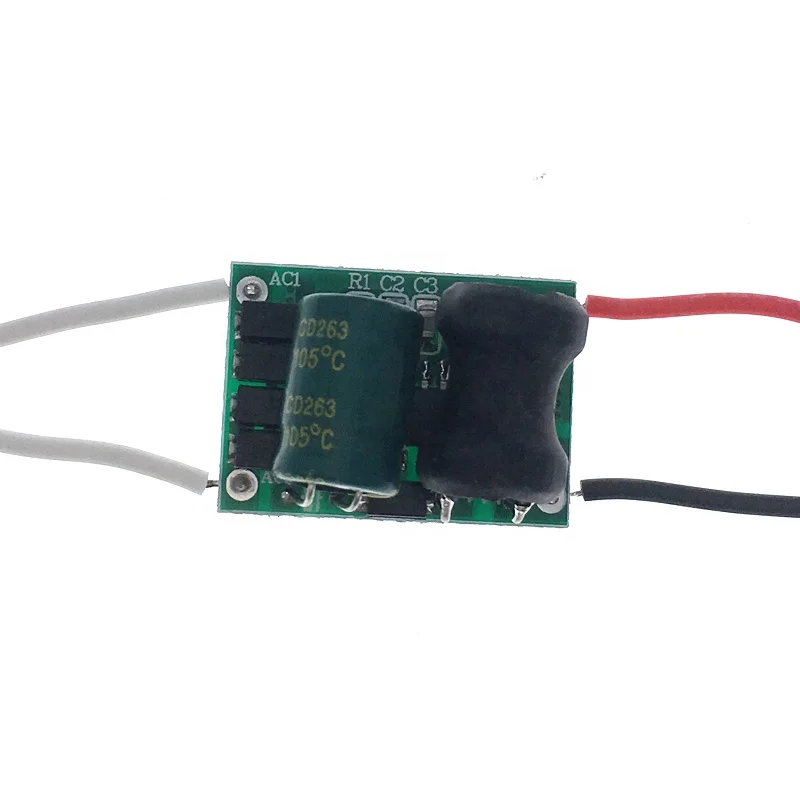

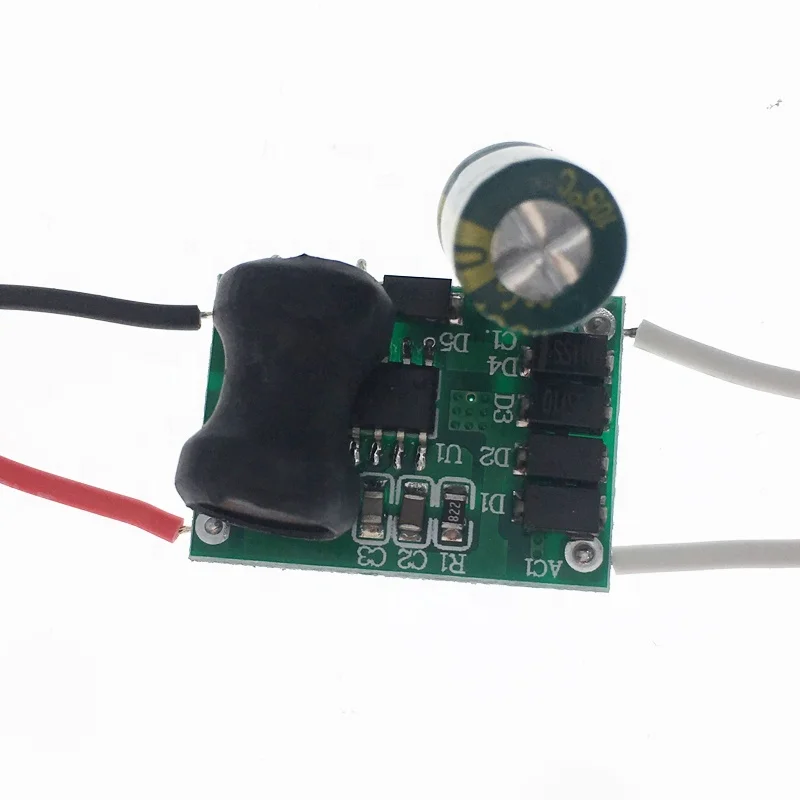

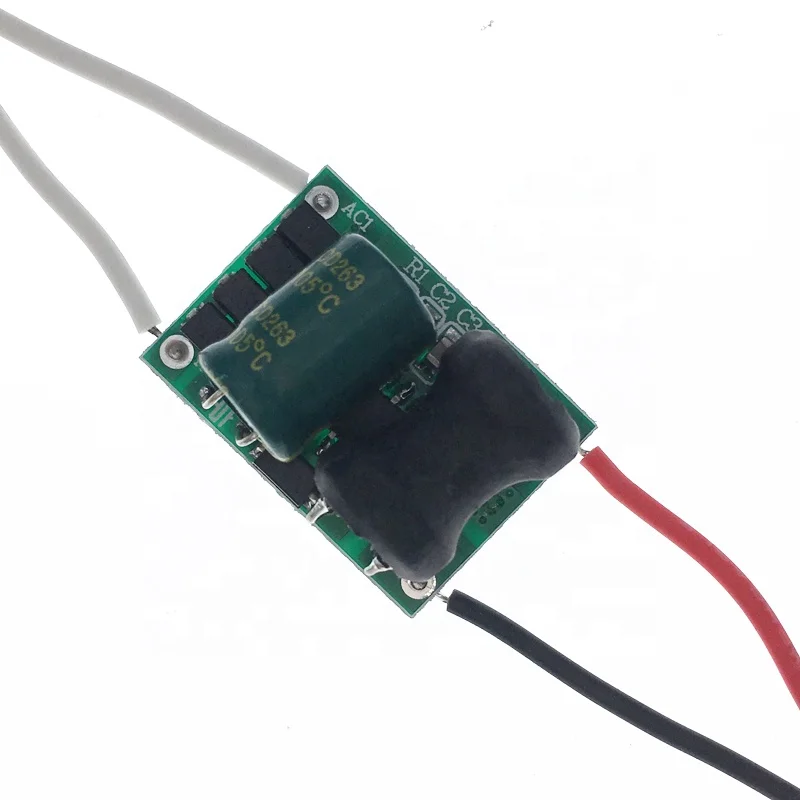

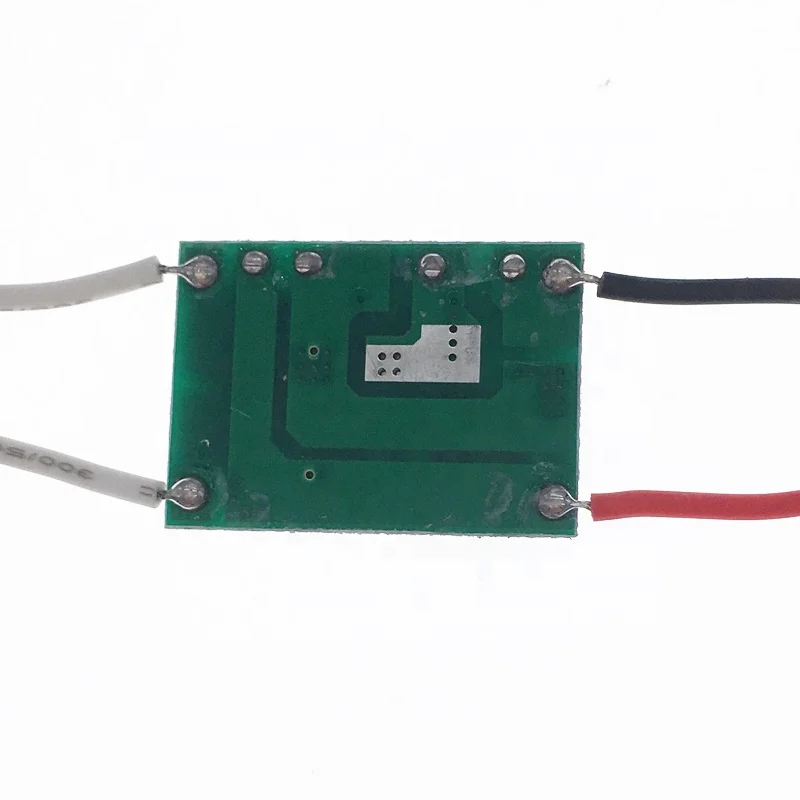

Low voltage led driver AC/DC12 36V 3 14W for lamp cup spotlight bulb lamp headlight constant current led bulb driver

 Item Features:

1. Ultra-small size design, low noise and safe features;

2. Adopt high-efficiency, low-consumption and stable imported chips to achieve energy saving and environmental protection purposes;

3. Constant output current. Ensure the safety and stability of LED use, improve the light efficiency of LED, and reduce light decay

4. Overload, overvoltage, short circuit, overcurrent protection ensure power supply safety;

5. low voltage input, no need to distinguish between positive and negative poles;

6. The red at the output is positive and the white is negative.

       Note: This product adopts the step-down scheme, the input voltage must be higher than the output voltage, otherwise it will not work normally. For example, when the input voltage is 12V, the output voltage can support up to 10V.

IF 12V can be used by 1-3W,

IF 24V can be used by 1-7W,

IF 36V can be used by 1-10W.

Description: This power input voltage is AC12-36V/DC12-80V, the efficiency is more than 85%, the output current can adjusted according to customer requirements, the current can be adjusted in the range of 200-1000ma, and the input total power cannot exceed 15W.

Protection function: output short circuit, open circuit, over voltage protection

Use range: all kinds of built-in LED lights use

FAQ:

Q1.Can I have a sample order for led driver?

A:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2.Do you have any MOQ limit for the led driver?

A:Low MOQ,1PCS for sample checking is available.

Q3:Is it OK to print my logo on led product?

A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q4:Do you offer guarantee for the products?

A:Yes,we offer 2years warranty to our products.

Q5: How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
