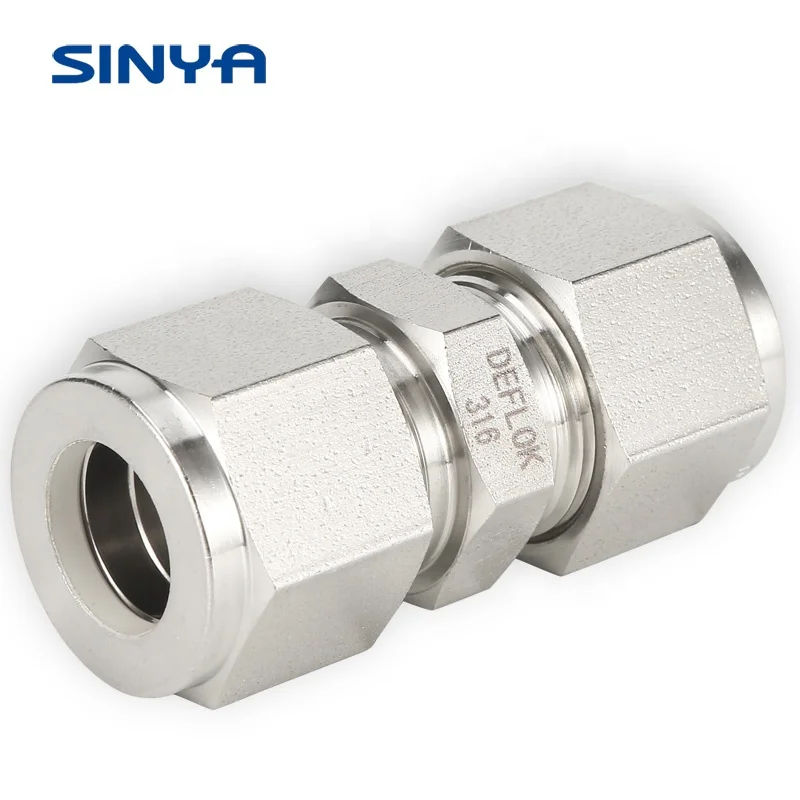

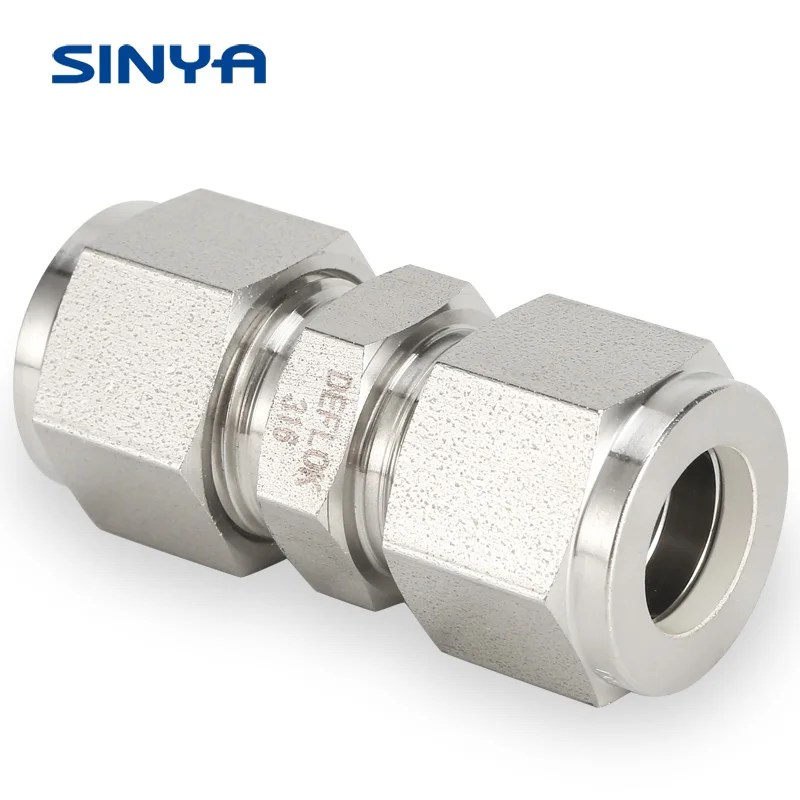

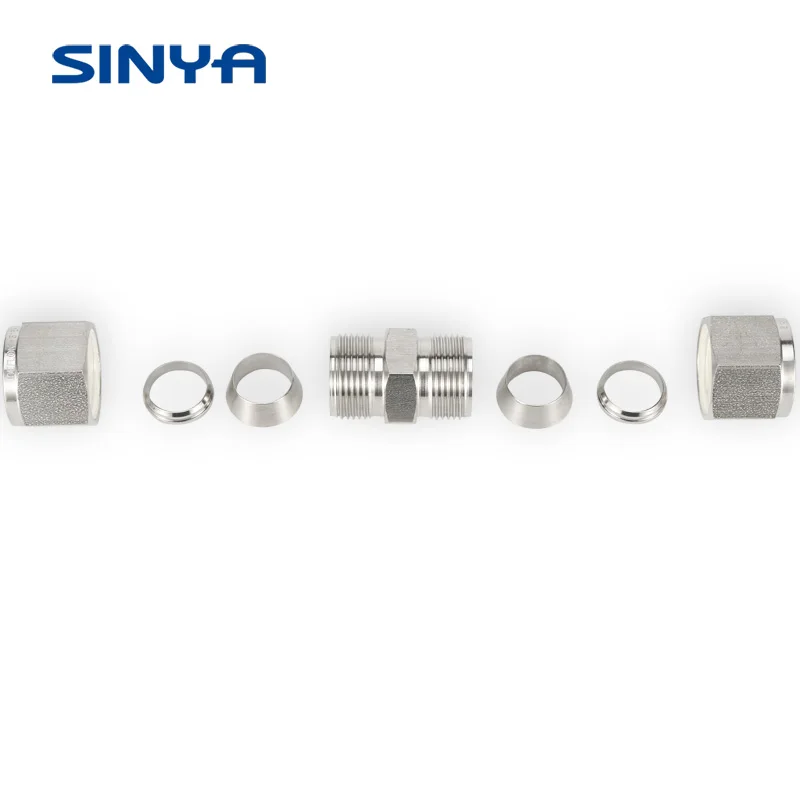

1/4in Tube OD Tube Fittings 316 Stainless Steel Double Ferrule Union Coupling Compression Swagelok Type Straight Union Connector
- Category: >>>
- Supplier: Yangzhong Xinya Automatic Control Engineering Co. Ltd.
Share on (62330356973):
Product Overview
Description
Product Description
1.Available in size: 1/16" to 1", and 2mm to 25mm. | ||||||
2.Working temperature:-325℉~800℉ (-198℃~426℃). | ||||||
3.Material grades: SS 304, SS 316, Brass, Special Alloys. | ||||||
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc. | ||||||
5.Zero leakage even under tough working conditions. | ||||||
6.High quality silver plated threads on nuts to ensure no galling on the body threads. | ||||||
7.Simple to operate and save time and cost because of the usage of elastic seal. | ||||||
8.Available in wide variety of configurations. | ||||||
9.It can be reused. | ||||||

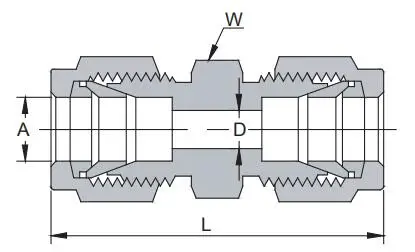

-SK6 Union (in) | ||||||||||||
Order information | A | D | W | L | ||||||||
in | mm | mm | in | mm | mm | |||||||
-SK6-1 | 1/16 | 1.58 | 1.27 | 5/16 | 7.93 | 25.14 | ||||||
-SK6-2 | 1/8 | 3.17 | 2.28 | 7/16 | 11.11 | 35.56 | ||||||
-SK6-3 | 3/16 | 4.76 | 3.04 | 7/16 | 11.11 | 37.33 | ||||||
-SK6-4 | 1/4 | 6.35 | 4.82 | 1/2 | 12.70 | 40.89 | ||||||
-SK6-5 | 5/16 | 7.93 | 6.35 | 9/16 | 14.28 | 42.90 | ||||||
-SK6-6 | 3/8 | 9.52 | 7.11 | 5/8 | 15.87 | 44.95 | ||||||
-SK6-8 | 1/2 | 12.70 | 10.41 | 13/16 | 20.63 | 51.30 | ||||||
-SK6-10 | 5/8 | 15.87 | 12.70 | 15/16 | 23.81 | 52.07 | ||||||
-SK6-12 | 3/4 | 19.05 | 15.74 | 11/16 | 26.98 | 53.59 | ||||||
-SK6-14 | 7/8 | 22.22 | 18.28 | 13/16 | 30.16 | 55.11 | ||||||
-SK6-16 | 1 | 25.40 | 22.35 | 13/8 | 34.92 | 64.77 | ||||||
-SK6-20 | 11/4 | 31.75 | 27.70 | 13/4 | 44.45 | 92.20 | ||||||
-SK6-24 | 11/2 | 38.10 | 34.00 | 21/8 | 53.97 | 107.95 | ||||||
-SK6 Union (mm) | ||||||||
Order information | A | D | W | L | ||||
mm | mm | mm | mm | |||||
-SK6-2mm | 2 | 1.7 | 12 | 35.2 | ||||
-SK6-3mm | 3 | 2.4 | 12 | 35.3 | ||||
-SK6-4mm | 4 | 2.4 | 12 | 36.5 | ||||
-SK6-6mm | 6 | 4.8 | 14 | 41.0 | ||||
-SK6-8mm | 8 | 6.4 | 15 | 43.2 | ||||
-SK6-10mm | 10 | 7.9 | 18 | 45.9 | ||||
-SK6-12mm | 12 | 9.5 | 22 | 51.2 | ||||
-SK6-14mm | 14 | 11.1 | 24 | 52.0 | ||||
-SK6-15mm | 15 | 11.9 | 24 | 52.0 | ||||
-SK6-16mm | 16 | 12.7 | 24 | 52.0 | ||||
-SK6-18mm | 18 | 15.1 | 27 | 53.5 | ||||
-SK6-20mm | 20 | 15.9 | 30 | 55.0 | ||||
-SK6-22mm | 22 | 18.3 | 30 | 55.0 | ||||
-SK6-25mm | 25 | 21.8 | 35 | 65.0 | ||||
Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||
1.Custom design, CAD drawing | ||||||
2.P&ID | ||||||
3.Component selection | ||||||
4.Bill of material | ||||||
5.Professional services such as bending and welding | ||||||
6.Testing to guarantee the system | ||||||
7.Professional packaging and delivery | ||||||

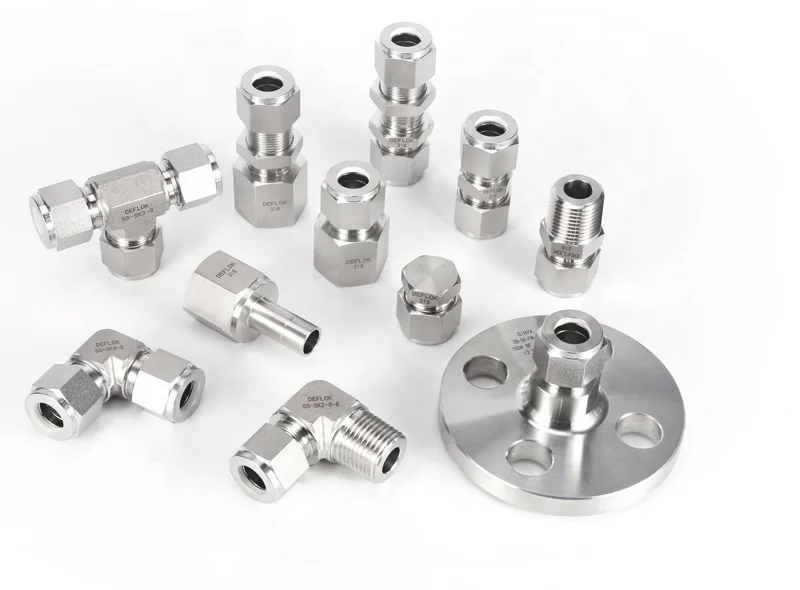

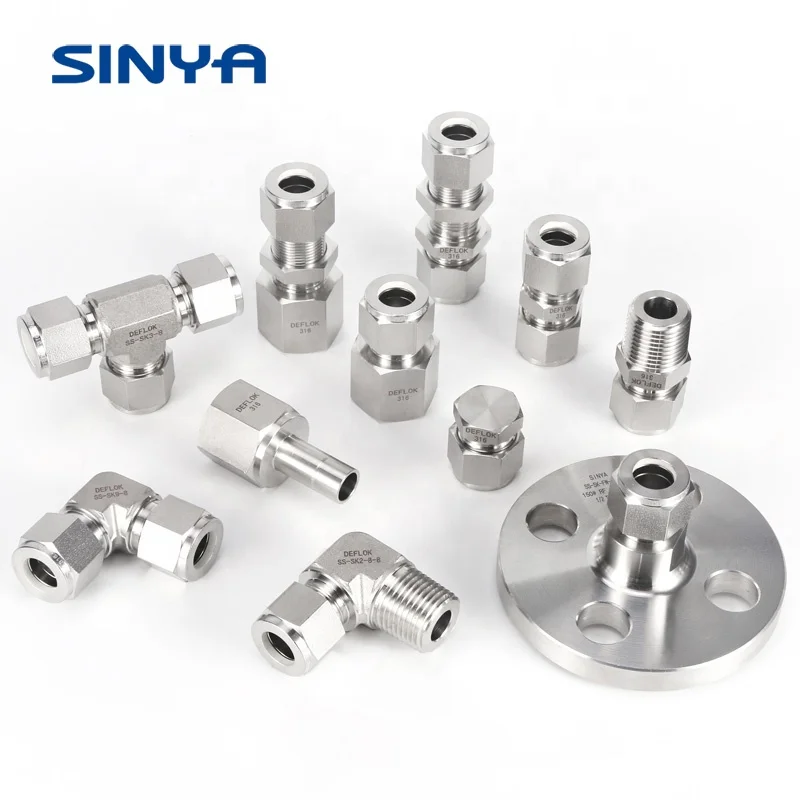

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | T-type Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | In-line Filters | Syphons | ||||
Needle Valves | Air Headers | Instrumentation Tubing | Sample cylinders | Tube Clamps | ||||
Ball Valves | Gauge Valves | Bleed & Purge Valves | Pots and Vessels | |||||
Packing & Delivery
Mode of packing: Export standard package or as your detail request. | ||||||
Delivery time: 2 weeks after receipt of payment | ||||||
Mode of shipment: By Express like DHL,Fedex,TNT Ups. | ||||||
Our Company
1.Established in 1995. | ||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||
8.We have obtained ISO9001 certificate, CE Certificate | ||||||
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.. | ||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||
