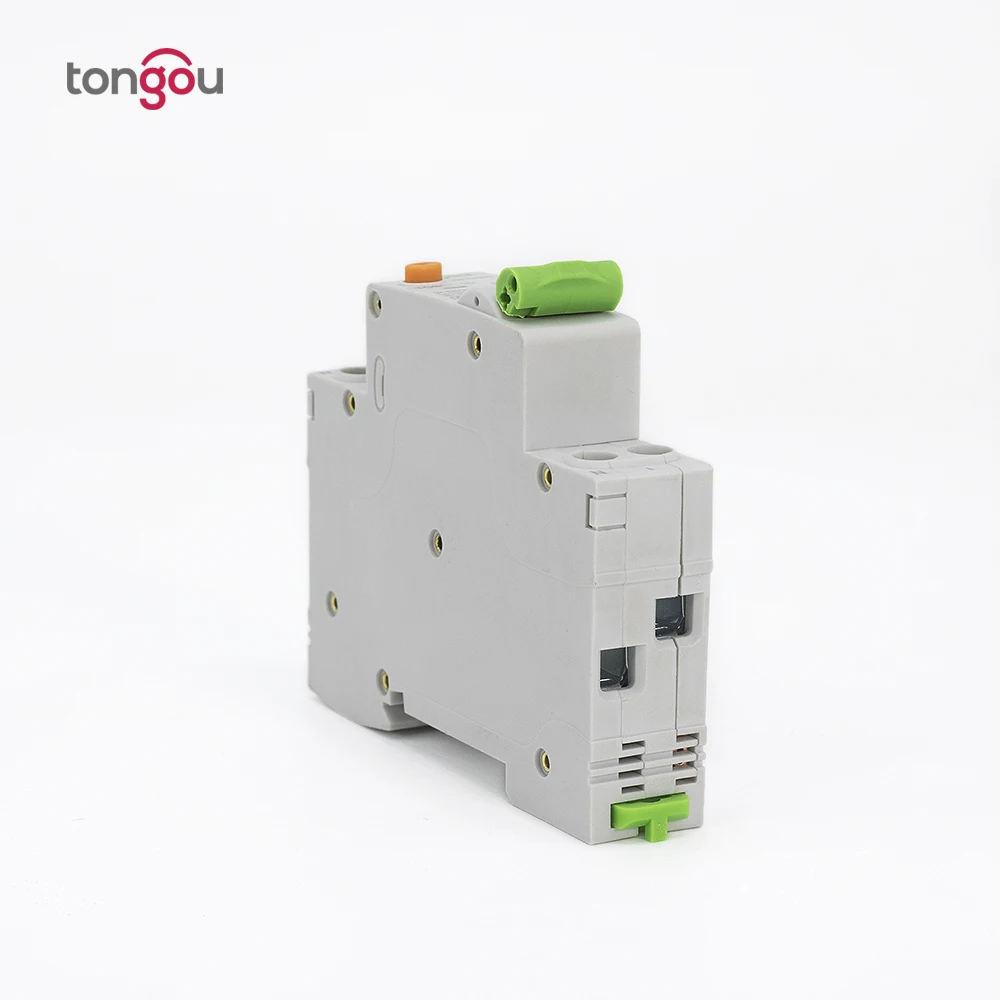

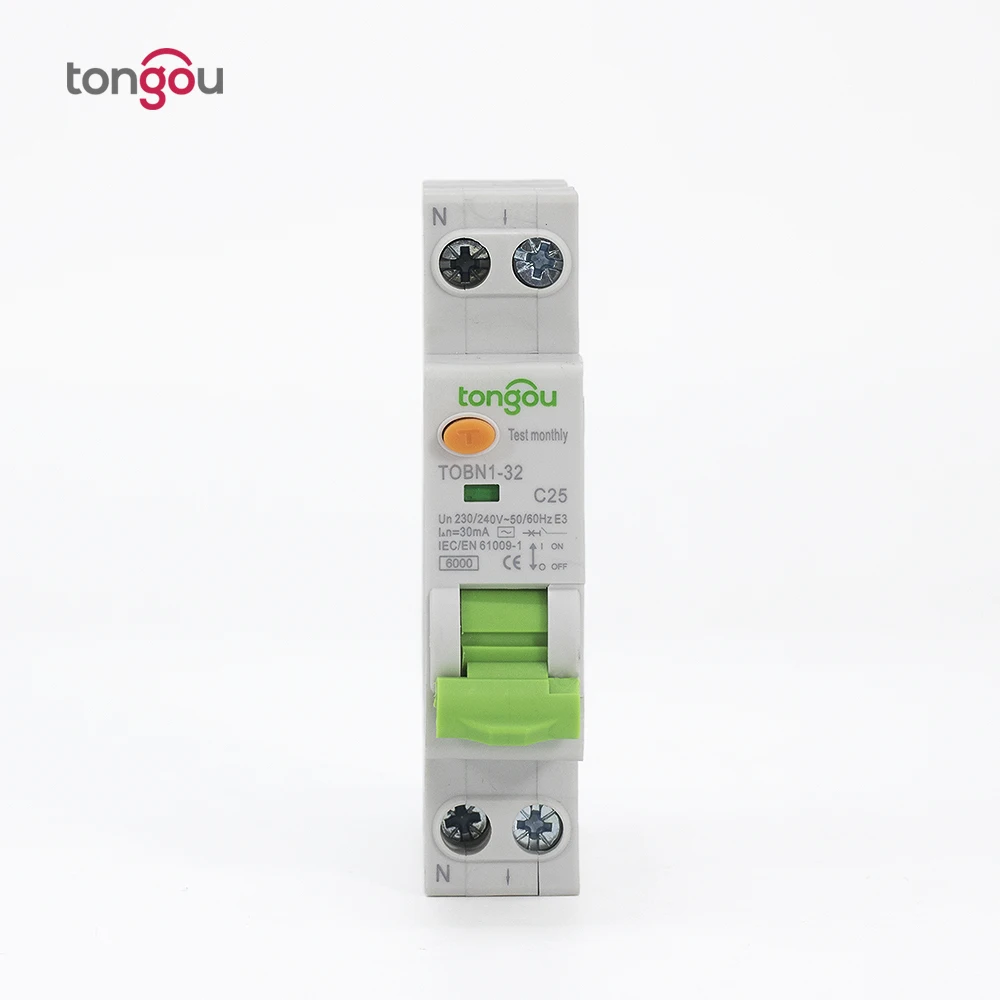

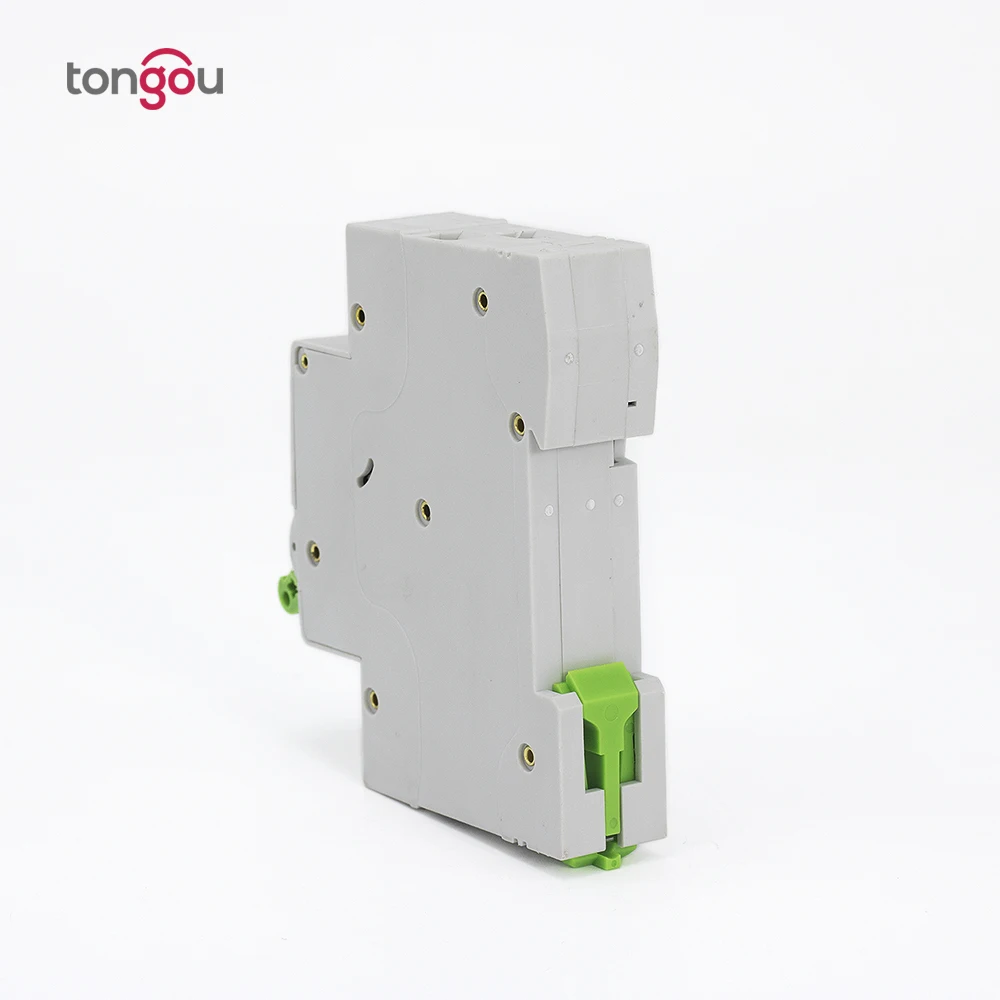

TOBN1 6A 30mA 1P N 6KA 18mm Electronic Type RCBO Australia
TOBN1 6A 30mA 1P+N 6KA 18mm Electronic Type RCBO Australia
TOBN1 6A 30mA 1P+N 6KA 18mm Electronic Type RCBO Australia
TOBN1 6A 30mA 1P+N 6KA 18mm Electronic Type RCBO Australia
TOBN1 6A 30mA 1P+N 6KA 18mm Electronic Type RCBO Australia

TOBN1 6A 30mA 1P N 6KA 18mm Electronic Type RCBO Australia

Share on (62330361964):


Price:$7.14 - $9.14

Quantity:


Product Overview

Description



Product Description


General
RCBO is applicable to electric circuits with rated voltage 230V AC, frequency 50/60Hz and rated current up to 32Amp. The RCBO provides indirect protection to the operator’s body under such situation that the exposed live parts should be connected to a proper earth pole. RCBO also provides overcurrent protection to circuits in household, commercial and other similar installations. Moreover, it prevents potential fire danger caused by earth fault current in case overcurrent protection device fails.




Model Name
TOBN1-32
Model
Electronic type
Residual Current characteristic:
AC/A
Pole No:
1P+N

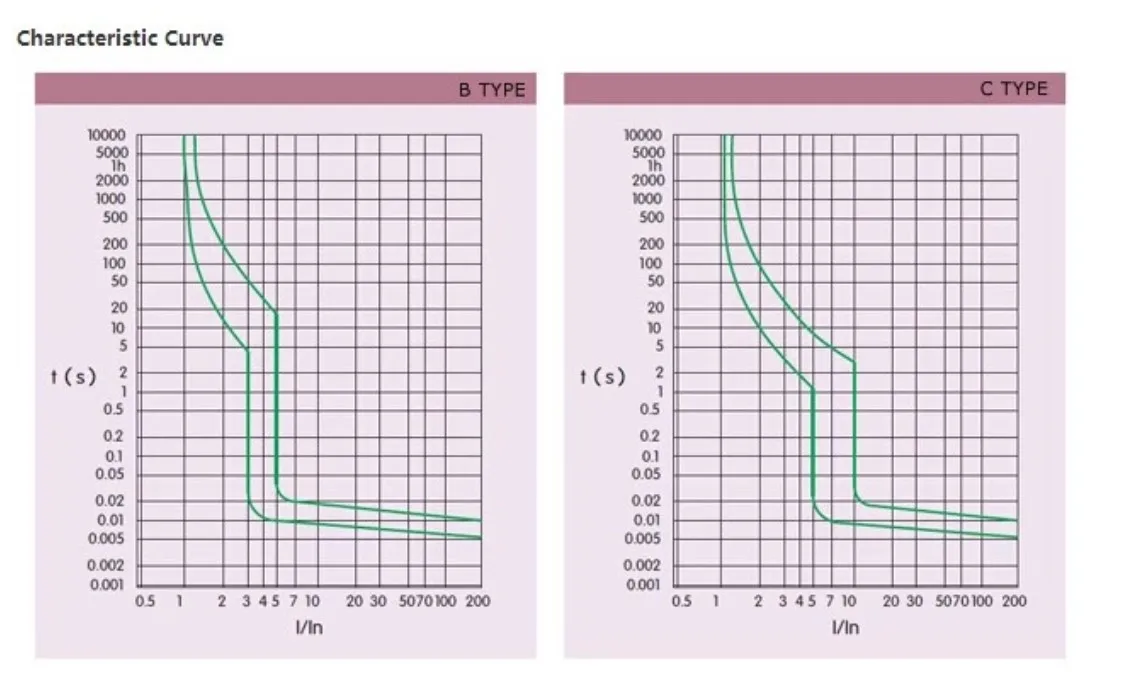

Tripping Curve
C/B
Rated current（A）
6-32
Rated voltage
240V
Rated frequency
50/60Hz
Rated residual operating current |△(A):
0.03/0.1
Rated residual non operating current |△ no:
0.5|△ n
Rated conditional short-circuit current inc:
6kA
Rated conditional residual short-circuit current |△c:
6kA
Tripping duration:
Instantaneous tripping ≤0.1s
Residual tripping current range:
0.5||△n~|△n
Electro-mechanical endurance
≥4000 cycles
Connection capacity:
RIGID CONDUCTOR 16MM²
Connection terminal
Screw terminal Pillar terminal with clamp
Fastening torque
2.0 Nm
Installation
On symmetrical DIN rail 35mm Panel mounting


Dimensions (mm)




Special Tips

1.RCBO with rated sensitivity up to 100mA could beused as supplementary protecting device in case other protecting device faikls its protection against electric shock.

2.RCBO designed for household installation and other similar application, is for non-professional operation, and no maintenance is required.

3.RCBO provides no protection against electric shock from direct contact of both protected lines, or leakage current between these two lines.

4.Particular devices such as surge protective devices, surge arrester ets are recommended to install at upstream line to RCBO as precaution against potential surge voltage and current occurring at its power input side.

5.Satisfying conditions and applications as mentioned above, RCCB with “ON-OFF” indicating device is considered suitable for isolation funciton.

6.RCBO overcurrent protection value is fixed and is not subject to further adjustment.



Feature

1. Provides protecting against earth fault/leakage current,short-circuit,overload, and function of isolation

2. Contact position indication

3. Provides protection against indirect contact by human body

4. Provides complementary protection against direct contact by human body.

5. Effectively protects electric equipment against insulating failure.

6. Equipped with switched neutral and phase pole

7. Provides protection against over-voltage

8. Provides comprehensive protection to household and commercial systems.
