36v 250w/350w 12 inch hub motor 6 spoke wheel for electric scooter

Share on (62330366593):


Price:

Quantity:


Product Overview

Description



Product Description






Product name
6 spoke wheel for electric bicycle
Voltage
DC 36V/24V/48V
Color
customerized
fork size
135mm
Reduction ratio
4.4
Certification
CE, RoHS
Power
250w/350w
Warranty
3 years
Max torque
30 N.M
weight
3.5kgs
waterproof
IP65
MOQ
10 Pieces
Model Number
AC-12
free wheel
single
wheel
 rear
Port
Shanghai


Specifications you need to tell us when order:

1.voltage?
2.max power needed?
3.cabling methold: side or axle?
4.Max speed needed?

5. for front or rear?

6. cable length?

7.color of the motor?

8. wheel size?

9. fork size?

10. freewheel or cassette?

11.Disc or V-brake?

12.holes for spokes

13.with or without hall sensor

14.connectortype?

15.with or without rim


Important notice: we do NOT serve


any individuals who buys 1-2 pcs


for his own use.


We welcome ebike manufacturers and motor kit distributors.

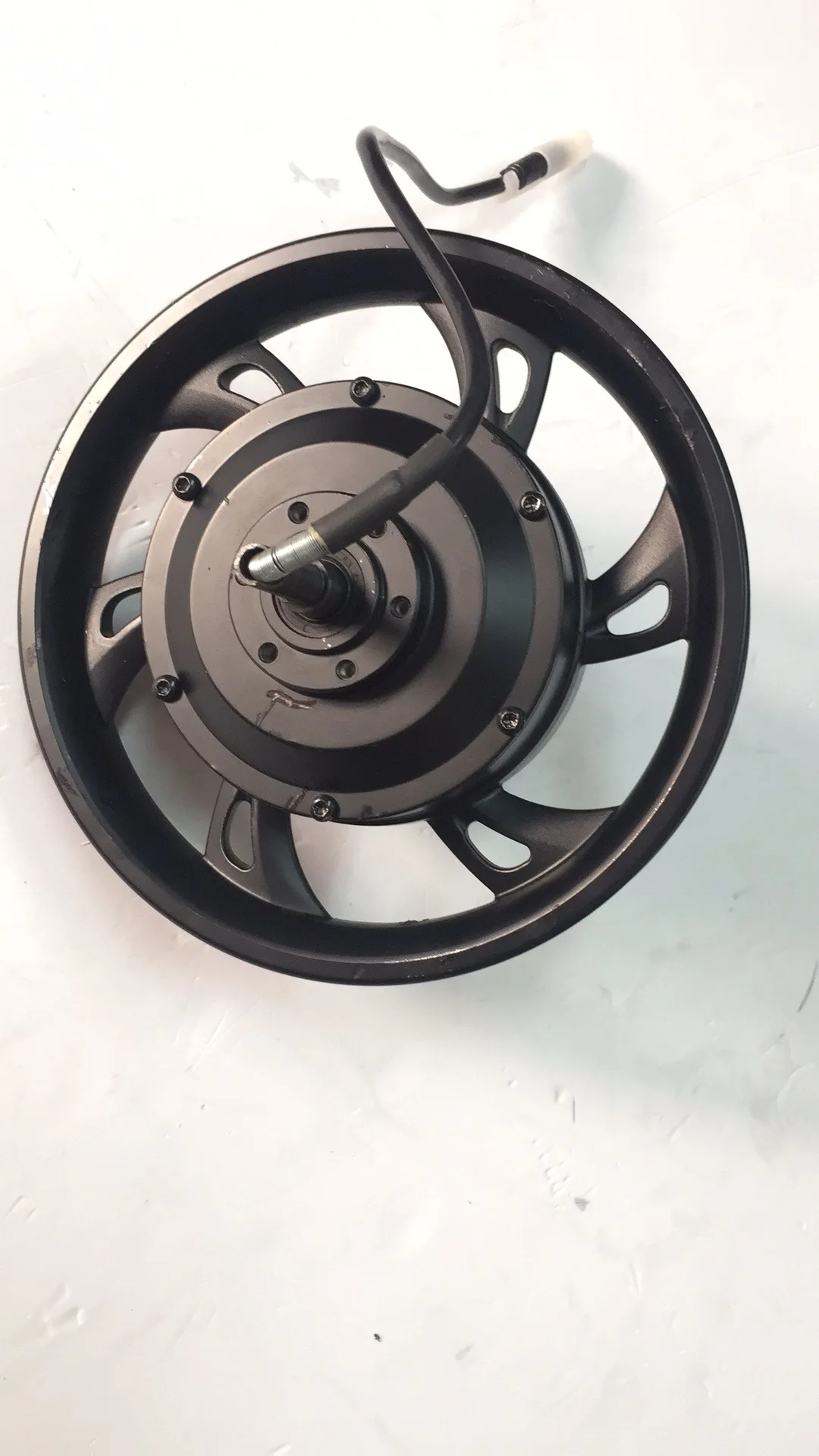

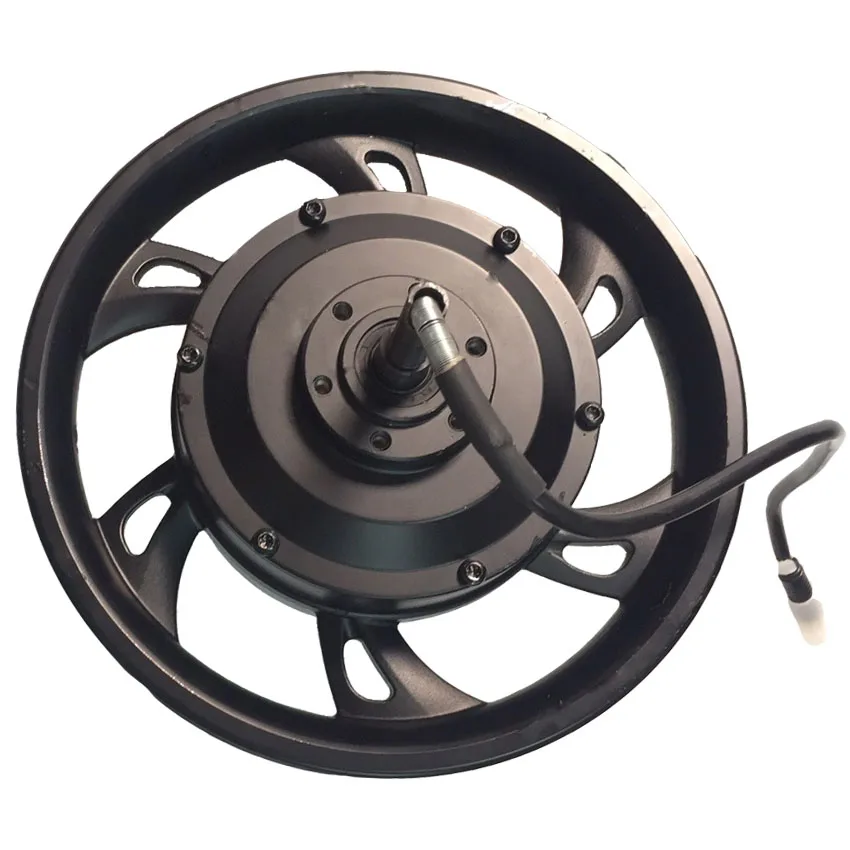

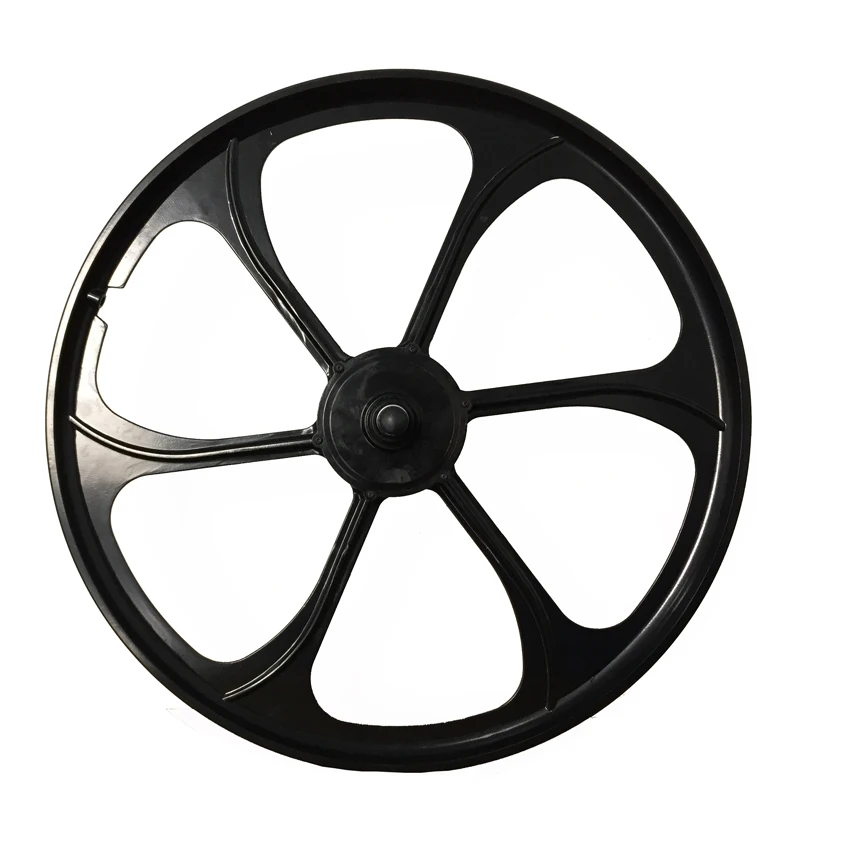

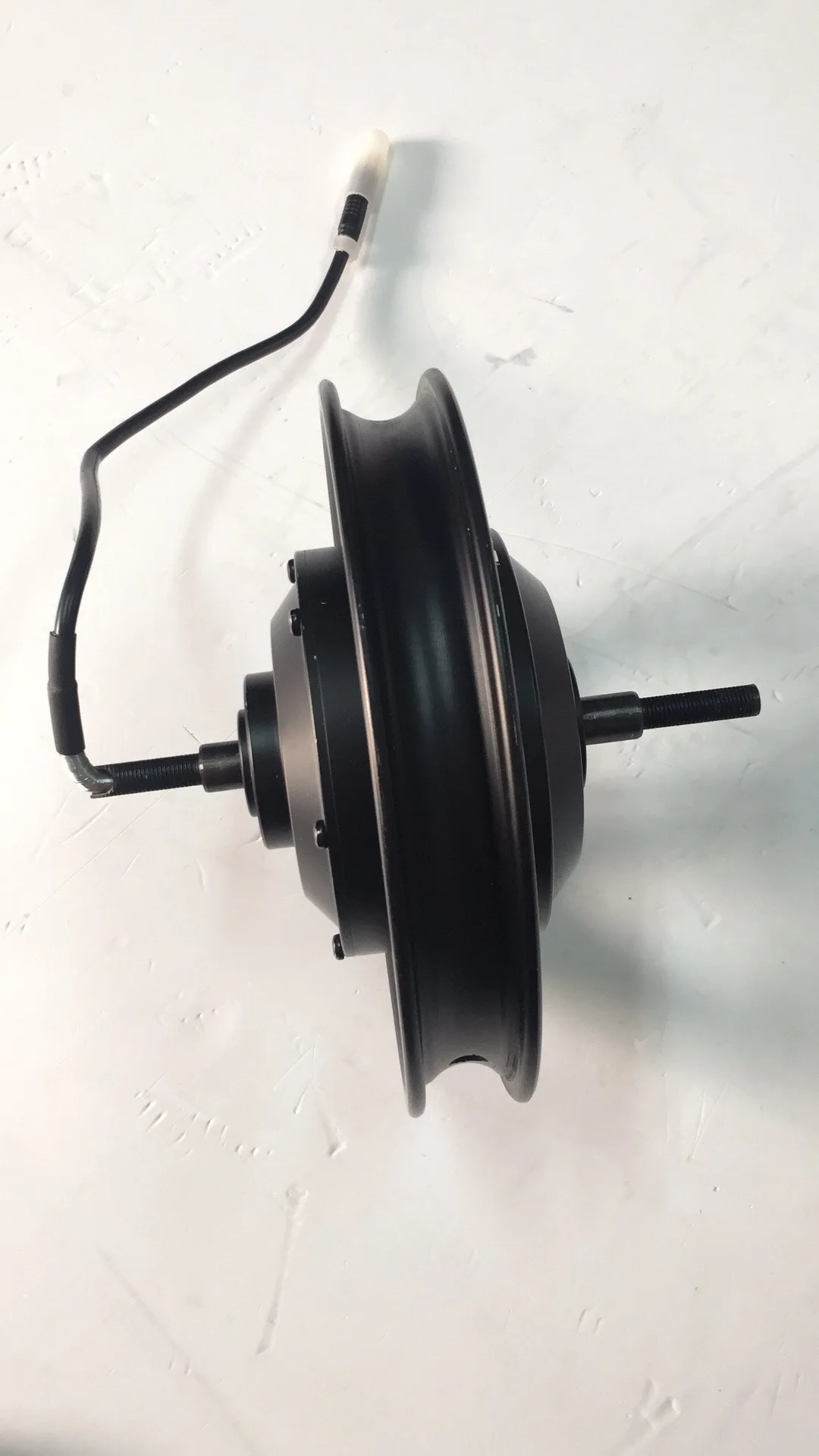

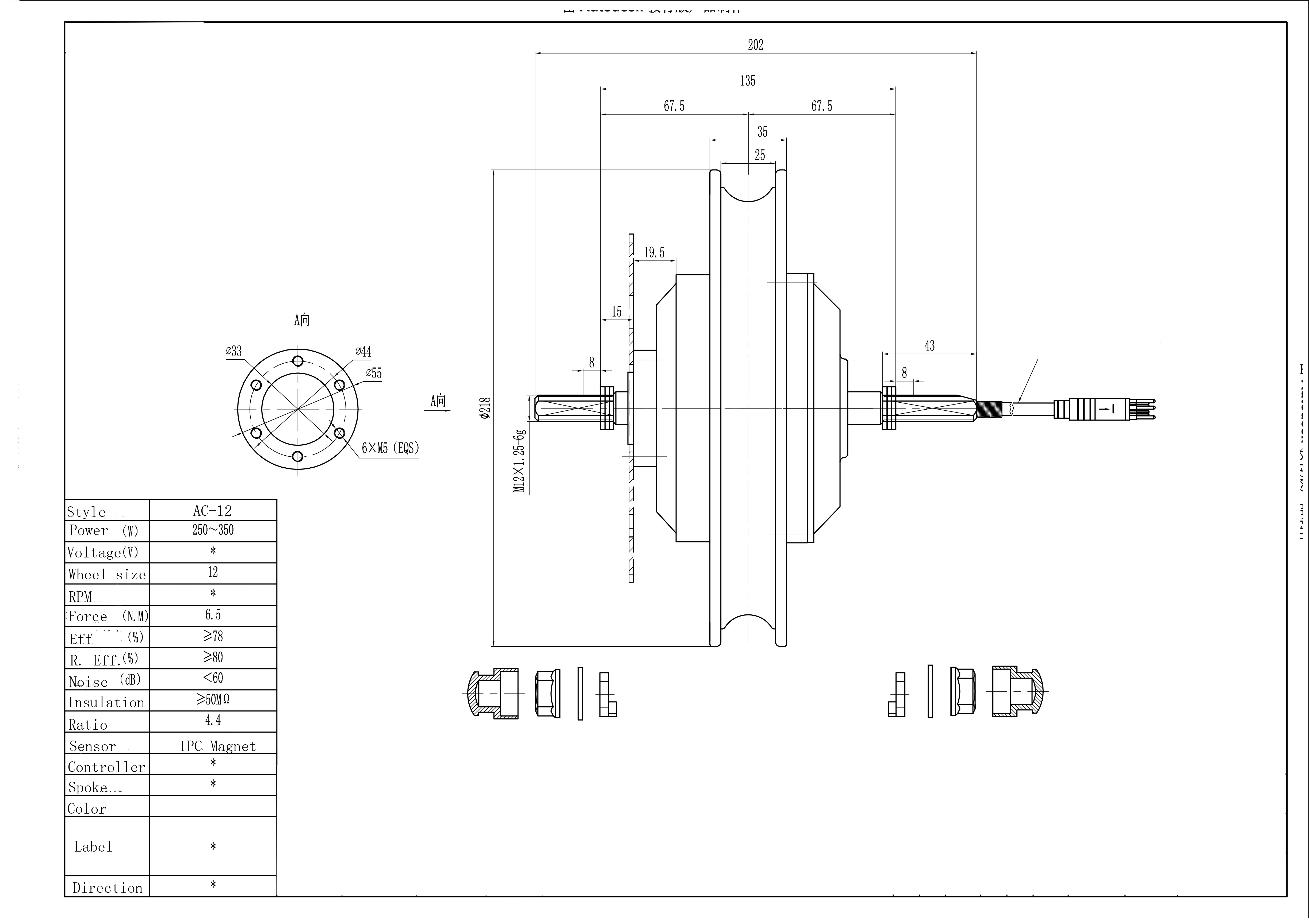

Detailed Images
