pc sheet production line plastic pc polycarbon sheet making machine
- Category: >>>
- Supplier: Zhangjiagang Sansu Machine Co. Ltd.
Share on (62330369452):
Product Overview
Description
PC SHEET LINE
PET SHEET LINE
PP SHEET LINE
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate!
FINAL PRODUCTS
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Main characteristics of PC sheet:
PC sheet is also called polycarbonate sheet, Kapron sheet, is an engineering plastic with excellent comprehensive performance, with outstanding physical, mechanical, electrical and thermal properties, known as "King of transparent plastic".
Application areas of PC sheet:
PC sheet is also called polycarbonate sheet, Kapron sheet, is an engineering plastic with excellent comprehensive performance, with outstanding physical, mechanical, electrical and thermal properties, known as "King of transparent plastic".
Application areas of PC sheet:
1. Light weight: The specific gravity is only half of ordinary glass, and it is not easy to break. It is time-saving and labor-saving to transport and install, and is especially suitable for tall buildings.
2. Light transmittance: The colorless transparent solar panel can provide excellent transparency and surface gloss, and the coloring panel can block the strongest part of the sunlight and make the transmitted light soft. The light transmittance is as high as 92%.
3. Sound insulation performance: It can effectively reduce noise, and is the first choice material for highway noise barriers in the world.
4. Heat transfer: It has a lower thermal conductivity (K value) than ordinary glass and other plastics, which greatly reduces the heat loss. It is an environmentally friendly material for buildings with heating equipment.
5. Impact resistance: PC is one of the best impact resistance among thermoplastics. The solar panel made of PC can maintain good impact resistance for a long period of time in a fairly wide temperature range. "And" Xiang Gang ".
2. Light transmittance: The colorless transparent solar panel can provide excellent transparency and surface gloss, and the coloring panel can block the strongest part of the sunlight and make the transmitted light soft. The light transmittance is as high as 92%.
3. Sound insulation performance: It can effectively reduce noise, and is the first choice material for highway noise barriers in the world.
4. Heat transfer: It has a lower thermal conductivity (K value) than ordinary glass and other plastics, which greatly reduces the heat loss. It is an environmentally friendly material for buildings with heating equipment.
5. Impact resistance: PC is one of the best impact resistance among thermoplastics. The solar panel made of PC can maintain good impact resistance for a long period of time in a fairly wide temperature range. "And" Xiang Gang ".
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate!
MACHINE DESCRIPTION
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line

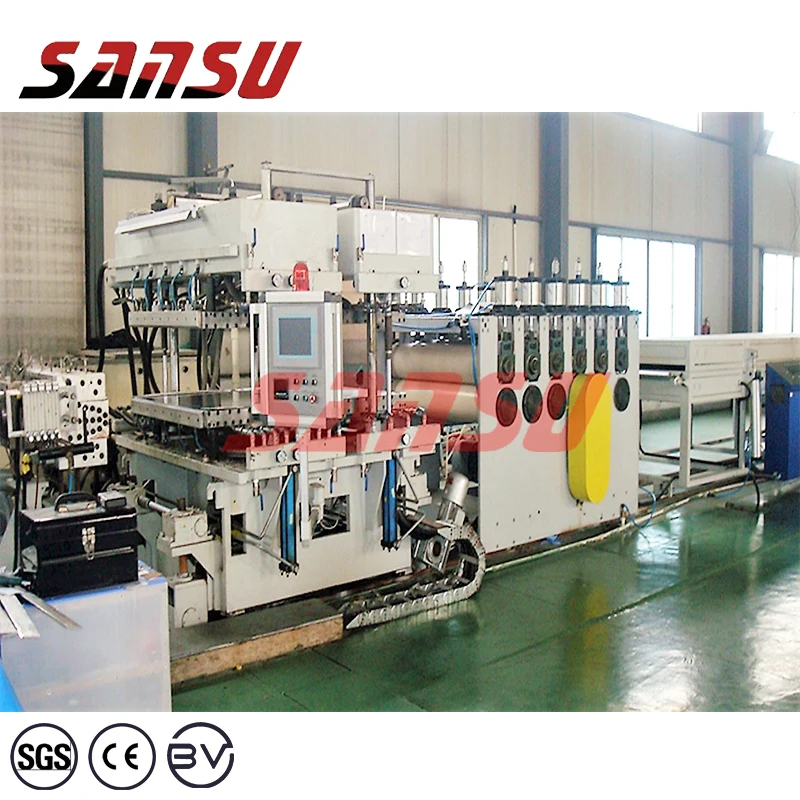

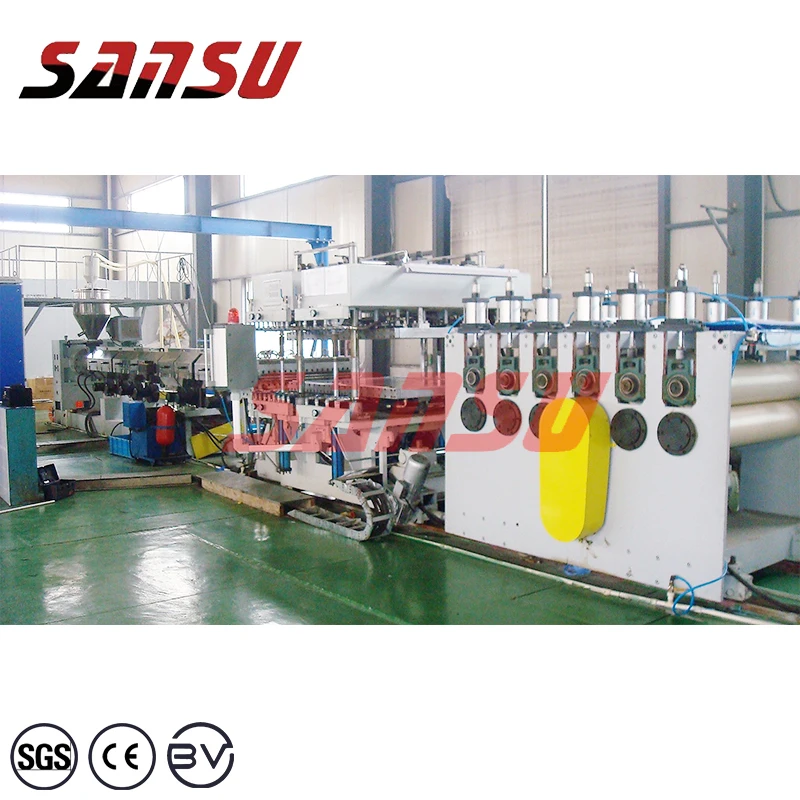

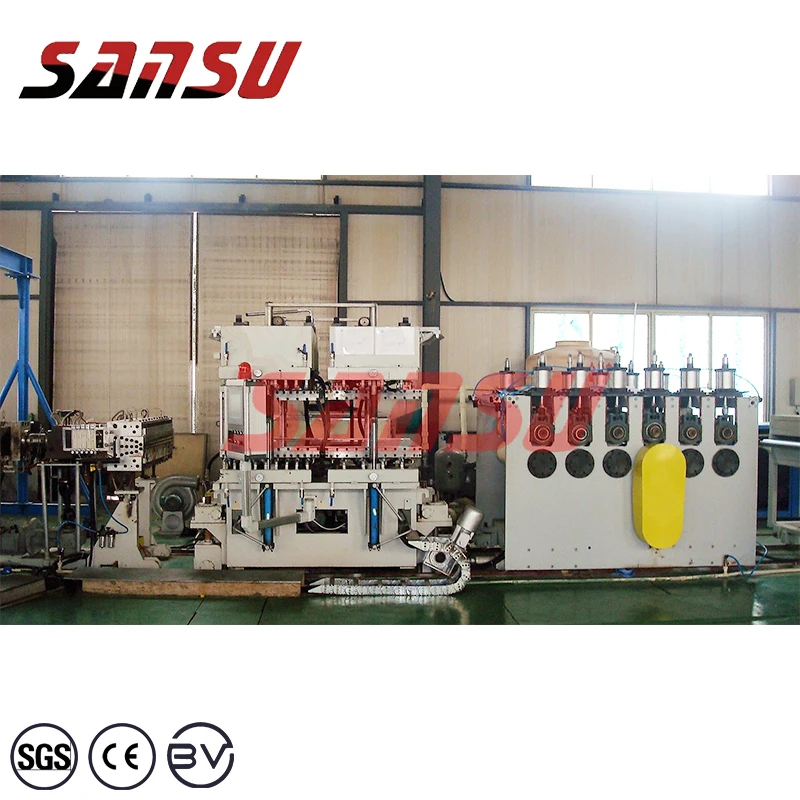

Plastic PC Sheet Extrusion Line.
★ The unit is mainly composed of a host, a screen changer, a mold, a tablet press, a conveyor, a tractor, a cutter, a stacker or a winder, etc .;
★ The gear box is made of cast steel, the gear is made of alloy steel and processed by gear grinding, and the lubrication points in the box are forced lubrication. The lubricating oil is equipped with an efficient water cooling system.
★ The screw material is made of 38CrMOA1A high-quality nitrided steel, after nitriding treatment, the surface is sprayed with alloy.
★ The barrel material is made of 38CrMOA1A high-quality nitrided steel, and after nitriding treatment, the surface is sprayed with alloy.
★ The raw materials that can be processed are: PET,PP, PE, PVC, PS, ABS, etc .;
★ The gear box is made of cast steel, the gear is made of alloy steel and processed by gear grinding, and the lubrication points in the box are forced lubrication. The lubricating oil is equipped with an efficient water cooling system.
★ The screw material is made of 38CrMOA1A high-quality nitrided steel, after nitriding treatment, the surface is sprayed with alloy.
★ The barrel material is made of 38CrMOA1A high-quality nitrided steel, and after nitriding treatment, the surface is sprayed with alloy.
★ The raw materials that can be processed are: PET,PP, PE, PVC, PS, ABS, etc .;
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate!
PRODUCT DETAILS
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Plastic PET Sheet Extrusion Line | ||
1. Single Screw Extruder | 2. Filter changer with hydraulic station | |
3. Melting pump | 4. PC T-die | |
5. Oblique rolling machine with three rollers | 6. Haul off cooling stack with edge trimming | |
7. Double surface lamination and Haul off | 8. Cutter | |
9. Stacker | ||
Model | SJ160/33 | SJ120/33 | SJ150/33 | SJ45/30 |
Max Output | 600kg/h | 350kg/h | 450kg/h | 40kg/h |
Diameter | 160mm | 120mm | 150mm | 45mm |
Motor power | 145kw | 110kw | 132kw | 11kw |
Filter changer with hydraulic station | ||
Material of filter plate | 38CrMoAl | |
Diameter of filter plate | 80mm，160mm | |
Change type | Hydraulic cylinder | |
Hydraulic station power | 2.2KW | |
Melting pump | ||
Model of melting pump | 150CC,50CC | |
Rotating speed | <60rpm(adjustable) | |
Material of pump | M2 | |
Output | Max 300Kgs/hr | |
Driving motor | 7.5KW | |
PET T-die | ||
Width of mould chasm | 1200mm-2000mm | |
Max. hatch of mould | producing sheeting with thickness 10mm | |
Min. hatch of mould | producing sheeting with thickness 1mm | |

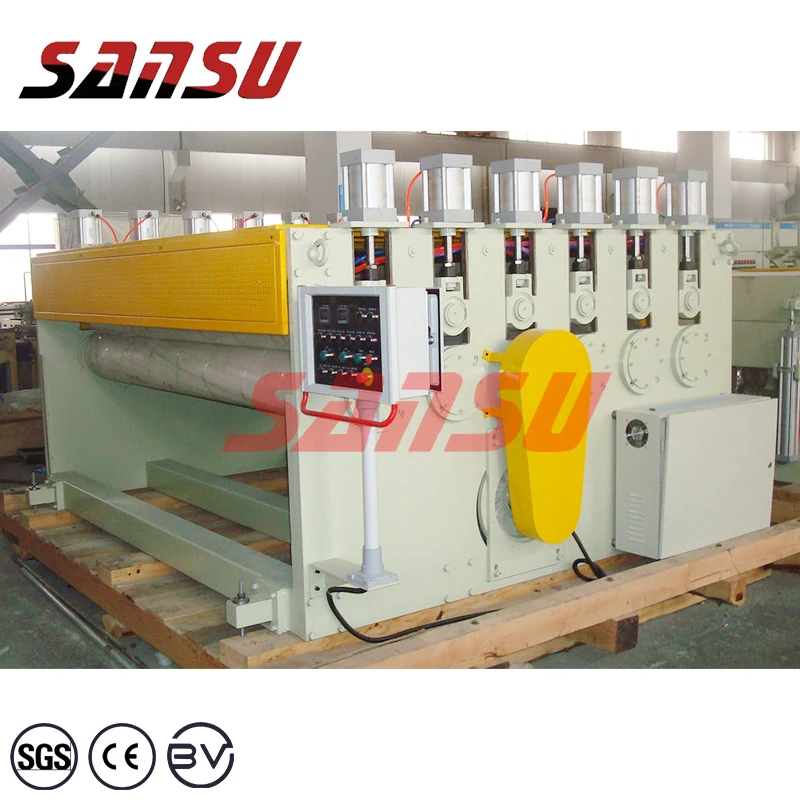

Oblique rolling machine with three rollers | ||
Driving system | Power of driving: Up roller: 1.5KW Mid roller:1.5KW Down roller:1.5KW | |
Specification of Roller | Diameter of Roller :Up roller:450mm Mid roller:450mm Down roller:450mm The surface of roller is quenched up to HRC45,quenching level:3-5mm Chromeplate level for roller: t=0.10-0.15 The roller has screwy inner cavity, with 6 head. | |
Moving unit | The whole moving unit includes driving system, roller lifting unit, etc. Power of Motor: 0.75KW Adopts bipolar gear down box to drive supply stable running. | |
Electric control box | Separate electric control box with AC contactor of SIEMENS Separate control of three rollers with inverter of ABB | |
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate!
MACHINE PARAMENTERS
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Model | Max Output | Diameter | Motor power | Speed adjuster | Material | Surface treatment | Rotation speed | |||||||
SJ120/33 | 400kg/h | 120mm | 132kw SIMO DC motor | EUROTHERM DC Adjuster | 38CrMoAlA | Nitrided and polished | 20~90r/min | |||||||
SJ90/33 | 200kg/h | 90mm | 75kw SIMO AC motor | ABB inverter | 38CrMoAlA | Nitrided and polished | 20~90r/min | |||||||
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate! | ||||||||||||||
ABOUT SANSU
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Sansu Machinery.
Sansu is manufacturer for kinds of plastic sheet extrusion machines, such as PET/PC sheet extrusion line, PE/PP/ABS sheet extrusion line, PP/PC hollow sheet line, PET infrared crystallized dryer,and established with excellent research and development team,Now we have 30000 sqm of factory and more than 60 employee,We have more than 10years production for kinds of plastic sheet extrusion line, such as PET PP PE ABS sheet machine. We always keep researching for new technology, and make complete process from recycling to sheet extrusion.
Our Advantages.
1. Experiences We have own R&D teams, engineers have more than 20 years experiences on plastic extrusion machine manufacturing, we are professional.
2. We use high quality materials for manufacture each machine.
3. Good and professional after-sales service not only include warranty period, for whole life of machine.
2. We use high quality materials for manufacture each machine.
3. Good and professional after-sales service not only include warranty period, for whole life of machine.
Want to know more about SANSU plastic extrusion machinery, inquiry us without hesitate!
FAQ
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Q:What is acceptable payment terms?
A:T/T or L/C at sight
Q:Are you the manufacturer or trading company?
A:We are an industrial manufacture factory.we have independent technical team who focus on making machine; all the products are made by our technical team .
Q:How do you make the quotation for client?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
Type of pipe you want to produce. Pipe diameter. Raw material and its types
A:T/T or L/C at sight
Q:Are you the manufacturer or trading company?
A:We are an industrial manufacture factory.we have independent technical team who focus on making machine; all the products are made by our technical team .
Q:How do you make the quotation for client?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
Type of pipe you want to produce. Pipe diameter. Raw material and its types
If you can also send us photos of your samples, it would be highly appreciated.
