AccTek hot sales 6060 metal mini cnc machine hobby with best price
- Category: >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (62330385878):
Product Overview
Description
AccTek hot sales 6060 metal mini cnc machine hobby with best price
Configuration:
#Semi-closed heavy duty steel structure ,table moving]
#All axis with Taiwan TBI ballscrew, Hhiwin 20mm rails
#Cast iron T slot table with sliding dust-proof metal plate
#Syntec controller, 3.2kw water coolng water cooling spindle for metal plate
#4 pcs tool changer

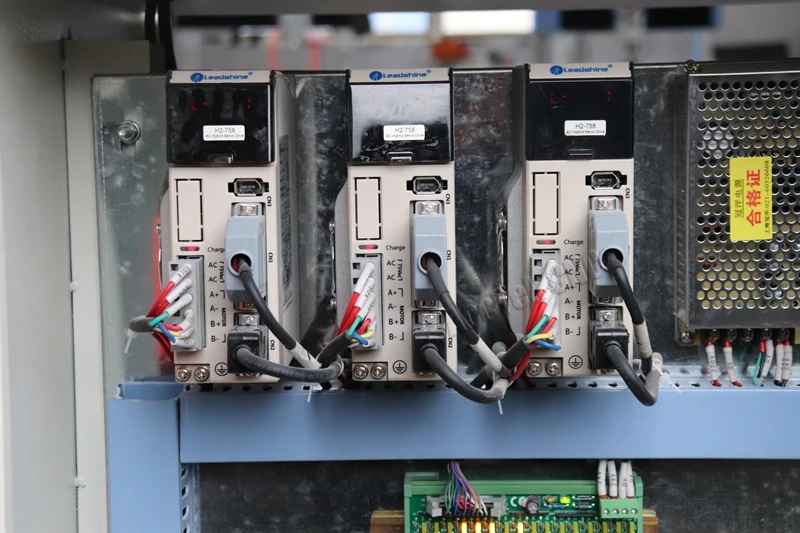

#Leadshine easy servo motor HBS758
#Delta inverter, with coolant pipe

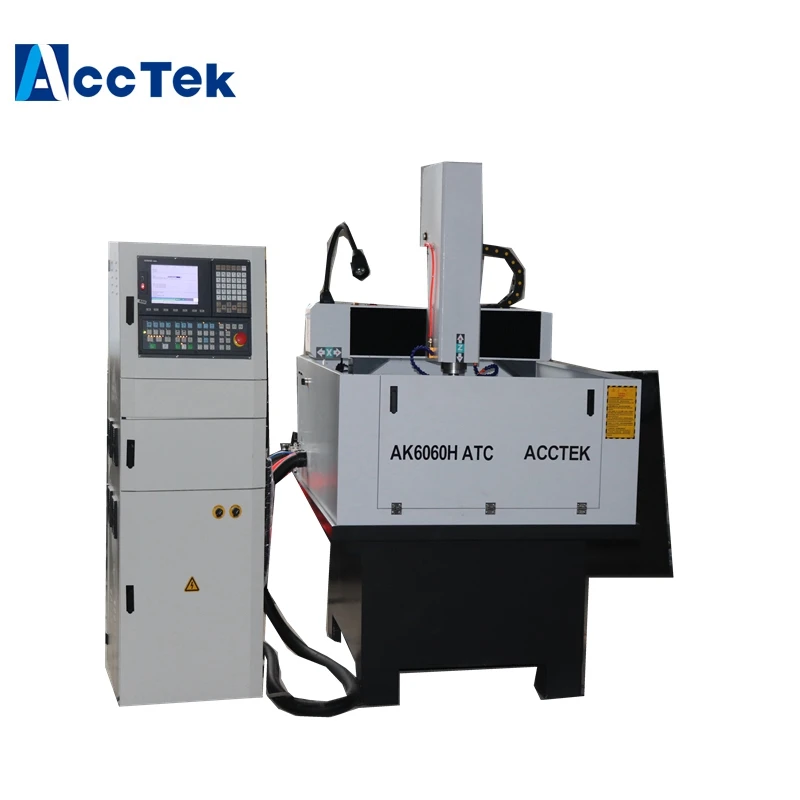

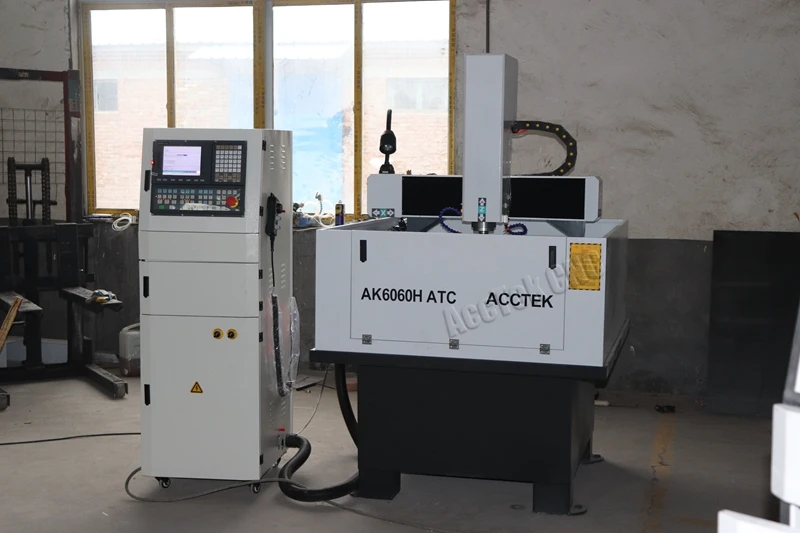

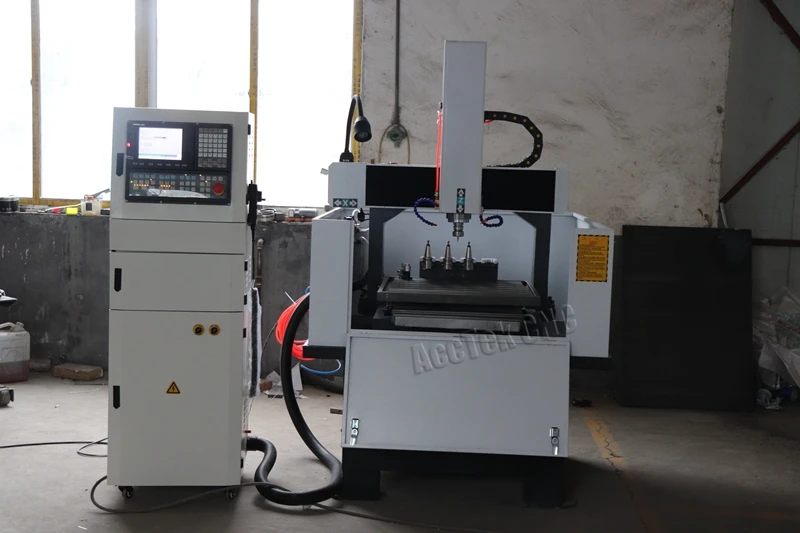

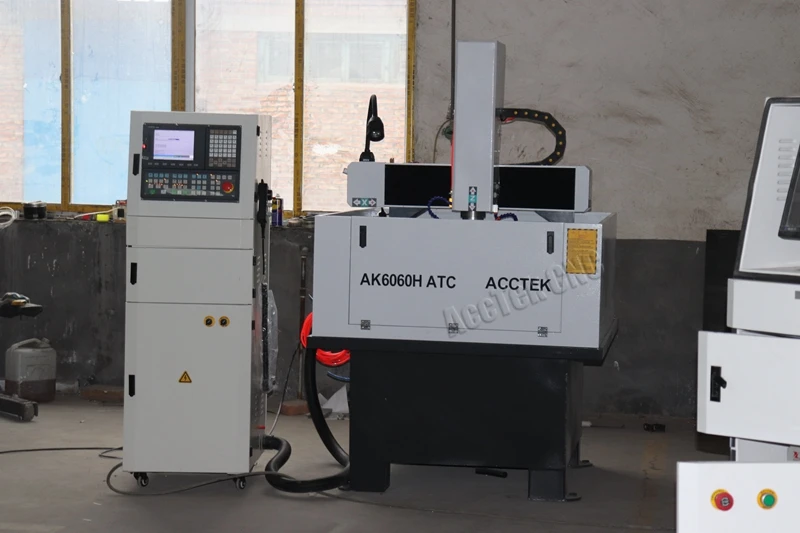

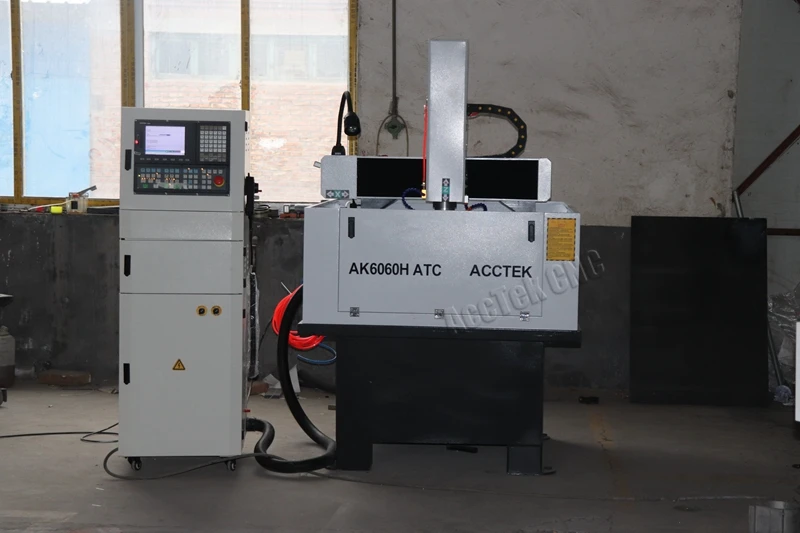

Cnc router machine AK6060C details:
3.2kw water cooling spindle

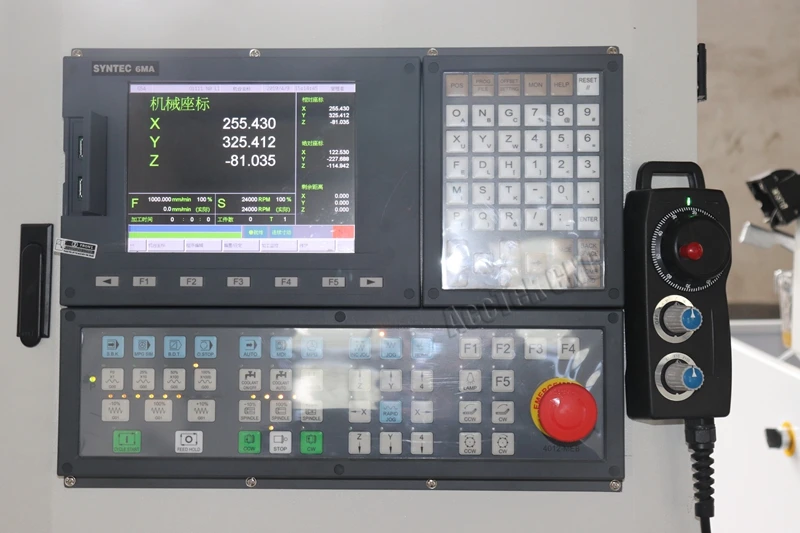

Syntec control panel
Working table

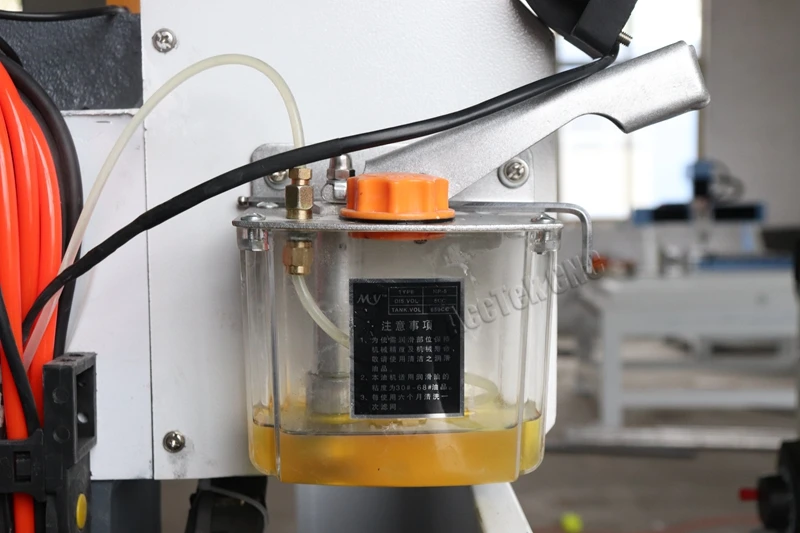

Oil lubrication
Parameters:
| 1 | Model | AK6060C |
| 2 | Working Area | 600×600×200mm |
| 3 | Table Size | 700×700mm |
| 4 | Worktable | Cast iron T slot table with Sliding dust-proof metal plate |
| 5 | Spindle Motor | 3.2 kw metal mould spindle |
| 6 | Cooling Type | water Cooling |
| 7 | Rotating Speed | 6000-24000rpm |
| 8 | Motor Drive | leadshine easy servo Motors |
| 9 | Transmission | Ball Screw |
| 10 | Accuracy | ±0.02mm |
| 11 | Max Motion Speed | 15000mm/min |
| 12 | Max Engraving Speed | 12000mm/min |
| 13 | Controlling Code | G code ; *.u00 ; *.mmg ; *.plt . |
| 14 | Compatible Softwares | Ucancam/Type3/Artcam/Artcut etc |
| 15 | Control System | Syntec control system |
| 16 | Collets Type | 1mm~12.7 mm |
| 17 | Operating Voltage | 3Phase AC380V, 50-60Hz; |
| 18 | Weight | N.W 850KG/ G.W 950 Kg |
Options:
# Rotary axis
# Bigger power spindle
Applicatios:
Mainly applied in various types of mold and model processing on man-made stone, copper, aluminu, iron, plastic and wood etc
Applied Industry: metal molds, bronze, embossed mold, wooden mold, three-dimensional model making, etc.
Applied Industry: metal molds, bronze, embossed mold, wooden mold, three-dimensional model making, etc.
Our service:
1) 24 hours technical support by Email or Calling.
2) English manual and CD video for machine using and maintaining.
3) Hardware: 1 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4) Engineers available to service machinery overseas.
