2019 New Sale Cad Cam System Milling Machine Zirconia JD N4 4 axis Denture Crown Equipment
- Category: >>>
- Supplier: Shandong Carved Intelligent Technology Group Co. Ltd.
Share on (62330474577):
Product Overview
Description
Advantages

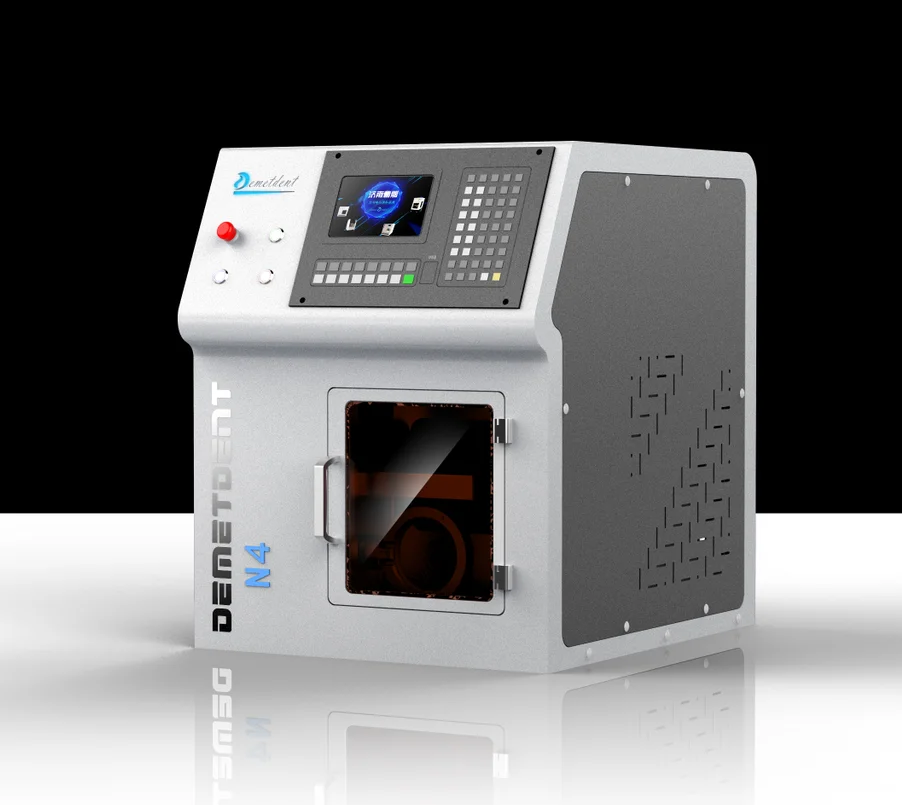

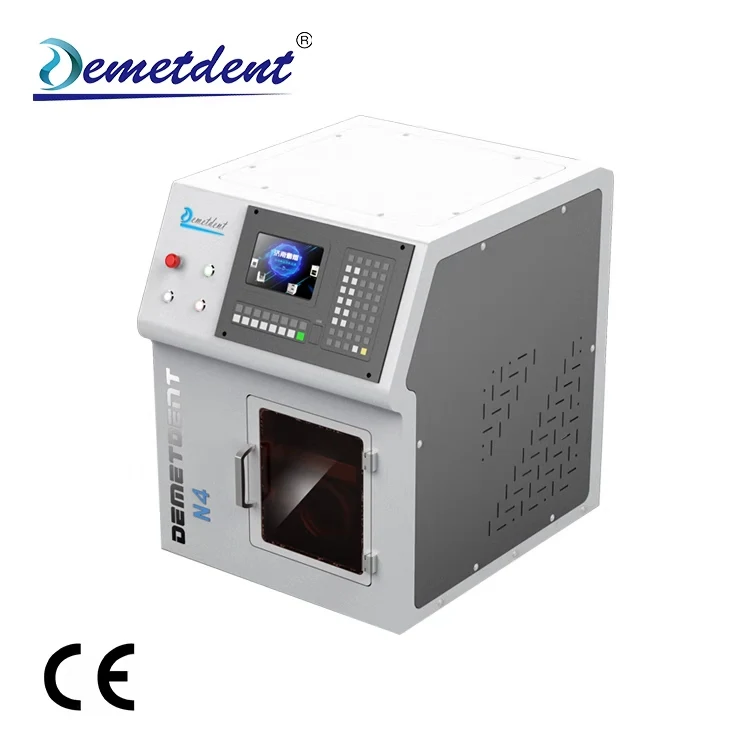

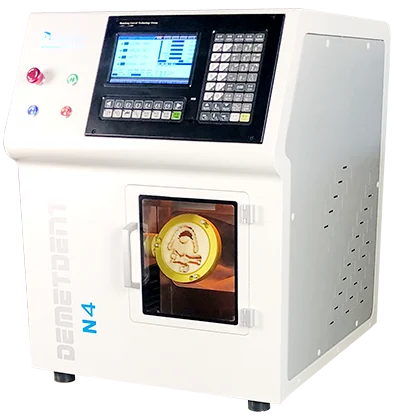

JD-N4 4-axis special zirconia milling machine --------------------------------------------------------------------------------- ♦ Efficient zirconia milling ♦ Extreme precision ♦ Excellent performance ♦ Extraordinary stability ♦ Special horizontal spindle design ♦ Worry-free after-sales service |  |
Millable Materials
| Zirconia | Wax | PMMA |

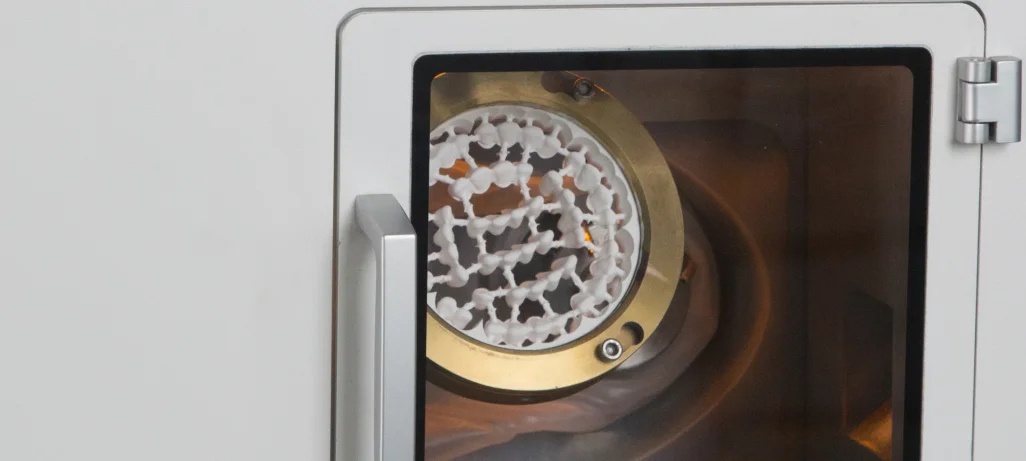

Precise Milling

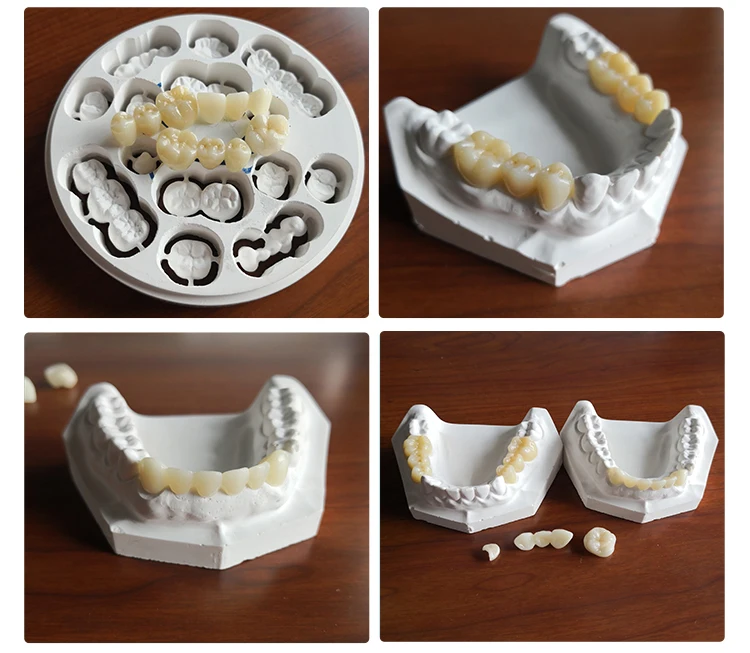

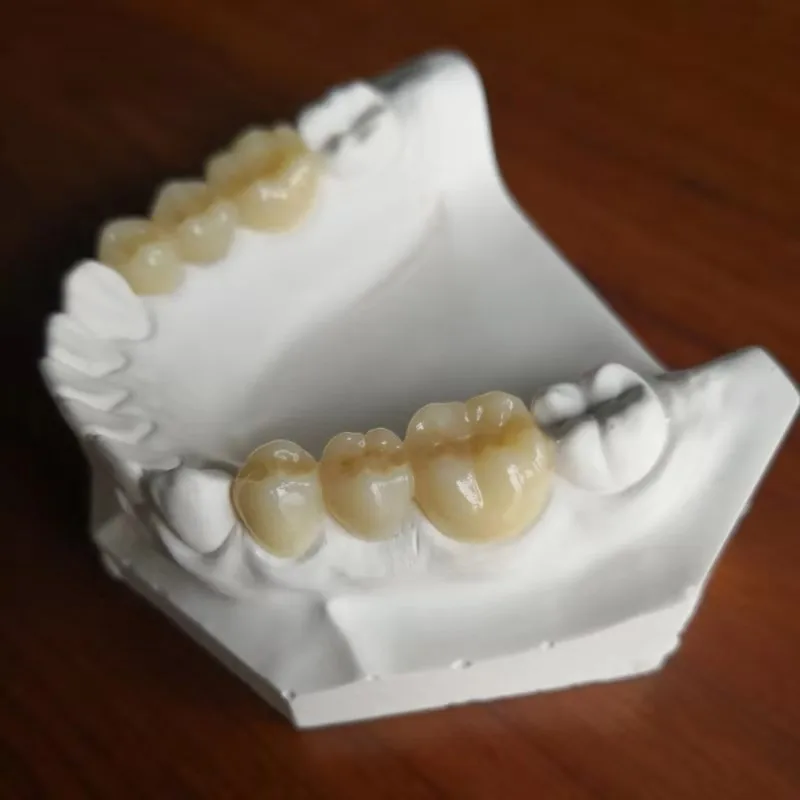

Sample Display
Technical Parameters
Model | JD-N4 |
Axis | 4 |
Milling mode | Dry |
Millable material | Zirconia, Wax, PMMA |
Product type | Crown/coping, Bridge, Inlay/onlay |
Max spindle speed | 60000 RPM/min |
Spindle power | 1.5 KW |
Spindle cooling | Water cooling |
Rotation range | A: ±360° |
Number of tool housed | 3 |
Tool shank diameter | Φ4 mm |
Tool change and check | Fully Automatic |
Compatible compressed air | 0.7 MPa |
Loadable workpiece shape | Disk diameter: 98mm Thickness: ≤30 mm(max) |
Input Voltage | Single-phase 220V 50Hz/60Hz |
Average milling time(dental crown) | Zirconia: 8-15 min Wax: 5-9 min |
External dimensions | 530*670*710 mm |
Weight | 109 KG |
Control command set | NC code |
Positioning accuracy | 0.005 mm |
♦ High-tech Enterprise of China
♦ China Mainland and Taiwan Joint Venture
♦ 10+ Years Experience On Dental CAD/CAM Milling Machine Since 2009
♦ 20+ Years Experience On Denture Production, Self-Owned Denture Factory Since 2001
♦ 35+ Exported Countries And Regions
♦ 4000+ Square Meters Modernized Factory
♦ One Of The Most Famous Dental CAM/CAM One-Stop Solution Providers
♦ Positive Feedback from our clients all over the world
FAQ
Q: Is this 4 or 5 axis dental milling machine?
A: Model number include 4 is 4-axis dental milling machine, include 5 is 5-axis dental milling machine
Q: Automatic tool change and check?
A: Yes, all the machine is fully automatic tool change and check
Q: What is the price?Is there any discount policy? Want to learn more about the machine
A: You can SEND INQUIRY directly or chat with us. Please feel free contact us, we are at your service 24-hours.
