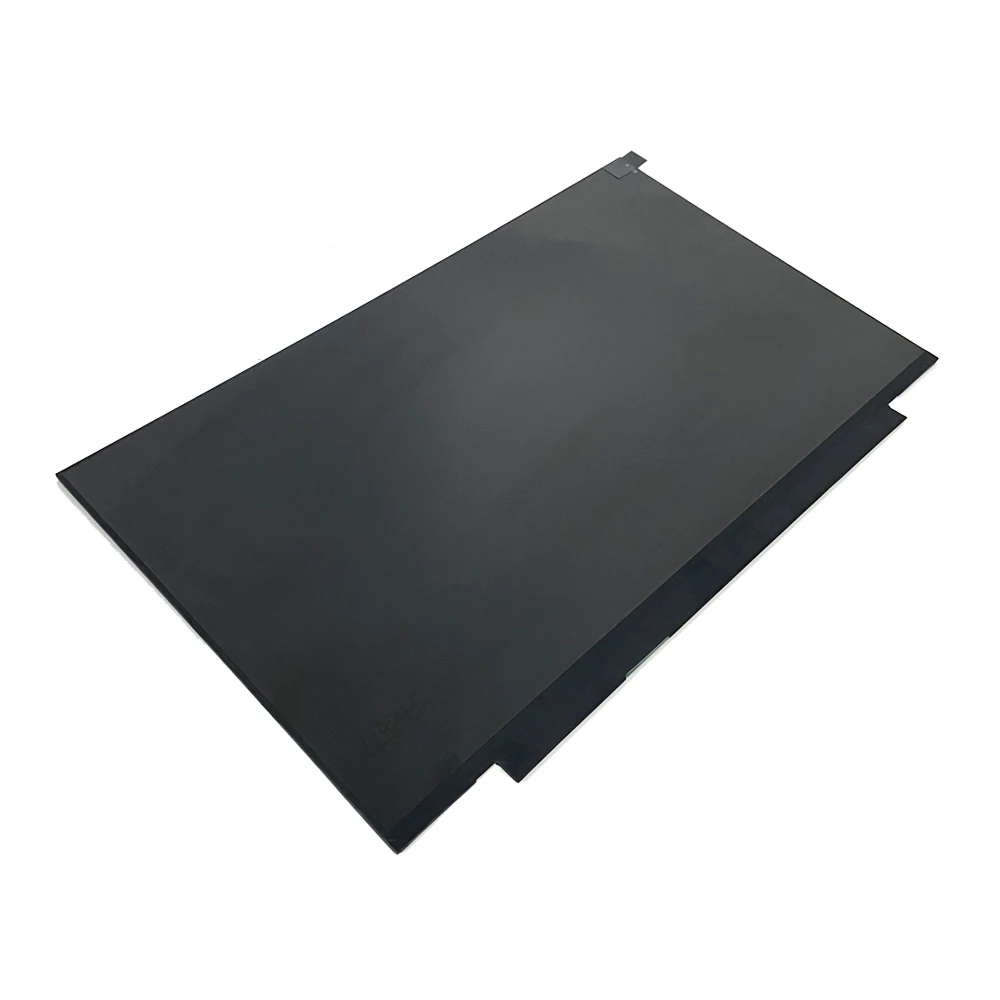

Manufacturer Best Price Custom IPS Panel 15.6 Inch 1920*1080 Full HD TFT Lcd Display Module Laptop Screen
- Category: >>>
- Supplier: Shenzhen Roof Electronics Co. Ltd.
Share on (62330503305):
Product Overview
Description
Product Description

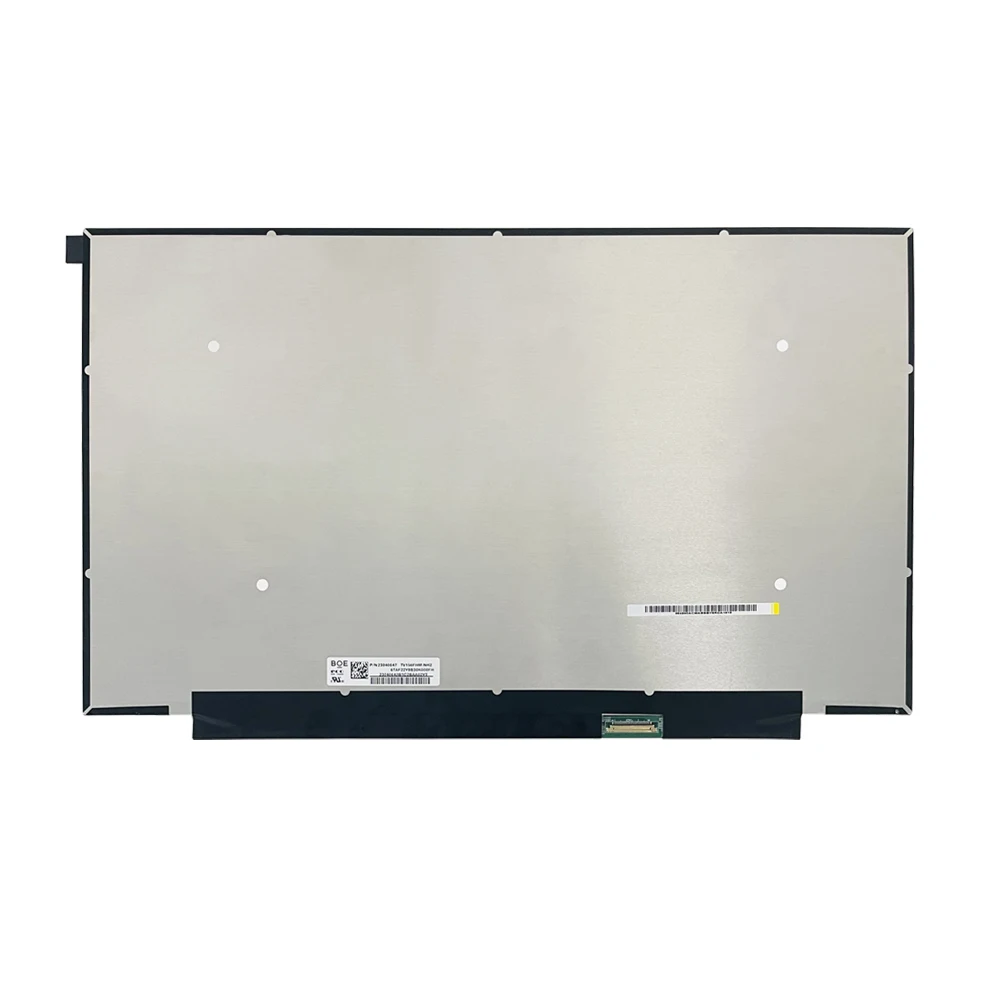

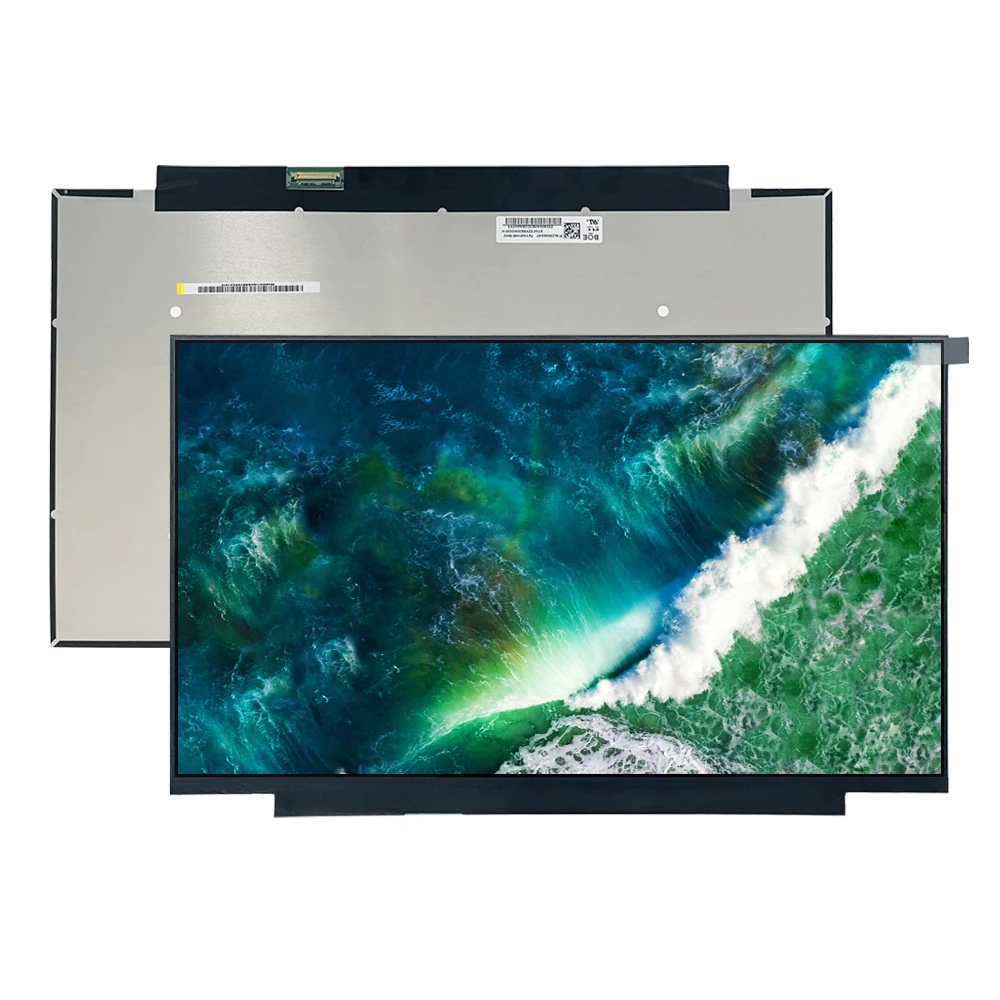

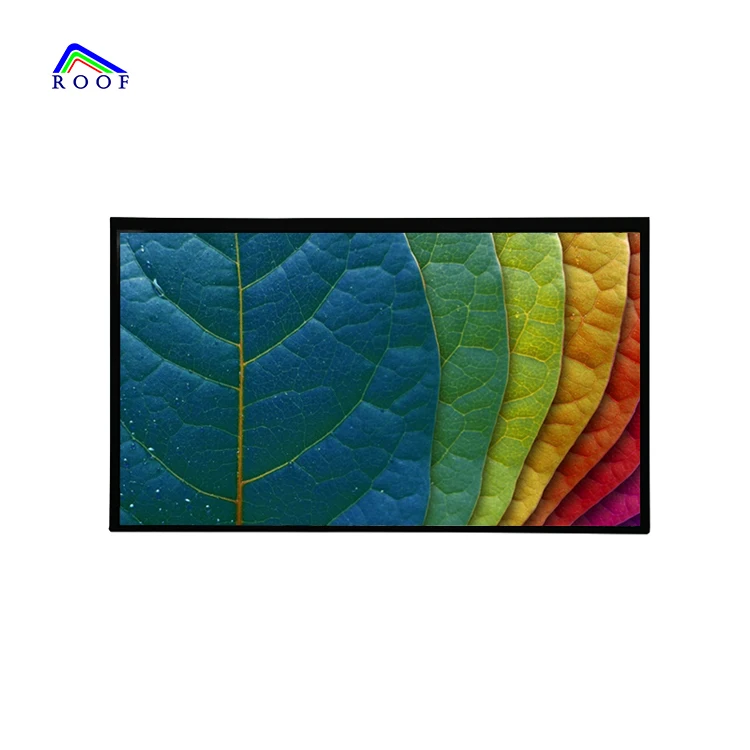

TV156FHM-NH2 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 262k(6bit) colors and color gamut NTSC 70.8%. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light driving is built in this model.

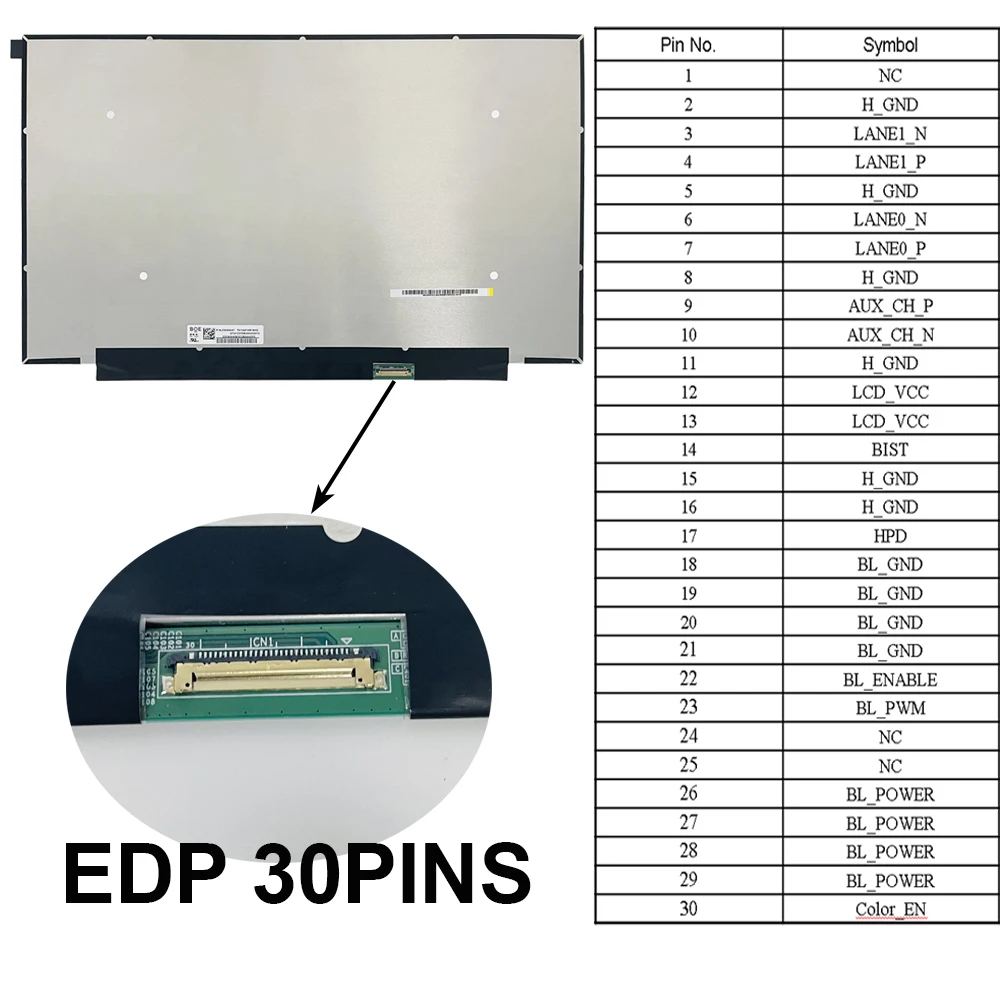

All input signals are eDP1.2 interface compatible.
Parameter | Specification |
Active area | 344.16(H) ×193.59(V) mm |
Number of pixels | 1920 (H) ×1080 (V) pixels |
Pixel pitch | 179.25(H) ×179.25(V) um |
Pixel arrangement | RGB Vertical stripe |
Display colors | 262k(6bit) |
Color gamut | 70.8% |
Display mode | Normally Black |

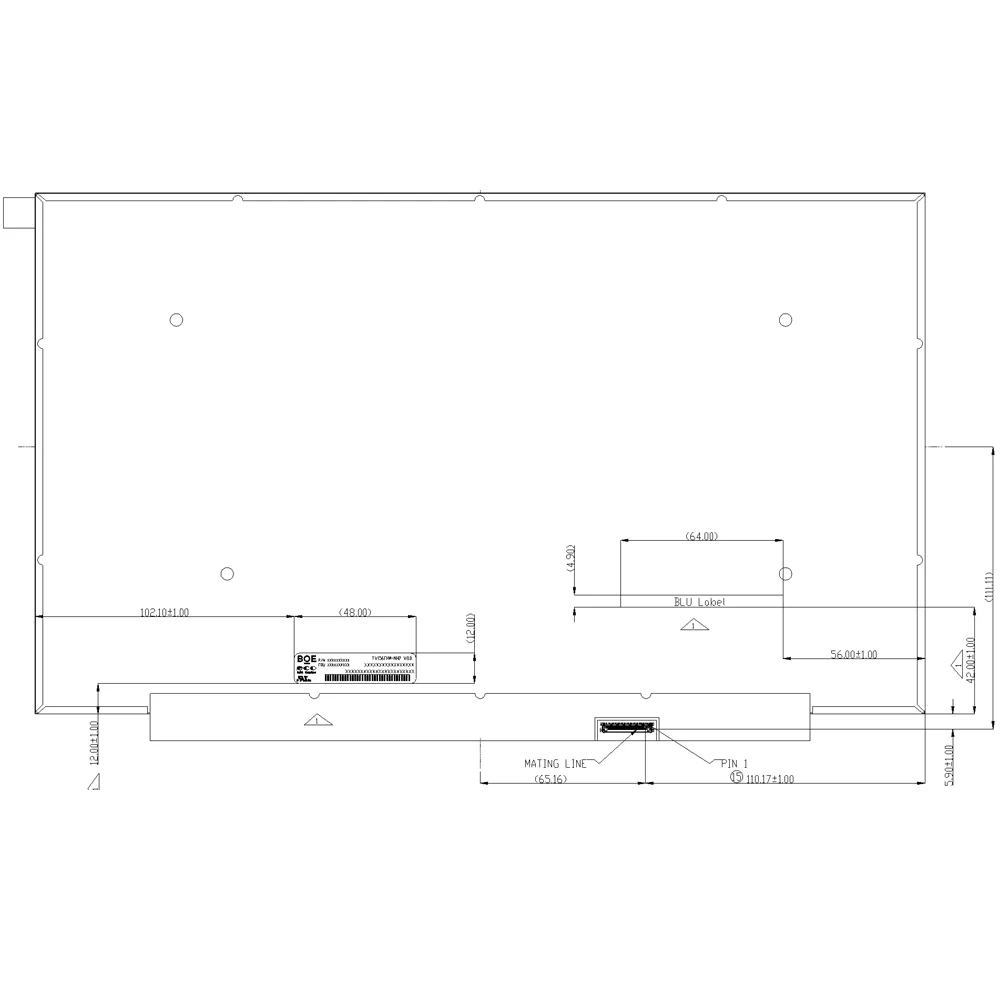

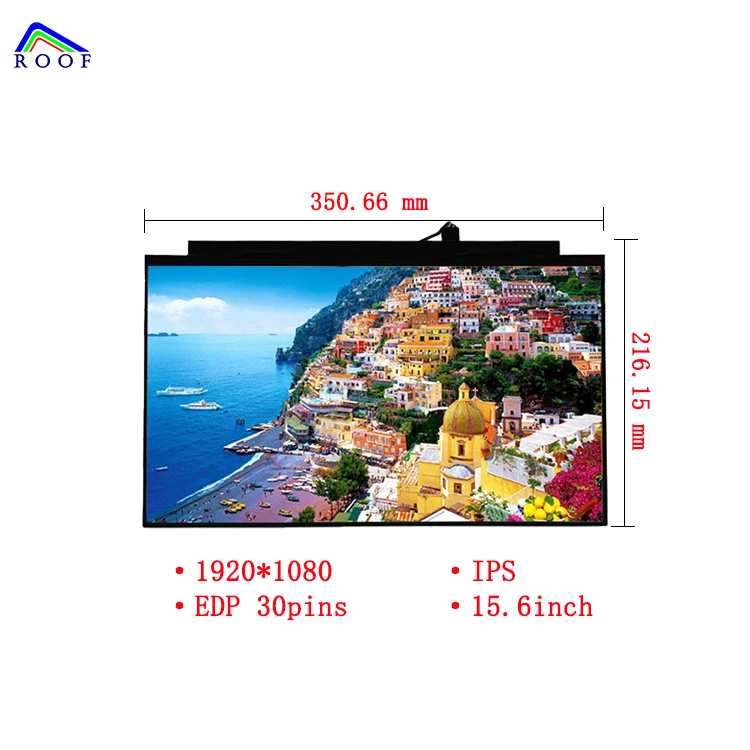

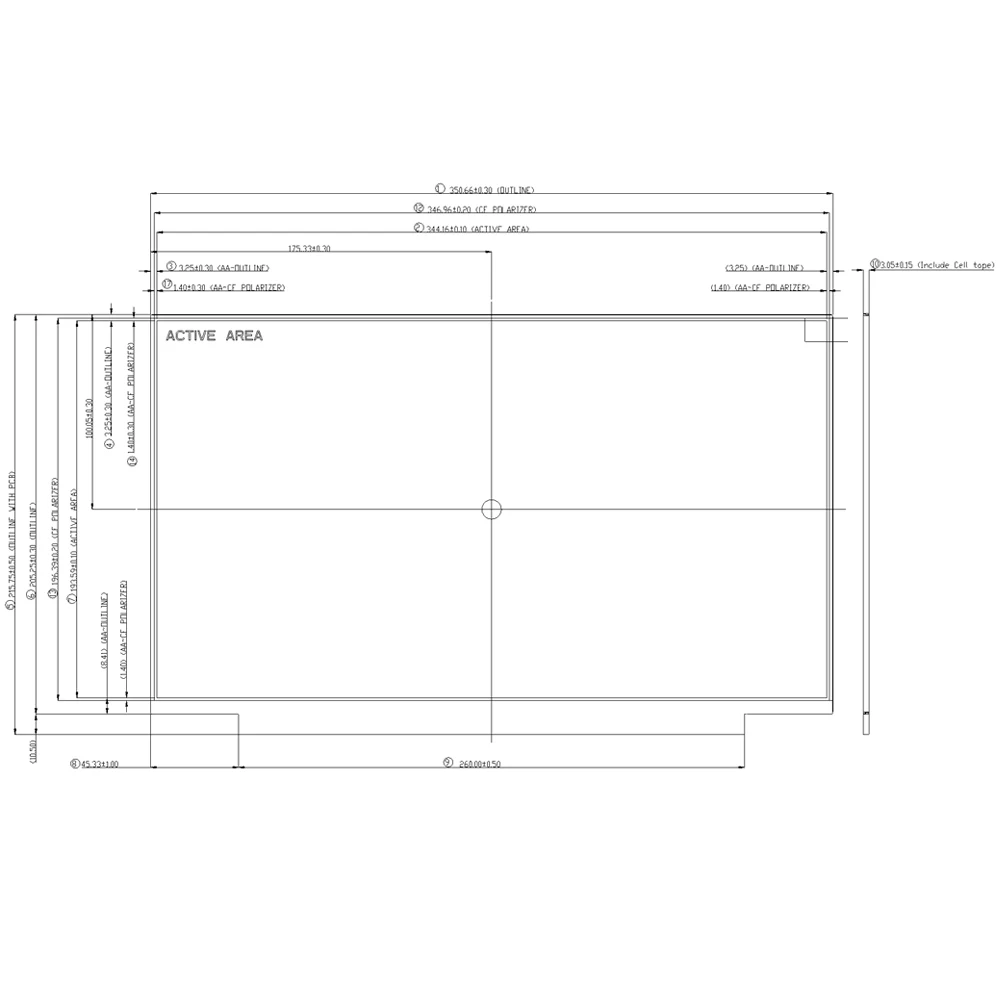

Dimensional outline | 350.96(W)*205.55 (H) *3.2(T)(MAX W/O PCBA) mm 350.96(W)*216.70 (H) *3.2 (T)(MAX W/I PCBA) mm |
Weight | 370(Max.) g |
Surface treatment | AG |
Surface hardness | 3H |
Back-light | Bottom edge side, 1-LED lighting bar type |
Power consumption | PD : 0.75(Max.) W |
| PBL : 4.5(Max.) W | |
PTotal : 5.25(Max.) W |
Customizable
We can provide customized service according to your requirements.
Such as customized the enclosure, backlight brightness, backlight shape, FPC shape and interface definition, silk-printing your Logo and so on.
| Custom Process | |
| process | detail |
| 1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. |
| 2> Supplier evaluation and offer solutions | Evaluate and propose solutions according to customer requirements. |
| 3> Communicate and confirm solutions | The customer confirm the solution |
| 4> Provide quotation and confirm payment | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. Customer pays sample fee |
| 5> Confirm the drawing | Confirm the final version drawing according to the customer's request or the drawings provided. and sign back |
| 6> Production samples | Producing samples according to the drawings confirmed by both parties |
| 7> Sample confirmed | Deliver samples to customers for confirmation |
| 8> Sample debugging and modification | If necessary, technical support will be provided for debugging or modification of samples |
| 9> Production | Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time. |
| 10> Deliver | Product delivery according to customer requirements or industry standards |
Related Products
 |  |  |

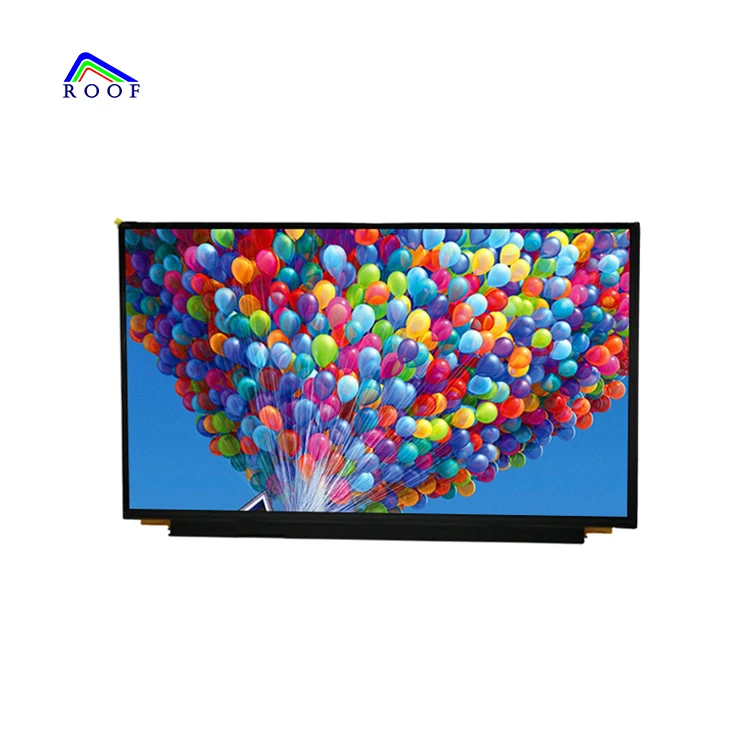

| 15.6'' 1920*1080 LCD Display 262K colors | 15.6'' 4K LCD Module | 13.3'' High Brightness 1920*1080 LCD Module |
 |  |  |
| 10.1'' 1200*1920 Tablet LCD Panel | 13.3'' 1366*768 LCD for LAPTOP |
Company Information
| ROOF Electronics Co., Ltd. is a growing corporation which is located in Shenzhen, founded in 2014. Our company covers a wide range of fields. Our products include electronic components, communication products, computer, computer peripheral accessories, mobile phones and accessories, mobile power supply. Our company is adhering to the service first, integrity management, product quality concept, at the same time has a competitive price in this industry. Our team is dedicated to meeting development and mass production schedules, delivering low cost and reliable products, and providing effective customer complaint handling and after-sales service, to allow our valued customers to feel confident and satisfied with our products and services. |
Product Uses
Product Uses
Packaging & Shipping
In order to ensure that the product will not be damaged during transportation, we have the default packaging and transportation method. Please contact us for details. If you have special requirements, please contact us.
FAQ
| ? FAQ |
Q: The price of the product? A: the price of the product will be adjusted according to the customer's order quantity and other specific requirement please contact us to confirm the specific price. Q: Mode of transport and shipping fee? A: Determine mode of transport and shipping fee based on custmer requirements and order quantity Q: Lead time(After the payment is confirmed)? A: Sample(1-20PCS): immediately Other quantity: please contact us to confirm te lead time Q: Payment? A: Generally we support T/T, Western union, Credit Card, Visa, Marter Card, etc. Q: After-sales Service? A: Please check the product for damage before picking up the goods. If the goods are damage, please contact us immediately, we will give you a replacement or refund. We will provide technical services online at anytime.
|
