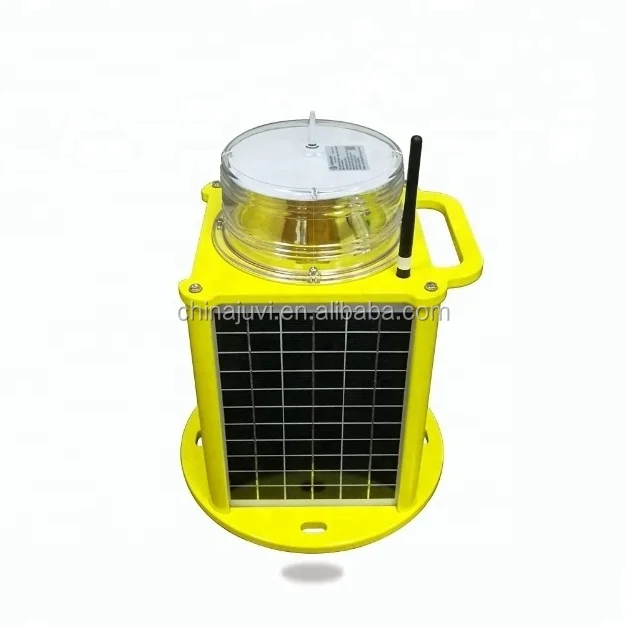

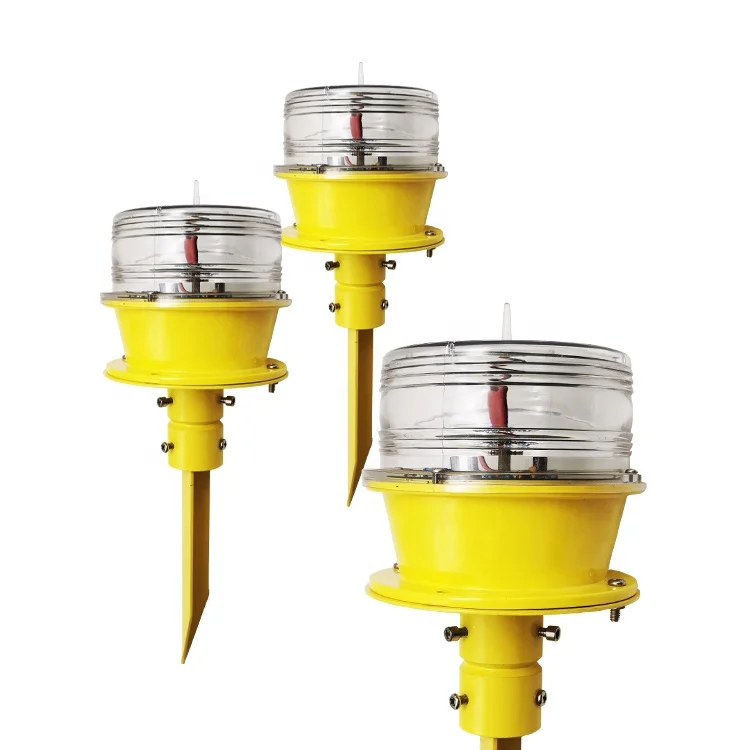

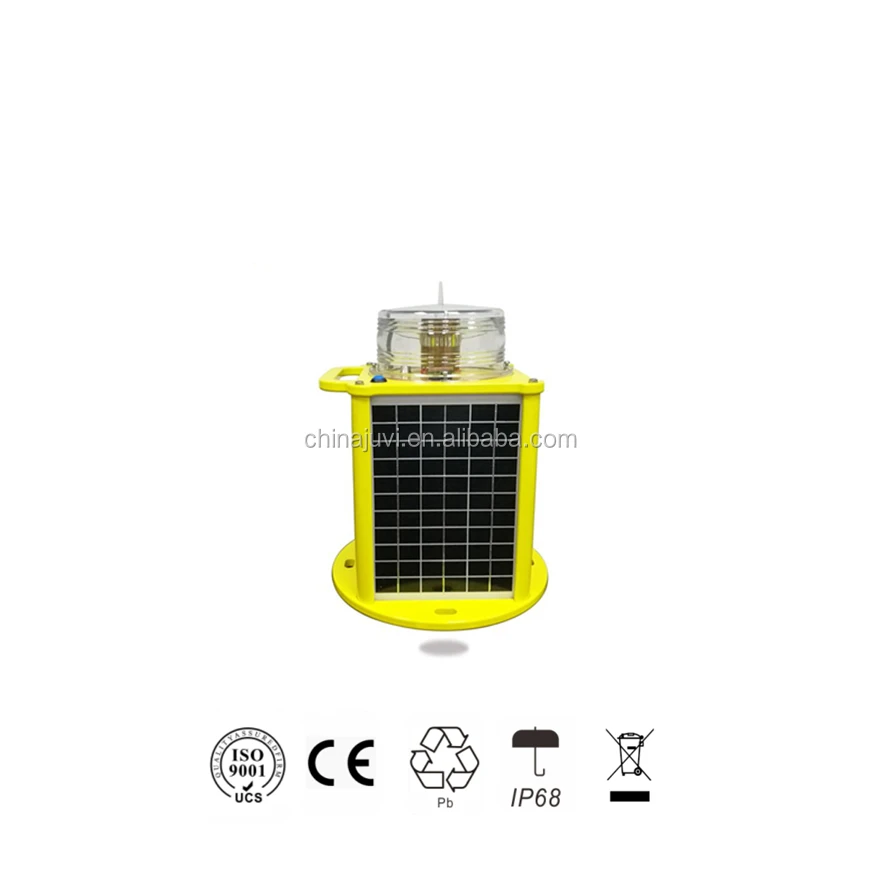

Elevated helicopter apron warning solar power LED light
Product Description
JV-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the JV-SA/B
Light Characteristics
Light Source
LED
Available Colors
Red, Green, Yellow, White, Blue
Intensity(cd)
20cd(Steady), 35cd(Flashing)
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
≥10
Flash Characteristics
Steady(Flashing mode is optional)
Operation Mode
24hours working after switched ON
LED Life Experience(hours)
>100,000
Electrical Characteristics
Operating Voltage
3.7
Circuit Protection
Integrated
Solar Characteristics
Solar Module Type
Mono crystalline Silicon
Output(watts)
1.8
Charging Regulation
Microprocessor controlled
Battery Characteristics
Battery type
Lithium ion battery
Nominal Voltage (V)
3.7
Battery Service Life
Average 3 years
Autonomy (hours)
Steady: 50, Flashing: 120
Physical Characteristics
Lamb Body Material
Aluminum Alloy
Base Material
Powder-coated Die-casting aluminum
Installation Size
140×140×M6
Overall Size (mm)
162×162×160
Weight(kg)
1
Product Life Expectancy
Average 5 years
Environmental Factors
Ambient Temperature(℃)
-55~70
-55℃~+70℃
Humidity
0~100%
Wind Speed
80m/s
Waterproof
IP68
Compliance
ICAO
Annex 14 Volume Heliports 5.3.
FAA
AC 150/5390-2B Heliport Design Guide
Optional
Wireless remote control
External battery charger
NVG - compatible infrared (IR) LED
Carry case for batch of lights
Switch for dusk-till-dawn & 24hr operation
