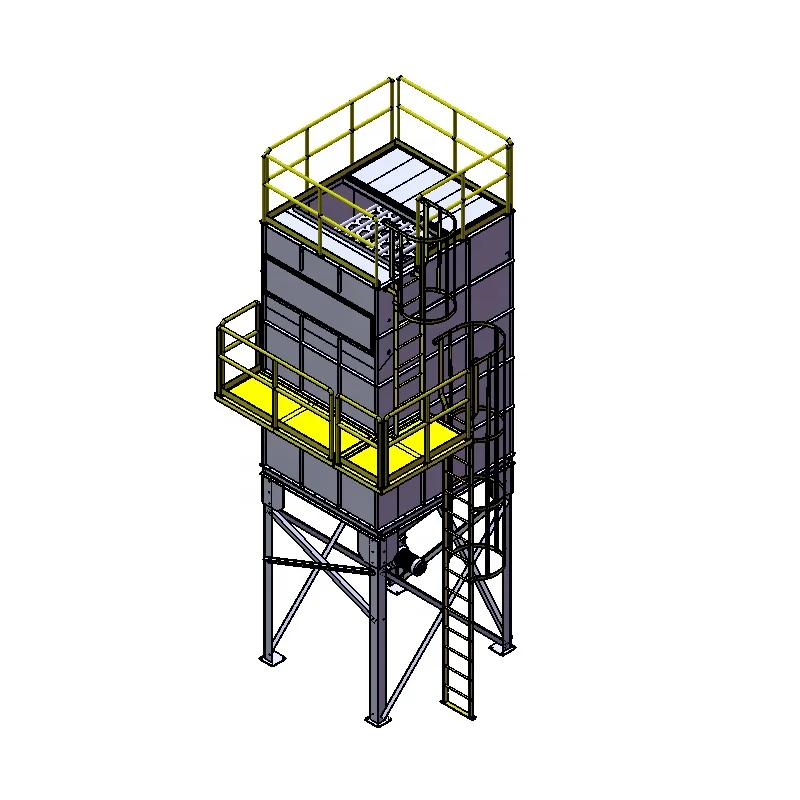

Glorair Baghouse Dust Collector Pulse Jet Dust Collection System Design

Product Overview

Description

Glorair Baghouse Dust Collector, Pulse Jet Baghouse Dust Collector for Foundry Dust Collection





Glorair baghouse dust collectors are using needle felt bags for filtering and reverse pulse compressed air to clean bags. After the dust loading gas inters the filter chamber, the dusts are filtered on the surface of bags, and clean air is discharged from the top of the filter bags. When the differential pressure across the bags reaches a certain value, the compressed air will be blown into the center of bags through nozzles, leading the surrounding air into the bags. The expansion force inside the bags will blow off the dusts on the bag surfaces. The bags restore their pressure drop and recover the filtration performance.



Our pulse jet baghouse dust collector has widest application in industries. They are durable, reliable and offer the longest service life.

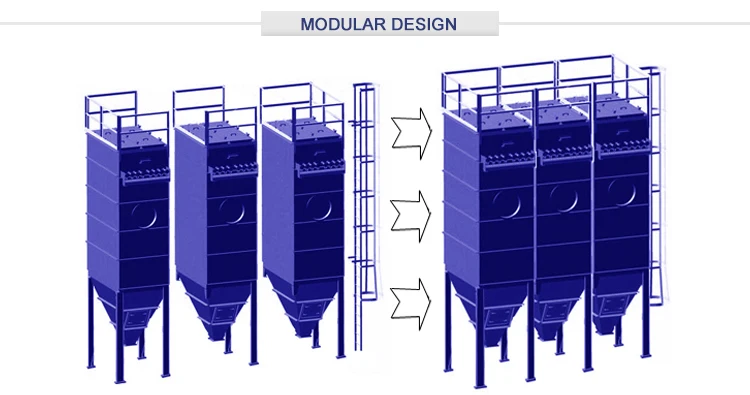

1. The total system is modular design. Each module can be shipped in a standard container, greatly saving the shipping freight.

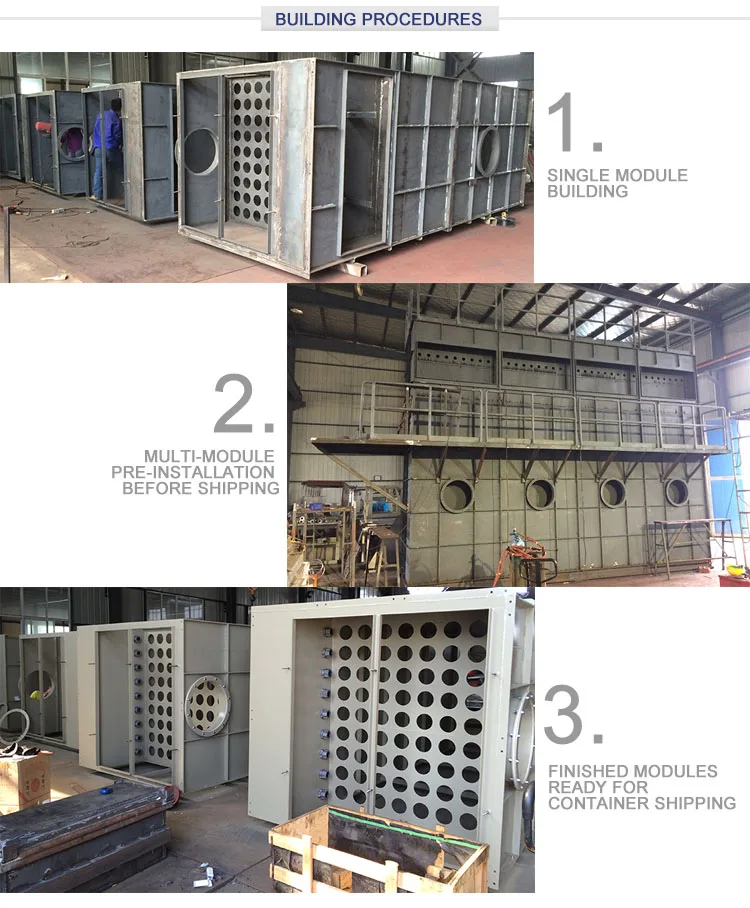

2. Most components pre-installed in factory to minimize installation on site. No welding work is required on site, which allows quickest erection of system.


3. Low pressure high filtration efficiency needle felt bags let the baghouse system work under lowest energy consumption.


4. Advanced pulse clean technology makes the compressed air consumption to a minimum, effectively reduces the operation cost.


5. Special deflector chamber on the inlet entry effectively knock down the large particles to hopper directly. Protecting the bags and increasing their lives.


6. Each modular is available in different height to accommodate different airflow. Inlet and outlet are special designed to achieve optimal airflow.


7. Minimum maintenance and tool-free maintenance for filter bags & cages.


8. Easy operation bag access doors on top of dust collectors







Dust Collector Applications

Cement, Chemical, Woodworking, Foundry, Furnace, Grain, Lime, Asphalt, Rubber, Glass, Plastic, Mineral, Ceramics, Stone crushing, Battery, Pigment, Abrasive blasting





Model	Bag Size	Bags	Filter Area	Airflow
M20	Dia:130MM * L: 2000MM	120 pcs	96 m2	7000~13000cmh
M25	Dia:130MM * L: 2500MM	120 pcs	120 m2	8700~16000cmh
M30	Dia:130MM * L: 3000MM	120 pcs	144 m2	10500~19000cmh
M35	Dia:130MM * L: 3500MM	120 pcs	168 m2	12000~22000cmh
M40	Dia:130MM * L: 4000MM	120 pcs	192 m2	13800~25000cmh
M45	Dia:130MM * L: 4500MM	120 pcs	216 m2	16000~28000cmh

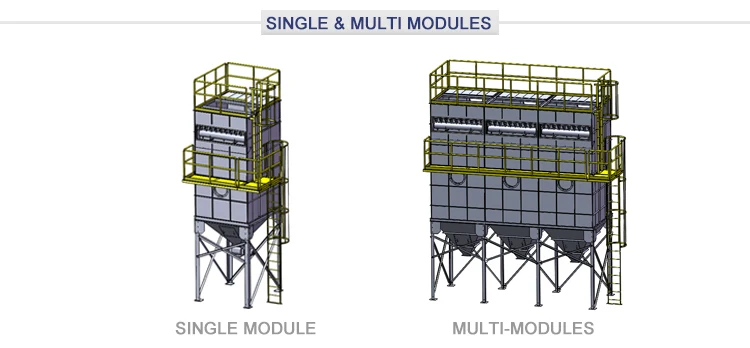

Note: The above filter areas are for single module. For multi-modules, filter area is single module filter area multiplied by number of modules.
