Product Description

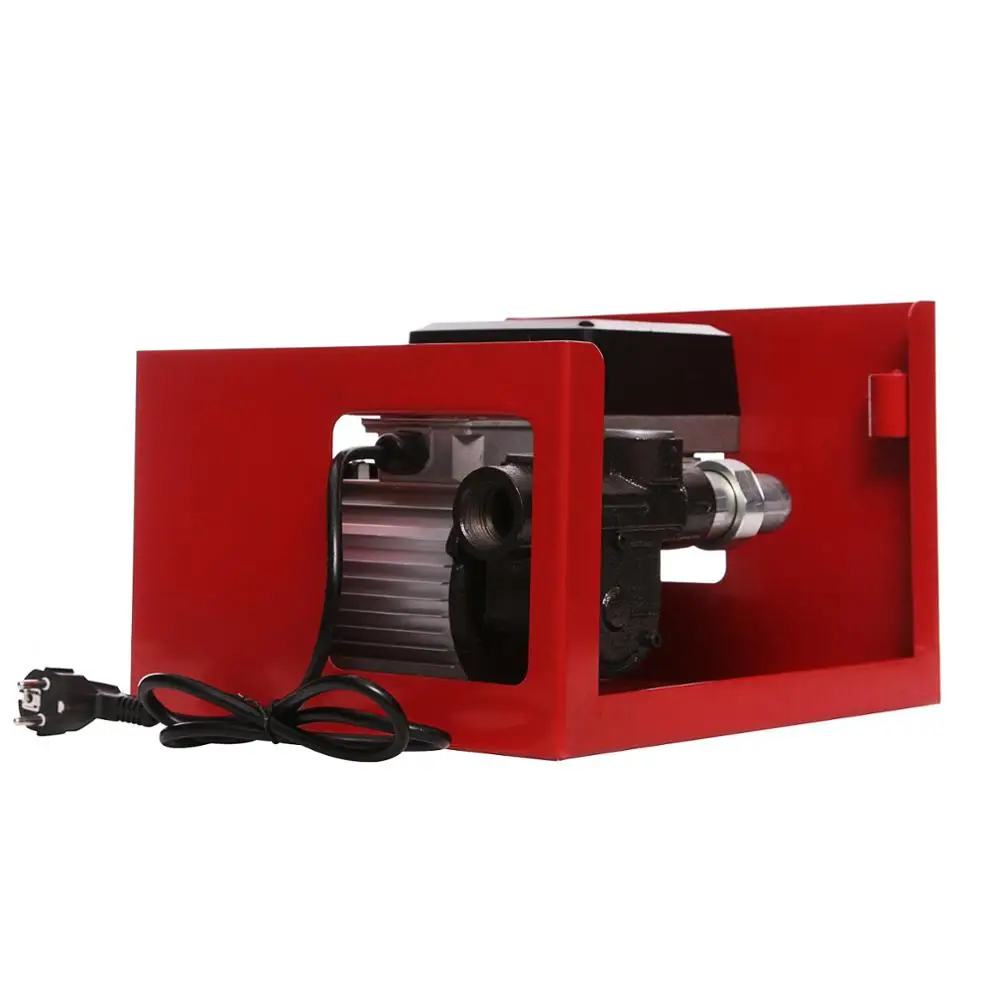

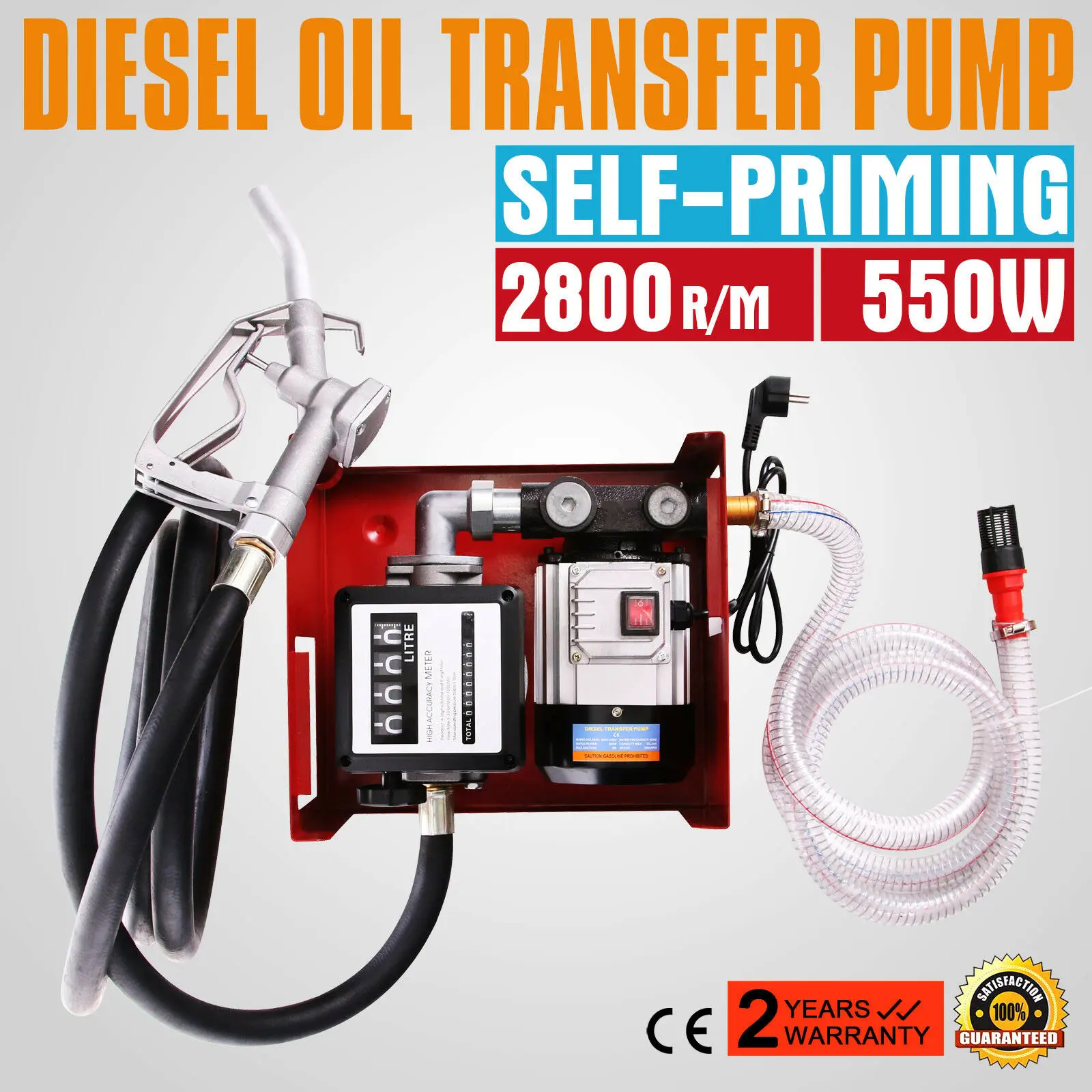

Diesel Transfer Pump Kit 220Volt DC Portable Fuel Self Priming Oil Bio 60L/Min



Want a portable Fuel Transfer Pump to take the hard work out of pumping oil? This pump is perfect for you! Just place the hose into the fluid, the pump can do all work for you, transferring kerosene, oil and diesel fuel, minusing the mess and hassle, save you lots of time.

The self-priming diesel pump has hoses and fuel nozzle ready for immediate use. The engine output amounts to 550 Watt and the pump reaches a flow rate of 3600 l/h at a rotational speed of 2800 rpm.

New Diesel Transfer Pump 220V, a practical solution to extract oil, diesel, biodiesel etc from your vehicle without mess or specialised tools. Simple to use, competitively priced and ideal for the on-site transfer of diesel from barrels and drums to diesel powered vehicles and equipment. This pump has a high flow rate or 60 L/min (3600 L/hour). Thanks to its ON/OFF switch the pump is easy to operate. The pump can be used as a fuel supply device for field-working vehicles like engineering vehicles, excavators, bulldozers, road rollers, cement mixers, lifters, trucks, fuel compressors, mining machinery and farming machinery. An ideal solution for refilling machinery that has no access to fuel pumps.

The kit includes a built in flow meter. This Mechanical Flow Meter is used to measure the exact quantity of the dispensed fuel. It is reliable, inexpensive, easy to install and simple. Large digits make reading the meter an easy task.












Product Details





Product Name220V Metering diesel transfer pump
Pump Head MaterialCast iron
Pump Body MaterialAluminum
Rear Cover MaterialAluminum
Protection cover MaterialCast iron (electroplate)
Stator MaterialMagnetic steel
Coil Material100% Copper
MotorSingle-phase permanent magnet motor
Filter Material Plastic ( POM)
Inlet and outlet joint MaterialCast iron (Copper Plating)
Seal MaterialNBR
PlugEnglish-style( 3 line)
Flow Meter4 digit mechanical Flow meter
3/4" Outlet hose with 1" male thread4 m(Rubber, Black)
Oil NozzelAluminum (Hand)
FrameworkCast iron
Voltage220 V
Power550 W
Speed2800 R/min
Inlet diameter25 mm
Outlet diameter25 mm
Output flowing60 L/min
Suction5 m
Inlet Hose Length2 m
Head10 m
Cable Length1.3 m
Self-PrimingYES

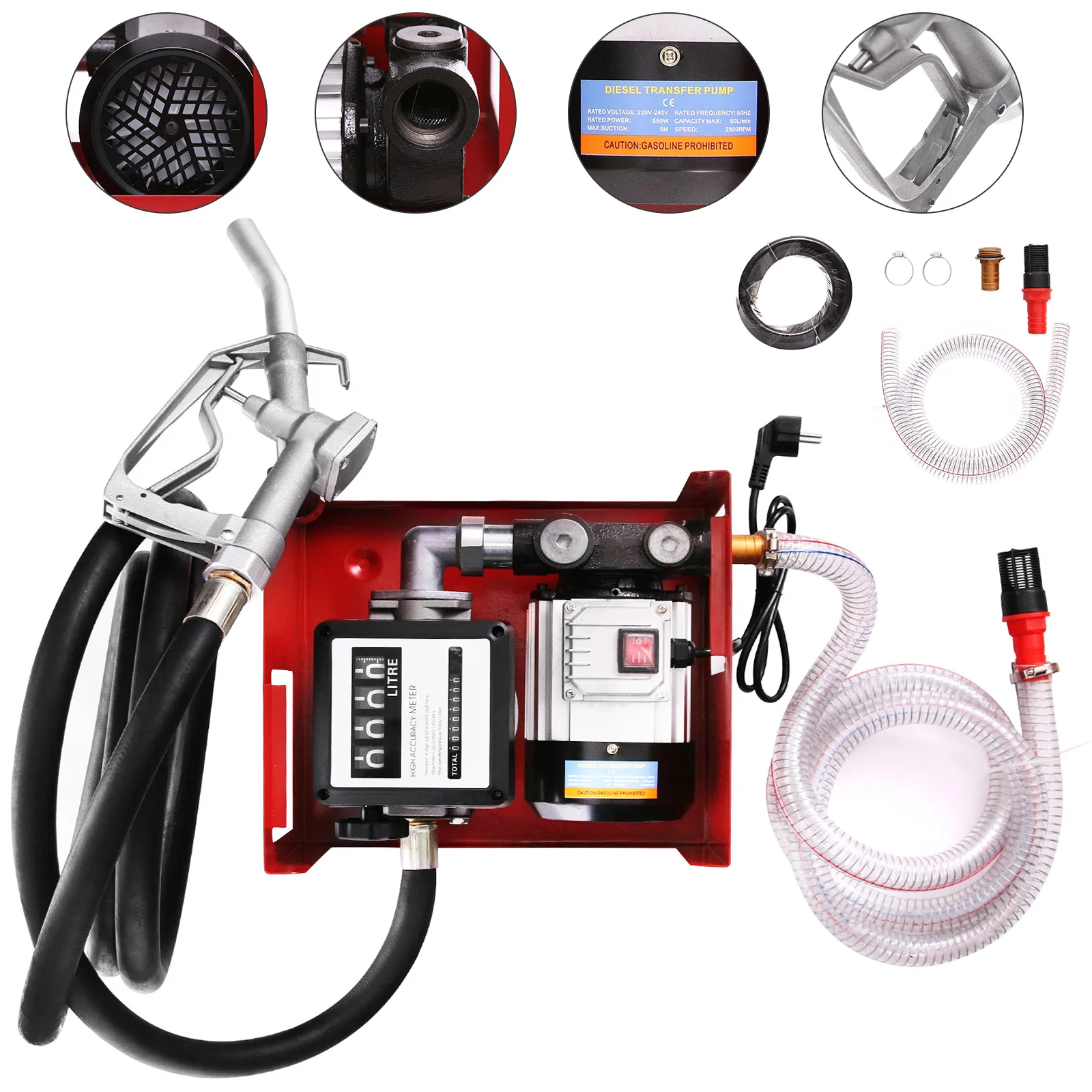

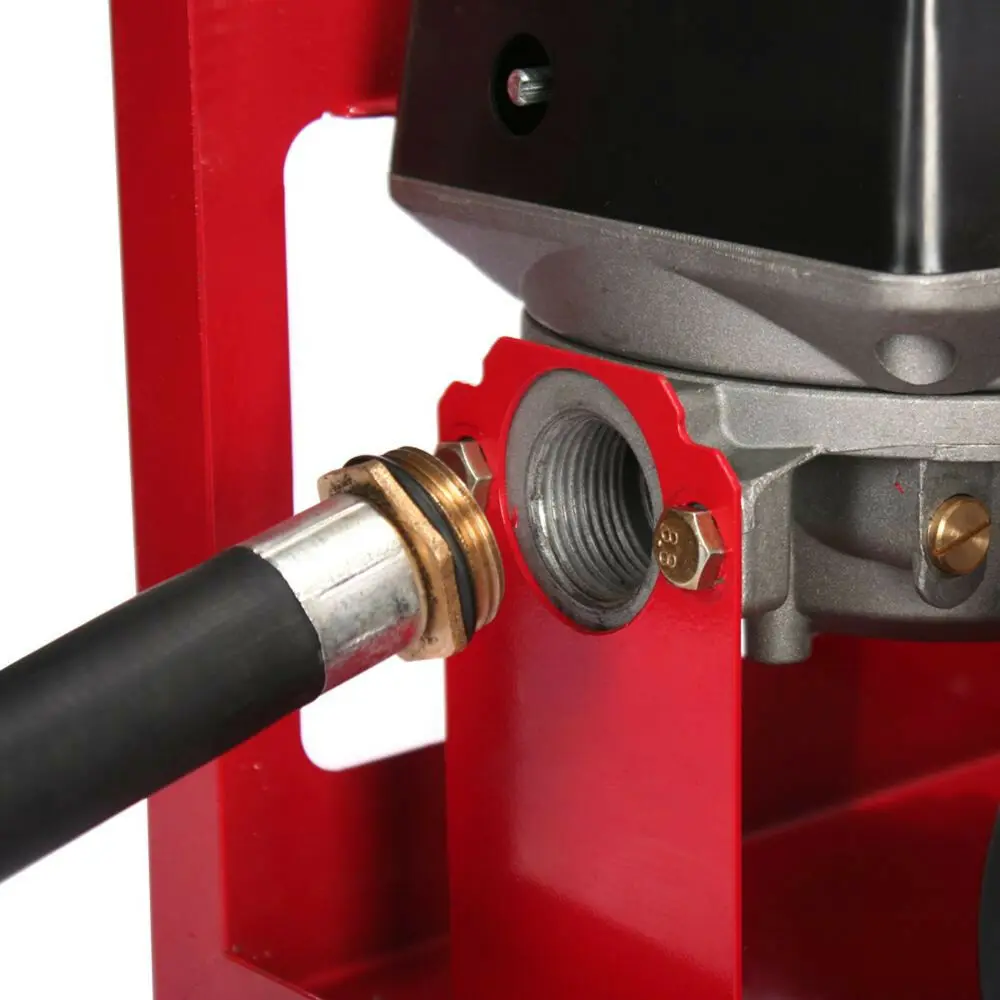

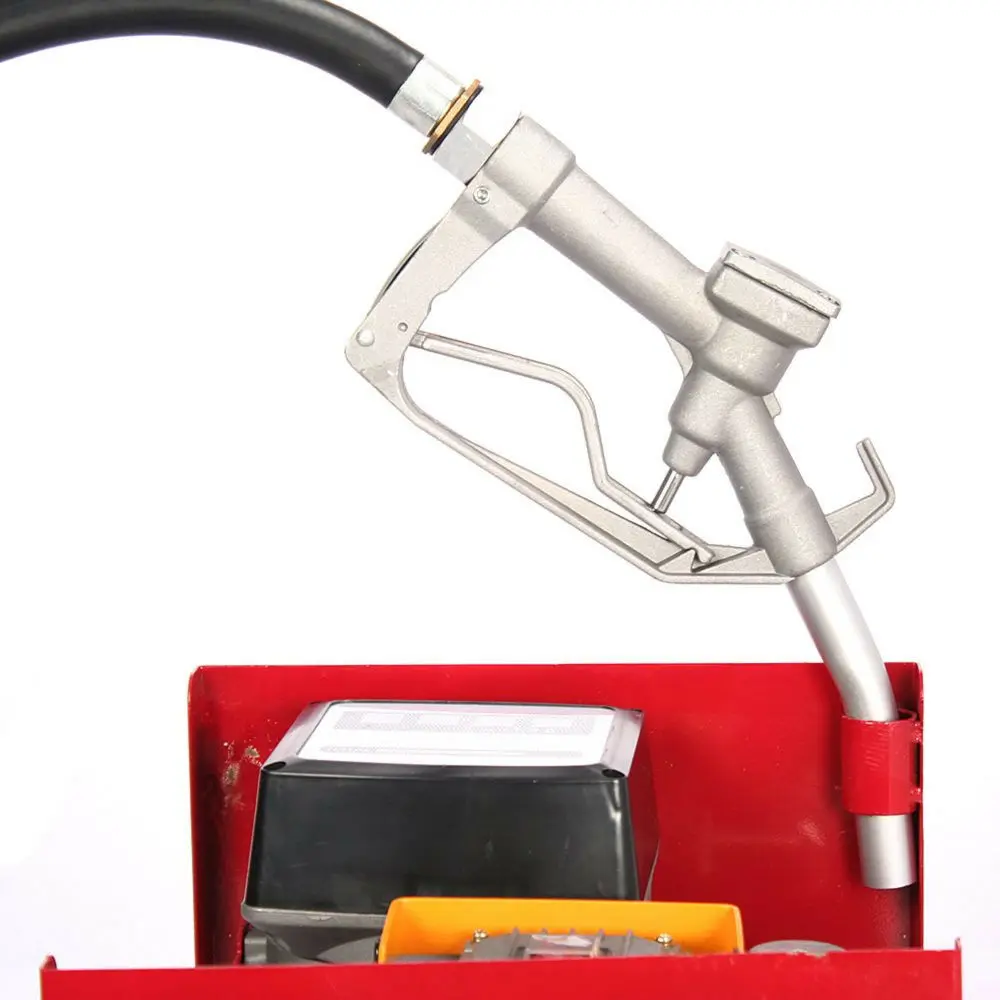

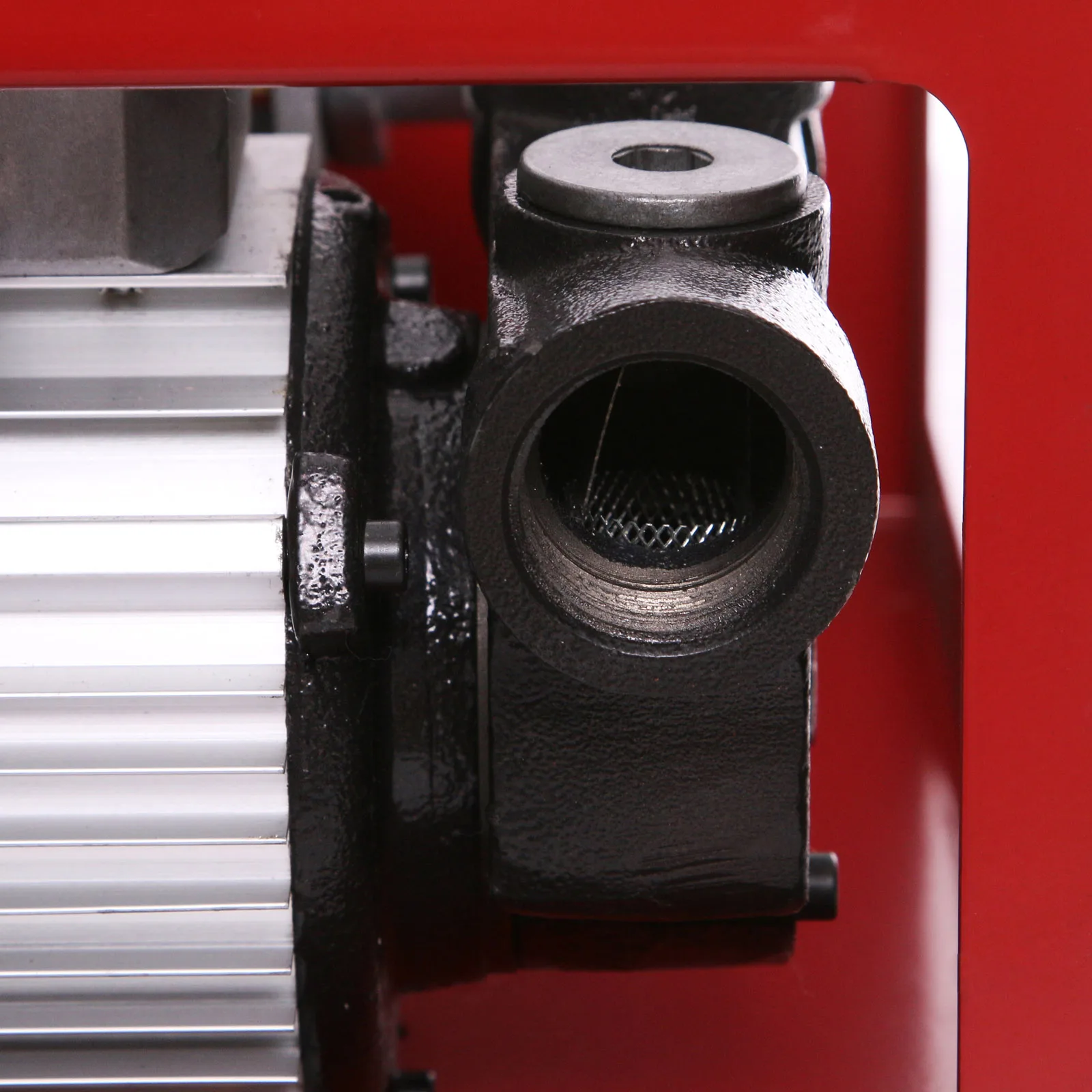

 m130-1.2.jpgd130-14.jpgs-l1600 (2).jpgs-l1600 (3).jpg
