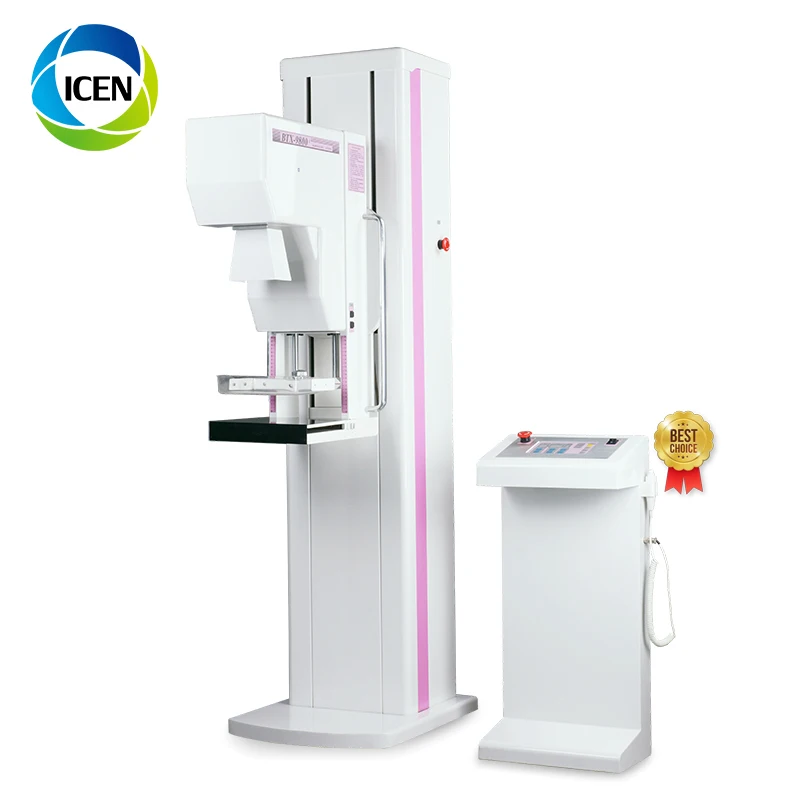

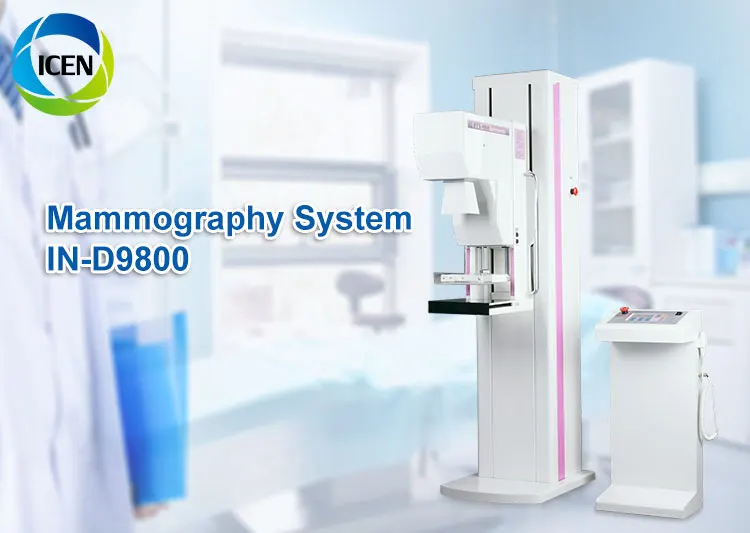

IN-D9800 digital Hospital Frequency Digital X Ray Unit Mammography Equipment with best price

X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type:High Frequency Inverter 80kHz
Input Power:Single phase 220VAC, 50/60Hz
Radiographic Ratings:Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating:6kW
X-ray Tube
Model:China Hangzhou LR01
Focal Spot Size:Dual Focus 0.2/0.4mm
TargetMaterial:Molybdenum (Mo)
Port Material:Beryllium (Be)
High-speed anode drive: 2800 /1000rpm
Target angle:12°/12°
AnodeHeat Storage:100KJ(150KHU)
Anode Cooling:Air cooling
Filtration:Mo(0.03mm),Al(0.5mm)
Radiographic Stand
C-ARM:VerticalMovement:590mm
Center of electric rotating C-arm,automatic return function by one key
Rotations Degree:-90°~+90°
Automatically released after the exposure pressure settings display
Compression flexible stepless speed.
Max. pressure: 200N
Max. travel: 150mm
SID:650mm
Cassette Image Receptor
18×24cm(24cmX30cm optional)
BuckyDevice:18×24cmBucky drive mechanism,(24cmX30cm optional)
Grid Ratio:5:1 ,30 Line/cm
|
Inverter frequency |
80kHz |
||
|
Input Power |
220VAC, 50/60Hz(can change to 110V) |
||
|
Power Rating |
6kW |
6kW |
6kW |
|
Focal |
Large Focal Point 20-38kV/10-510mAs; Small Focal Point 20-35kV/10-100mAs |
Large Focal Point 20-35kV/10-510mAs; Small Focal Point 20-35kV/10-100mAs |
Large Focal Point 20-35kV/10-510mAs; Small Focal Point 20-35kV/10-100mAs |
|
X-ray Tube |
China Hangzhou LR01 Tube |
IAE C339V |
VARIAN M113SP |
|
Focal Spot |
Dual Focus 0.2 / 0.4mm |
Dual Focus 0.1 / 0.3mm |
Dual Focus 0.1 / 0.3mm |
|
Cassette Image Receptor |
18×24cm |
18×24cm Bucky drive mechanism;Grid Ratio:5:1 ,30 Line/cm |
18×24cm Bucky drive mechanism;Grid Ratio:5:1 ,30 Line/cm |
|
Weight |
300kg(1.68m3) |
||

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

1. We ship the mammography system by air or sea for you.
2. Our mammography system with standard export packing.
3. No matter what delivery way , all depending on your actual requirements.
How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
What is the warranty?
The free warranty is one year from the day of Commissioning qualified.
Can we visit your country ?
Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.How long is the validity of quotation?
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .Do you have the CE certificate ?
Yes, most of our products have the CE certificate.
