- Protection: Over current protection, Over voltage protection, Short Circuit Protection, Reverse Connection Protection
- Safety: ETL, CE, RoHS
- Approval standard: EN60335 EN55014 EN61000
48v 15a battery charger for lifepo4 lithium li ion lead acid battery for golf cart electric bike rickshaw scooter forklift
- Category: Battery Charger >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62330918689):
Product Overview
Description
Details Images

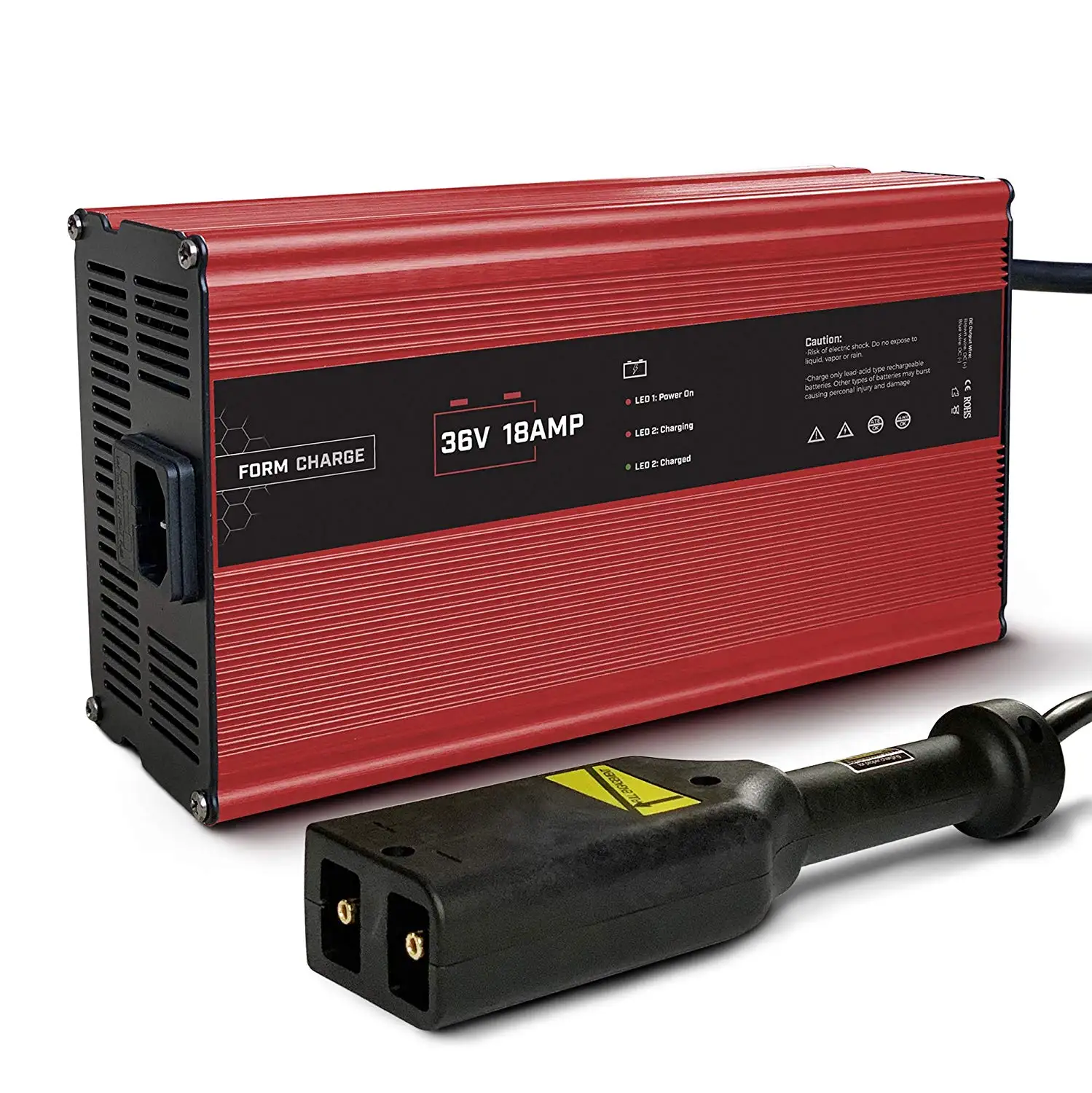

36V 18A EZGO Club Car Battery Charger

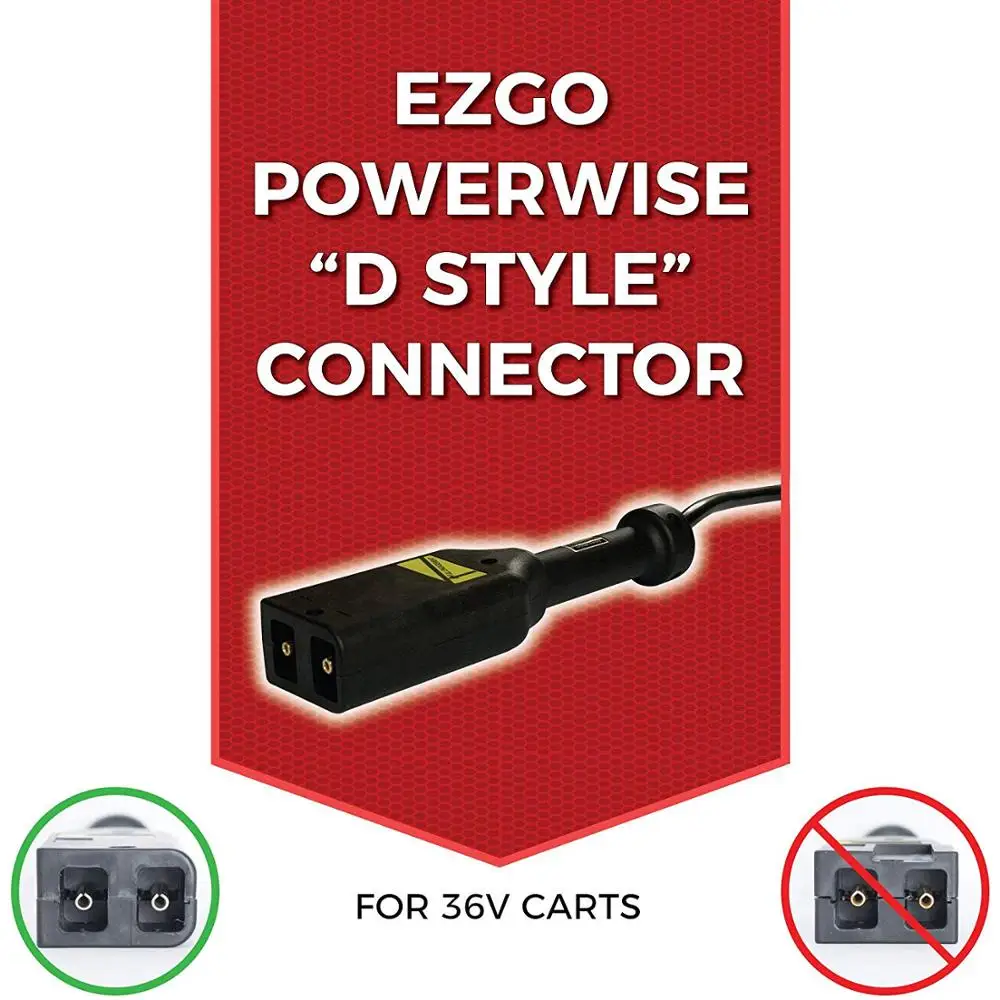

1). For YAMAHA ZEGO Club cart with powerwise D style or Crowfoot connector
2). Compatible with Electric Car, Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-tourist Coach, Robot and more
Product Paramenters
Mechanical Drawing:

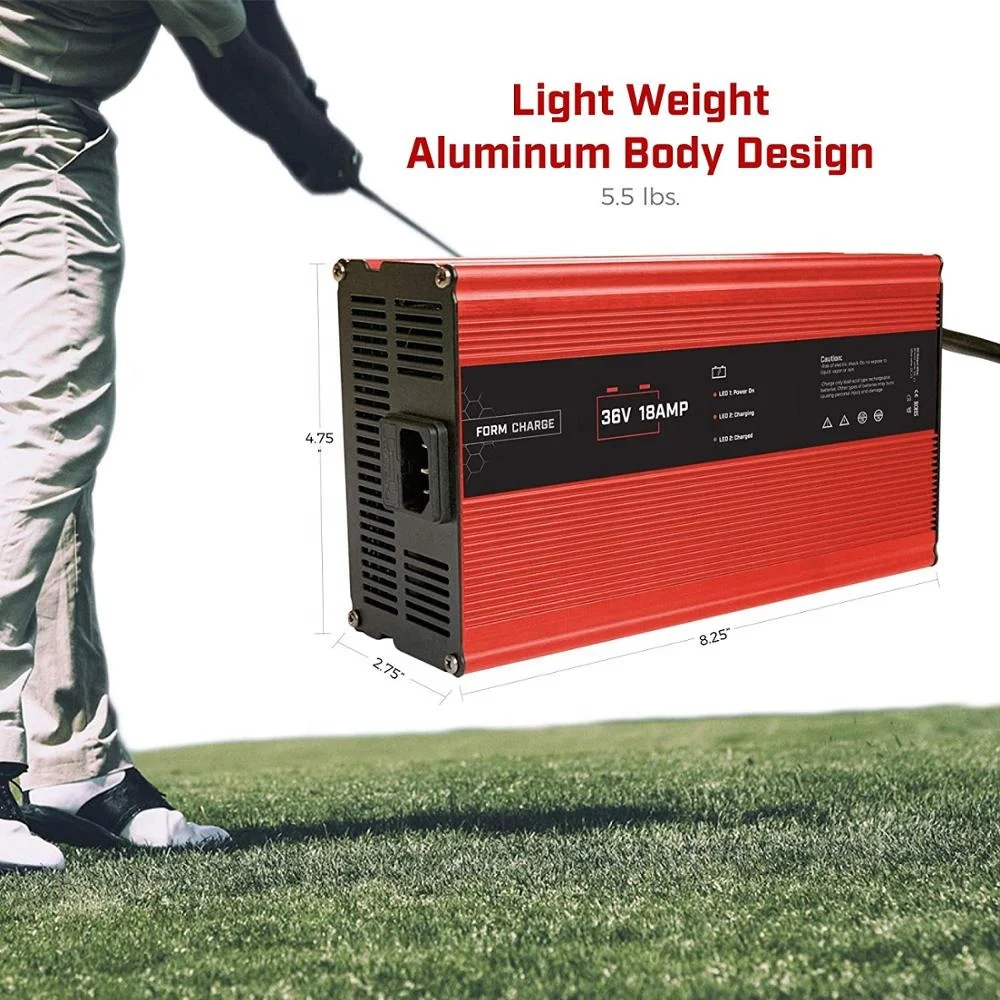

Dimension: L230xW135xH70mm
Net weight: 3.5kg
Color: Black,Red
Case material: Aluminium Alloy
900W Electric Vehicle Battery Charger

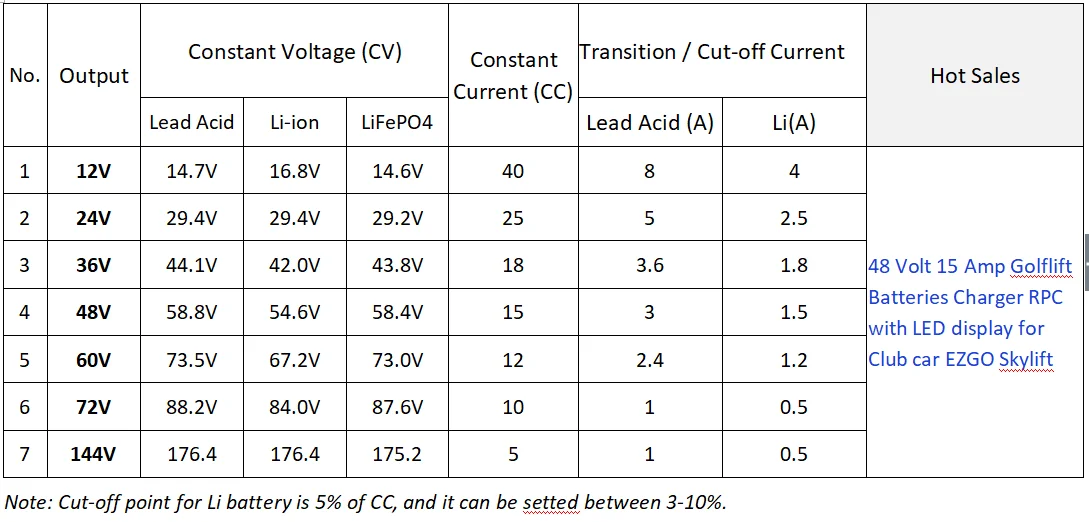

Series Units: 12V / 24V / 36V / 48V / 60V / 72V / 144V @ 40A max. 900W Power
General Spec:
Compatible Batteries: Lead Acid, Li-ion, Lifepo4, Lithium Titanate , Ni-mh Titanate
Compatible Battery | Lead Acid/LiFePo4/Li-ion/Li-MnO2 | ||
Input | 100 to 240 VAC 50/60Hz | ||
Output | 44.1V 18A | ||
Charge voltage | 44.1V | Float Voltage | 43V |
LiFePo4/3.65V Charge voltage | 43.8V(14S) | ||
Lithium ion/4.2V | 42.0V(13S) | ||
LED Indicator | Solid Red LED = Charging (0-99%) | ||
Dimension(LxWxH) | L230xW135xH70mm | ||
Weight | 3.5Kg | ||
Charging Mode | CC/CV, Float/cut-off | ||
Certification | UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us. | ||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours) | ||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||

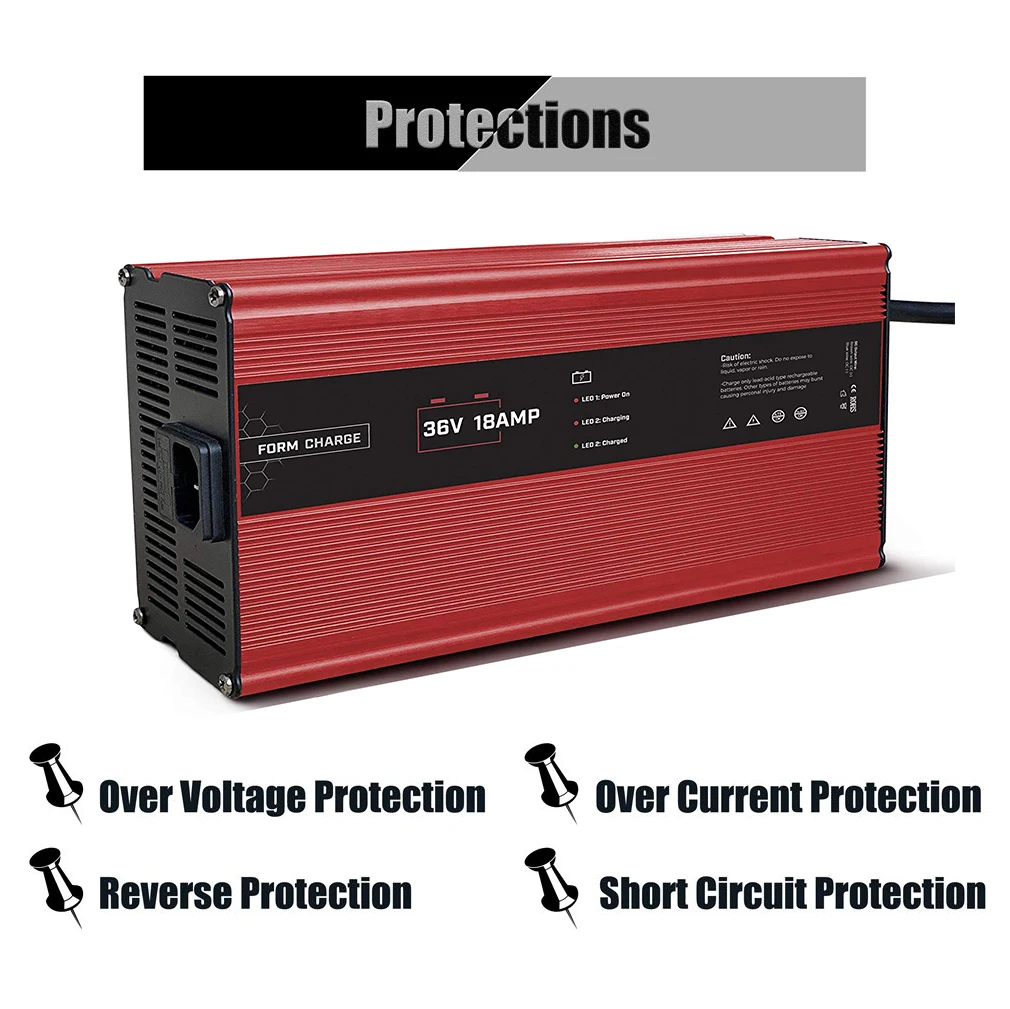

Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge. | ||
Advantage | 1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||

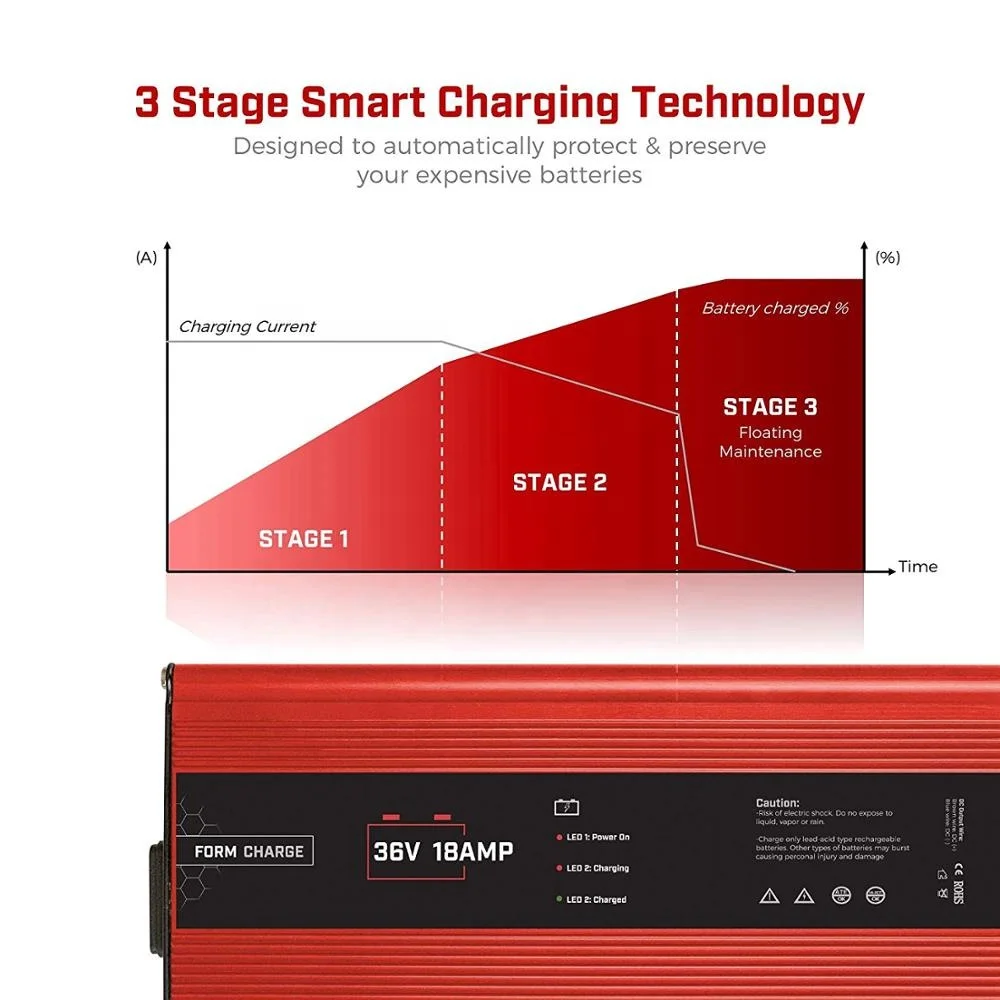

Charging Curve
1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.

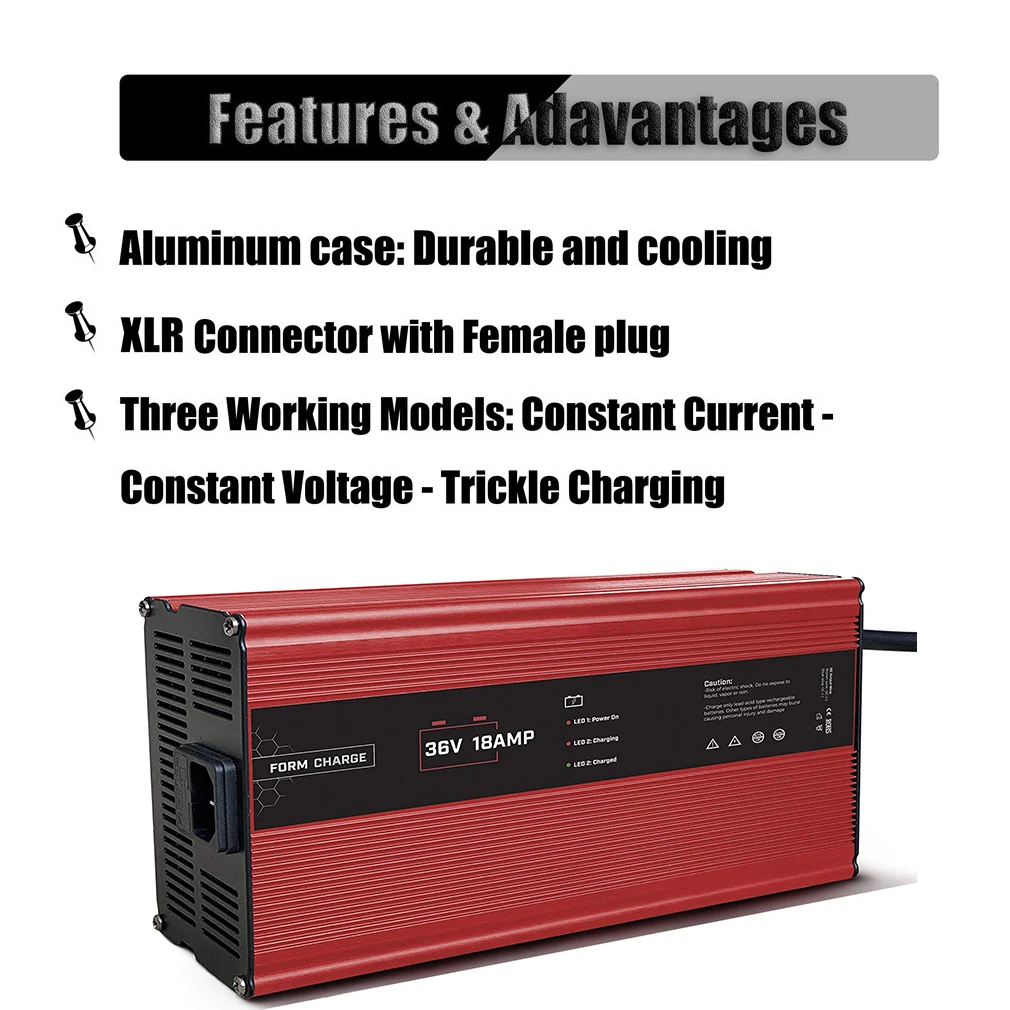

2). Aluminum case, Robust, Elegant and Reliable.
Perfert Protection and Safety:
Why choose this
(1) Famous Original Components & Stable Circuit Board
(2) 40 x 0.15mm 100% Copper Power Cord
(3) Low fever & No Noise at Full Wattage Working
(4) Overload Cut-off Automatically (Avoid Fire)
(5) Short Circuit Protection
Products application
Wide Application:
Electric Car, Sightseeing Car, Electric wheelchair, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot, DC Power Supply, Smart&Intelligent Home, and more
Perfect and Universal Complibility:
(1) Robot, Sweep Cleaner, Water Purifier, humidifier, Atomizer Sweeper,Printer
(2) Speaker system, Soundbar, POE injectors, CCTV Camera, LCD Monitor, LED light
(3) lamps, radios, motor-driven tools and appliances, geyser, water pumps, toys, barbecue machines
AC Power cord type
Compatible for various connector
3 pin round plug/powerwise D style connector plug/ "crowfoot" connector plug

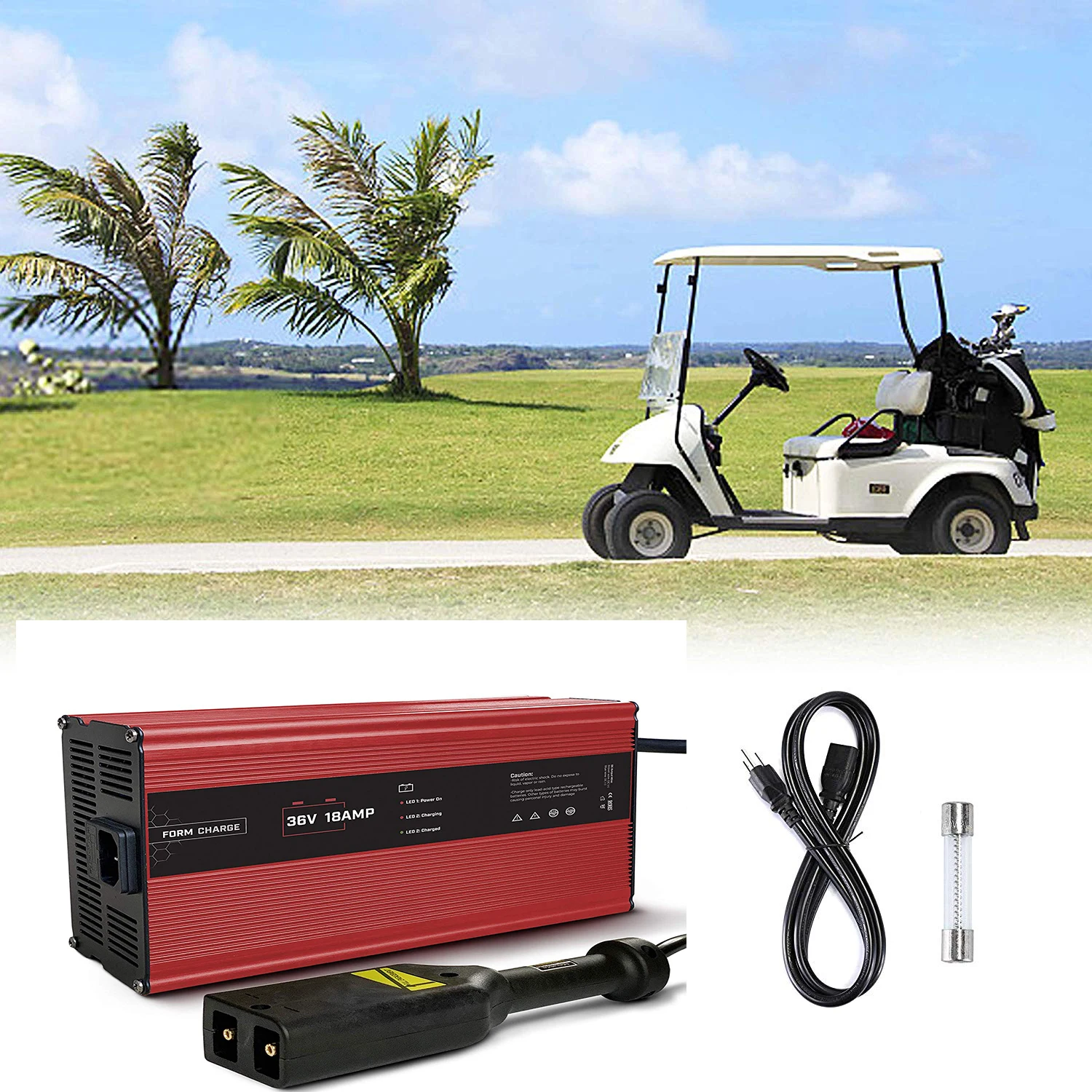

Product packaging
FAQ
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
