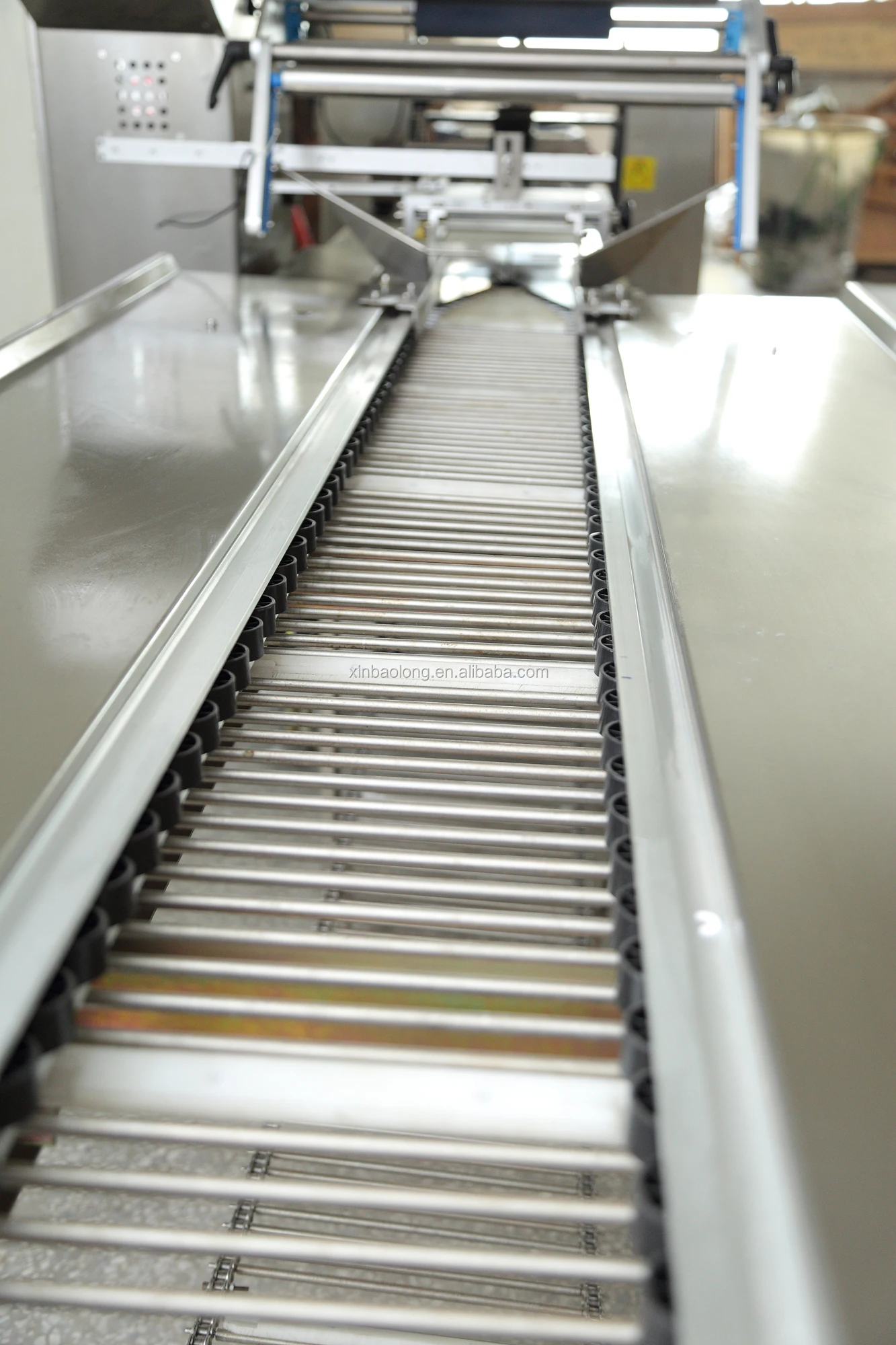

Automatic Tofu/Sausage/Noodles/Egg Packing Machine
- Category: >>>
- Supplier: Foshan Xinbaolong Packing Machinery Co. Ltd.
Share on (62330933019):
Product Overview
Description
Product Description
Technical parameters:

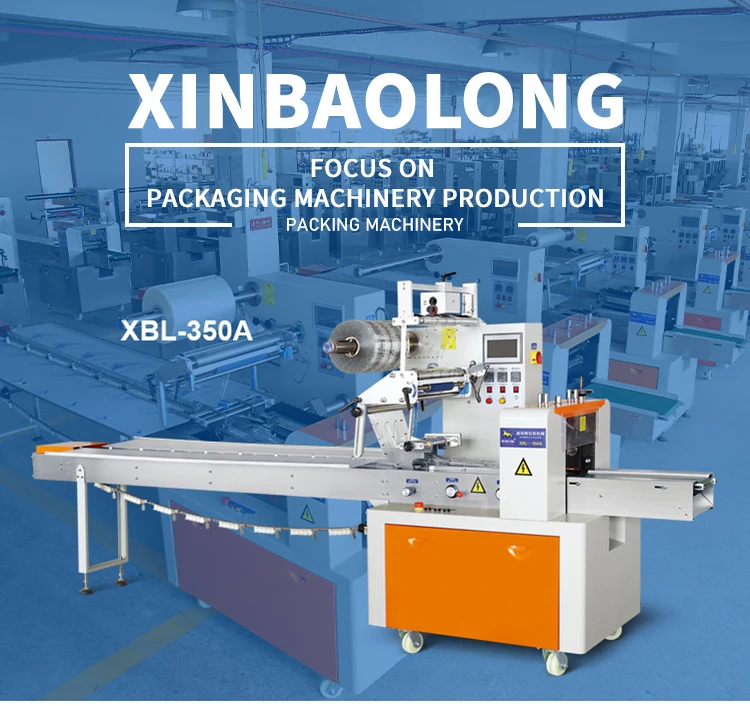

Model | XBL-350A |
Packing speed | 35-180 bag/min |
Bag size | L(80-300)mm* W(30-160)mm* H(5-65)mm |
Film width | 80-360mm |
Packing material | OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL |
Dimension | (L)3900mm *(W)950mm*(H)1500mm |
Heating power | 2.1kw |
Motor power | 0.55+0.75kw |
Total power | 3.4kw |
Overall weight | 600kg |
Applicable for packing various solid regular objects. Such as blscults, bread,instant noodle ice cream, mooncake, canary. Medicine, hardware or loaded by box/tray etc. Any kind of products and so on.
Principal capability and structural features
1. The bag length is free of manual setting, the equipment automatically detect and set the length.

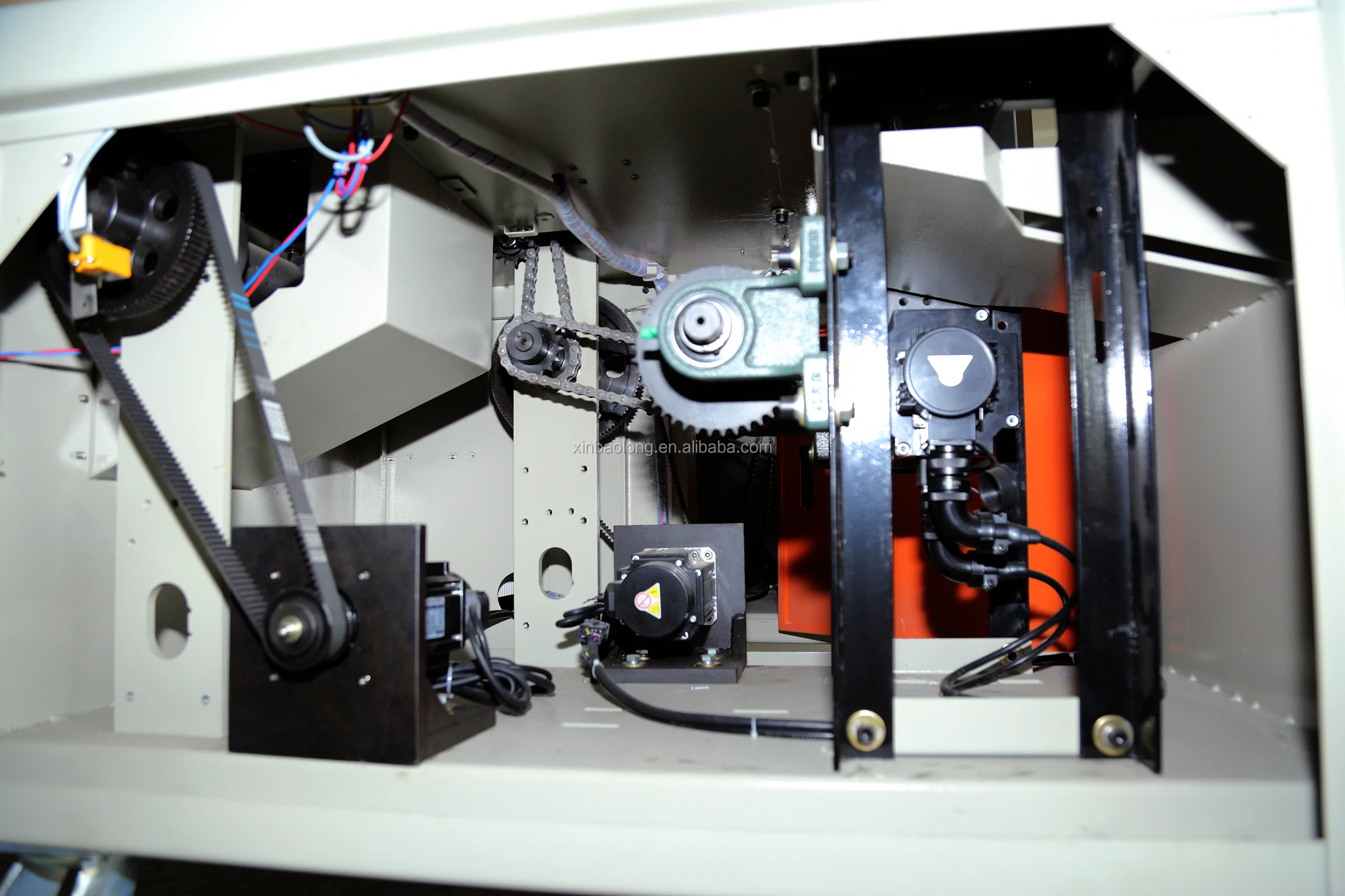

2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.

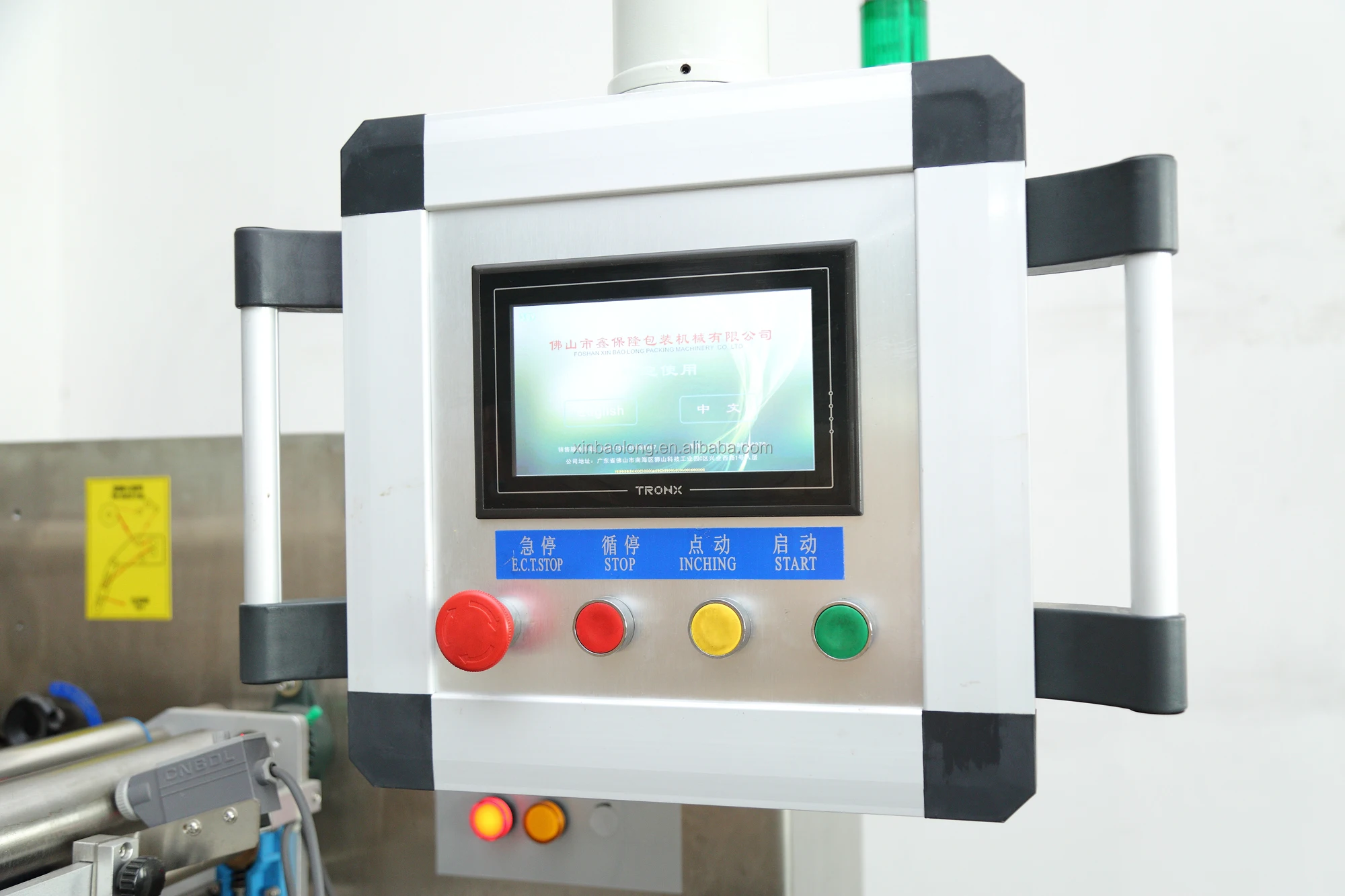

3. The main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, operation convenience.
4.The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.
It can match well with the former working procedure of production line.
5. High sensitivity photoelectric eye tracking automatically and accurately.

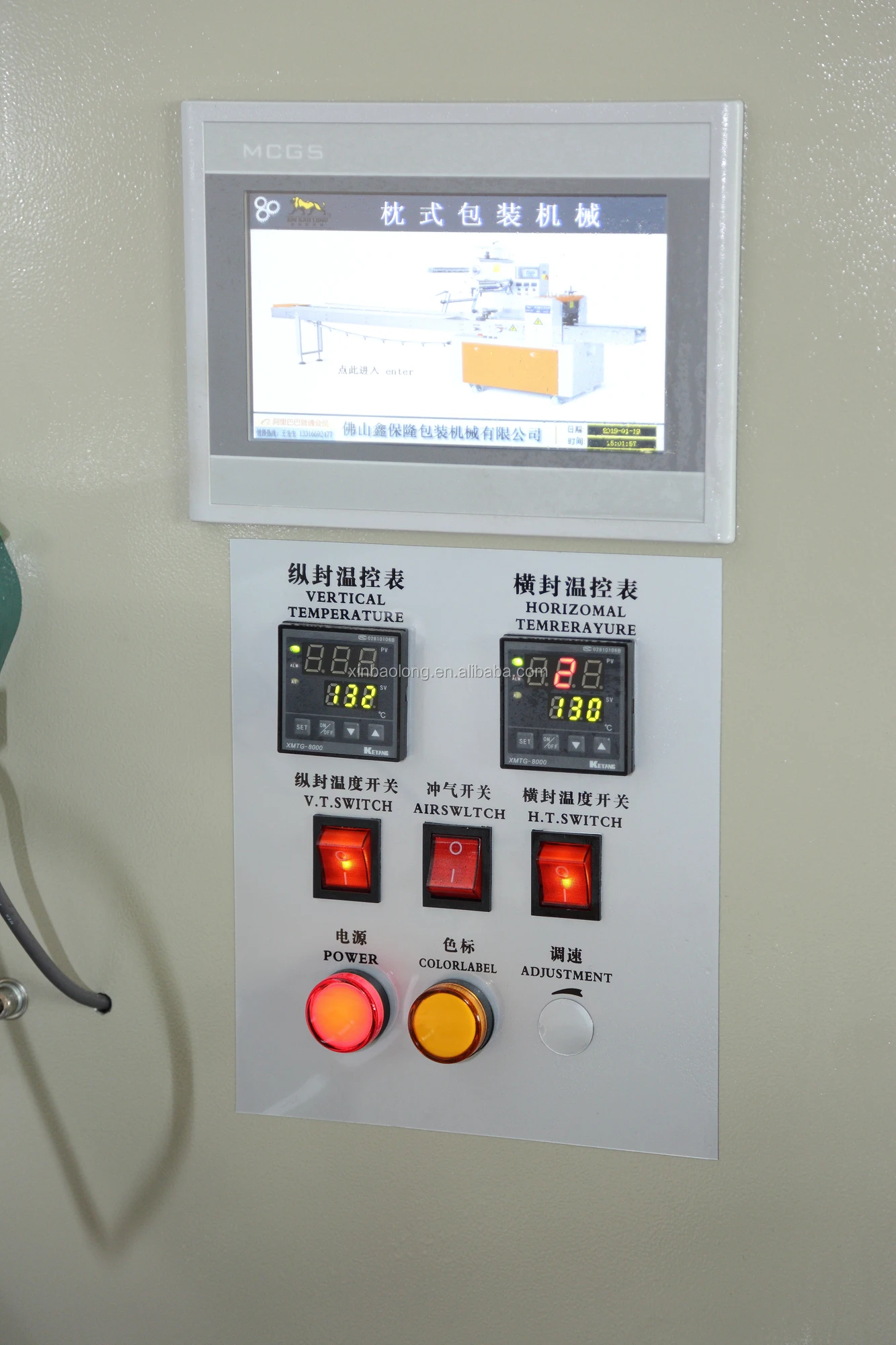

6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
7. Device for intermission charing,alcohol spray can be mounted, machinery gusseted device and coder.
2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.
3. The main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, operation convenience.
4.The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.
It can match well with the former working procedure of production line.
5. High sensitivity photoelectric eye tracking automatically and accurately.
6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
7. Device for intermission charing,alcohol spray can be mounted, machinery gusseted device and coder.
Recommend Products
Our Services
Customer & Exhibition Photos
Company Profile
OUR ENTERPRISE BELIEF
WITH EXCELLENT PRODUCT QUALITY, GOOD COST PERFORMANCE, AND TIMELY AND PERFECT PRE SALES AND AFTER SALES SERVICE, WE ARE WILLING TO WORK WITH CUSTOMERS AND EMPLOYEES TO MAKE PROGRESS AND CREATE A BETTER FUTURE.
Packaging Logistics
FAQ
1.Q: How long of the warranty period?
A: The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
2.Q: What’s the Payment terms?
A: Our payment term is T/T( telegraphic transfer).
30% deposit of the machine should be paid when order and the rest of balance 70% pay before shipment.
3.Q: Can you provide after-sale service?
A: Yes, we have engineers available to service machinery overseas. The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
4.Q: What is Our Advantages?
A: 1). Rapid response on any inquiry.
2). Competitive price.
3). Professional inspection department to guarantee quality.
5.Q: Can I come to visit your factory?
A: Of course, you can visit our factory and bring your samples, that you can see how does the machine works with your products and learn to operate it.
A: The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
2.Q: What’s the Payment terms?
A: Our payment term is T/T( telegraphic transfer).
30% deposit of the machine should be paid when order and the rest of balance 70% pay before shipment.
3.Q: Can you provide after-sale service?
A: Yes, we have engineers available to service machinery overseas. The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
4.Q: What is Our Advantages?
A: 1). Rapid response on any inquiry.
2). Competitive price.
3). Professional inspection department to guarantee quality.
5.Q: Can I come to visit your factory?
A: Of course, you can visit our factory and bring your samples, that you can see how does the machine works with your products and learn to operate it.
