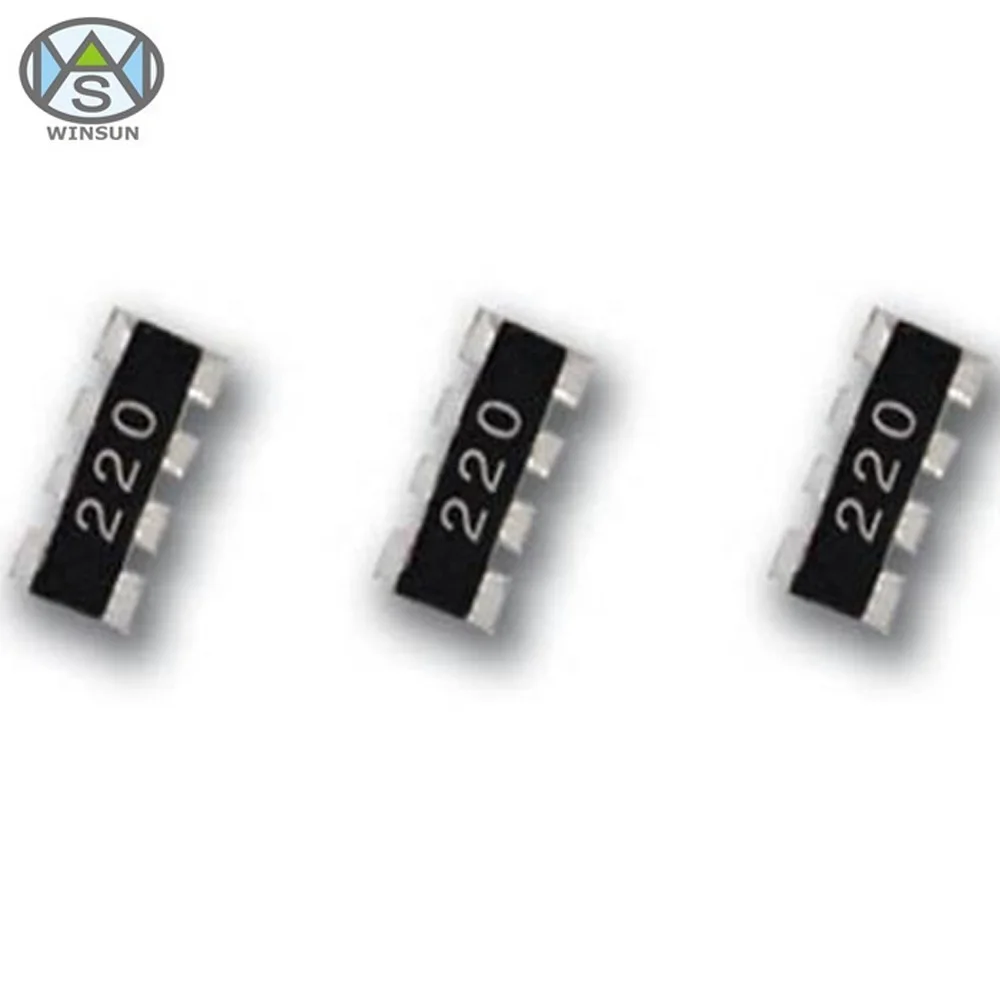

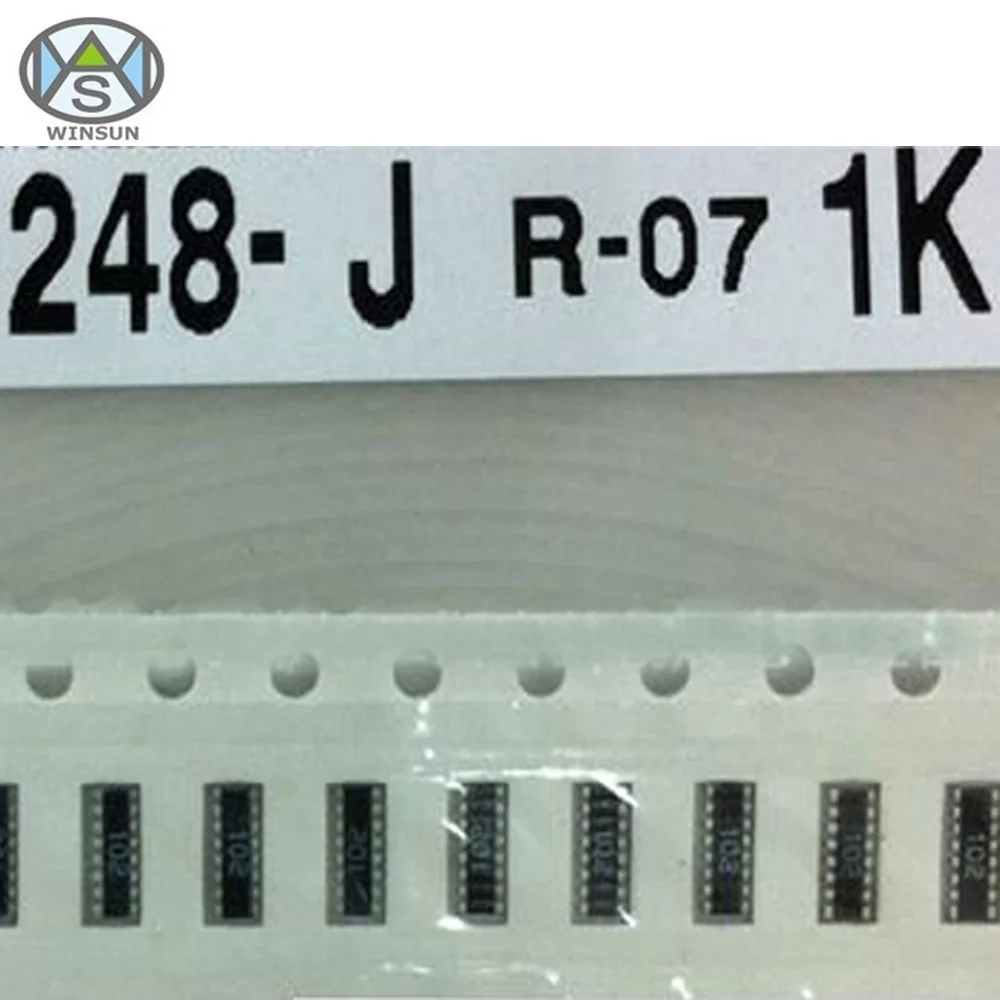

Rohs Certification 0402 0603 8P4R 4P2R Chip SMD Array Resistor For Household Appliances

Product Overview

Description

Rohs Certification 0402 0603 8P4R 4P2R Chip SMD Array Resistor For Household Appliances



Features
Small size with high density packing. Used for print PCB.
Operating ambient temperature: -55`C to +125`C
Resistance tolerance: ± 1%. ± 5%
Size: 0402,0603
0402: 4P-2R, 8P-4R
0603: 4P-2R, 8P-4R, 10P-8R, 16P-8R

Tolerance: ± 1%. ± 5%
Range: 10R-1M



Test Item   Test Condition   Performance

Temperature coefficient      ±200ppm/

Short time overload          R≤±(2%R₀+0.1R)

Resistance to soldering heat R≤±(1% R₀+0.05R)

Solerability                 The soldering area is over 95%

Temperature cycling          R≤±(0.5% R₀+0.05R)

Load life in humidity        R≤±(3% R₀+0.1R)

Load life in heat            R≤±(3% R₀+0.1R)

Bending strength             R≤±(1% R₀+0.05R)
