full color led screen display panel sign led digital wall board panel video tv pantallas P2mm
- Category: >>>
- Supplier: Shenzhen APOLLOMI Technology Company Limited
Share on (62331300429):
Product Overview
Description

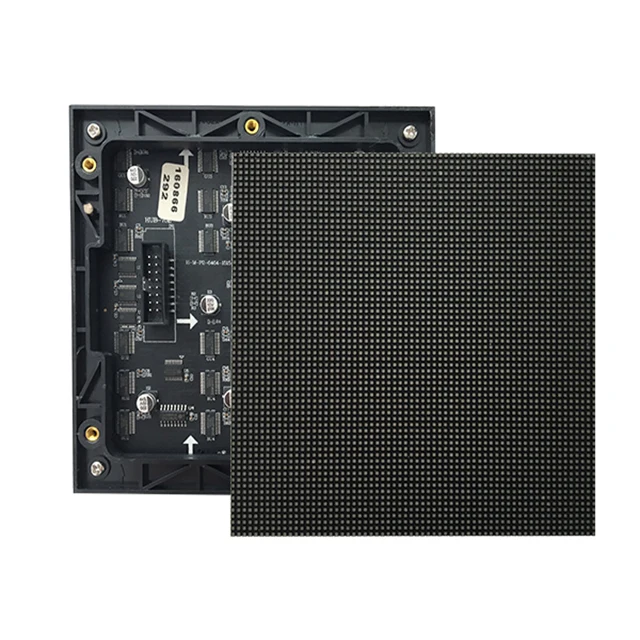

Indoor full color P2mm led screen fixed installation led video display panel sign wall tv signage

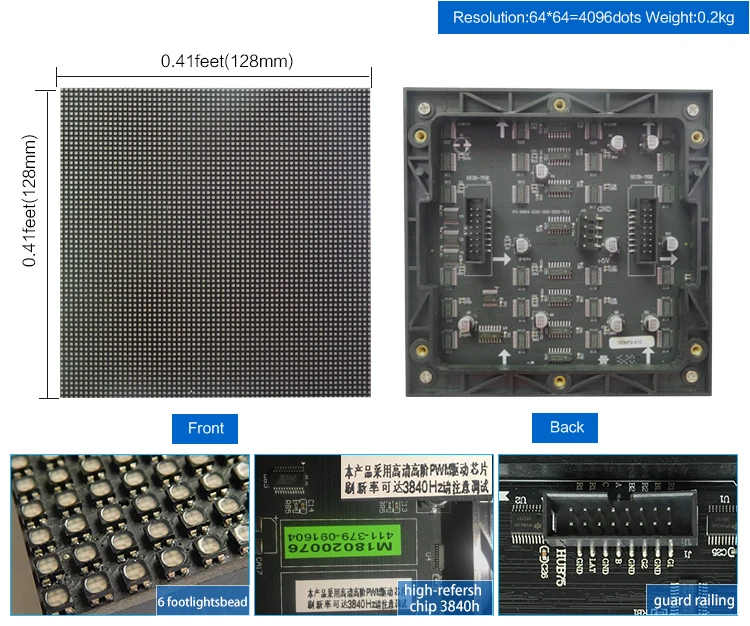

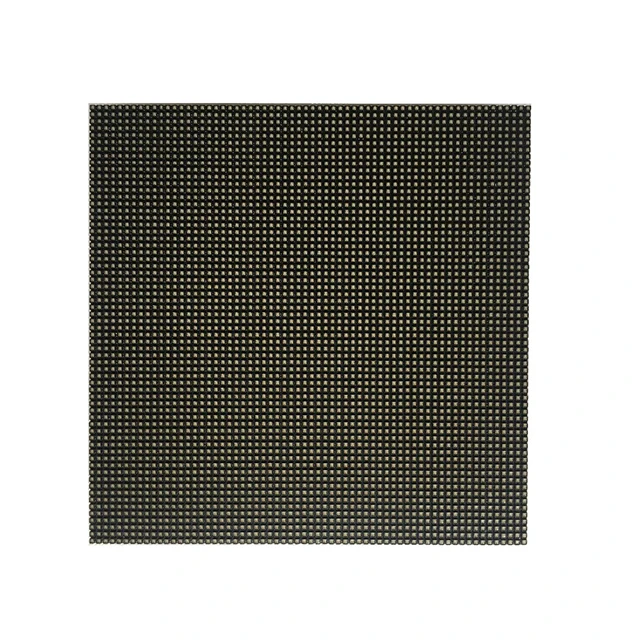

Unit Module | Item: | Parameter |
Model: | P2mm | |
Pixel Pitch: | 2mm | |
Pixel configuration: | 3in1 (1R1G1B) | |
Module Size: | 128mm*128mm | |
Module Resolution: | 64dots(W) *64dots(H) | |
Module Thickness: | 12.5 MM | |
Module Weight: | 0.2 KG | |
Package LED mode: | SMD1515 | |
Max Power: | 18W | |
Pixel Density: | 250000 dots/SQM | |
Driving Method: | Constant Current Driving | |
Scan Method: | 1/32 scan | |
Interface Way: | HUB 75 | |
Brightness: | ≥ 1100CD /SQM | |

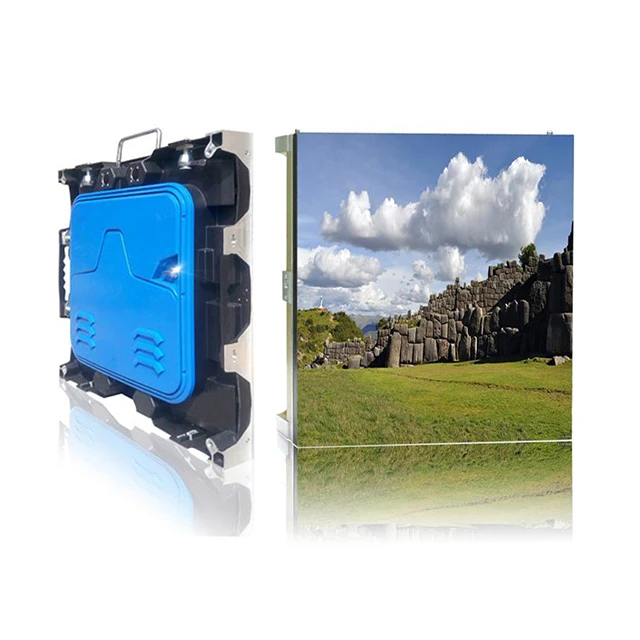

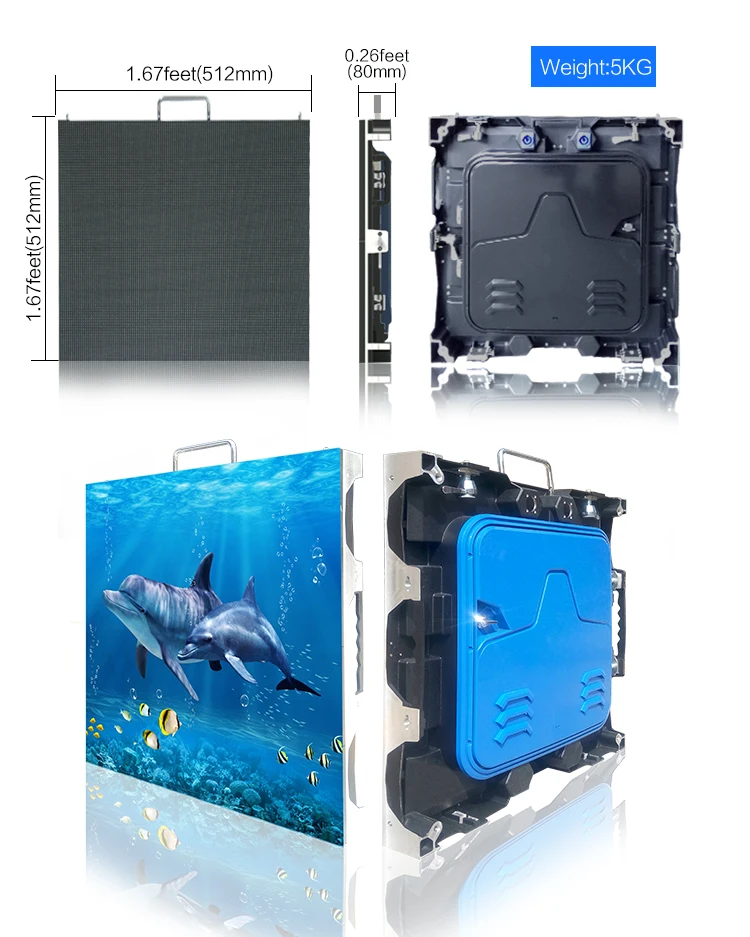

Unit Cabinet | Cabinet Size: | 512mm * 512mm (Customize)D80mm |
Cabinet Composing: | 16 pcs | |
Power Supply Mode: | 5V/40A(4pcs/cabinet) | |
Cabinet Resolution: | 256*256dots | |
Viewing Distance: | 2-35M (according to the big screen size) | |
Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 120 degree | |
Environment Temperature: | Storage: -40 degree ~ +85 degree Work: -20 degree ~ +60 degree | |
Relative Humidity: | 10% ~ 95% | |
Power | Operating Voltage: | AC:100V~120V AC:220~240V |
Average Power: | ≤ 200W/ SQM | |
Max Power Consumption: | ≤ 400W/SQM | |
Control System | Computer: | Pentium4 or above P4 or above |
Operate System: | Win98/2000//XP/Win 7/Win 10 | |
Control Mode: | Synchronization with PC | |
Main Technical Parameter | Driving Device: | IC Constant Current Driving |

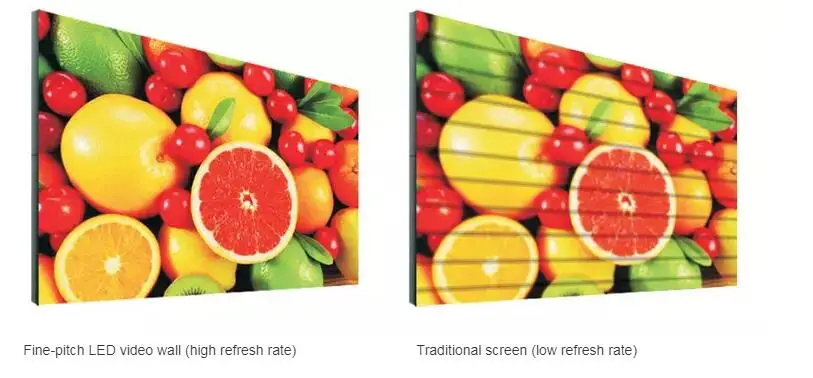

Refresh Rate: | ≥ 2800Hz | |
Gray/Color: | RGB each 256 grade, can display 16.7color | |
MTPF: | ≥ 9000hours | |
Power Switch: | Automatic Switch | |
Display Mode: | 1920*1080\\1024*768\\1280*960 |
Exclusive visual feast, Technical peak

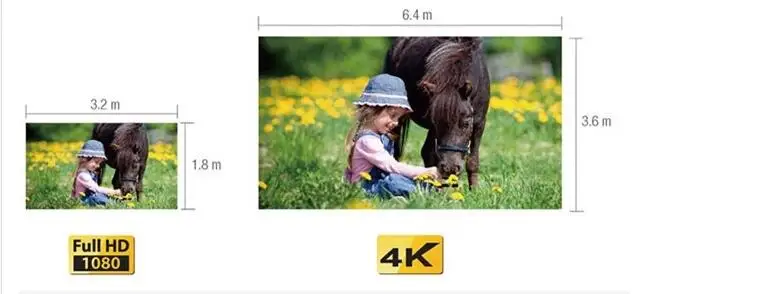

High resolution brings delicate display effect, and it is a perfect embodiment of the new generation of ultra-high-definition LED display technology.
Low brightness with high gray level, more delicate display performance
Adopt high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider;
High contrast and high image quality
High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image

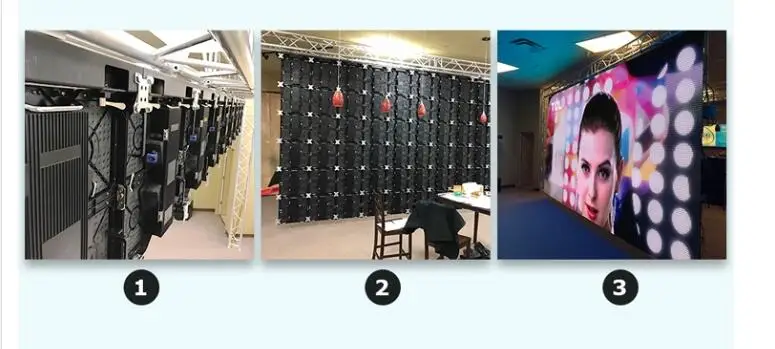

The led screen different installation ways
What is the perfect led screen?
Indoor installations modes

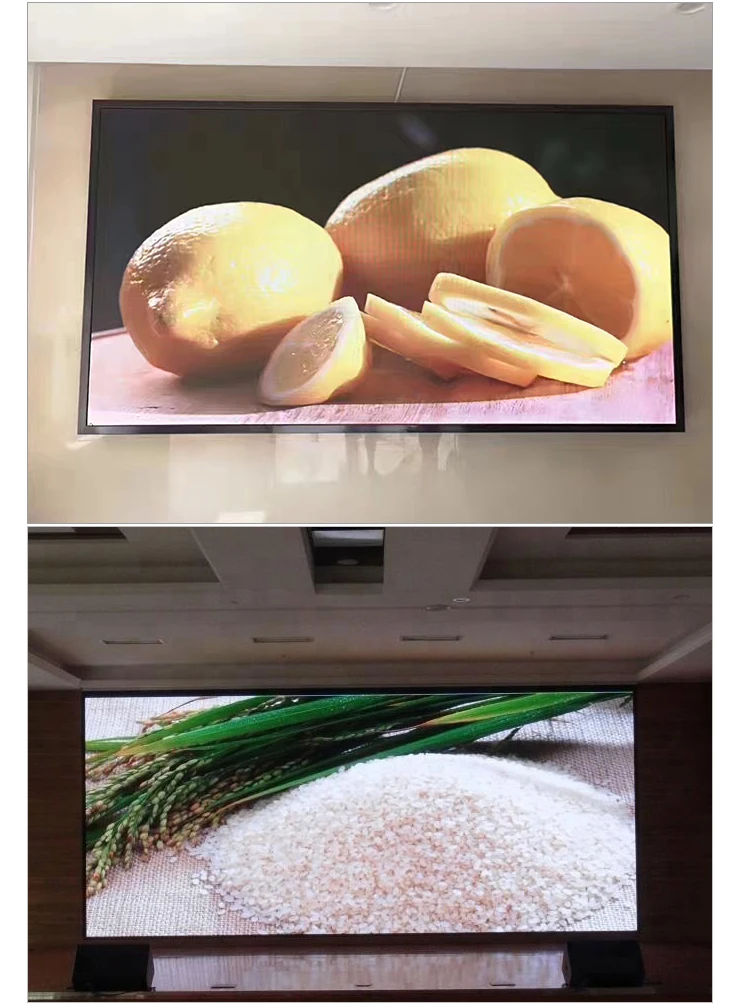

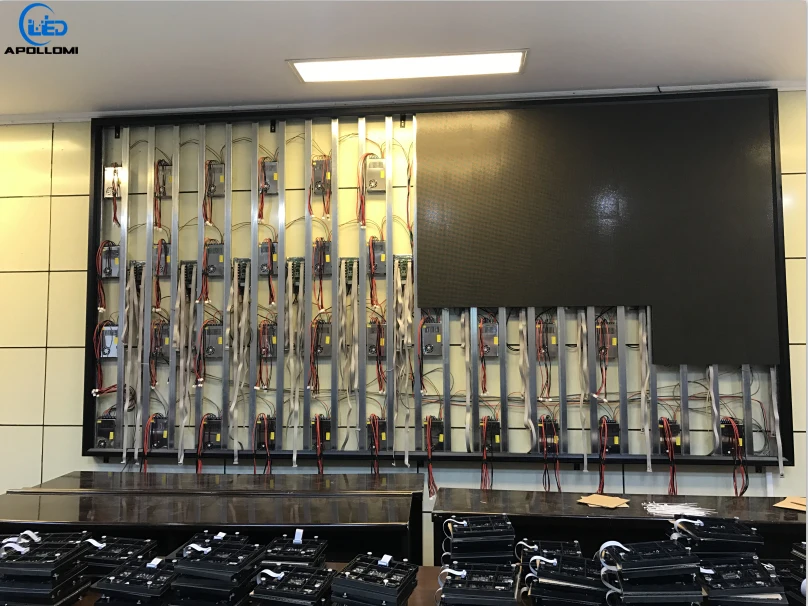

1.Fixed installation mode
2.Rental mode led screen display

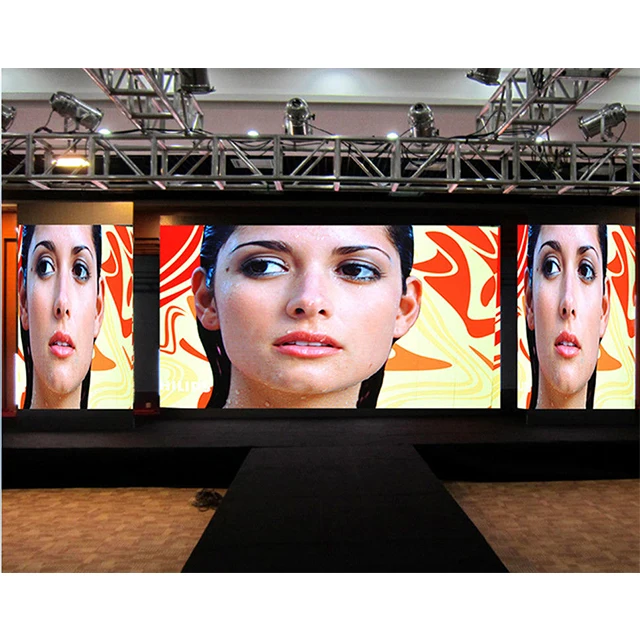

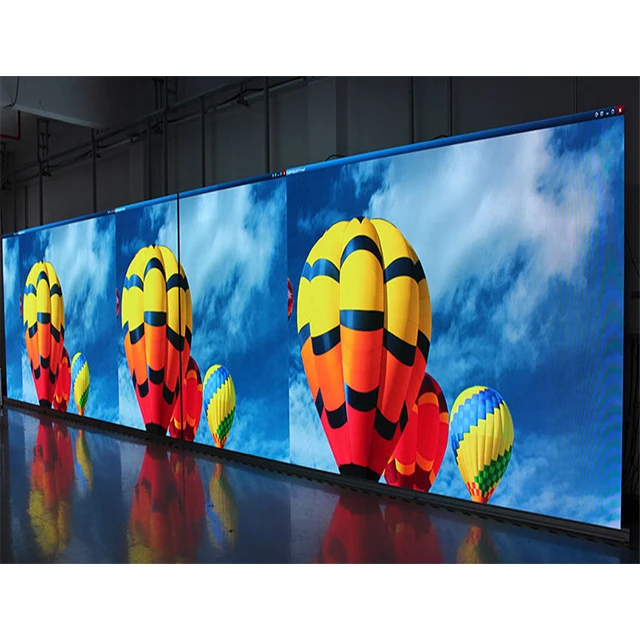

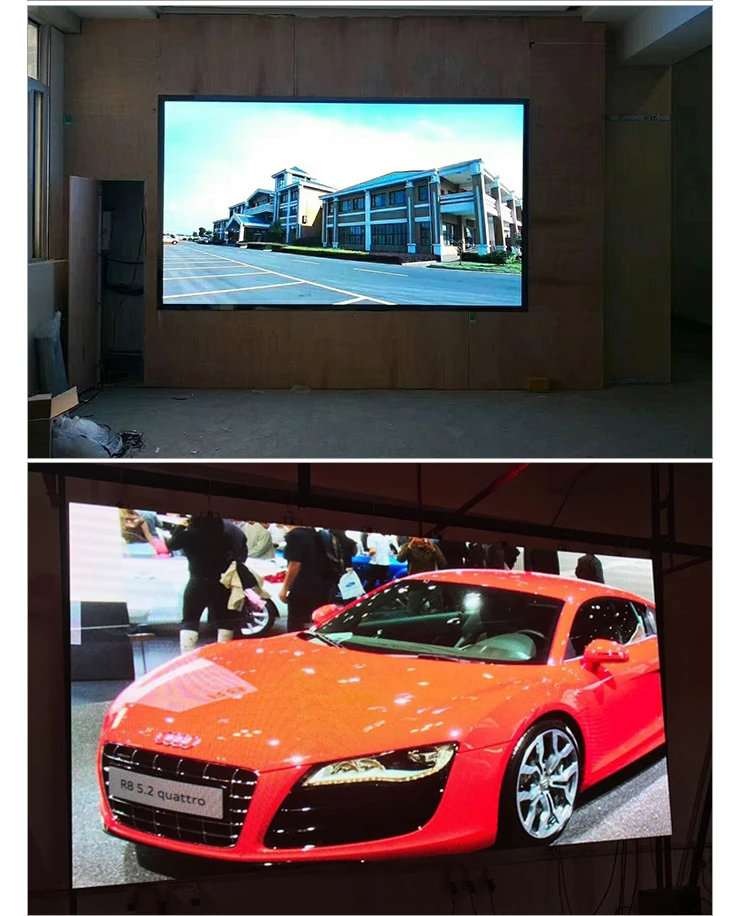

Led video display screen show cases
Want to know more led screens?Please click here---
About our company-Apollomi
Attentive Services
5 years warranty
Attentive service and professional after-sales service
Now led display variety, so many customer dazzing. Commercial squares have outdoor led display for advertising, however, the led display screen products are mixed, resulting in a number of security problems. Fire is the main problem.
Free training
The company provide free on-site training on equipment operation to the technical personnel of the buyer, ensuring that the personnel of the user can be skilled in the routine use of various equipment and software as well as the judgment and resolution of minor faults.
Quick response
Any quality problem occurred during the normal operation of the screen, after receiving your notification, our company engineer will give you the professional technicians to fixed it out in time.
Lifelong maintenance
Our company promises to provide customers with free telephone consultation, system upgrade and other services for life. Parts are damaged outside the warranty period, and only equipment cost is charged for the parts provided.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on LED display.
Q2. Is it OK to print my logo on led product?
A2: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, Under normal use and storage, we will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free.
After Maintenance period, only charge the material costs fees free of manual work fees.
Q4. How to do the shipping?
A4:You can use our shipping agent who we have cooperate more than 4years
Or you can use your shipping agent.
Q5.what if i don't know how to installation the screen?
A5:Firstly; we would send some video to help you how to install the screen ,once you receive the screen.
Secondly; we can guide on line or Telephone guidance if customers have any questions about the installation and usage.
For large project, we provide your engineer a week free training, Or if you pay the related fees, we can send our engineers to conduct on-site guidance.
