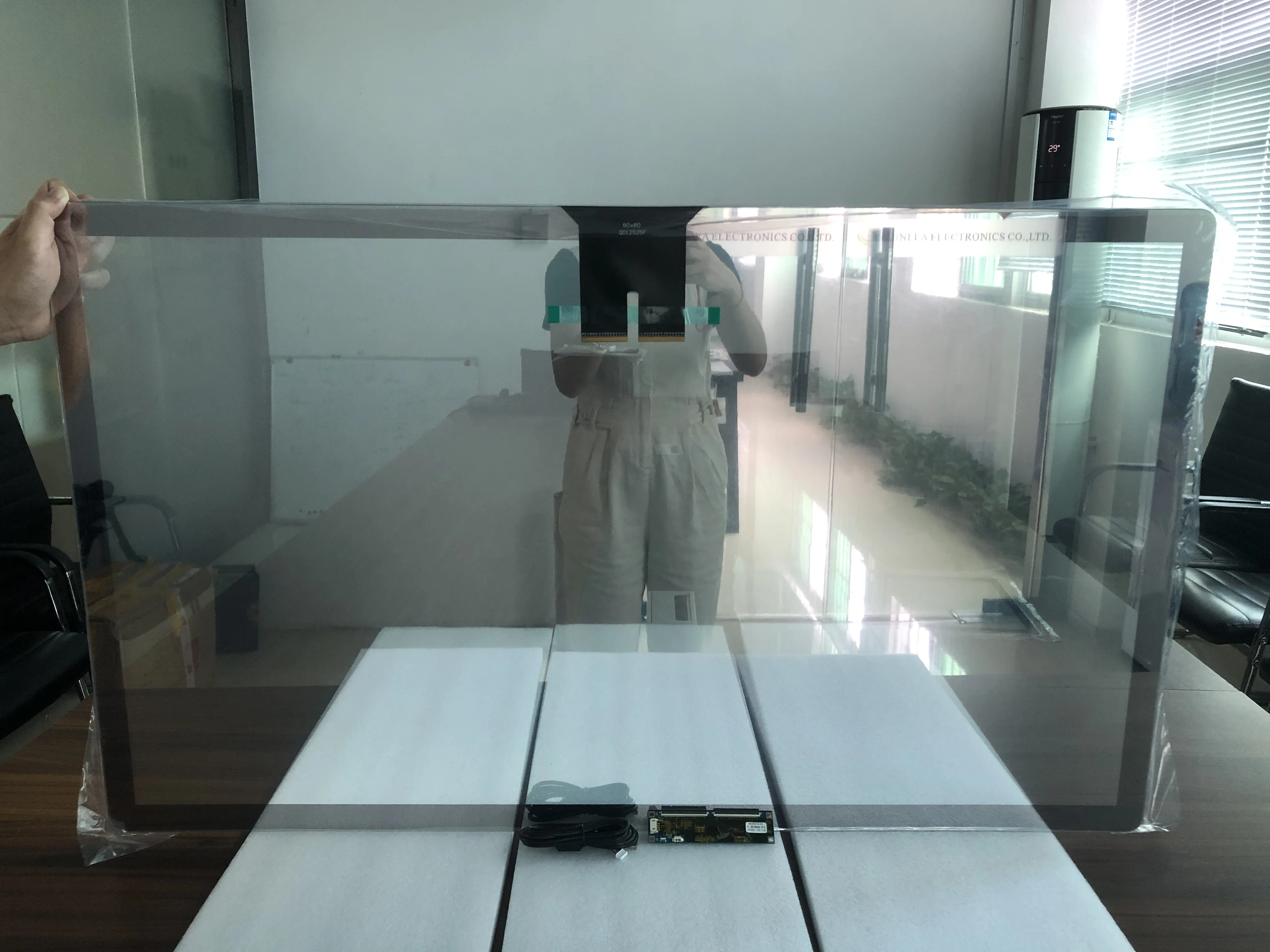

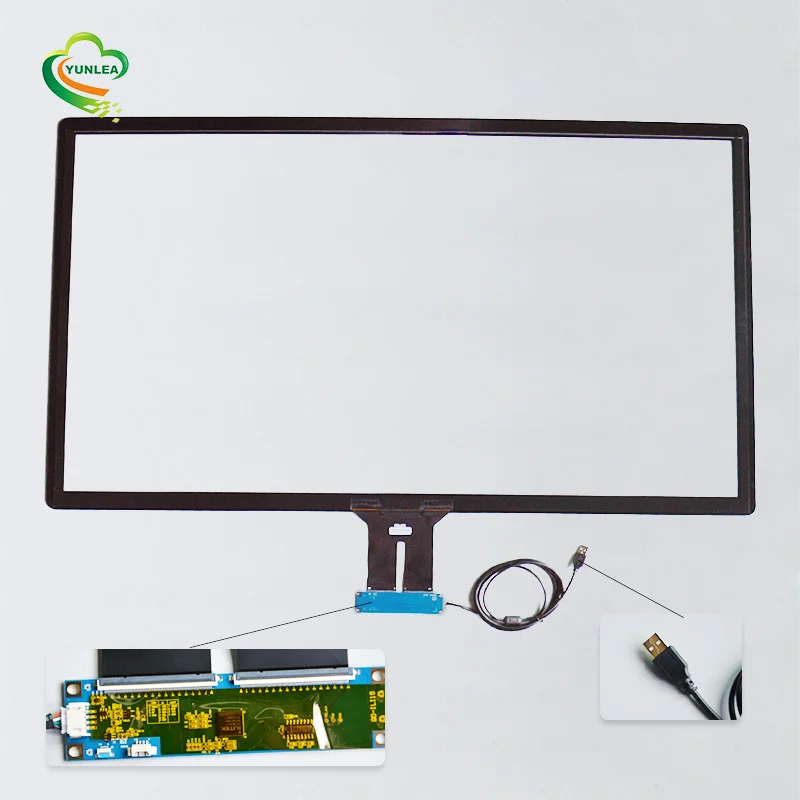

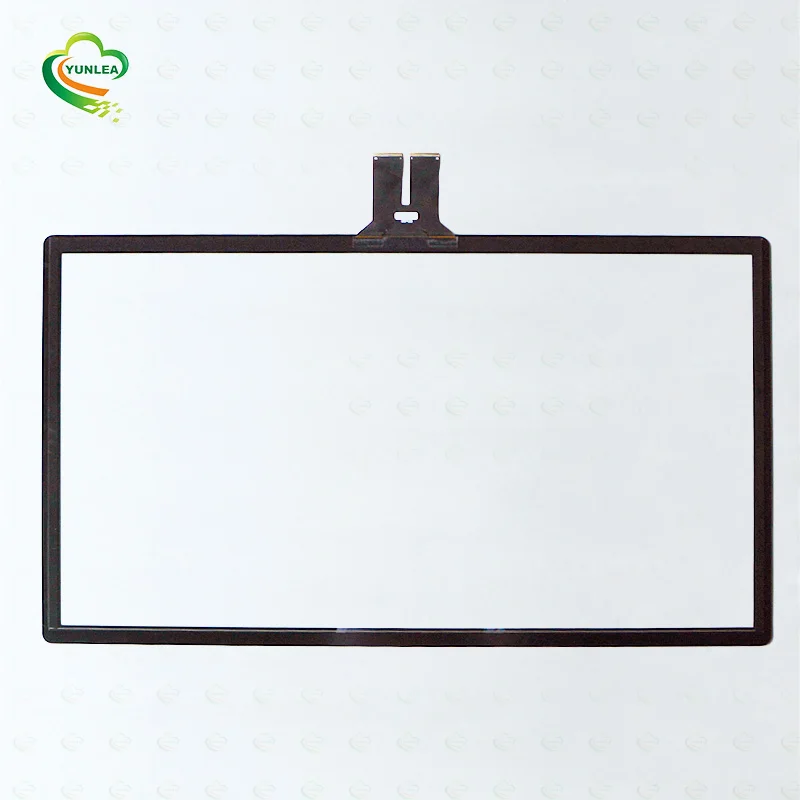

Large Size ILITEK Chip On The Board Multi Touch 43 Inch Capacitive Touch Screen Panel Overlay Kit For Message Kiosk
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62331300667):
Product Overview
Description
Yunlea have :
1. 5000 m2 factory area
2. 10 years+ touch screen experience
3. Stronger engineer team and 24 hours -7 days Online service
4. High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1. ITO sensor glass / ITO sensor film / Touch screen panel / Touch display
2. We have some standard products (3.5 inch to 65 inch PCAP )in stock and no tooling request
3. Customized available : size, FPC, logo printing, silk-printing color
4. Special Treatment : AG/AG/AF ,Water-proof,With glove touch
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6.Short lead time, 15 days for customized product, 2-4 weeks for mass production
1. 5000 m2 factory area
2. 10 years+ touch screen experience
3. Stronger engineer team and 24 hours -7 days Online service
4. High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1. ITO sensor glass / ITO sensor film / Touch screen panel / Touch display
2. We have some standard products (3.5 inch to 65 inch PCAP )in stock and no tooling request
3. Customized available : size, FPC, logo printing, silk-printing color
4. Special Treatment : AG/AG/AF ,Water-proof,With glove touch
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6.Short lead time, 15 days for customized product, 2-4 weeks for mass production
Sincerly invite you to come and visite our factory, if the schedule available.
Product Description
Type | 43''Capacitive touch screen | Structure | G+G | ||

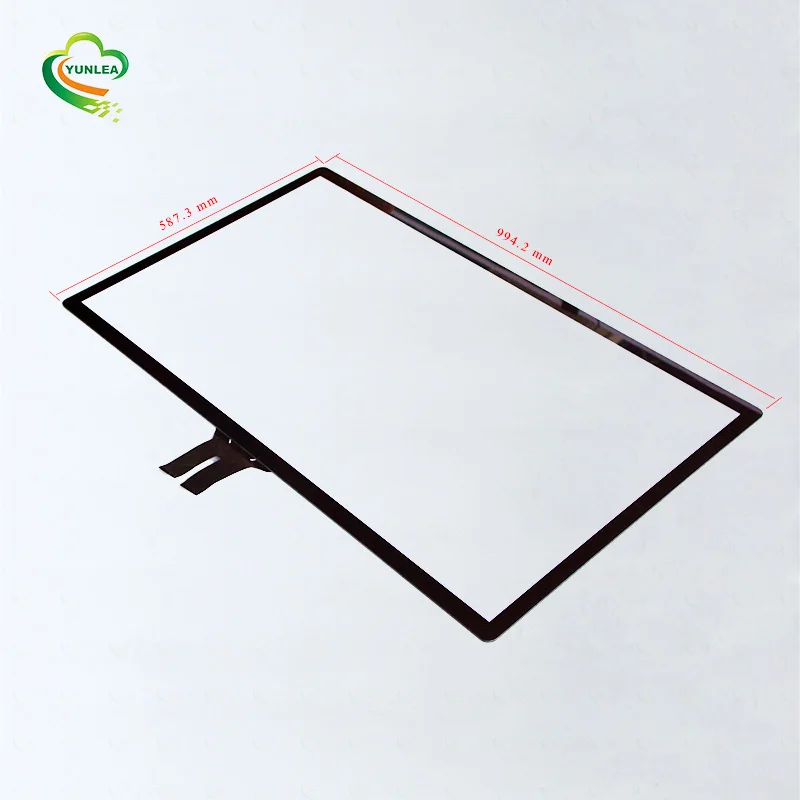

Lens OD | 994.20x587.30mm | Surface Hardness | 6H | ||
Sensor OD | 973.00x561.50mm | Transparency | 86%min | ||
Window VA | 943.20x531.40mm | Interface of CTP | USB/I2C/RS232 | ||
Cover Glass Thickness | 4.00mm | Touch Points | up to 60points | ||
Sensor Thickness | 1.10mm | Storage Temp | -30 to 80 degree | ||
Total Thickness | 5.40mm | Operating Temp | -20 to 70 degree | ||
Touch Controller | EETI/ILITEK2315 | Touch Solution | COB | ||
Silk-print Color | Black | Customized | Available | ||
Supported Os | Windows, Linux, Android, Mac, QNX | ||||
MOQ | 1 piece | Trade Terms | EXW or FOB | ||
Warranty | 12 months | Lead Time | Samples in stocks,2~4 weeks for mass production | ||
Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production | ||||
Product Catalogue
Size | Sensor OD (mm) | Sensor (T) | Lens OD (mm) | Cover glass (T) | R angle | Window VA (mm) | Touch Controller | |
3.5" | 82.34x56.86 | 0.4mm | 94.94x66.86 | 0.7mm | 74.94x50.36 | Mstar 2133A | ||
4.3" | 103.10x85.40 | 0.7mm | 114x77 | 0.7mm | 96.04x53.86 | FT5346 | ||
5" | 120.7X75.8 | 0.55 | 127X85.80 | 0.7mm | R5 | 109X65.8 | FT5436 | |
7" | 159.70x94.10 | 0.55 | 164.90x100 | 0.7mm | 154.08x85.92 | FT5316 | ||
8.4" | 182×140.2 | 0.7mm | 207×166 | 1.1mm | R10 | 170.4×127.8 | EETI/ILITEK | |
10.1" | 239.6×158.20 | 0.7mm | 254.96×172.6 | 1.1mm | R10 | 217.96×136.6 | EETI/ILITEK | |
10.4" | 233.4×177.9 | 0.7mm | 259.10×206.3 | 1.1mm | R10 | 213.1×160.3 | EETI/ILITEK | |
12.1" | 280×210.5 | 0.7mm | 220.5×290 | 1.1mm | R4 | 246×184.5 | ILITEK | |
259.6×201.1 | 0.7mm | 293×237 | 1.1mm | R9 | 246×184.5 | EETI/ILITEK | ||
15" | 319×244 | 0.7mm | 339.9×263.9 | 3mm | R2 | 304×228 | ILITEK | |
329×245 | 0.7mm | 339.9×263.9 | 3mm | R2 | 304×228 | EETI/ILITEK | ||
15.6" | 358×210 | 1.1mm | 387×231 | 3mm | R16 | 344×194 | ILITEK | |
362×222 | 0.7mm | 387×231 | 1.1mm | R8 | 344×194 | EETI/ILITEK | ||
17" | 356.92×290.34 | 0.7mm | 377×309 | 3mm | R2 | 338.92×271.34 | ILITEK | |
366.58×299 | 0.7mm | 377×309 | 3mm | R2 | 338.92×271.34 | EETI/ILITEK | ||
17.3" | 398.9×235.8 | 1.1mm | 423.21×256.2 | 3mm | R16 | 383.21×216.2 | ILITEK | |
18.5" | 429.8×249.9 | 0.7mm | 458×283 | 3mm | R16 | 410.8×231.4 | ILITEK | |
430.8×261.4 | 0.7mm | 440.8×271.4 | 1.1mm | R8 | 410.80×231.4 | EETI/ILITEK | ||
19" | 398.32x321.06 | 0.7mm | 421×346 | 3mm | R2 | 377.32×302.06 | ILITEK | |
400.32×329.9 | 0.7mm | 421×346 | 2mm | R2 | 377.32×302.06 | EETI/ILITEK | ||
19.5" | 450.5×259.76 | 1.1mm | 473.5×281.26 | 3mm | R16 | 433.5×241.26 | ILITEK | |
21.5" | 496.42×287.43 | 0.7mm | 524×321.8 | 3mm | R16 | 477.6×269.10 | ILITEK | |
508×303.8 | 0.7mm | 524×321.8 | 1.8mm | R8 | 477.6×269.10 | EETI/ILITEK | ||
23.6" | 543.84×316 | 0.7mm | 573×349 | 3mm | R16 | 523.3×295.2 | ILITEK | |
23.8" | 544.03×315.5 | 1.1mm | 573×349 | 3mm | R16 | 525.5×297 | ILITEK | |
27" | 618×355.7 | 1.1mm | 646×384 | 3mm | R16 | 598×336 | ILITEK | |
619×362 | 1.1mm | 646×384 | 3mm | R16 | 598×336 | EETI/ILITEK | ||
32" | 719.7×414.3 | 1.1mm | 746.7×441.3 | 3mm | R16 | 698.7×393.3 | ILITEK | |
720.7×420.3 | 1.1mm | 746.7×441.3 | 3mm | R16 | 698.7×393.3 | EETI/ILITEK | ||
43" | 973×561.5 | 1.1mm | 994.2×587.3 | 4mm | R15 | 943.2×531.4 | ILITEK | |
55" | 1254.6x716.41 | 1.8mm | 1287.6x758.4 | 4mm | R8 | 1209.6x680.4 | ILITEK |
We also can customize more sizes, click here to contact us.
Customized Solution
Δ We can offer sensor separately.
Δ We can offer sensor+cover lens, a full set of touch screen.
Δ We can offer touch screen+LCD display as well, a full set of touch screen display.
Δ We can offer sensor+cover lens, a full set of touch screen.
Δ We can offer touch screen+LCD display as well, a full set of touch screen display.
We provide different kinds of individual customzied solution. Shape, color, Glass materials, AG, AR AF treatment, kinds of thickness, structure.
If you have any demand, Simply Click Here for your Best Solution.
If you have any demand, Simply Click Here for your Best Solution.
Company Profile
Shenzhen Yunlea Electronics Co., Ltd.
Specialized in this field for 10+ yrs industry experience with the strength of customize individual PCAP touch panel. Yunlea mainly export touch panel to foreign market and have full experience in customizing touch panel for heavy branded customers like Ge, Siemens, MELFAS etc...
If you come to China, welcome to visit our factory. We will show you how touch screen is made. Should you have any questions, free to contact me.
Feedback From Customers
We got many positive feedbacks from our customers.
It's really good for they to say YES.
Certifications
Production Process
We Can Customize The Packaging According To Your Needs！
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
