Hot sell quick coupler manual type for mini Excavator U20 For Europe

Product Overview

Description

Hot sell quick coupler manual type for mini Excavator U20 for Europe



SWT brand mini digger excavator quick hitch coupler manual type is used on excavators to change every accessory(such as bucket,breaker,shear.etc)more easily and quickly,which has enlarged the use scope of the excavators and save a lot of time.

 Advantange of mini digger excavator quick hitch coupler handle type is popular sale in Europe , Australia and New zealand .

l  Well-designed based on Europen safe operation standard mini digger quick hitch.

l  New design with special Hardox steel material,high intensity,but light weight.

l  No need to change the top bracket of the linked bucket and hammer.

l  Less malfunction and easy to maintain this mini excavator quick coupler semi automatic.

l  Reasonable designed distance of pin make products fasten and reliable.

l  all of our manual type mini digger quick hitch coupler has safety system

l Semi or full automatic or Manual type mini excavator quick hitch coupler for choose



A switch in the excavator cab enables you to have the safety pin in its “lock” or “release” position effortlessly.

A revolutionary technology to turn on and off the safety pin



We have two types mini excavator quick hitch for customer choose: Manual type mini digger quick hitch and hydraulic type mini excavator quick coupler

(1)SWT mini excavator full hydraulic type quick hitch couplers parameters:

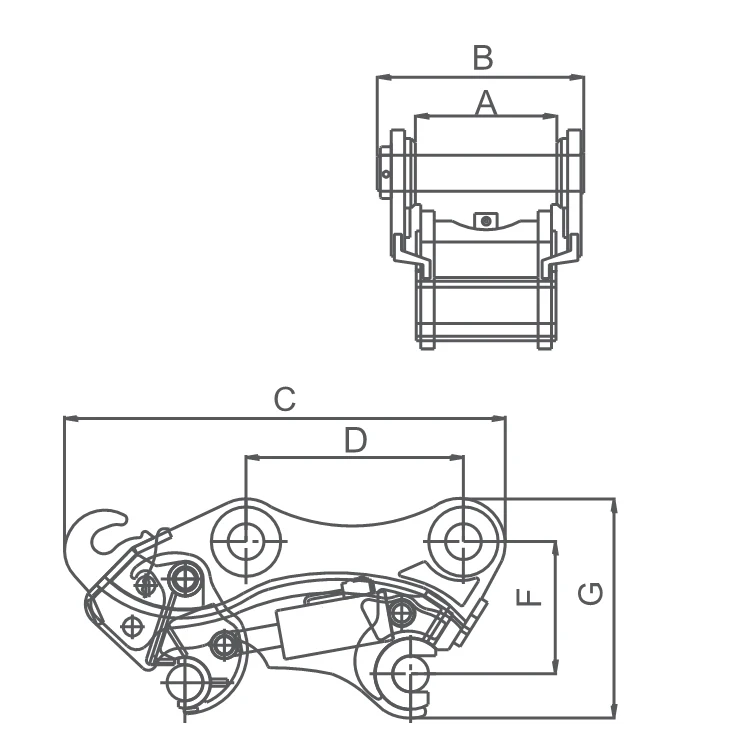

Model/Description	Unit	SQ01	SQ02	SQ04	SQ06	SQ08	SQ10	SQ17
Length C	MM	300-450	500-542	581-610	760	920-955	965-1100	1005-1150
Height G	MM	246	307	310	388	492	574	558-610
Width B	MM	175	258-263	270-280	353-436	449-483	543-568	606-663
Pin Centers D	MM	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Arm Width A	MM	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Cylinder Stroke E	MM	95-200	200-300	300-350	340-440	420-510	460-460	600-650
Vertical Pin Center	MM	159	195	195	220	275	300	360
Weight	KG	30	60-70	80-90	220-250	400-430	500-650	700-1000
Working Pressure	BAR	40-380
Oil Flow	l/MIN	10-20
Excavator Weight	TON	1.5-4	4-7	5-8	9-19	17-23	23-30	33-45

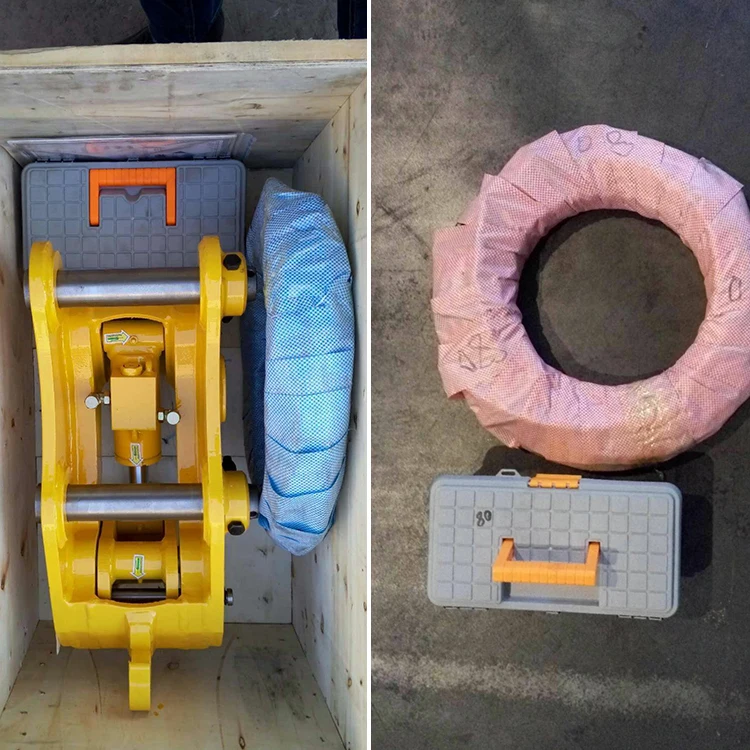

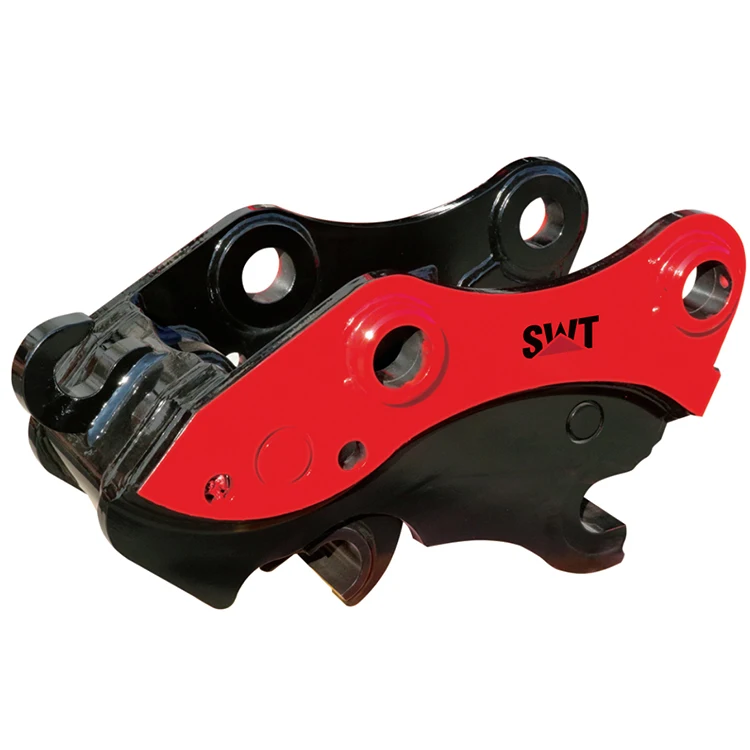

 SWT mini excavator full automatic hydraulic type quick hitch coupler pictures:

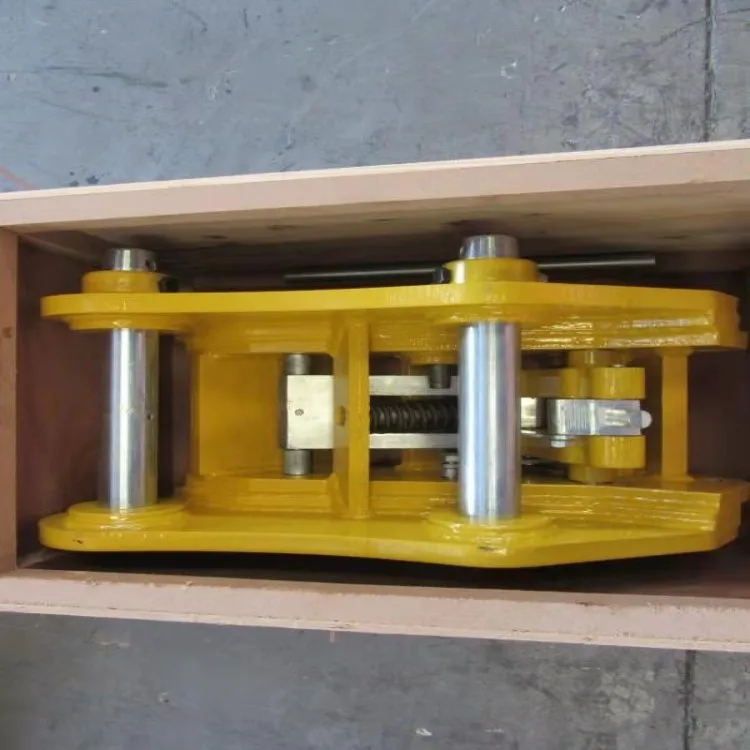

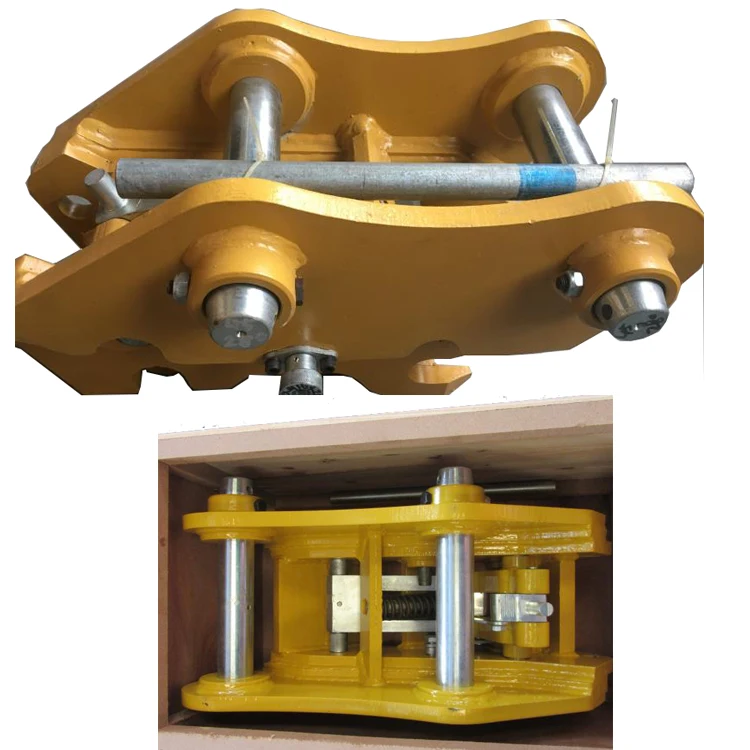

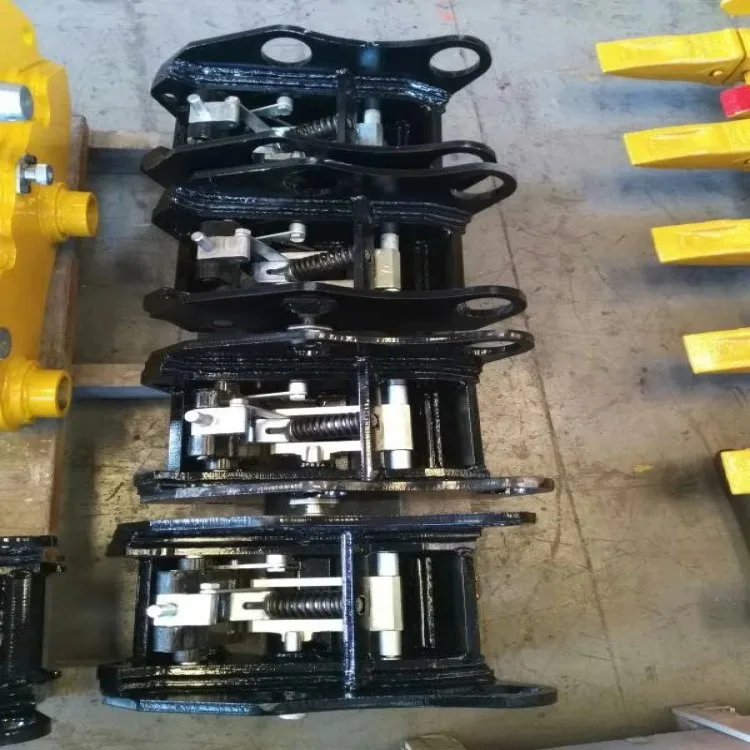

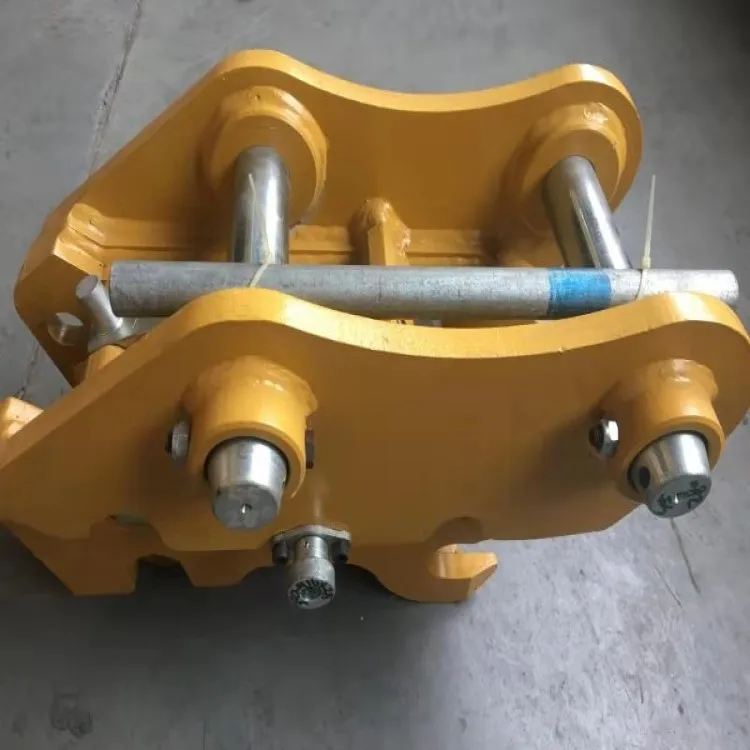

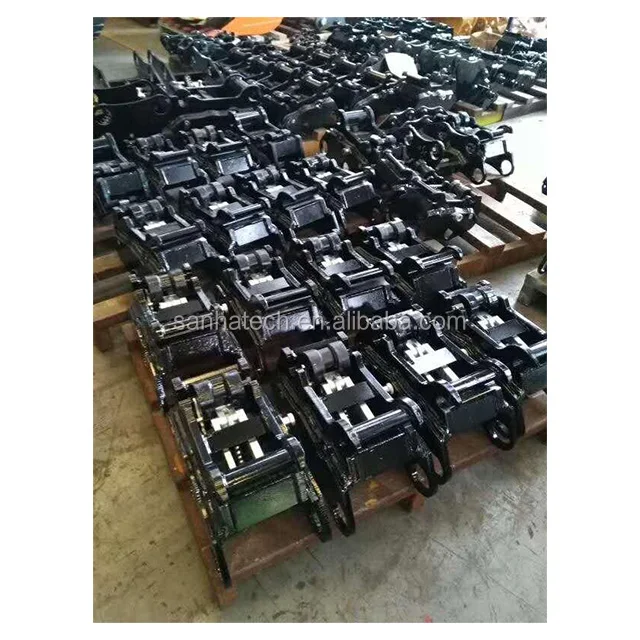

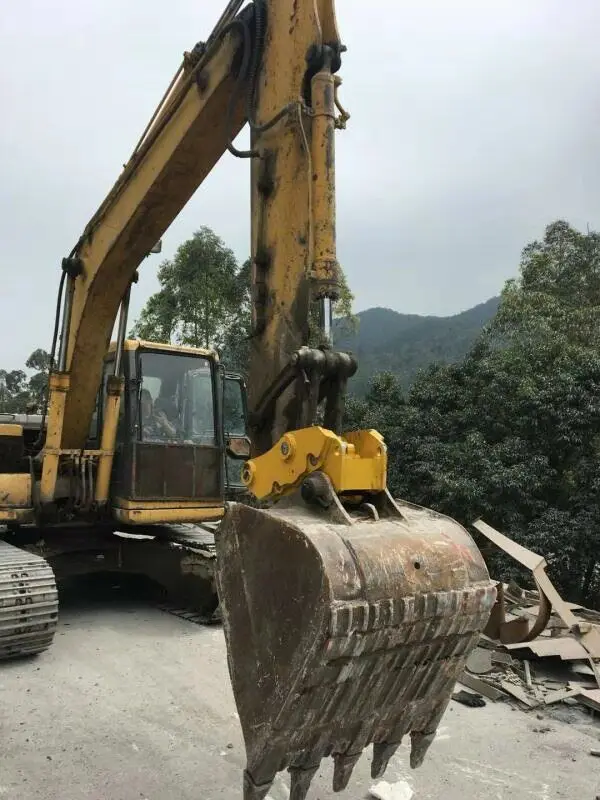

(2)SWT mini excavator manual type quick hitch couplers parameters and picture:

Name	Model	Excavator Capacity
Semi-Automatic type quick hitch coupler for excavator	SM01	0.7-1 TON
	SM02	1-2TON
	SM025	2-3TON
	SM03	3-4TON
	SM05	5-7TON
	SM07	7-8TON
	SM10	8-10TON



----------------------------------------------------------------------------------------------------------------

If you have any request, please contact our on-line sales manager for more details checking.

After confirmed the order details, you can pay online directly with  your credit card .
