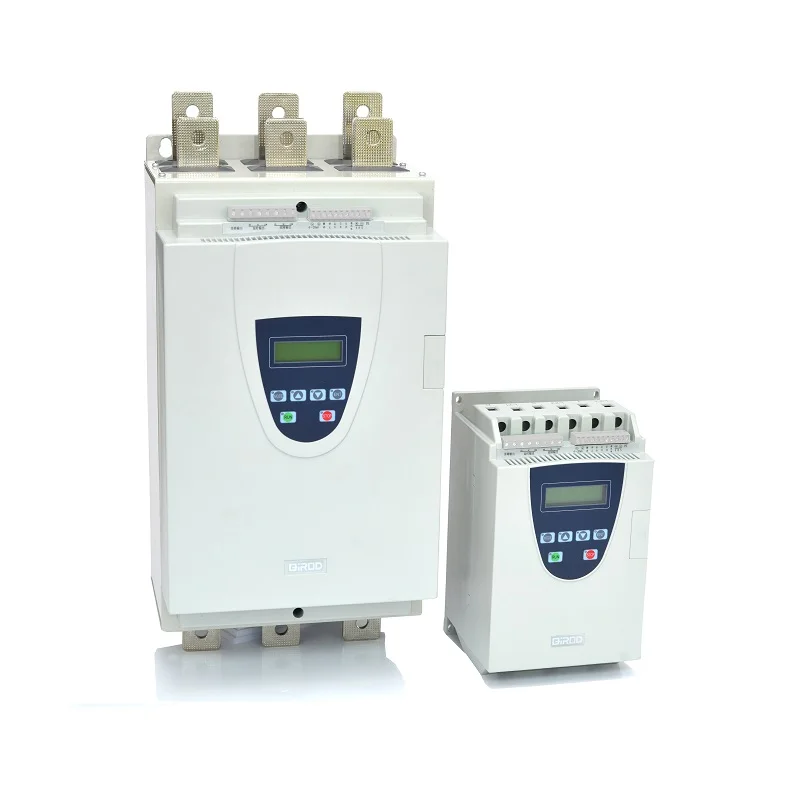

DTS series low price 37kw soft starter
- Category: >>>
- Supplier: Jiaxing Dannahe Electronic Science & Technology Co. Ltd.
Share on (62331531104):
Product Overview
Description
Dimensions table
| model | Overall dimensions (mm) | Installation dimensions (mm) | ||||
| H | W | D | H1 | W1 | Aperture | |
| DST005-3 | 264 | 162 | 161 | 249 | 150 | M5 |
| DST007-3 | ||||||
| DST011-3 | ||||||
| DST015-3 | ||||||
| DST018-3 | ||||||
| DST022-3 | ||||||
| DST030-3 | ||||||
| DST045-3 | ||||||
| DST055-3 | ||||||
| DST075-3 | ||||||
| DST090-3 | 527 | 260 | 226 | 471 | 216 | M8 |
| DST115-3 | ||||||
| DST132-3 | ||||||
| DST160-3 | ||||||
| DST185-3 | ||||||
| DST200-3 | ||||||
| DST250-3 | ||||||
| DST280-3 | ||||||
| DST320-3 | ||||||
| DST400-3 | 584 | 290 | 227 | 508 | 247 | M11 |
| DST450-3 | ||||||
| DST500-3 | ||||||
