612 1.5V 3V 3.7V Small Mini Electric Core less DC motor For Toy And Robots quadcopter
- Category: >>>
- Supplier: Yichang Wingfong Industry & Trade Co. Ltd.
Share on (62331564317):
Product Overview
Description
Product Description
Motor is divided into vibration motor and drive motor, vibration motor is mainly used for massage chair and massage couch, female sex toys, drive motor is mainly used in the toy car, intelligent vehicle and other children's toys and electric fans, blowers and other household appliances and industrial supplies, motor model and the species is numerous. Motor is divided into vibration motor and drive motor, vibration motor is mainly used for massage chair and massage couch, female，sex toys, drive motor is mainly used in the toy car, intelligent vehicle and other children's toys and electric fans, blowers and other household appliances and industrial supplies, motor model and the species is numerous.

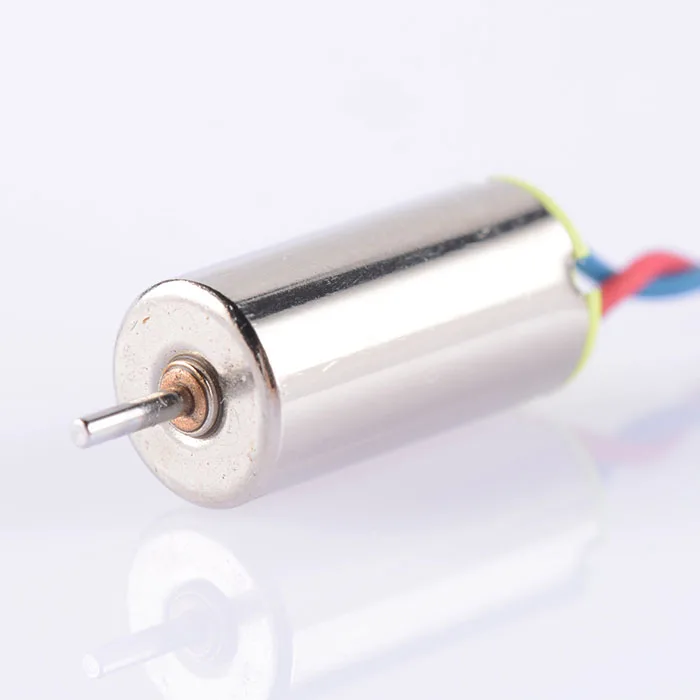

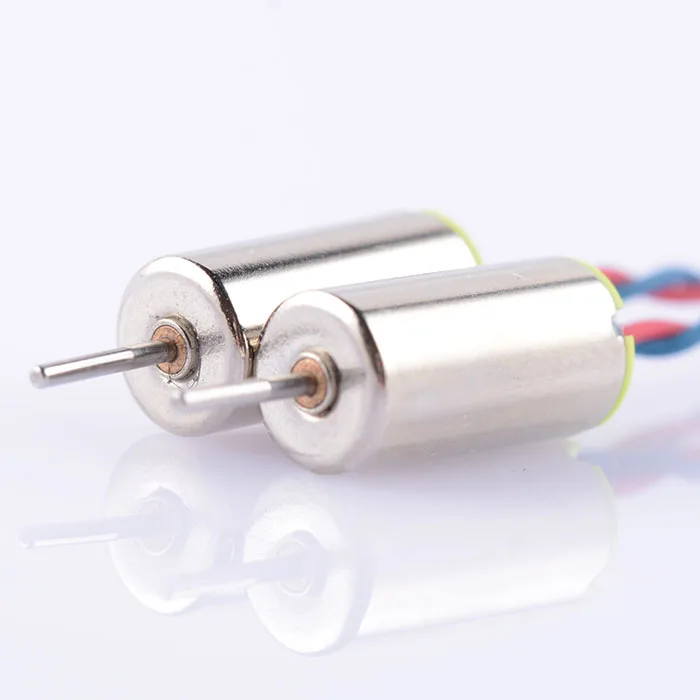

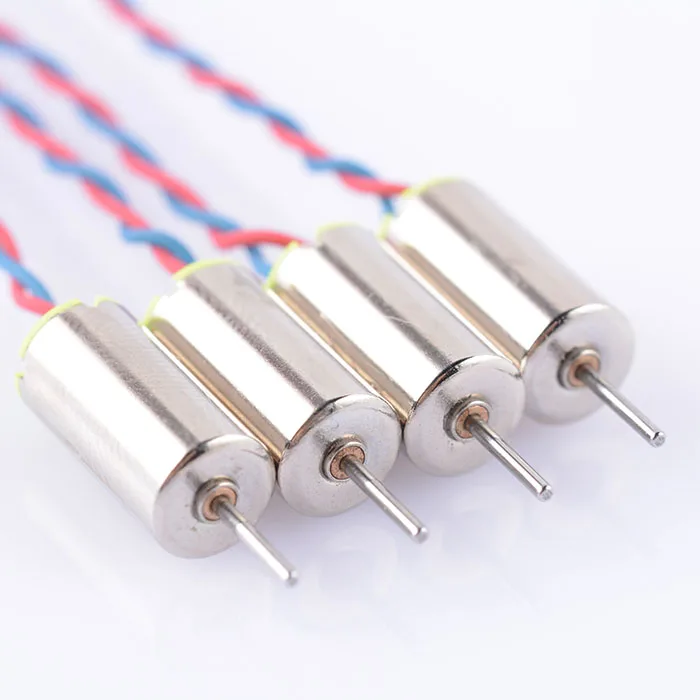

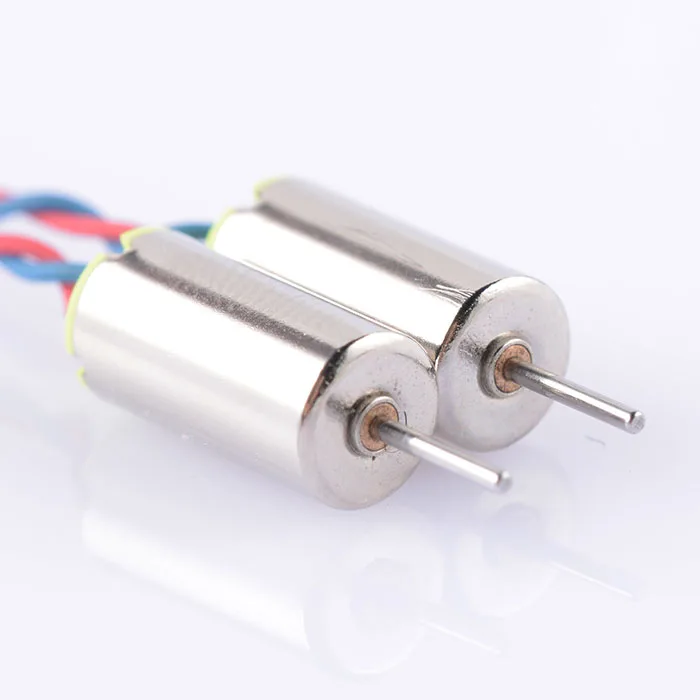

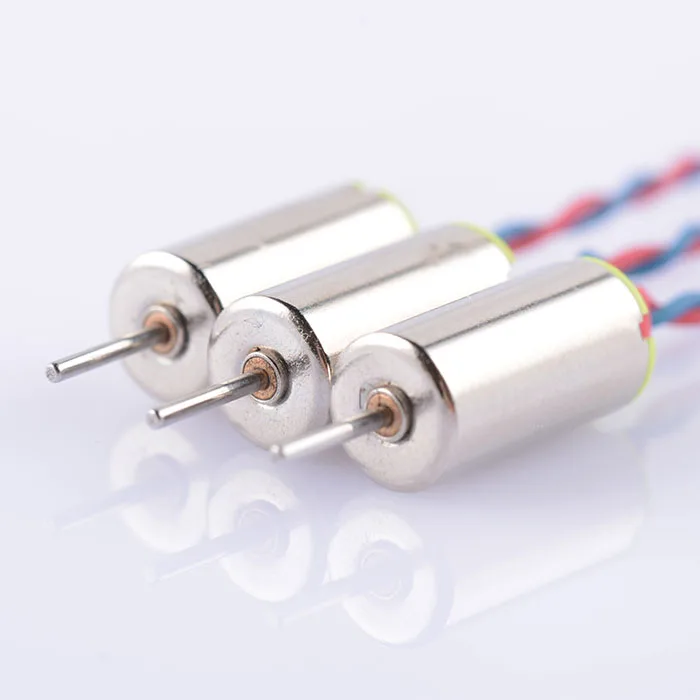

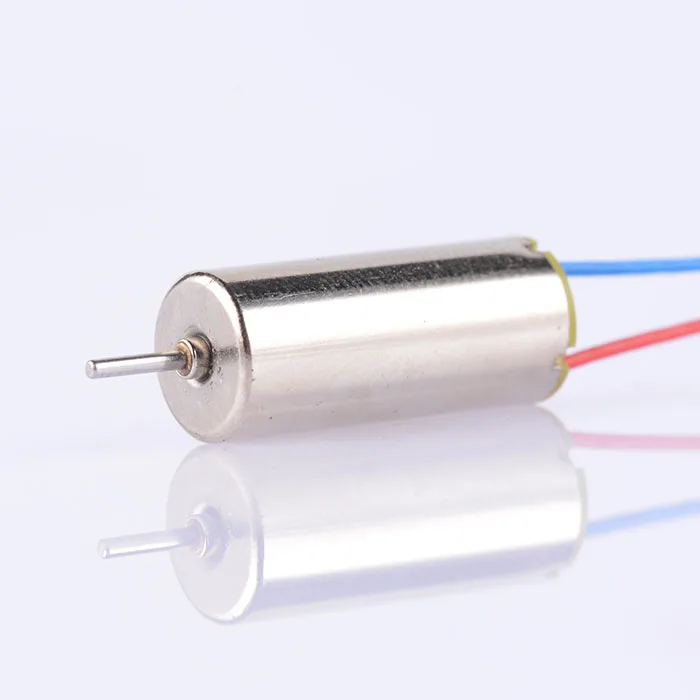

612 hollow cup drive motor
Diameter:6mm
Body length12mmShaft length: 5mm
wirelength:customized
Size Information
Product mechanical parametersProduct mechanical parameters
№ | Item | Specifications | Remark |
1 | Model Number | JMM1529-BY0612ZT04200L65 | |
2 | Rated Voltage | 3.0V DC | |
3 | The use of Voltage range | 1.5 ~ 3.0V DC | |
4 | Rotation Direction | CW | |
5 | Rated Current | 45mA Max | |
6 | Rated speed | 8500 ± 1500 rpm | Under the rated voltage motor operates on load |
7 | Stall Current | 70mA Max | |
8 | Starting Voltage | 1.2V DC | In any one position, voltage slowly rises |
9 | The use of temperature range | -10℃～60℃≤60%RH | |
10 | Terminal Resistance | 43 ± 5%Ω | Measure between two terminals |
11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell |
12 | Appearance | The machine no damage and rusting | |
13 | Weight | About 1.95 g | |
14 | Clearance between shafts | 0.10～0.20mm |
Detailed Images
We can customize according to customer's need, but need to provide detailed specification. Customized motors require re-opening the abrasive tools, and the cost of an abrasive tool is generally up to RMB 100,000. You would better order 100000pcs,or the price is very high.We can customize according to customer's need, but need to provide detailed specification. Customized motors require re-opening the abrasive tools, and the cost of an abrasive tool is generally up to RMB 100,000. You would better order 100000pcs,or the price is very high.
Related Products
Packing&Shipping
Shipping:
SF express: 1-5 working days
SF express: 1-5 working days
DHL : 5-7 working days
FedEx: 5-7 working days
FedEx: 5-7 working days
UPS:5-7 working days
TNT: 5-7 working days
EMS:It deponds on where you want to shipping.
We can also supply what you need
EMS:It deponds on where you want to shipping.
We can also supply what you need
Packing:
100-200pcs/foam box,1000-2000pcs/carton
100-200pcs/foam box,1000-2000pcs/carton
Application (diverse)
1.Electric Toys
2.Hand Generator
3.Small Fan
4.Scientific Experiment Equipment
5.Intelligent Toy
6.Solar Toy Car
7.Model Aircraft, etc
2.Hand Generator
3.Small Fan
4.Scientific Experiment Equipment
5.Intelligent Toy
6.Solar Toy Car
7.Model Aircraft, etc
