Product Overview
Description

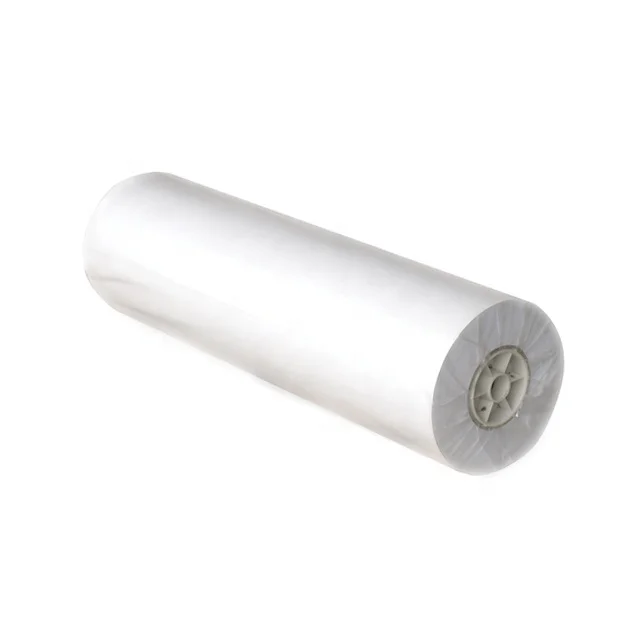

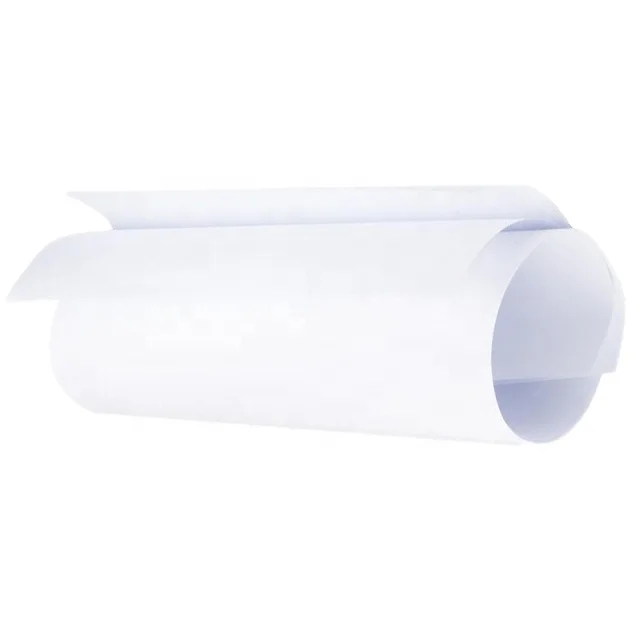

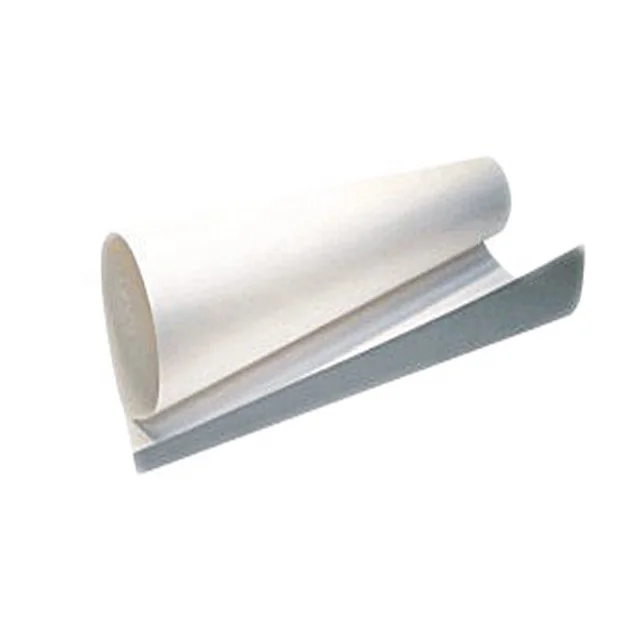

Aerogel Nano-Insulation Film
The aerogel Nano-Insulation film has been specially processed to make the aerogel thinner, solves the problem of uniform heat in the narrow space of consumer electronic products,and protects the weak heat-resistant components,controls and changes the direction of heat transfer and improves product performance and service life.
Low thermal conductivity:0.018~0.022W(m·K)
Thin film:100μm~300μm
Do not drop the powder,break through the disadvantages of traditional aerogel materials

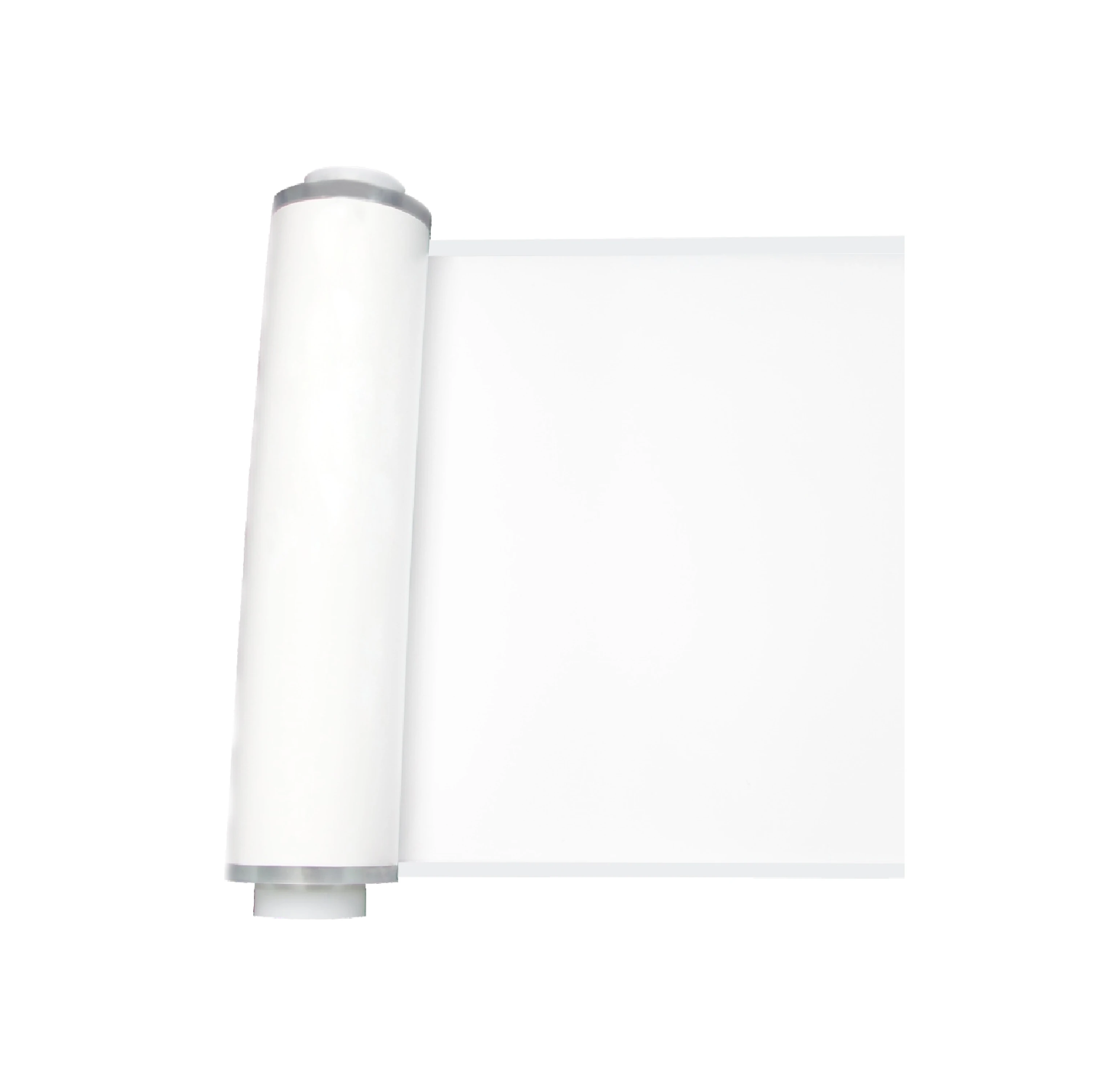

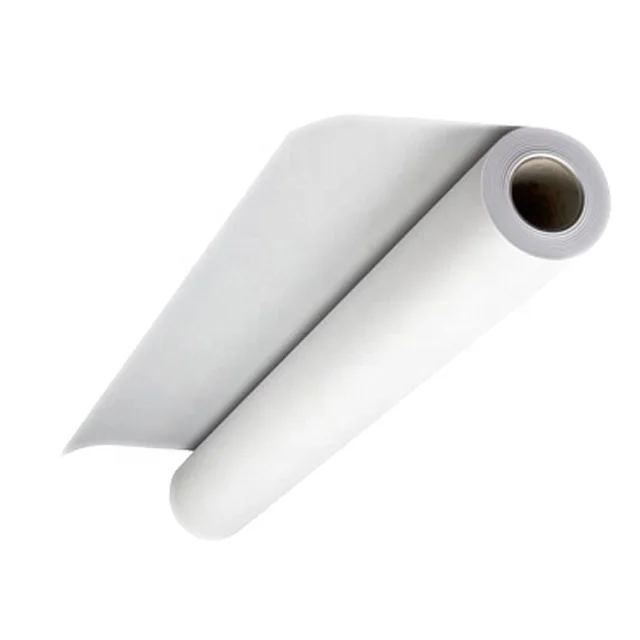

Coil,can meet a variety of die-cutting processing such as round knife and flat knife

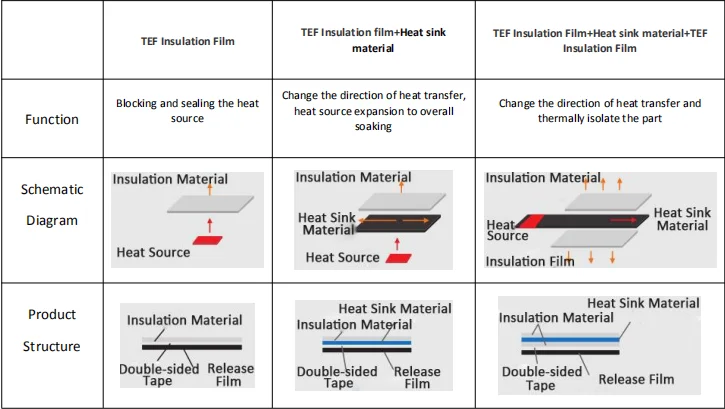

Can be combined with graphite sheet and copper foil heat sink
Excellent insulation performance
Compliance with RoHS instructions

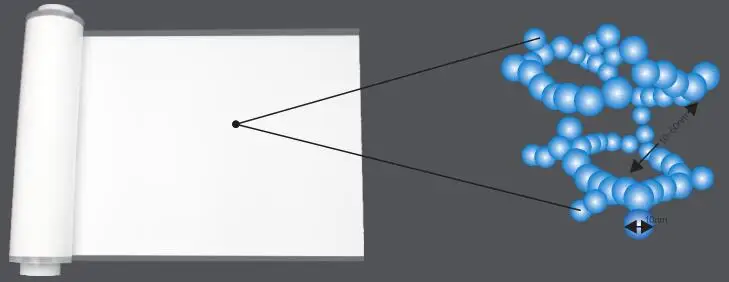

The aerogel insulation film starts from the consumer's temperature perception on the surface of the product,utilizes the aerogel pore barrier or changes the direction of heat conduction, reduces the surface temperature of the product,and reduces or eliminates the unpleasant influence of the hot spot temperature on the consumer's body feeling,and improves the comfort of consumer's product experience.
Product Data
Product Model | TEF- 100 | TEF- 200 | TEF- 300 | ||
Total Thickness (μm ) | 125μm | 235μm | 335μm | ||
±10μm substrate PET 25μm | ±15μm substrate PET 36μm | ±20μm substrate PET 50μm | |||
Heat Conductivity W/（m.K） | 0.018~0.022 | ||||
Temperature Range （℃） | - 40 ~ 130 | ||||
Long-term Use Temperature （℃） | ≤120 | ||||
Dielectric Strength （KV/mm) | ≤4 | ||||
Volume Resistivity （Ω cm） | 1.0×10 13 | ||||
Size | Coil, width 500mm length 30m | ||||
Storage Conditions （℃） | Stored in a dry environment at home temperature with a shelf life of 1 year | ||||
