This HDB-100DS2 4K HDMI extender transmits your HDMI A/V signal to a remote location up to 100 m (330 ft.) away.
Get 4K Video at 260 ft. (80 m)
This HDMI over CAT5e extender maintains your UHD 4K picture quality, even at 260 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
Extend More Than Video The extender offers advanced technology with HDMI, IR, and RS232 control in a single CAT5e extender kit, for complete end-to-end control. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.Seamless Integration with Your Existing Infrastructure
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, this HDMI extender uses standard CAT5e, or CAT6cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The HDB-100DS2 is backed by a 1-year warranty and free lifetime technical support.
Features
- HDMI lossless transmission:
It extends HDMI audio/video signals to synchronous output Video display is as fluent as direct connection
- High quality metal housing with cooling slots provide excellent heat dissipation and cooling for stable operation during extended hours of use
- These units feature visually lossless compression with no latency to enable 4K/30 video signal extension
- Maximum transmission distance is up to 260 feet (80 meters) for 4K x 2K and up to 330 feet (100 meters) for 1080p over a single CAT5e/6 cable
- Fully compliant with HDMI 1.4 specification
- HDCP compliant and Blu-ray ready
- 3D video supported
- High bandwidth up to 10 Gbps.
- Compatible with DVI equipment when using an HDMI-to-DVI adapter
- Bidirectional RS–232 Extension:
Serial interface data flows in both directions, allowing data transmission and device control.
- IR remote control:
Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward command over a CAT5e/6 cable for convenience
- Possible applications:
* Position a display/monitor in a convenient viewing area while the transmitting content over a CAT5 cable from a cleaner, more secure environment * Ideal for digital signage applications in financial, educational, medical and business sectors * Perfect for video conferencing solutions in boardrooms and office settings * Optimize placement of your demo stations at trade-shows and in auditoriums
- Plug and play installation, no software or driver needed
- OEM service is acceptable
Notes: - A good quality CAT5e/6 cable is essential in delivering quality content. - This kit is point to point and comes with a Transmitter and Receiver. It’s not meant to work through routers or network switches
Specifications
Type
4K HDMI extender
Model no.
HDB-100DS2
Colors available
Black
Package
White box
Condition
Brand new
Housing
Iron enclosure
Compliance
HDMI1.4, HDCP1.2
Connectors
Transmitter:
1 x HDMI Type-A, female (in) 1 x RJ45 Ethernet connector 1 x 3-Pin phoenix connector for RS232 serial 1 x 3.5 mm jack (IR out) 1 x DC power jack
Receiver:
1 x HDMI Type-A, female (out) 1 x RJ45 Ethernet connector 1 x 3-Pin phoenix connector for RS232 serial 1 x 3.5 mm jack (IR in) 1 x DC power jack
Video output resolutions
Up to 4K x 2K @30Hz
Transmission distance
Up to 100m@1080P, up to 80m@4K
Color depth supported
24-bit, 30-bit deep color, 36-bit deep color
Supported audio formats
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max. data transfer rate
Up to 10Gbps
TMDS
0.5-1.5Vp-p(TTL)
DDC
5Vp-p(TTL)
RS232
3-Pin phoenix connector, bidirectional
IR control
3.5mm audio jack , one-way
Power supply
Input: AC 110V-220V，50/60HZ
Output: DC 12V/1A
Power consumption
Transmitter/receiver: 5W
Dimensions (LXWXH)
Transmitter/receiver: 93*80*30mm
Working temperature
-15℃-55℃ (5℉~131℉)
Storage temperature
-40℃-80℃ (-40℉~176℉)
Humidity
0-95% (no condensation)
Warranty
one-year limited warranty, free lifetime technical support
OEM service
Logo printing, customized color and packaging artwork
Detailed images

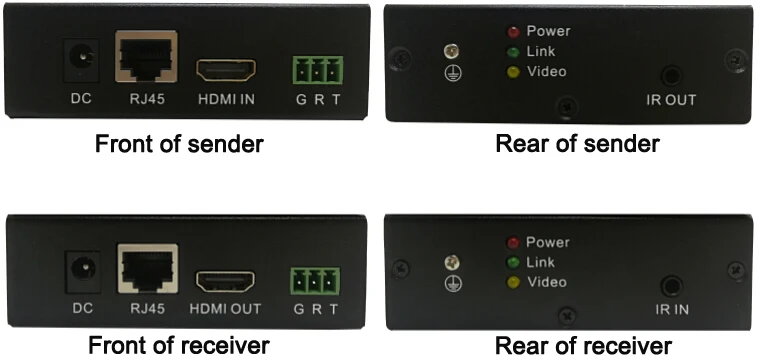

• HDMI IN: HDMI signal input port. Connect this port to your HDMI source device by using an HDMI cable
• G R T (Phoenix jack R-S232) on transmitter unit : for connecting serial cable to your HDMI source • RJ45: Connect your Cat5e/6 patch cable here
• HDMI OUT : HDMI signal output port. Connect this port to your HDMI display by using another HDMI cable • Power jack: Plug the included power adapter here • G R T (Phoenix jack RS232) on Receiver unit : for connecting serial port devices • IR Out: Infrared 3.5 mm socket. Plug IR Blaster extension cable here. • IR In: Infrared 3.5 mm socket. Plug IR Receiver extension cable here. • Power LED: On when power adapter is connected • Link LED: Indicates the status of TX and RX connection - ON: Good connection - OFF: No connection • Video LED: Indicates the status of HDMI source - ON: HDMI signal with HDCP - Flashing: HDMI signal without HDCP - OFF: No HDMI signal detected

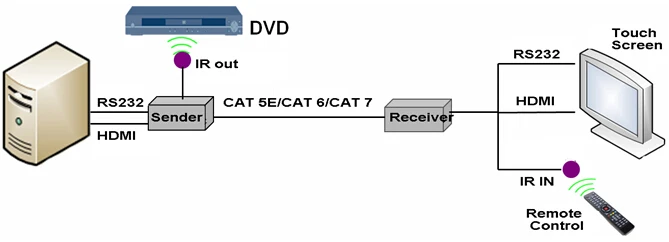

Connection diagram
Hardware Installation:
1. Power off all devices, including the source HDMI device and display. 2. Connect your HDMI source (such as a Blu-ray player) to the transmitter's HDMI IN connector. 3. Connect your HDMI display to the receiver's HDMI OUT connector. 4. Connect your RS-232(G R T) ports on the Transmitter and Receiver to the serial port devices separately if you want to extend serial signal transmission. 6. Connect the IR extension cables to the IR blaster and IR receiver connector on the Transmitter and Receiver separately if IR transmission is needed. 7. Connect your CAT5/6 patch cable between the transmitter and receiver. Make sure your CAT5/6 cable is securely connected and not loose. 8. Plug one of the included power adapters into the DC power jack of the transmitter, plug the second power adapter into the DC power jack of the receiver, then plug both power adapters into reliable power sources. 9. After the transmitter and receiver are connected, the HDMI extender is ready for use.
Packing&Shipping
- Package: White box
- Package included: 1 X HDMI Transmitter unit
1 X HDMI Receiver unit 1 X HDMI Extension cable 2 X 3-Pin to DB9-Pin RS-232 serial converter cable 2 X DC power adapters(US/EU/UK...plugs) 1 X IR emitter and receiver set (optional) 1 X User manual
- Packing info.: * Dimensions of transmitter/receiver unit: 125 × 80 × 30 mm * Inner Package size: 280 x 250 x 70 mm * Gross weight: 1.3 KGS
- Delivery time: 3-5 working days after receiving payment
- Shipping & Payment:
- All of our products are 100% tested & inspected and well packed before shipping. - Shipping method: DHL/UPS/FedEx/EMS express, by air or by sea - Payment terms: T/T, West Union, Paypal,Moneygram, Escrow , L/C...
Company Introduction
Shenzhen Langcen Technology Co., Ltd is a professional manufacturer of quality computer connectivity solutions products.These products establish the connection or increase the bandwidth capability between a computer system and its connected external devices.
We offer a series of KVM products for small/home offices.The Enterprise solutions offer a series of Over IP solutions that allow customers to effectively manage IT infrastructure from anywhere in the world. The Professional Audio / Video line offers integrated video solutions for home and professional use for a variety of uses including corporate, education, hospitality, commercial and home theater applications.
Our priority is quality control so the 100% of our products undergo advanced tests on every stage of the production. All the processes in the factory are constantly improved by experienced engineers which result in effectiveness and quality.
Certifications:
FAQ
1. Does it support the 3D signal transmission? Yes.
2. Do they have to be used as specific pairs or can any transmitter be used with any receiver? Yes, they have to be used as pairs.
3. Can I route my network cables through a router or switch? No, this device is designed to be a point-to-point solution using networking cabling only.
4. Do you accept trial orders/sample orders? Yes.
5. Do you supply OEM services? Yes.Logo printing, customized colors and packaging artwork is acceptable.
