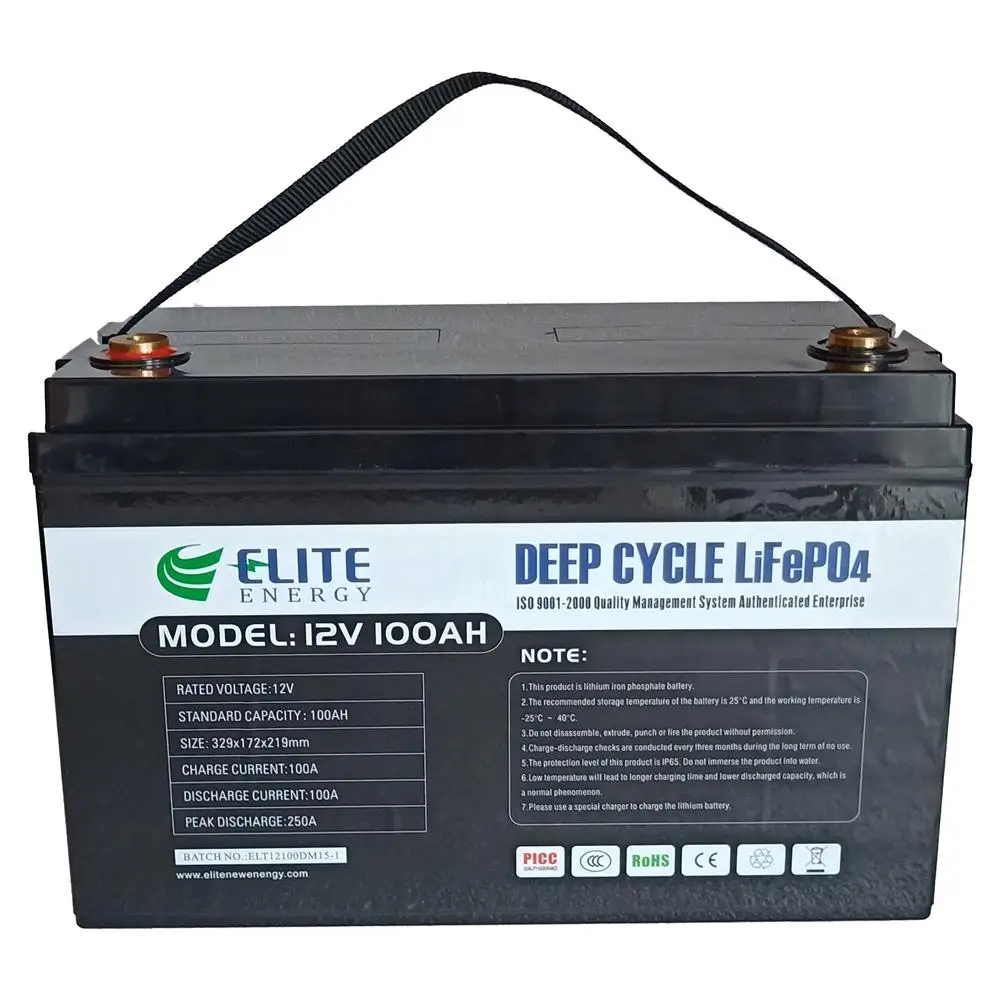

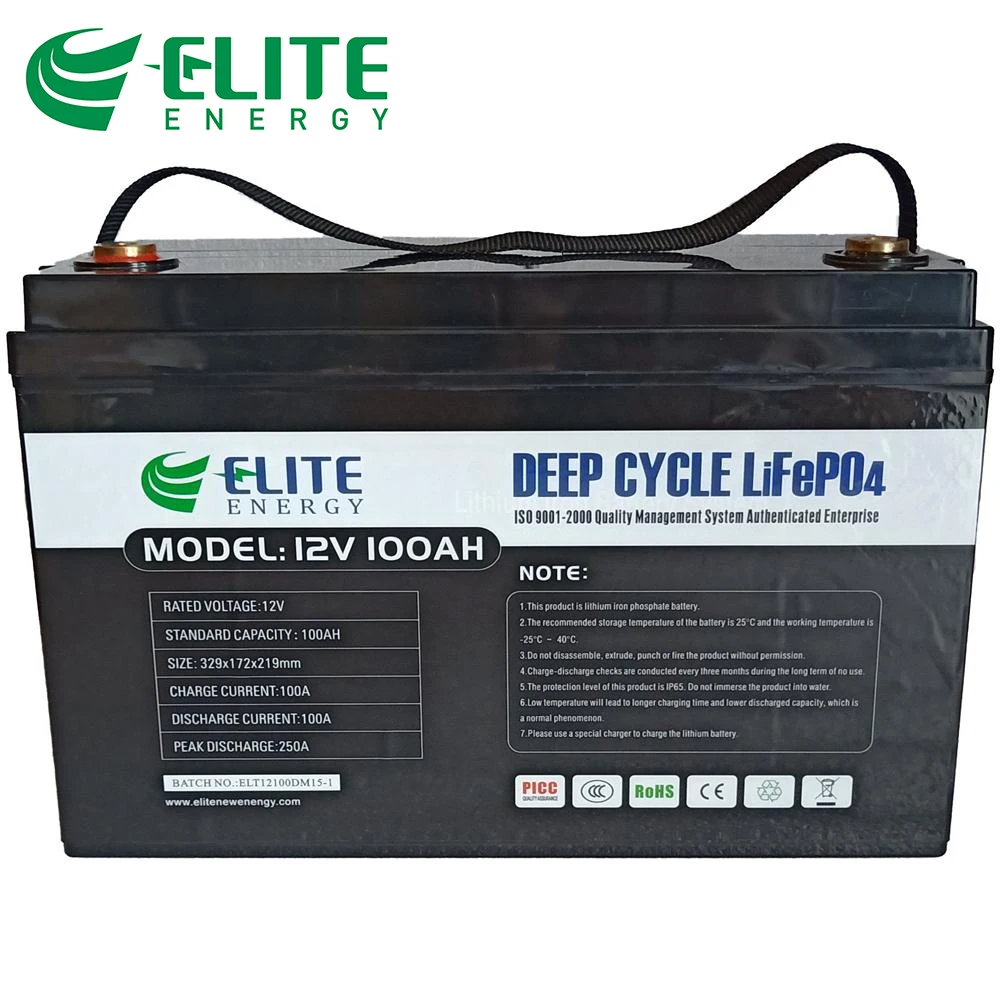

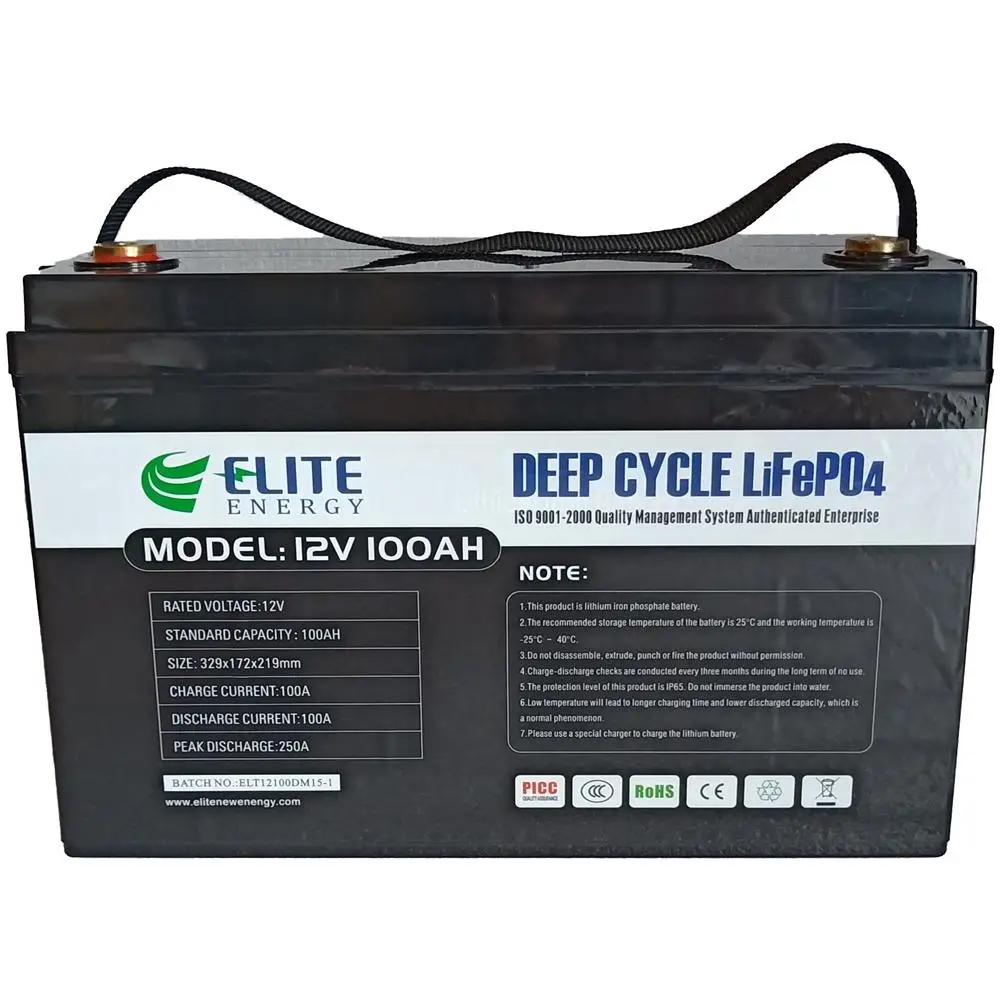

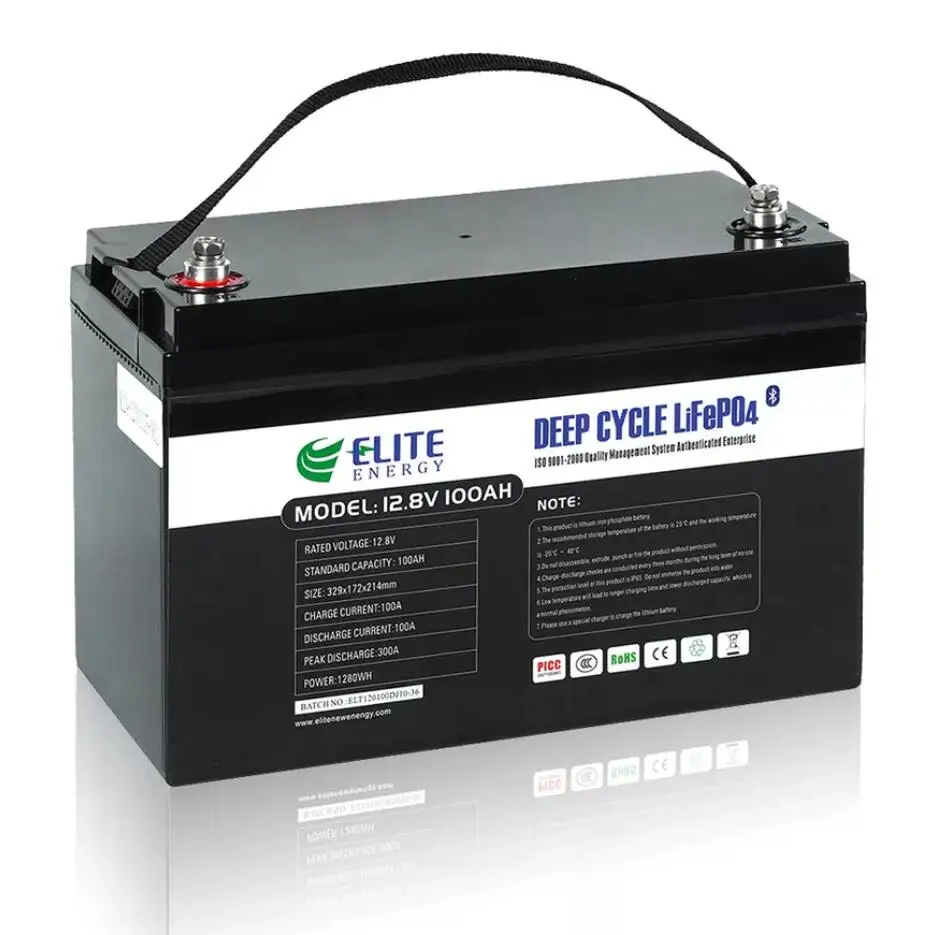

Elite liontron 12.8v 100ah lithium lifepo4 mit bms 12v deep cycle lithium ion battery 12v ion 12v100ah lithium battery
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (62331614519):
Product Overview
Description
12V 100Ah 150Ah 200Ah Rechargeable LiFePO4 Battery
Product Feature
1.Excellent safety performance: Safest lithium iron phosphate battery, CE BIS, MSDS, UN38.3 approved, with built-in BMS.
2.Long cycle life and deep cycle: Performs more than 4000 cycles, 6-8 times longer than lead acid battery.
3.No memory effect, highly efficient and high energy density.
4.Compact size and light weight: 1/2 size & weight of lead acid battery
5.Excellent high temperature performance
6.Low self-discharge rate: < 3% per month
7.High IP standard: reaches IP65, waterproof
2.Long cycle life and deep cycle: Performs more than 4000 cycles, 6-8 times longer than lead acid battery.
3.No memory effect, highly efficient and high energy density.
4.Compact size and light weight: 1/2 size & weight of lead acid battery
5.Excellent high temperature performance
6.Low self-discharge rate: < 3% per month
7.High IP standard: reaches IP65, waterproof
Product Paramenters
Model | ELT12100 | ELT12120 | ELT12150 | ELT12200 | ELT12300 | ||||
Nominal Voltage | 12.8V | 12Ah | 15Ah | ||||||
Nominal Capacity | 100Ah | 120Ah | 150Ah | 200Ah | 300Ah | ||||
Energy | 1280WH | 1536WH | 1920WH | 2560WH | 3840WH | ||||
Internal Resistance | ≤10mΩ | ||||||||
Cycle Life | >4000 cycles@1C 100% DOD | ||||||||
Months Self Discharge | <3% | ||||||||
Efficiency of Charge | 100%@0.5C | ||||||||
Efficiency of Discharge | 96-99% @1C | ||||||||
Charge Cut-off Voltage | 14.6±0.2V | ||||||||
Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||||||
Recommend Charge Current | 20A | 20A | 20A | 20A | 20A | ||||
Max. Charge Current | 100A | 100A | 100A | 100A | 100A | ||||
Max. Continuous Discharge Current | 100A | 100A | 100A | 100A | 100A | ||||
Max. Pulse Current | 200A | 200A | 200A | 200A | 200A | ||||
Discharge Cut-off Voltage | 10V | ||||||||
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | ||||||||
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||||
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||||
Water Dust Resistance | IP65 | ||||||||
Cell&Method | 4S | ||||||||
Package | ABS plastic case | ||||||||

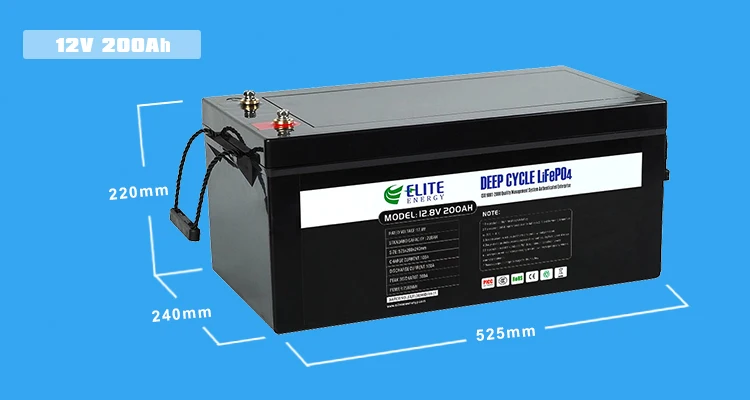

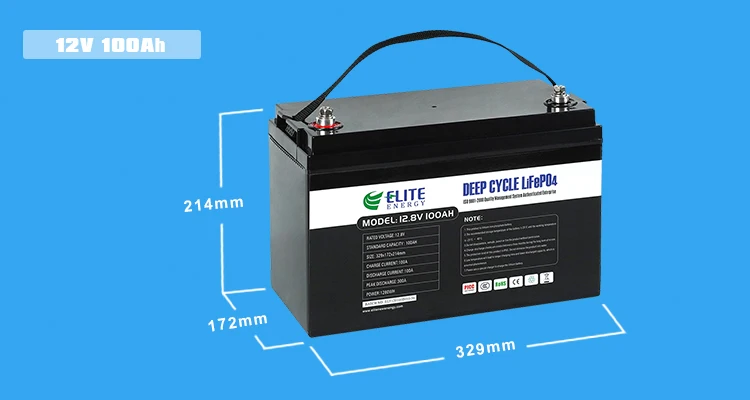

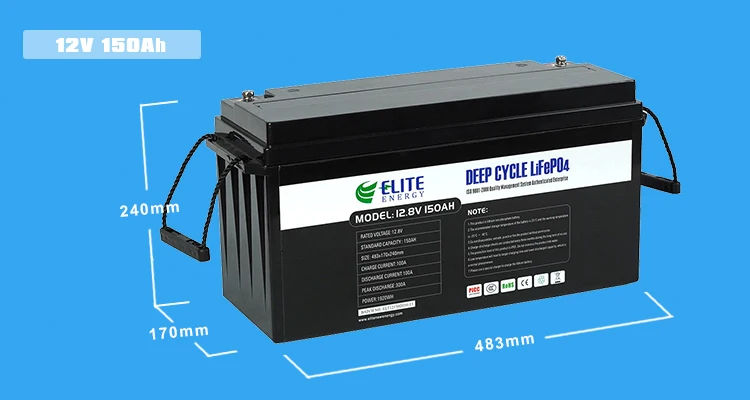

Dimensions(in./mm.) | 329*172*214 | 329*172*214 | 483*170*240 | 525*240*220 | 525*270*220 | ||||
Weight(lbs./kg.) | 13.5 | 15 | 25 | 28 | 32 | ||||
Terminal | M8 | ||||||||
Display screen | Optional | ||||||||
Bluetooth | Optional | ||||||||

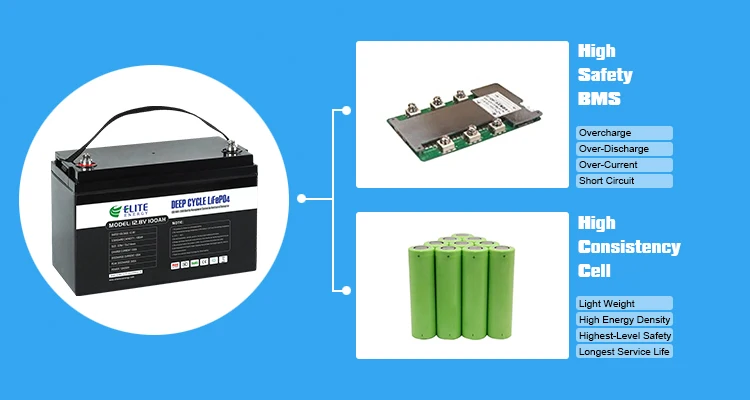

Product Details
Wide Application

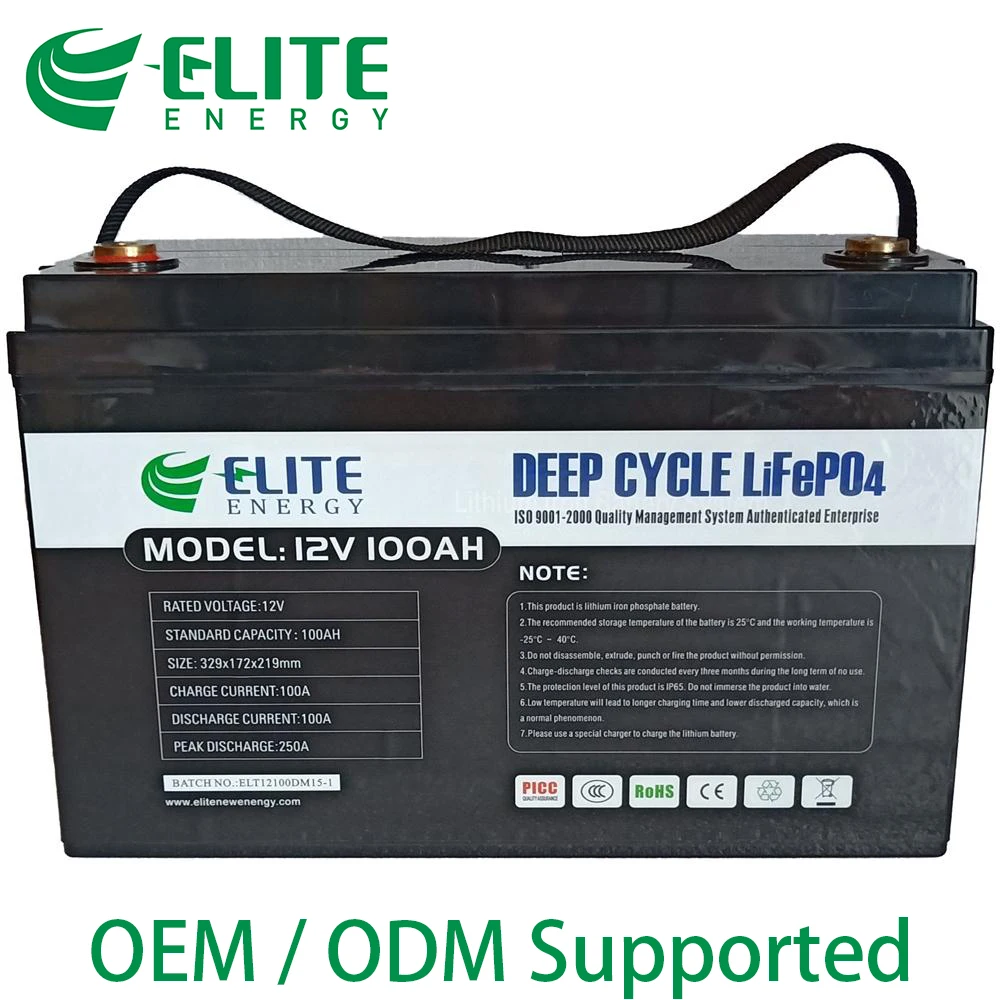

OEM / ODM Supported
1. All models of shell material, battery dimension, color, label can be customized.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
Certifications
Products are with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory is with ISO9001, ISO14001 and ISO45001 certificated.
Factory is with ISO9001, ISO14001 and ISO45001 certificated.
Product packaging

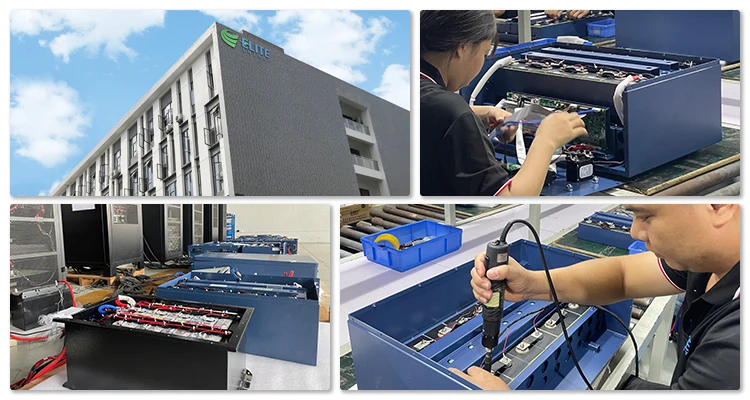

Company Profile
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3, Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
