Product Overview
Description
Product Overview
TUPO9

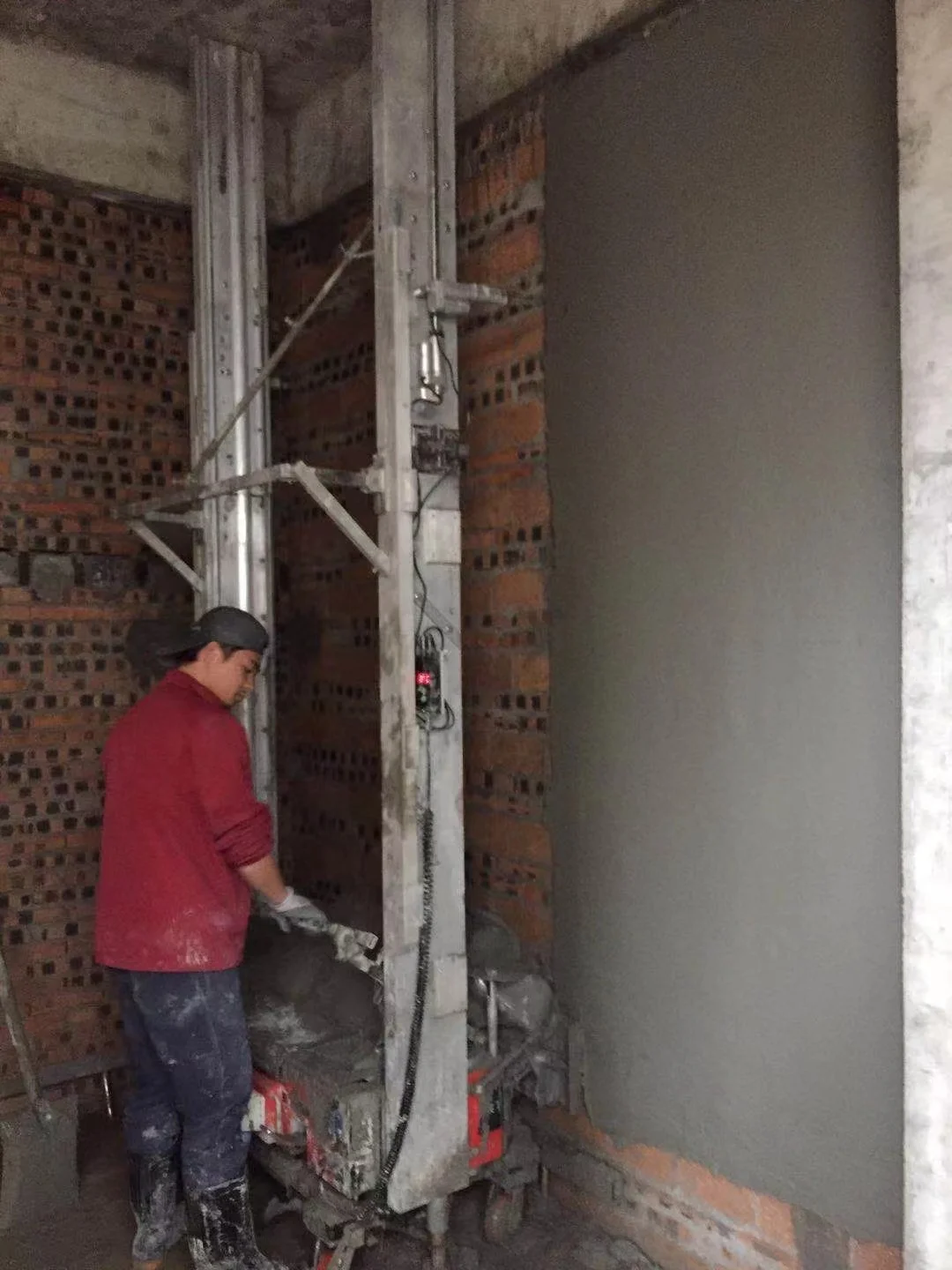

TUPO-9 automatic wall plastering machine is used for indoor painting cement mortar, finished mortar and other indoor painting operations. The quality of construction far exceeds that of manual labor, greatly reducing labor intensity and improving construction efficiency.
FEATURES AT A GLANCE
Advantages of TUPO9
- High precious wall positioning system, with an rapid auto locking system with the ceiling once the wall positioning step is done
- Electrical mortar loading system, capable to load a full cart of the mortar into the machine hopper,1min faster than manual loading!
- Foldable side racks, to enable the machine in/exit any doors in no time and equipped with a safety lock slider to prevent the rack falls.
- Auto moving system, to let the machine walk left/right horizontally and randomly.
- Hydraulic fixing the track pole.
- Hydraulic fixing the track pole.
- Spatula with high frequency vibrating functions, to enable a steady up/down plastering.
- Two inner protractors equipped at both sides of the spatula, to enable the machine plasters the inner corners straightly.
- Equipped with electric leakage protection function.
- Remote control available for plastering & electrical mortar loading.
- When in power off, the hopper comes down slowly automatically by switching on the clutch handle.
- Water proof function.
- Phase loss protection function.
- Climb torque protection function.
- Spatula equipped with the gas spring buffering function.
- Spatula equipped with early separation function with the wall
Left elevation

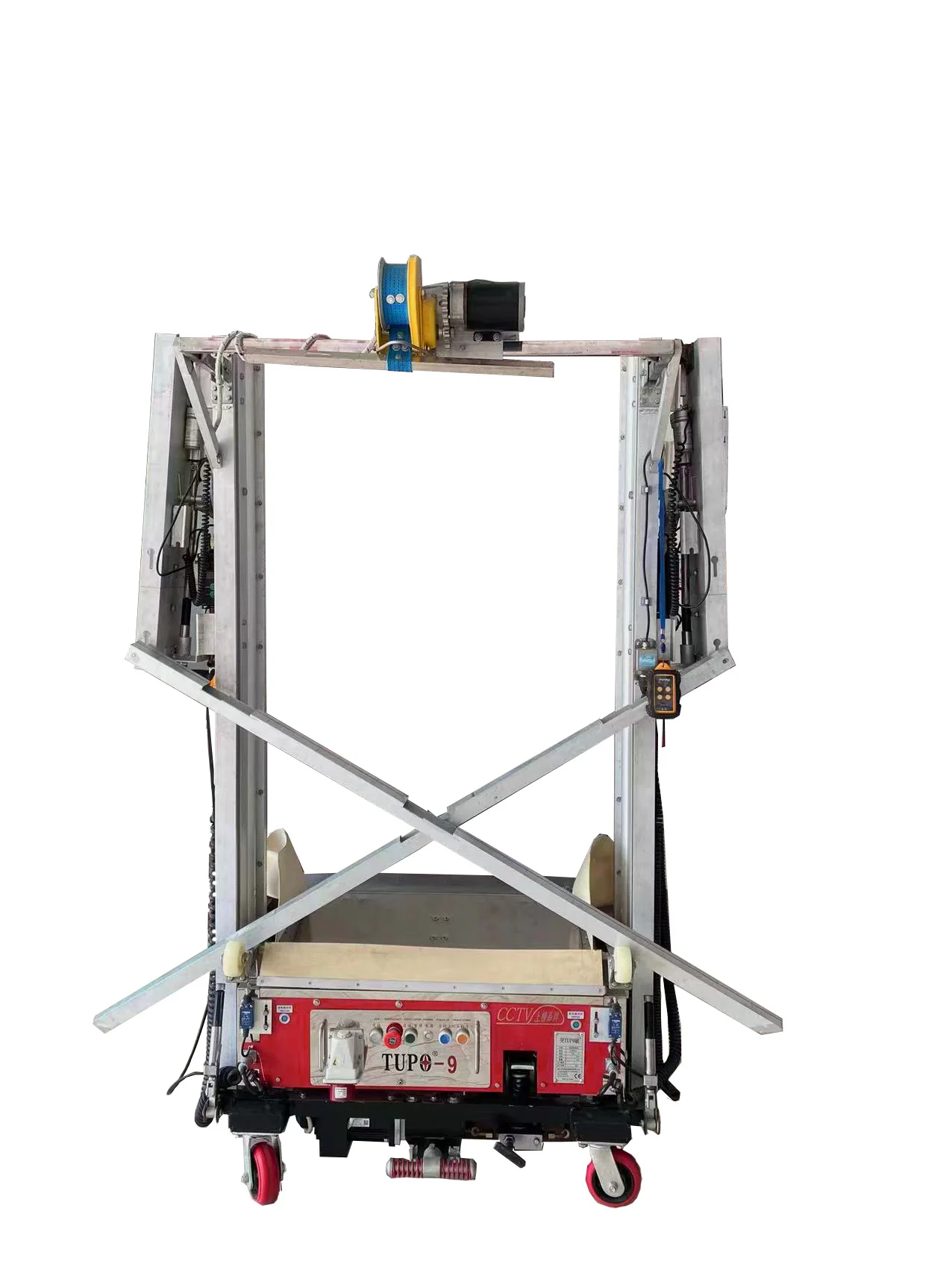

Front elevation
Right elevation
PRODUCT SPECIFICATIONS
Model | TUPO9 |
Physical dimension | 1200*750*700mm |
Applicable materials | 1·Finished mortar 2·self-mixing mortar |
The main function | Interior wall plastering to reduce labor |
Operating Voltage | 220v/380v |
Motor Power | 2.6kw/1.5kw |
Hopper volume | 80L |
Plastering thickness | 4-30mm |
Plastering speed | About 70 square meters / hour |
Wall plastering height (maximum) | 5.1M |
Width of plastering board | 1.2m |
weight | About 200KG |
Company Profile
Guangdong Breakthrough Robot Engineering Co., Ltd. is the original inventor of the wall plastering machine, also known as the rendering machine. With our machines you can plaster up to 200 square meters of walls per hour (SGS certified). Recently, in April 2016, Mr. Wang Jianhu, President of Tupo, won the gold medal at the 44th Geneva International Invention Exhibition in Switzerland, which is an achievement only true inventors have. Our products are 100% original, patented and CE certified. "Rendering machines: we are the best because we invented them. It's that simple".
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(35.00%),Africa(21.00%),MidEast(10.00%),South Asia(8.00%),Southeast Asia(8.00%),Central America(5.00%),Northern Europe(2.00%),Western Europe(2.00%),South
America(2.00%),North America(2.00%),Eastern Asia(2.00%),Oceania(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
America(2.00%),North America(2.00%),Eastern Asia(2.00%),Oceania(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
automatic rendering machine,automatc plastering machiner,rendering machine,plastering machine,wall rendering machine
4. why should you buy from us not from other suppliers?
We are the original invertor and manufacturer of plastering machine. We have a strong R&D team to promote and market new generation machine. Our machine base on excellent quality with 3-5 years service life. We have a excellent aftersales service system
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
