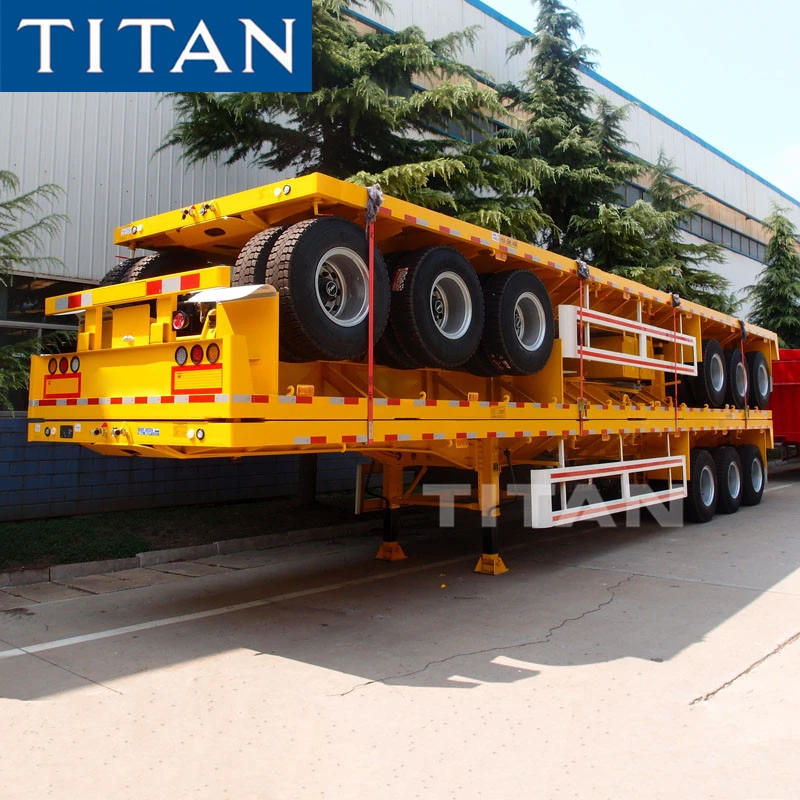

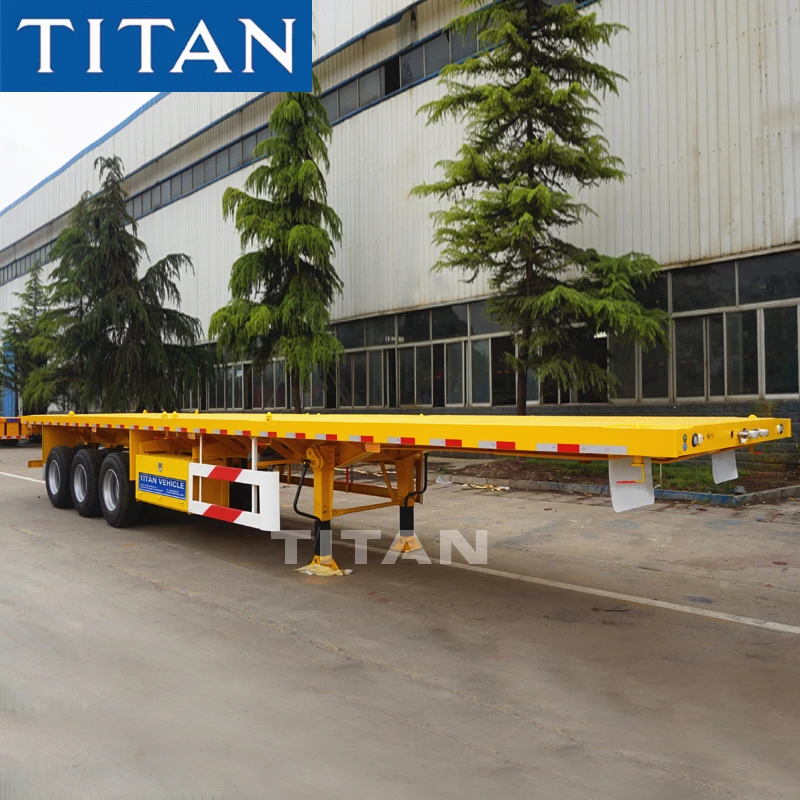

Container Flatbed Semi Trailer, 40ft is the most popular model.TITAN Container flatbed trailer is designed for transporting 20ft and 40ft containers and loose cargo.
According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton.
For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with Columns to load the logs.
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.
Material:High strength low alloy Q345 steel
Main beam height:500 mm
Thickness of main beam:upper: 14mm, lower: 16 mm, webplate: 8mm
3 mm checkered plate
16# channel steel
12R22.5 Tire,12 pcs
900*22.5, 12 pcs
6 Double-chamber , Duel Line Brake System
Mechanical spring suspension, 10 pieces
2" (50#) or 3.5"(90#) high tensile steel bolted type
28T landing leg
1 waterproof tool box with stainless lock,2 spare tire carrier
Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats
Any color will be available
Through this video, you can learn about different types of flatbed semi trailer,such as 2 axle,3 axle, 4 axle, flatbed etc.As well as the process, testing, packaging and customer feedback, etc.
You can also leave an inquiry, we will send you more videos.
1. We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. Flatbed trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
6. Flatbed trailer use the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %
7. Hight Quality container locks, make sure the stable and safety of the loads.
When transporting flatbed trailers, many customers use container transportation, which has low transportation costs and short transportation time. But the bad thing is that the rear of the platform semi trailer needs to be composed.
Some customers are bulk carriers or ro-ro ships. Flatbed trailers will spray wax and cover the tarpaulin when the cargo ship is bulking.
Now, spot flatbed semi trailer has 10% off discount, welcome your inquiry!
