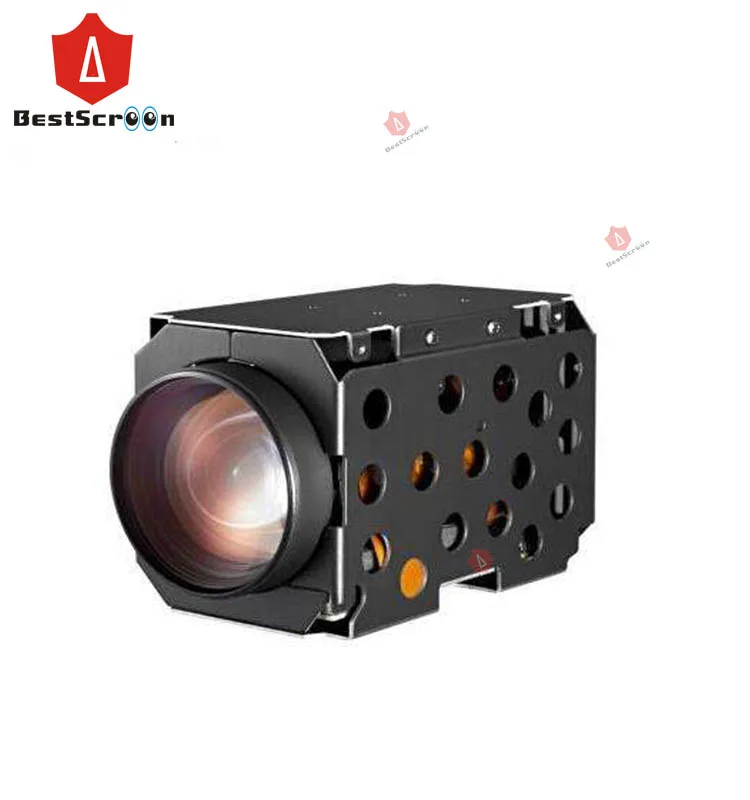

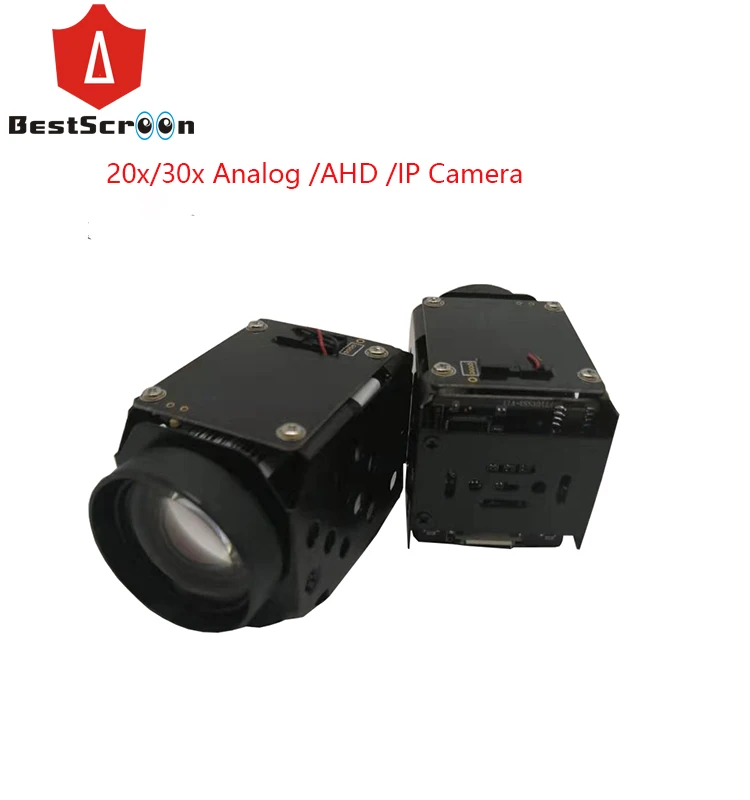

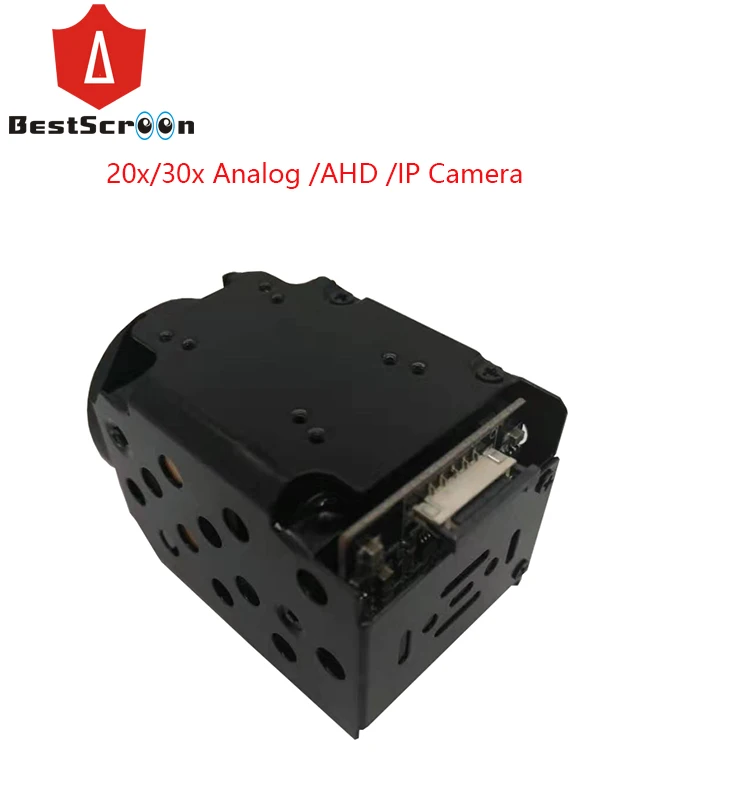

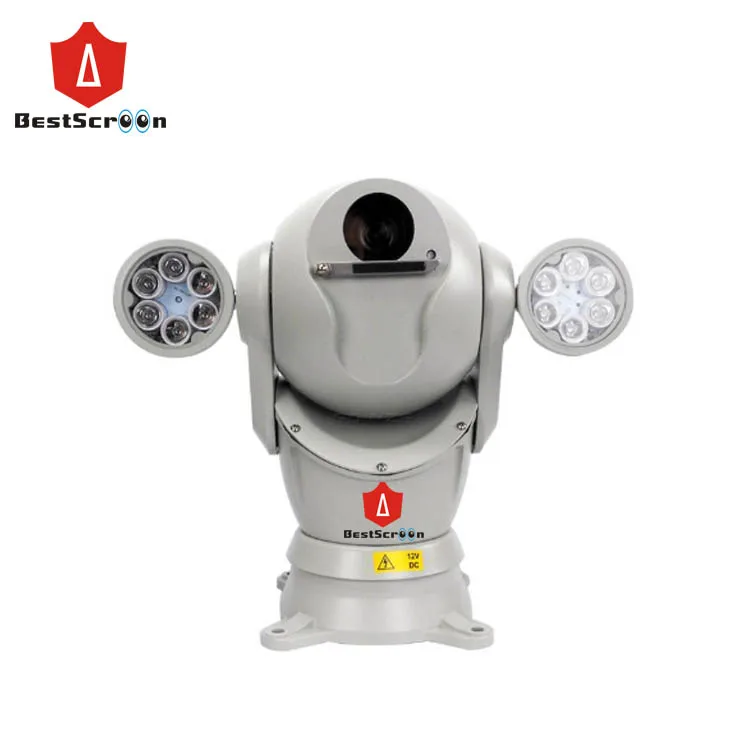

10x optical zoom 2.0 MP 720P/1080P analog /AHD/CVI/TVI 4 in 1 camera module for PTZ and speed dome camera
- Category: >>>
- Supplier: Shenzhen BestScreen Technology Co. Ltd.
Share on (62331828531):
Product Overview
Description
Product Description
- Analog ,CVI ,TVI ,AHD 4 model in 1,can change as required
-1080p/960p/720p for optional
-10X Optical,4.7-47mm,
- Super WDR, Auto WDR, 0-100 Digital Adjustment
- Support low Illumination, 3D DNR
- Fast focus with stable image performance
-Support Smart Functions Motion Detection, Video Mask, Area Intrusion, Line Crossing, etc.

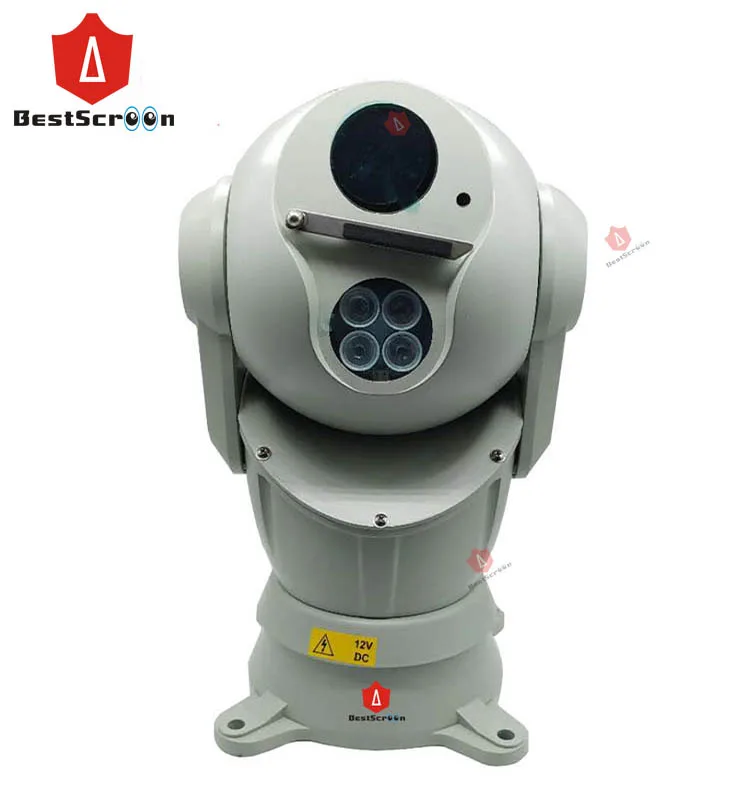

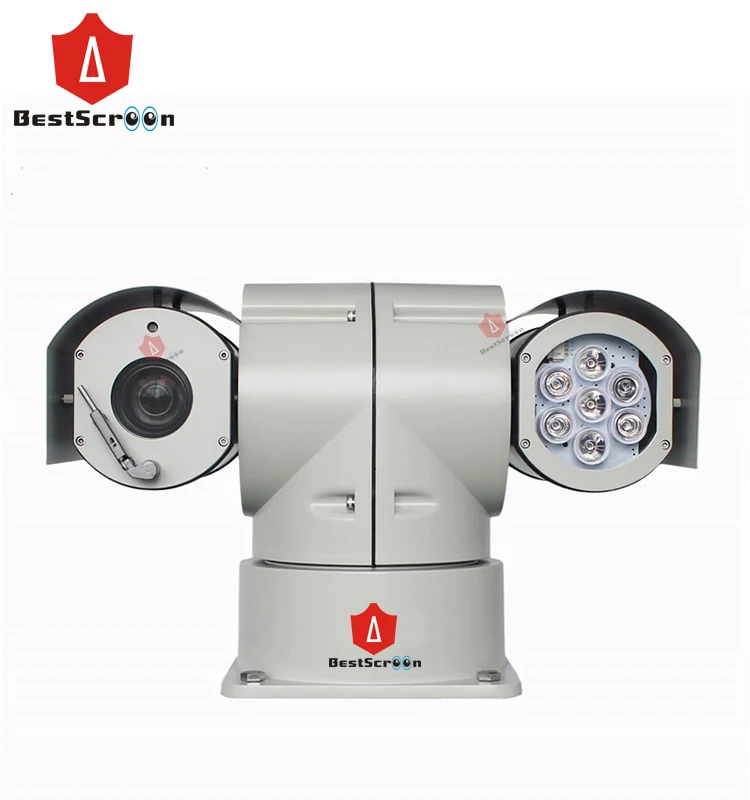

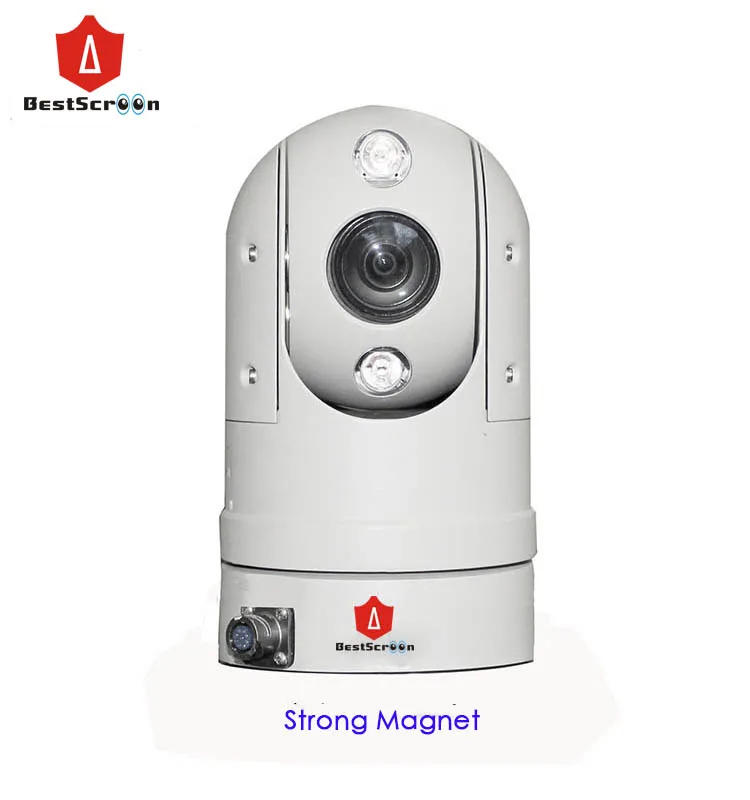

- Easy connect to zooming camera, PTZ and platform
-Support OEM/ODM and Customization service
Technical Parameter :
| Model | BSD10T-10-20ANM |
| Resolution | 2.0 Mega |
| Communication | RS232 |
| Protocal | SONY VISCA |
| Interface | 9Pin 1.0mm connector |
| Sensor | 1/2.9" CMOS |
| Scanning | Progressive Scanning |
| WDR | Super WDR, Auto WDR, |
| Mini Illumination | Color:0.1Lux Black:0.01Lux |
| Video Input | HD Analog (AHD/CVI/TVI/CVBS)(1Vp-p 75Ω) |
| SNR | ≥50dB(AGC OFF) |
| Lens | |
| IRCUT | Support |
| F.N | F 1.6-F2.5 |
| Aperature | 10X f=4.7mm~47mm |
| View Angle | 36.4°(W)~4.3°(T) |
| Function | |
| Exposure Mode | Auto |
| White Banlance | Auto |
| Focus Mode | Auto |
| Mirror Adjustment | Support( Horizon ~tilt |
| Image Revert | Support |
| DNR | Support |
| Shutter | -- |
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment |
| General | |

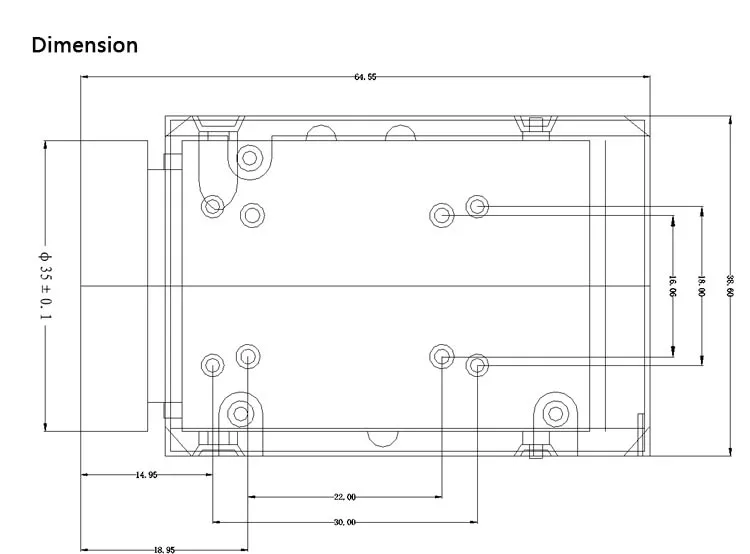

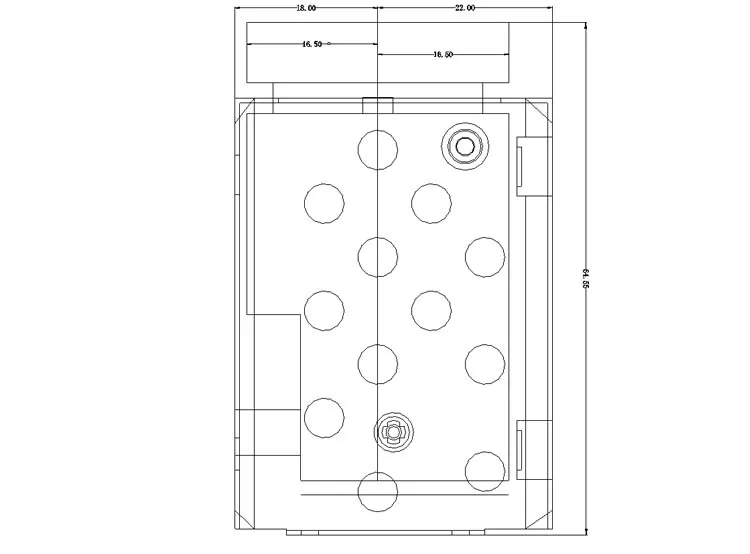

| Dimension | 38.6(W)*41(H)* 64.6(L) mm |
| Working Temp/Humi | -10℃~50℃,10%RH~60%RH |
| Storage | -20℃~60℃,10%RH~80%RH |
| Power Supply | DC 12V±10% |
| Consumption | 5W MAX |
| Weight | 108G |
Functions info2
Packaging & Shipping
Our Services
1.Quickly response with 24 hours for any questions and issues
2.provide official test report
3. Specific exporting package and provide the tracking number against any parcels
4. provide customized service for customers request
5. OEM/ODE order is appreciated
FAQ
Q1. What is your terms of payment?
A: We accept T/T(Telegraphic Transfer),Western Union or Paypal ,also will sign official contract before payment.
Q2,What is your minimum order quantity?
A: MOQ 1 PCS
Q3. What is your sample policy?
A: we can provide sample if customer can absorb the cost and logistic cost ,also appreciated you come to our office to validate the sample.
Q4. Have you the export certificates and test report ?
A: Yes, we will provide the test report and export certificate ( CE/FCC etc ..)
Q5: What is quality guarantee policy ?
A:Normally guarantee term is 1 years ,we offer 2 years PTZ main body and 1 year for camera
Q6: Do you accept OEM/ODM?
A:Yes! We accept to label your brand if you would like .
