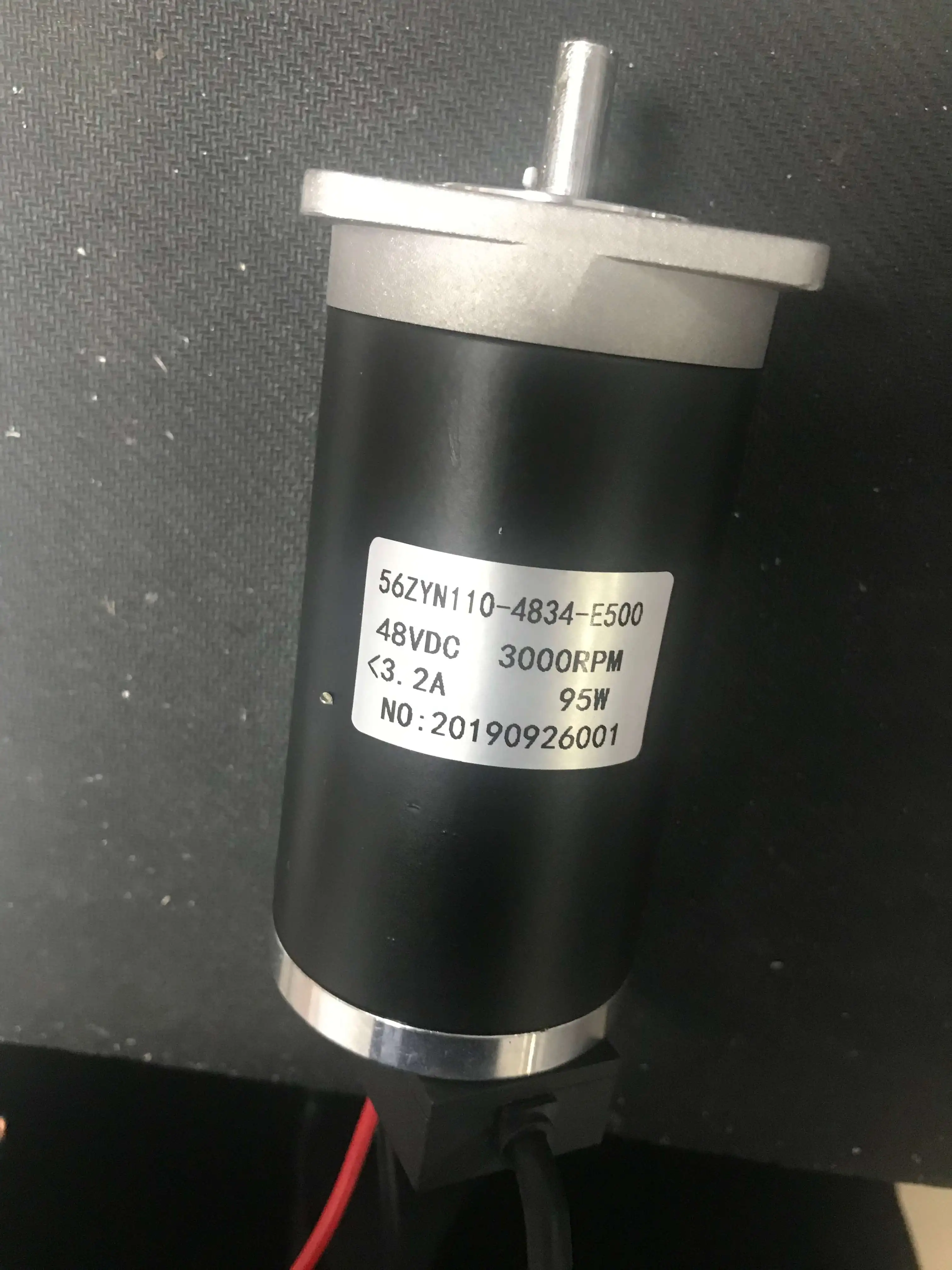

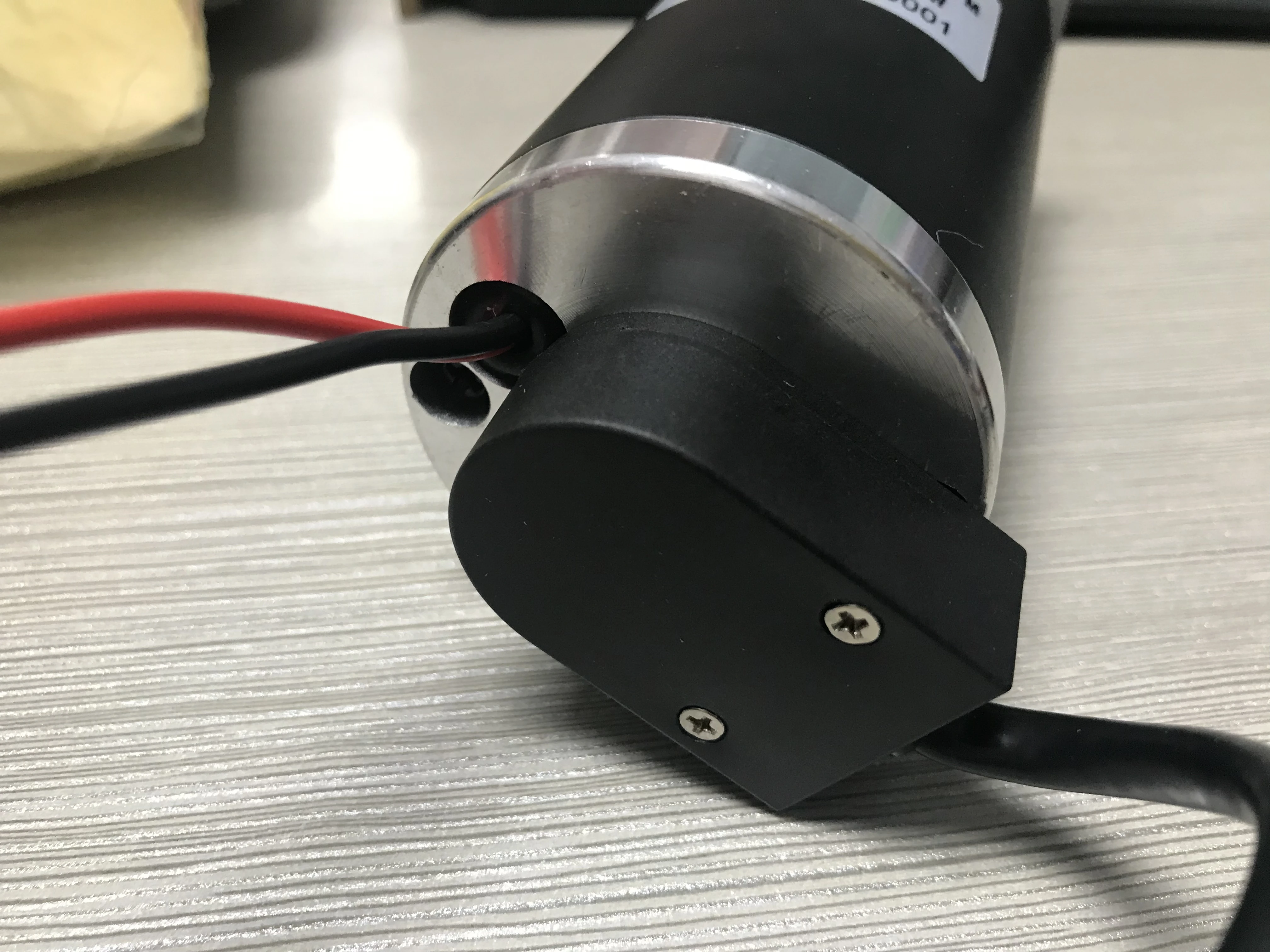

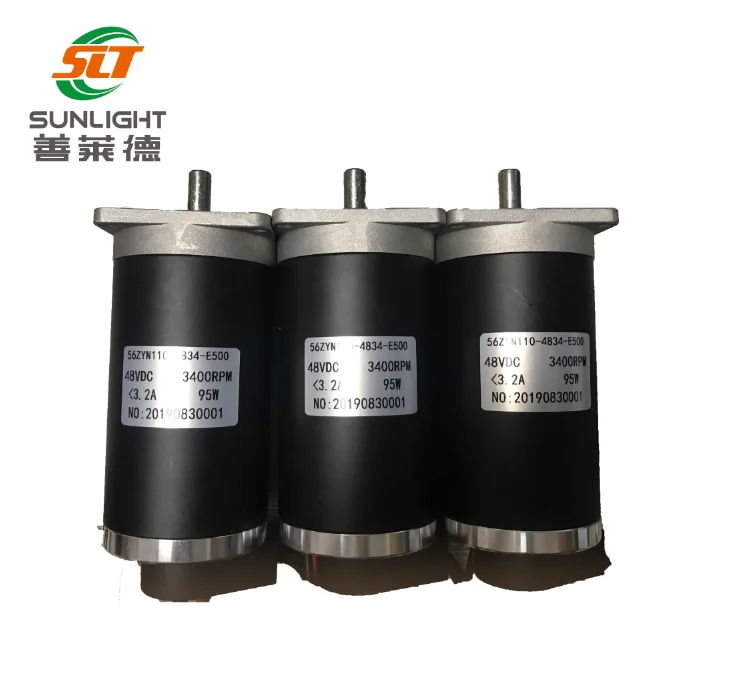

48v DC servomotor brush motor with encoder for CNC machine
- Category: >>>
- Supplier: Changzhou Sunlight Electrical Appliance Co. Ltd.
Share on (62331837930):
Product Overview
Description
Product Description
48v DC servomotor brush motor with encoder for CNC machine
Specifications of dc servomotor
| Motor Specification | |||
| 1 | Model | 56ZYN110 | |
| 2 | Voltage | V | 48 |
| 3 | No load speed | rpm | 34000±10% |
| 4 | No load current | A | <0.25 |
| 5 | Rated torque | Nm | 0.3 |
| 6 | Rated Speed | rpm | 3000±10% |
| 7 | Rated Current | A | <3.2 |
| 8 | Rated Output Power | W | 95 |
| 9 | Direction | CW | |
Tech requirement:
Note:MOTOR SPECIFICATIONS
1.ALL MOTORS TO BE HIPOT TESTED AT 800V FOR 1 SECOND;
2.MOTOR FRAME TO BE BLACK EPOXY PAINTED;
3.14 GAGE WIRE LEADS RED(+) FOR CCW ROTATION;
4.MOTOR OUTPUT SHAFT MATERIAL TO BE 40Cr STEEL;
5.BALL BEARING CONSTRUCTION OLNY;
6.tenv,PERMANENT MAGNET DC MOTOR;
7.PROTECT FEATURE CLASS:IP40;
8.INSULATION CLASSS:B CALSE;
9.WORKING DUTY:CONTINUOUS RUNNING S1.

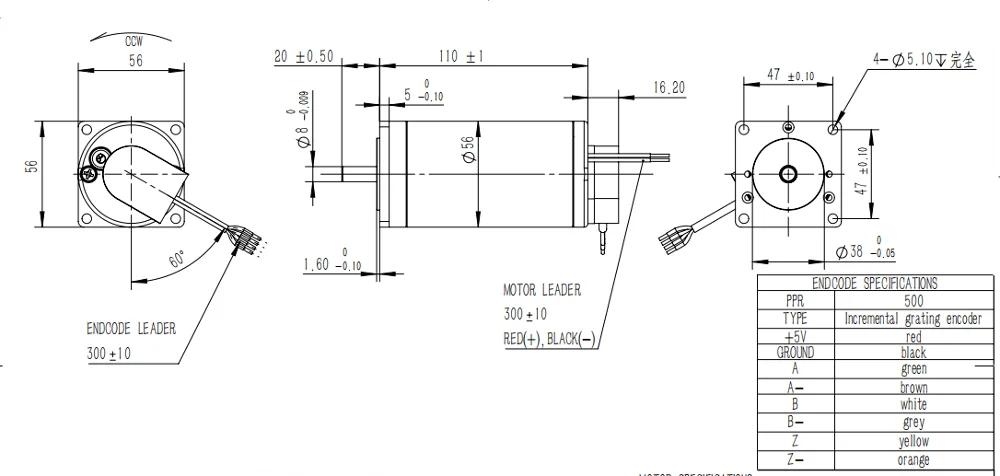

Drawing of dc servo motor

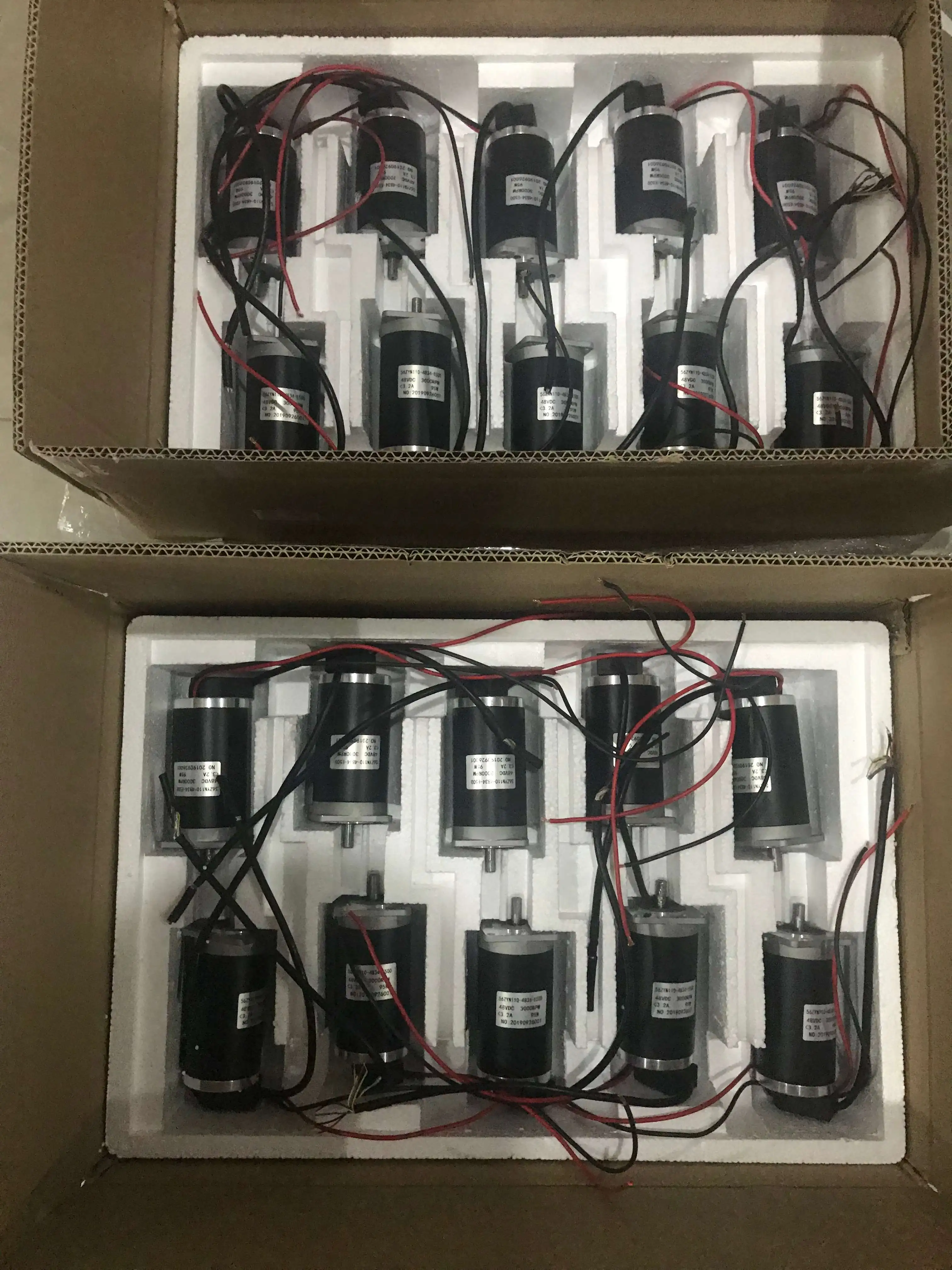

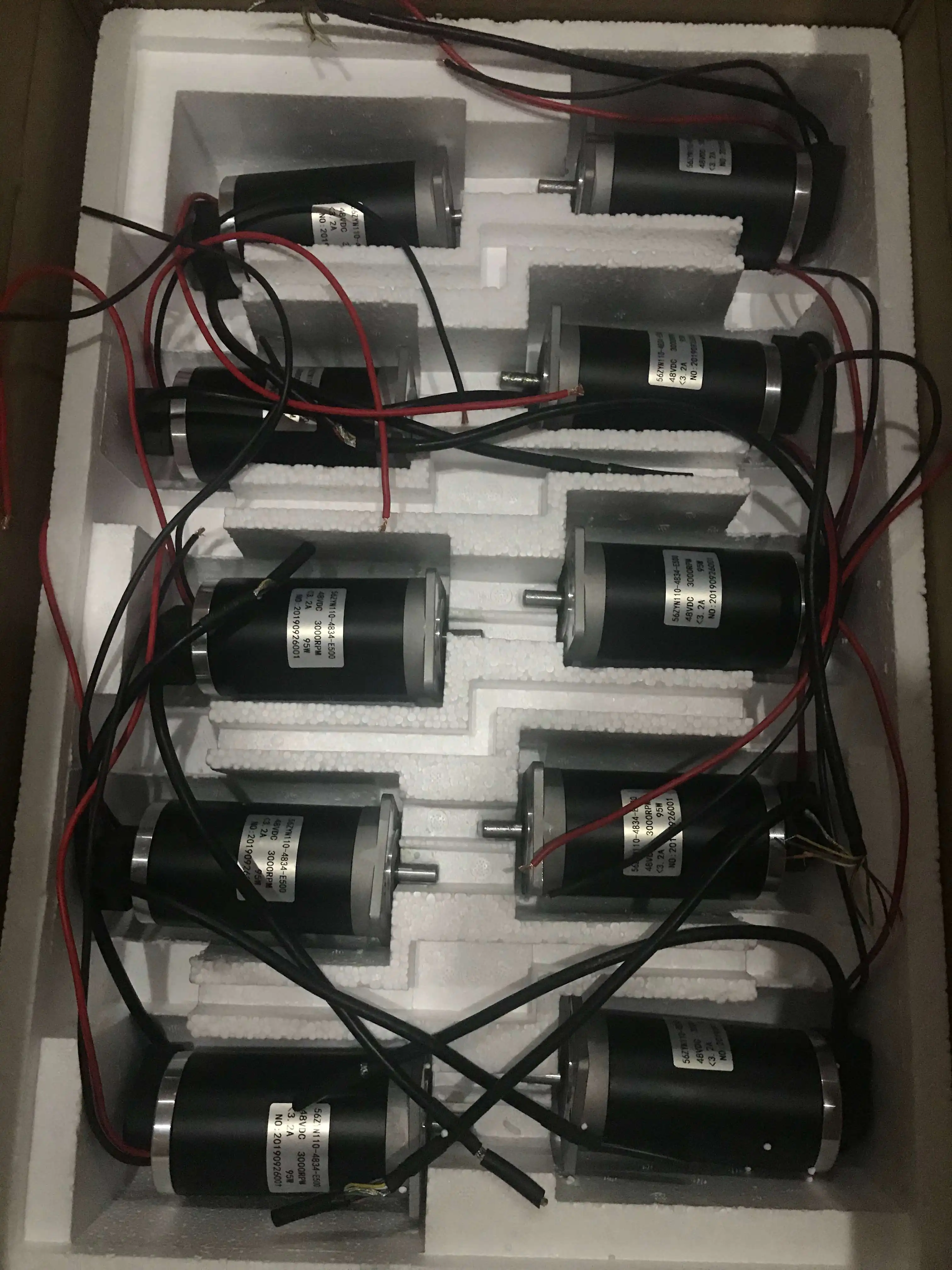

Packaging & Shipping
Company Information
Our factory Rongda was founded in 1990, sunlight built the international sales team from 2015, it belongs to Rongda Group which was built in 1990.
Sunlight is specialized in providing DC Motor, Brushless Motor, Stepper Motor, Radiator Fan, Condenser Fan and other Parts. We also provide professional solutions for customers. The products are widely used in Home appliance, Office equipment, Transportation, Medical products, Garden tools and so on. Our customers come from European, America, Asia, Africa, Middle East and other countries.
We always try our best to promote the development of motor industry and provide best service to our customers.
Help our customer to find the valuable products, Lead our factory to the world and build their brands.
FAQ
1. Q: Can I have a sample for testing?
A: Of course we can provide some samples to you for testing before you place an order.
2. Q: Can you provide detail technical data and drawing?
A: Yes, we can. Please tell us which product you need, so that we can send the detail technical data and drawing to you for checking.
3. Q: Can I visit your factory before we place an order?
A: welcome to visit our factory, we are very pleased if we have the chance to learn each other more.
4. Q: What kind of certificates can you provide?
A: Our factory have TS16949 and ISO9001, at the same time We can provide the 3C, ROHS, CE certificates basing customer requests.
5. Q: Can you provide OEM or ODM?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
6. Q: How to control the products’ quality in your company?
A: We have many advanced testing machines and strict testing procedures. All the products passed 100% qualified testing before the products leave our factory.
