Taiwan PMI CNC Linear Guide Rail MSA25LA ,MSA25LE
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (62331854739):
Product Overview
Description
Product Description
Taiwan PMI CNC Linear Guide Rail MSA25LA ,MSA25LE
1.High positioning accuracy, high repeatability
2.Low frictional resistance, high precision maintained for long period
3.High rigidity with four-way load design
4.Suitable for high speed operation
5.Easy installation with interchangeability
Product Name | Taiwan PMI CNC Linear Guide Rail MSA25LA ,MSA25LE |
Material | Stainless Steel/chrome steel |
Brand Name | PMI |
Block Series | MSA15A,MSA20A,MSA25A,MSA30A,MSA35A,MSA45A,MSA55A,MSA65A,MSA20LA,MSA25LA,MSA30LA,MSA35LA,MSA45LA,MSA55LA,MSA65LA |
HS CODE | 8483300090 |

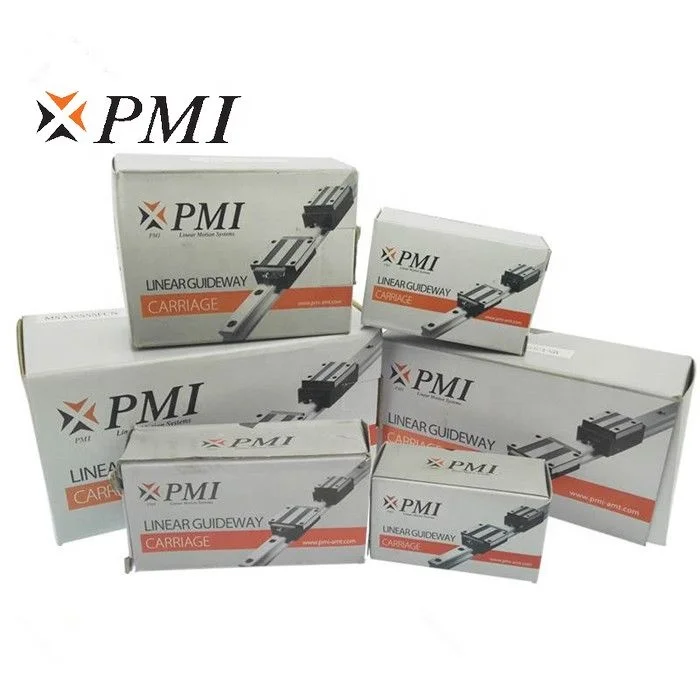

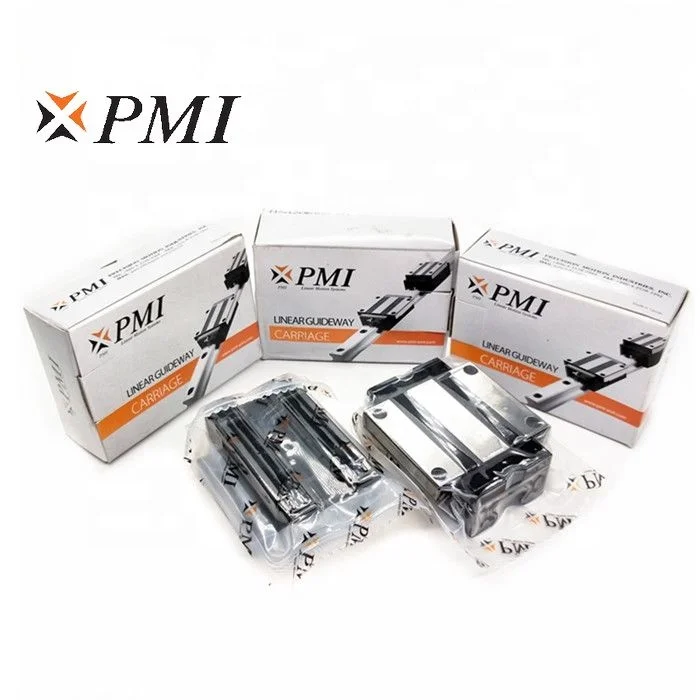

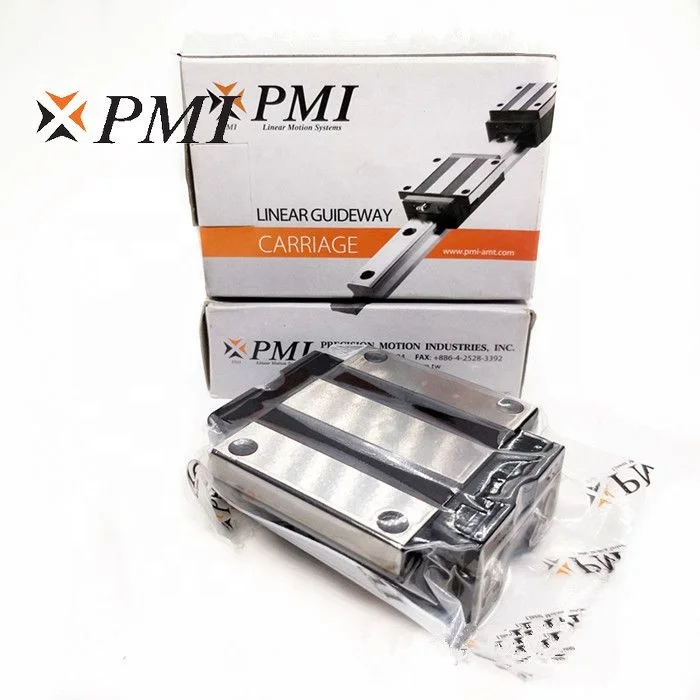

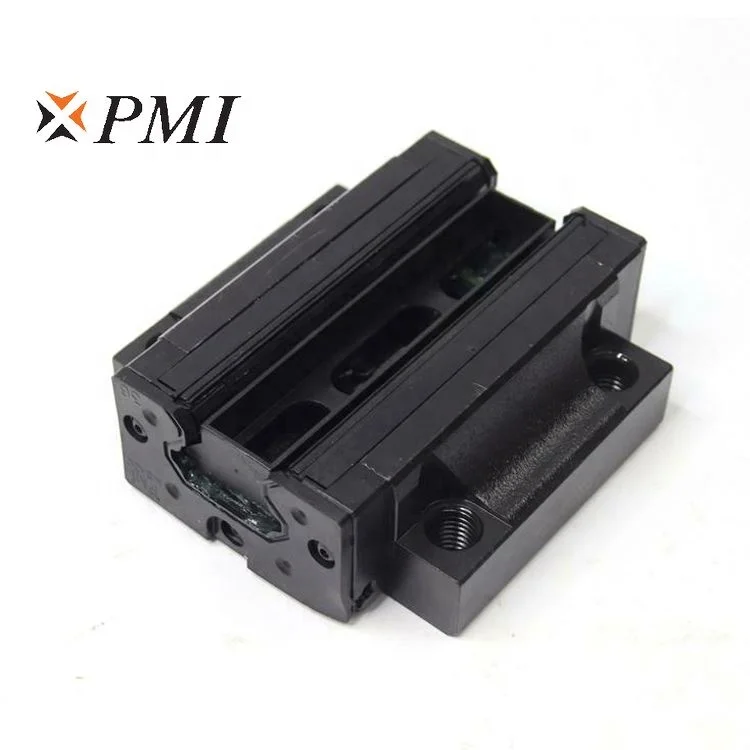

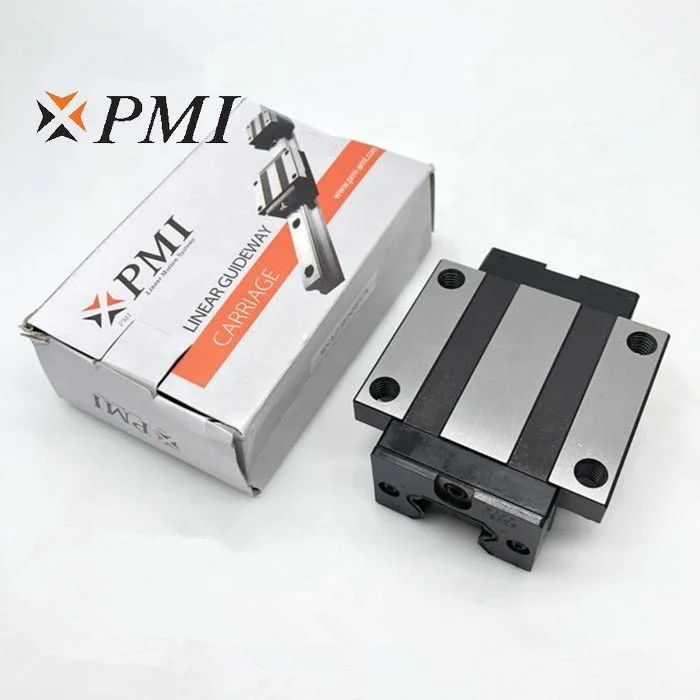

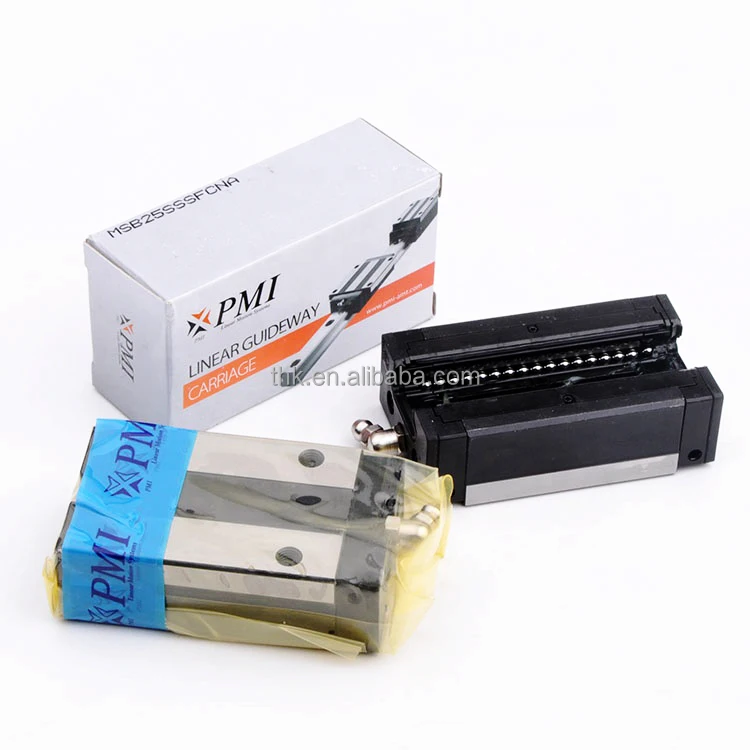

Products Show
Taiwan PMI CNC Linear Guide Rail MSA25LA ,MSA25LE

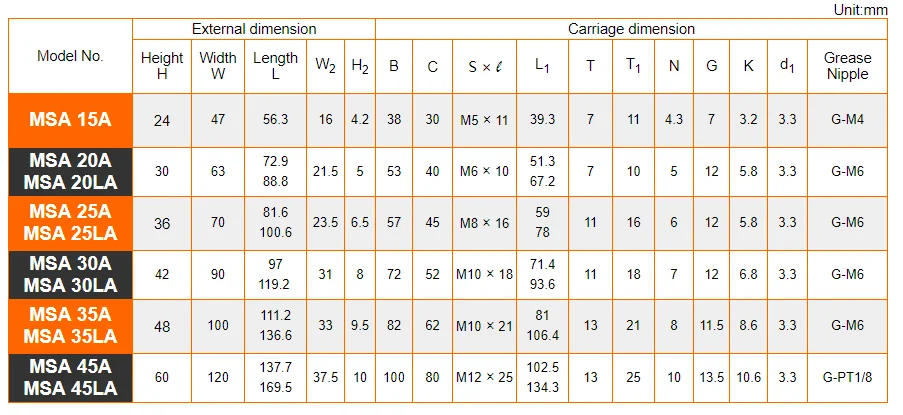

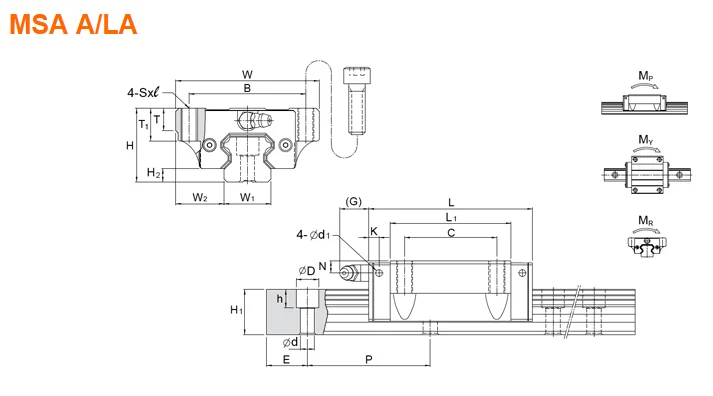

Drawings and Parameters
Taiwan PMI CNC Linear Guide Rail MSA25LA ,MSA25LE
Note: Request for size 55 and 65 MSA-A / MSA-LA carriage, please refer to MSA-E / MSA-LE carriage type.

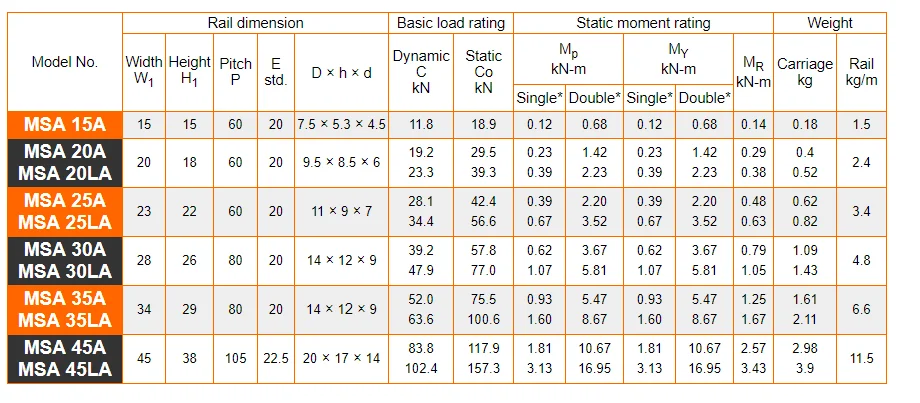

Note: The basic dynamic load rating C of ball type is based on the 50 km for nomonal life.
The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.
Note: The basic dynamic load rating C of ball type is based on the 50 km for nomonal life.
The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.
PMI Other Models
MSA-A
Installed from top side of carriage with the thread length longer than MSA-E type.
MSA-LA
All dimensions are same as MSA-A except the length is longer, which makes it more rigid.
MSA-E
This type offers the installation either from top or bottom side of carriage.
MSA-LE
All dimensions are same as MSA-E except the length is longer, which makes it more rigid.
MSA-S
Square type with smaller width and can be installed from top side of carriage.vvh
MSA-LS
All dimensions are same as MSA-S except the length is longer, which makes it more rigid.
Packing & Delivery
Our package
1 Single box
2. Single box + carton
3. Single box + carton + wooden box
4.according to demand of customers
1. Single box
2. Single box + carton
3. Single box + carton + wooden box
Shipping mothods available as below.
DHL, TNT, FEDEX, UPS, by air or by sea according to your request.
It usually takes 4-7 working days to deliver.
We'd like to check freight cost for your reference when order confirmed.
Warehouse
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide samples, but need to pay the value of goods and freight
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
