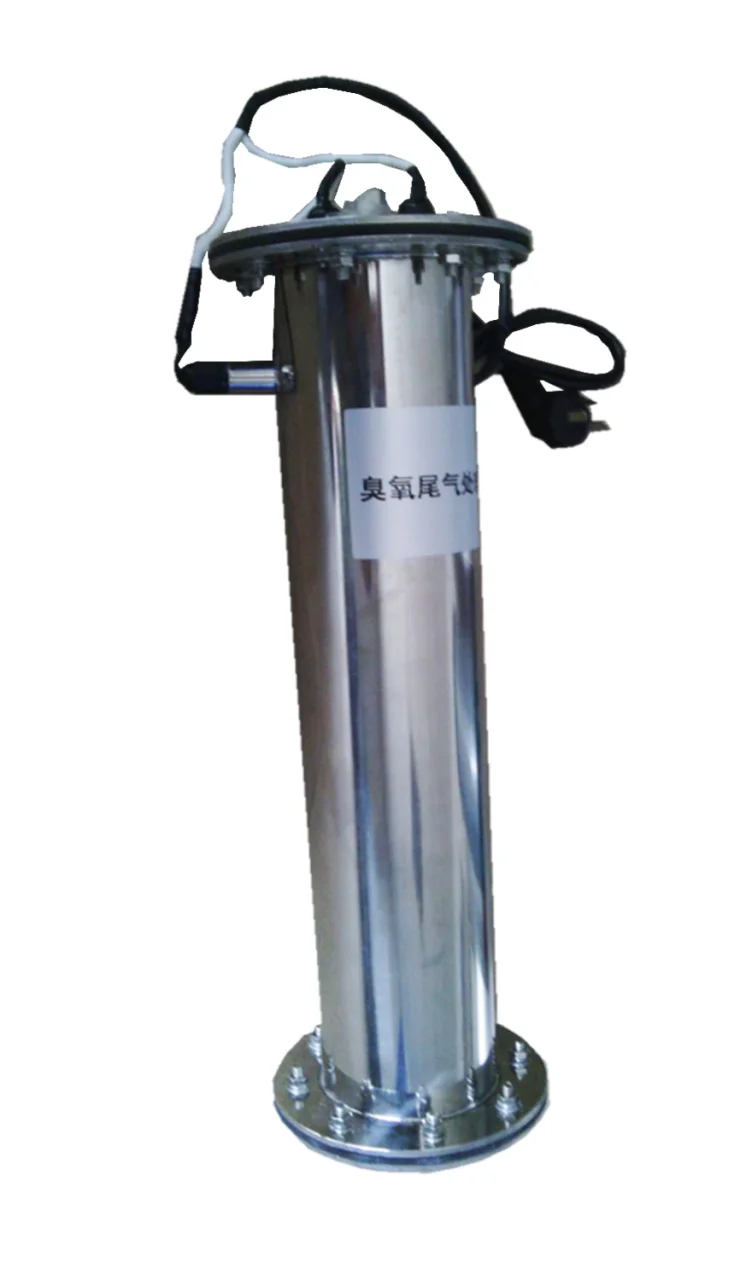

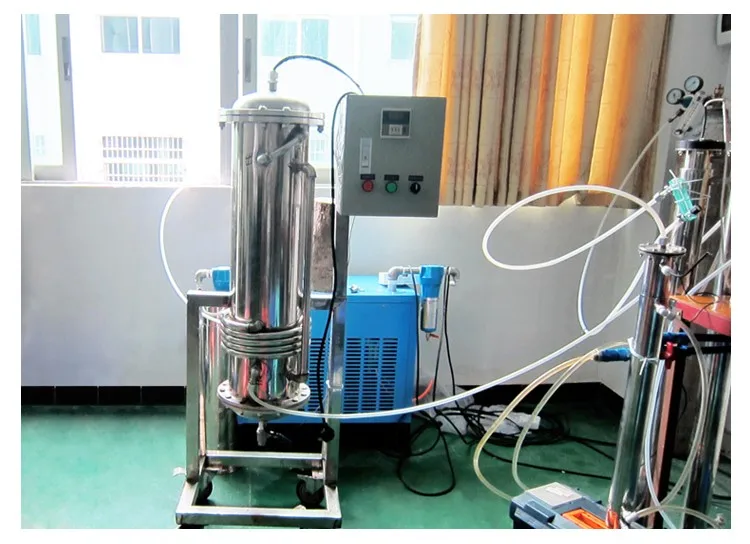

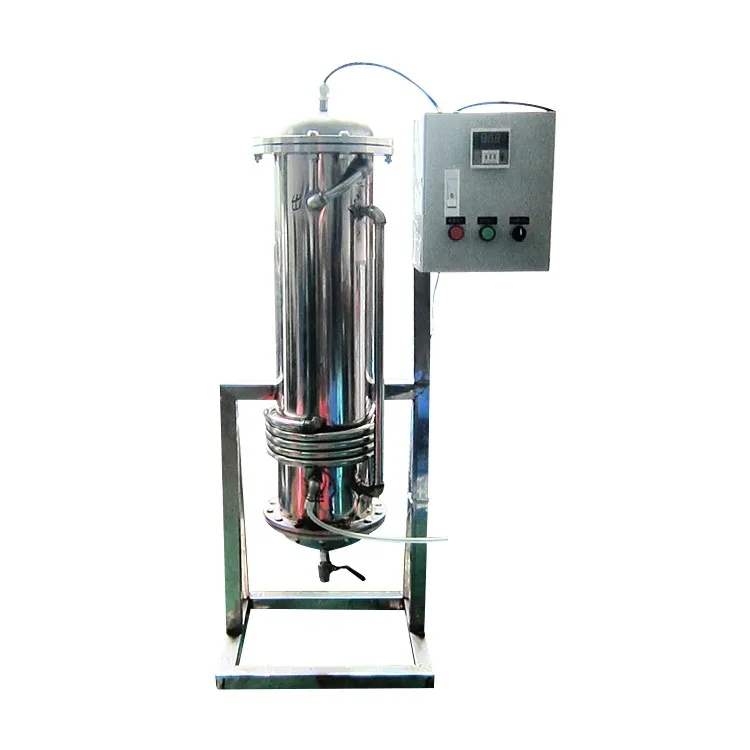

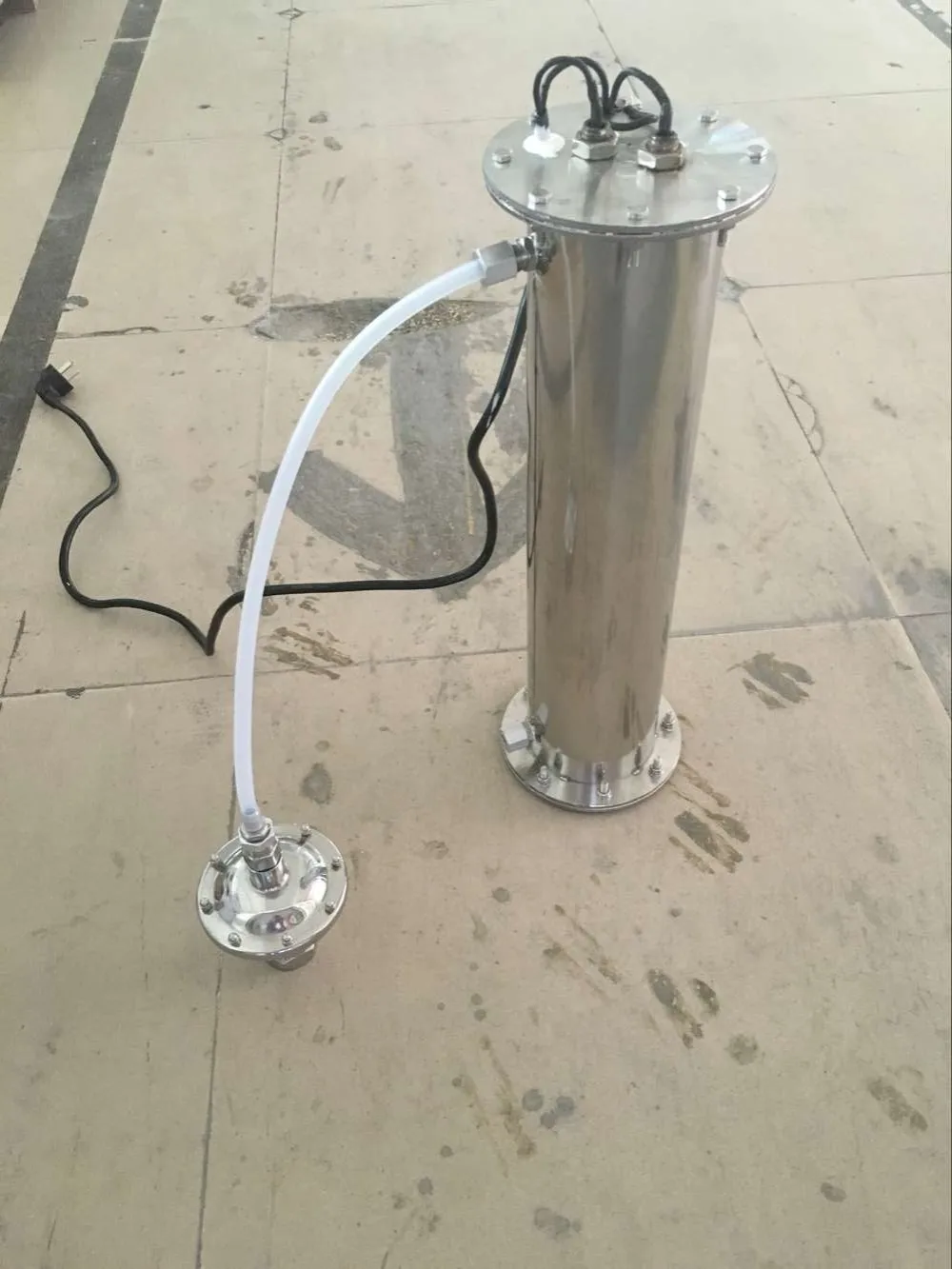

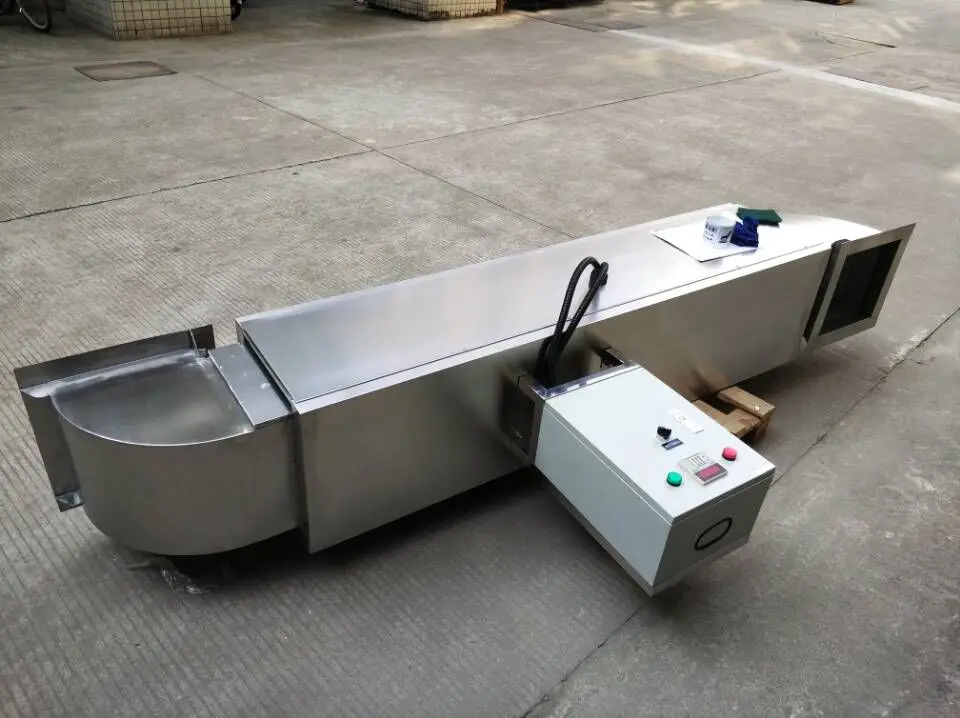

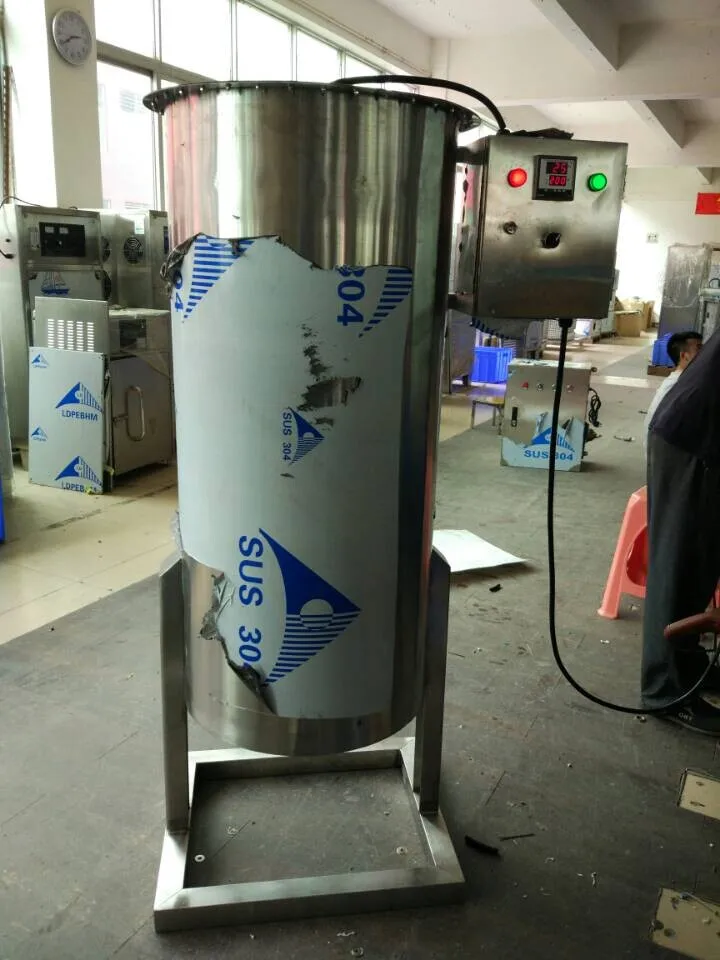

Stainless Steel Ozone Tail Gas Destructor Ozonator Exhaust Gas Processing

   Ozone destroyer is an innovative product of our company. It has the characteristics of small size, low power consumption, long life and good effect. The main purpose is to eliminate ozone tail gas.In practical use, the ozone tail gas treated by the product fully meets the air pollution index stipulated by China Government.At the same time, the effect of ozone tail gas treatment by this product is not affected by humid gas and moisture, and there is no need for "regeneration" treatment, which can not be achieved by ozone destroyer using catalyst, molecular sieve, activated carbon and other fillers.

Characteristics of the Device

1.Design for heating type
2.Fully automatic operation of equipment, protected by double stainless steel
3.Initial investment and operating costs are lower than those of activated carbon catalytic and contact oxidation.
4.When the tail gas enters the reaction chamber, the ozone molecules are decomposed by heating the catalyst.
5.small size, low power consumption, long life and good effect

Necessity of ozone tail gas treatment

1.Ozone gases are highly oxidizing, which may cause damage to certain articles, but also pollute the environment and stimulate the human respiratory system.

2.When ozone is used to treat all kinds of water, such as drinking water, swimming pool water and sewage, no matter which kind of gas-liquid contact device is used, more than 80% of ozone gas will eventually escape from the water and become ozone tail gas. If this part of ozone is directly discharged into the atmosphere or left indoors, it will cause environmental pollution. In these cases, ozone destroyers are needed to treat the ozone tail gas, so that these residual ozone gases can be decomposed immediately and then discharged into the atmosphere.

1.Waste water treatment
2.Drinking water treatment
3.Swimming pool water treatment
4.Chemical waste gas treatment

5.Aquaculture water treatment etc

6.Ozone Residual in Articles Disinfection Cabinet/Disinfection Room

Installation

1.Fix the product on the wall between the equipment with a shelf or place it in a specific (dry, stable, well-heat-dissipated) position.

2.Connect the inlet and outlet of the product with the silicone tube

3.The silicone tube of the ozone inlet is connected to the outlet of the ozone tail gas (the outlet of the reactor tail gas and the outlet of the ozone tail gas pipeline).

4.Place the end of the silica gel hose connected to the outlet of the ozone tail gas processor (the treated tail gas) in the discharge position, which is not easily accessible.

5.Power Wire for Connecting Equipment.

6.Adjust working time and temperature according to requirement, turn off power switch after completion.

Notices

1.Do not use this product near high-precision electronic equipment. Radio interference may cause wrong operation and other problems of high-precision electronic equipment.

①Q: What is Ozone generator?
A:Ozone generators use new method to produce ozone for cleaning air or removing smoke odor in unoccupied rooms,and now widely used in water treatment.

②Q: Are you trading company or manufacturer ?
A: We are factory.

③Q: When will you ship after I pay?
A:Generally, we will ship within 5 days if the product is in stock. Sometimes, it mainly depend on the quantity you offer.

④Q:What's your after sales service?
A:We offer one year warranty and also provide technical support even exceed the warranty period.
