4058 worm zq gearbox electric drive motor reducer with a ratio 1 90 for window lift opener
- Category: >>>
- Supplier: Dongguan City Well Motor Co. Ltd.
Share on (62331900156):
Product Overview
Description
Product Display
* Dimension40*58mm
* Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Door Lock, Camera
Features:

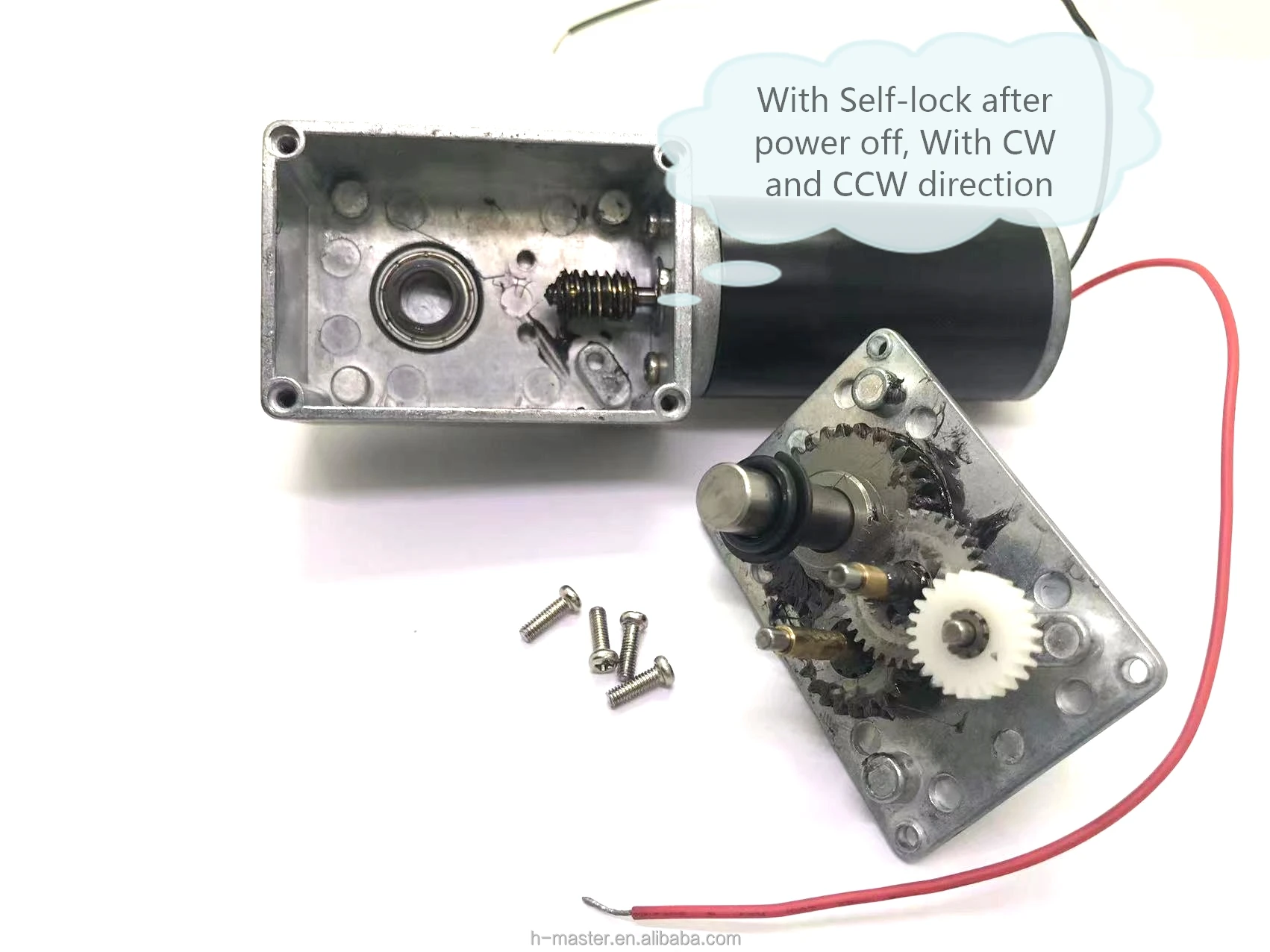

*Support positive and negative
*Strong self-locking function
*Long carbon brush long life
*Maximum carrying capacity of 70kg

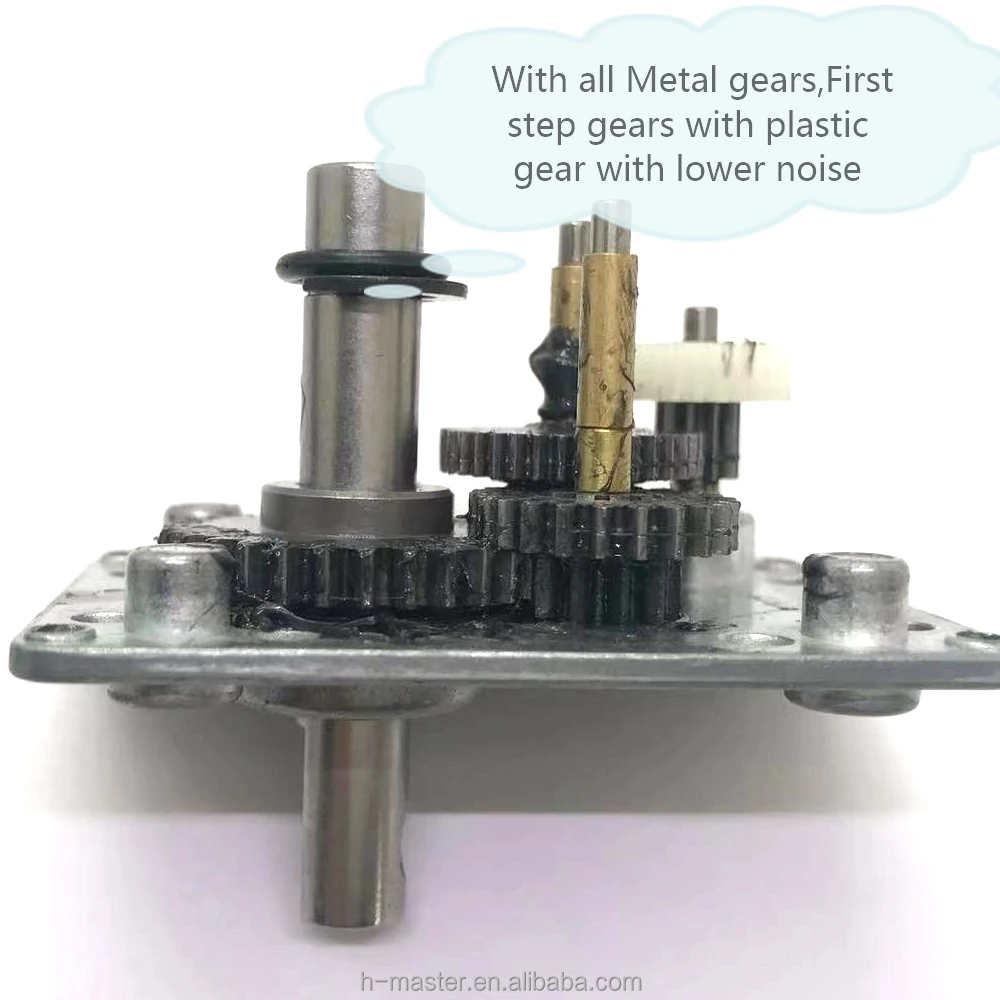

*High precision gear design
*Low noise, high efficiency
*Shaft diameter 8MM
MOTOR DATA:
| Rated Voltage | No load | Load Torque | Stall | Reducer | Weight | ||||||
| Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | Size | ||
| (V) | rpm | mA | rpm | A | Kg.cm | W | Kg.cm | A | 1:100 | mm | (g) |
| 12 | 470 | 240 | 330 | 1.2 | 2 | 14.4 | 11 | 3.5 | 17 | 58 | 320 |
| 260 | 240 | 180 | 1.2 | 3.6 | 14.4 | 21 | 3.5 | 30 | 58 | 320 | |
| 160 | 240 | 110 | 1.2 | 6 | 14.4 | 35 | 3.5 | 50 | 58 | 325 | |
| 80 | 240 | 56 | 1.2 | 12 | 14.4 | 70 | 3.5 | 100 | 58 | 325 | |
| 27 | 240 | 19 | 1.2 | 34 | 14.4 | 80 | 3.5 | 290 | 58 | 330 | |
| 16 | 240 | 11 | 1.2 | 60 | 14.4 | 100 | 3.5 | 500 | 58 | 330 | |
| 24 | 470 | 120 | 330 | 0.9 | 3.4 | 21 | 18 | 3.1 | 17 | 58 | 320 |
| 260 | 120 | 180 | 0.9 | 6.2 | 21 | 34 | 3.1 | 30 | 58 | 320 | |
| 160 | 120 | 110 | 0.9 | 10 | 21 | 55 | 3.1 | 50 | 58 | 325 | |
| 80 | 120 | 56 | 0.9 | 20 | 21 | 70 | 3.1 | 100 | 58 | 325 | |
| 27 | 120 | 19 | 0.9 | 58 | 21 | 80 | 3.1 | 290 | 58 | 330 | |
| 16 | 120 | 11 | 0.9 | 70 | 21 | 110 | 3.1 | 500 | 58 | 330 | |
