Product Overview
Description

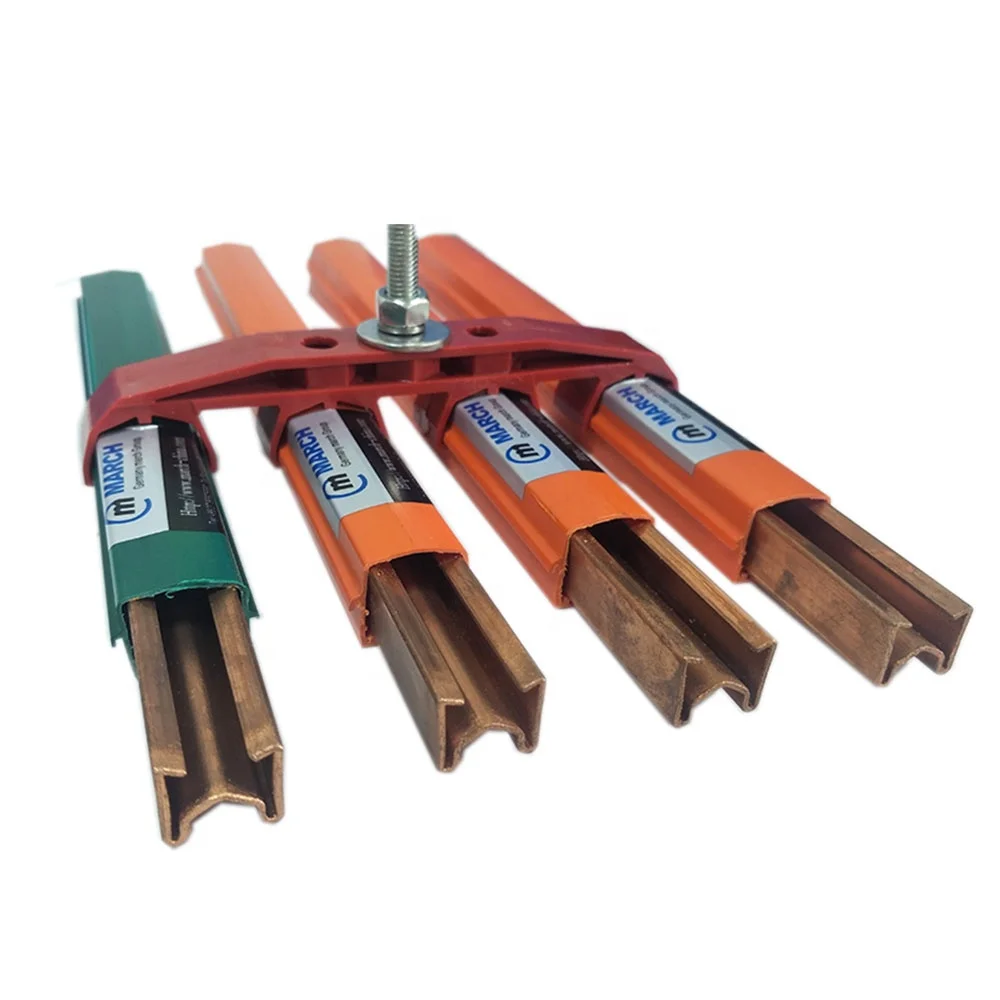

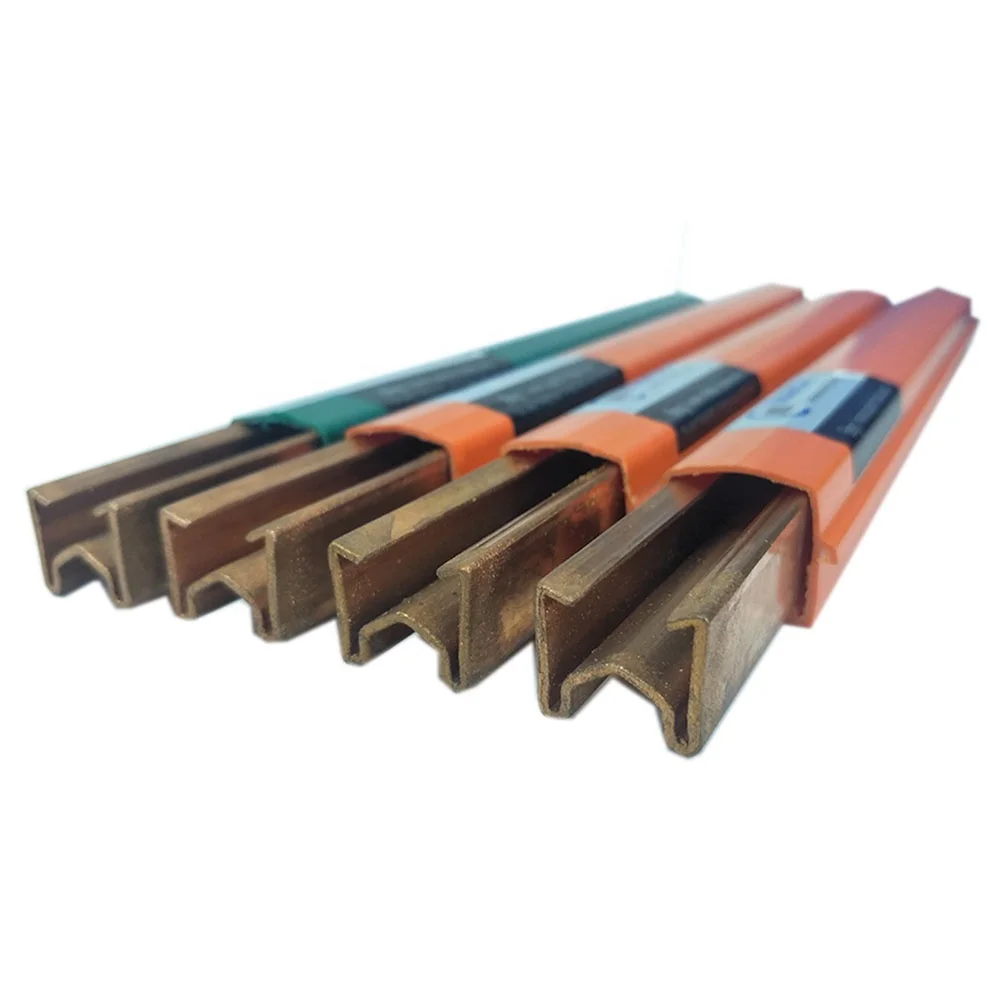

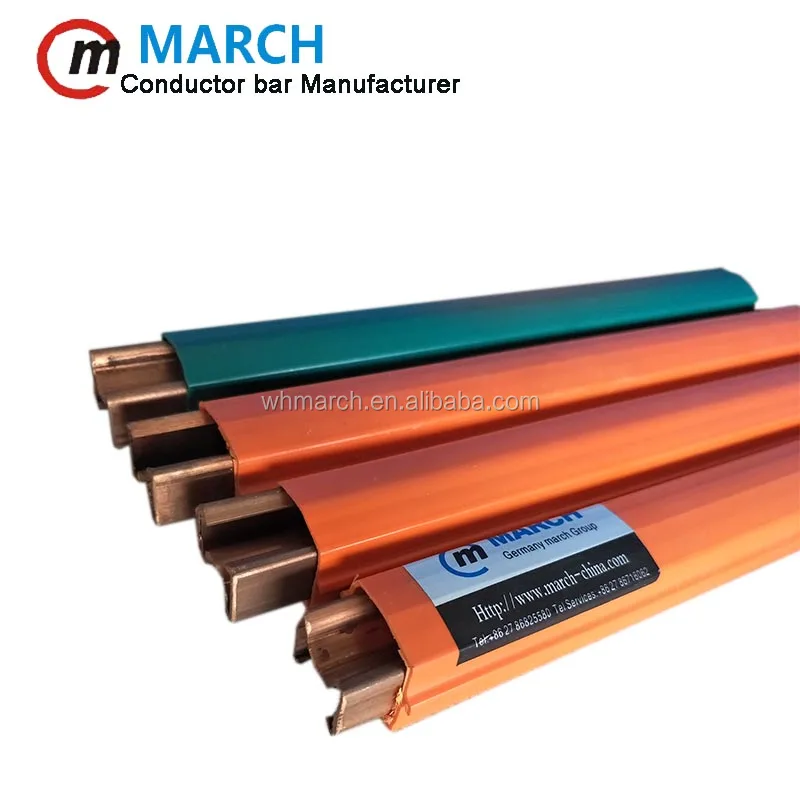

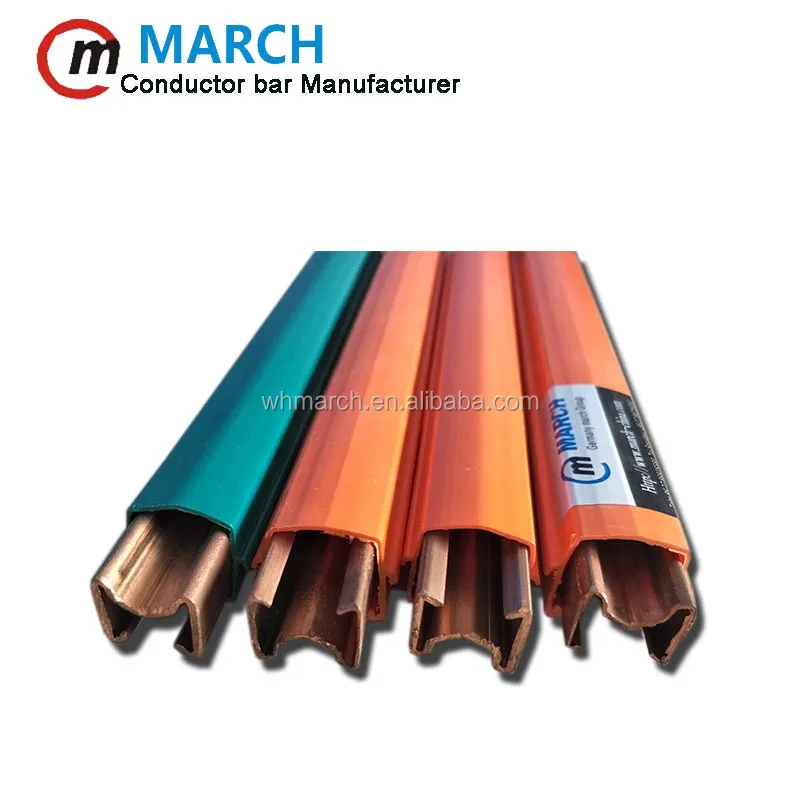

4 Electric rail overhead crane electric busbar, copper earthing bar
Type-copper bars
copper bars
Model | Rated Current (A) | Sectional Area | Max Voltage | Full Load Permissible Temperature | Weight (KG) | Part No. | |||
AC/V | DC/V | Standard Phase Cover | Standard Ground Cover | Medium Heat Cover | |||||
MCCBII-160A-CU | 160 | 50 | 550 | 700 | 25℃ | 2.89 | 22001 | 22002 | 22003 |
MCCBII-250A-CU | 250 | 63 | 550 | 700 | 25℃ | 3.21 | 22011 | 22012 | 22013 |
MCCBII-400A-CU | 400 | 83 | 550 | 700 | 25℃ | 4.63 | 22021 | 22022 | 22023 |
Stand Length : 4.5 m
Application environment : Suitable for use in the open air and the sea environment , offen use , avoid the growth of the oxide and verdigris
MCCBII Accessories
1. Expansion Sections
| Rated Current (A) | Material | Weight(kg) | Standard Length |
| 60A | Galvanized steel | 3.22 | 4.5 M |
| 100A | 3.48 | ||
| 125A | 4.37 | ||
| 160A | Aluminum &Stainless steel | 3.19 | |
| 200A | 3.30 | ||
| 250A | 3.49 | ||
| 315A | 3.61 | ||
| 400A | 3.69 | ||
| 500A | 4.01 | ||
| 160A | Copper | 3.39 | |
| 250A | 3.97 | ||
| 400A | 4.9 |
Application Environment :
The expansion sections are required to compensate for therma expansion
MCCBII System can run for 150m without an expansion section
2.Power feed
| Item | Weight | Parts No. |
| < 100A End Power Feed | 0.041 | 27105 |
| <250A End power Feed | 0.18 | 26105 |
| >250A End power Feed | 0.25 | 26106 |
3.Joints and Cover
| Items | Material | Weight | Parts No |
| Joints | Galvanized steel | 0.049 | 28111 |
| Copper | 0.031 | 28112 | |
| Aluminum | 0.082 | 28113 | |
| Joint Covers | PVC | 0.028 | 26104 |
4. Hanger Clamps
| Item | Material | Largest Installation Distance | Weight (kg) | Parts NO. |
| Anchor Clamp | PVC | 1.5 m | 0.04 | 27104 |
| 1-Pole Hanger Clamp | 0.03 | 28101 | ||

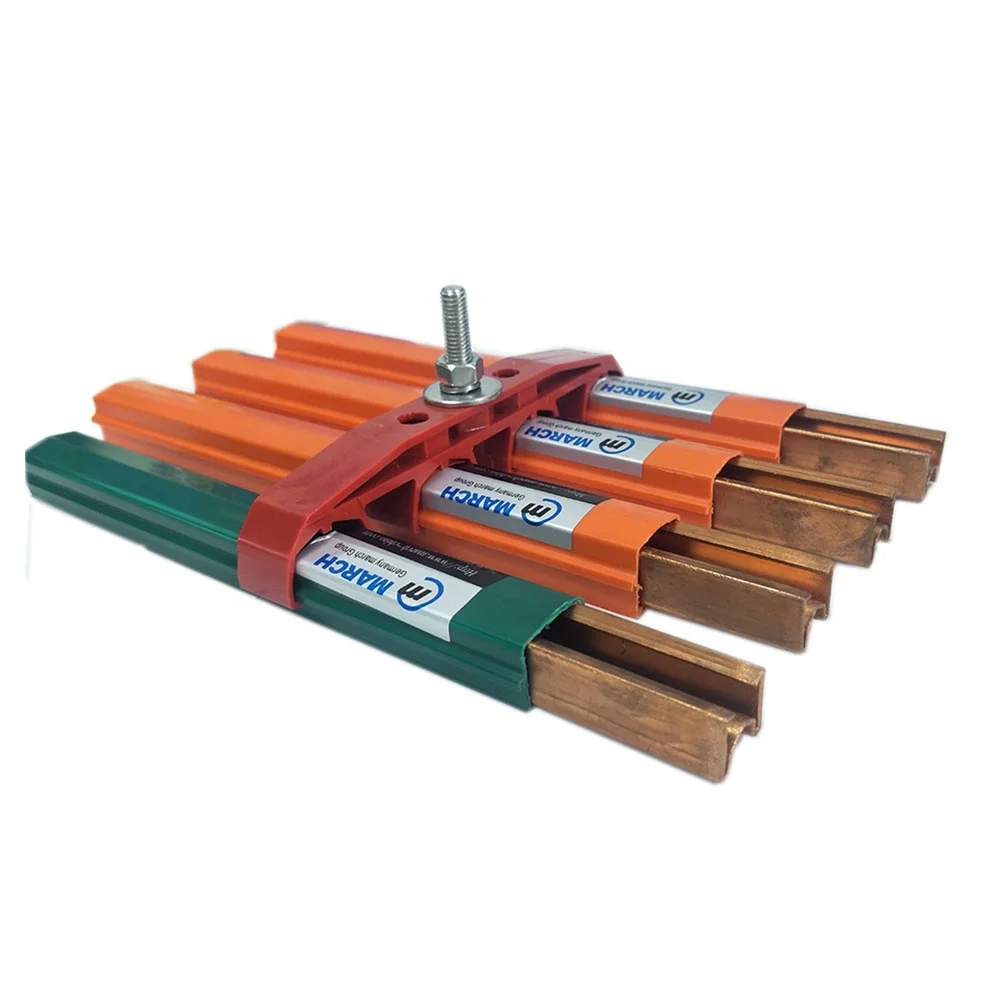

| 3-Pole Hanger Clamp | 0.06 | 27103 | ||

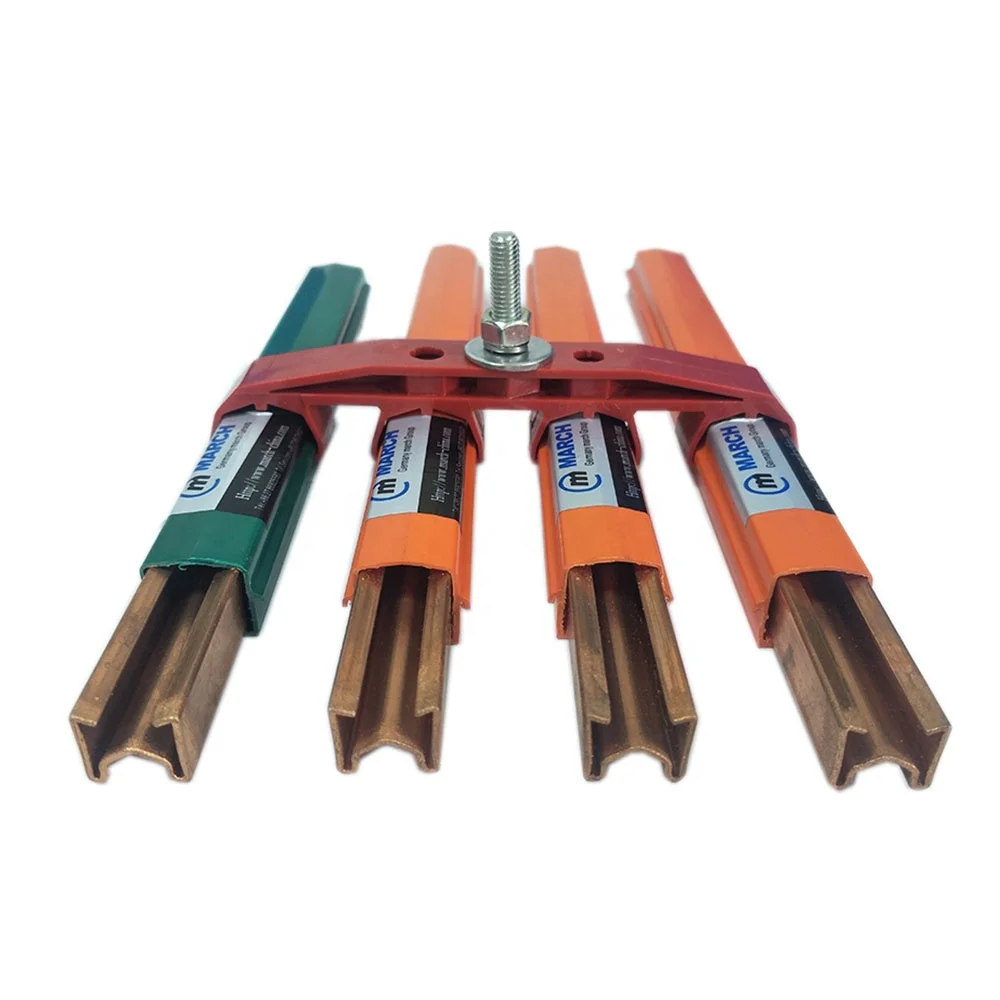

| 4-Pole Hanger Clamp | 0.07 | 27101 | ||
| 2-Bolt 4 pole Hanger | 0.08 | 27102 |
5. End Caps
| Material | Weight(kg) | Parts No. |
| Steel | 0.042 | 28107 |
| Copper | 0.04 | 28106 |
| Aluminum | 0.22 | 28105 |
| Transition Cover | 0.11 | 28104 |
Packaging & Shipping
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
Company Information
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
We main supply 60amp/100amp/125amp -200amp-500amp -1000amp safe conductor bar, 50amp-240amp enclosed conductor bar, 50amp-140amp high tro reel system , C30 C32 C63 C40 Festoon system trolley , and High temperature high voltage copperhead busbar .
Application project
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
