Self Bearing Type Indoor Optical Fibre Communication Gjxfh Singlemode Fiber Optic Cable
- Category: >>>
- Supplier: Dongguan Haokai Optoelectronics Technology Co. Ltd.
Share on (62332005999):
Product Overview
Description

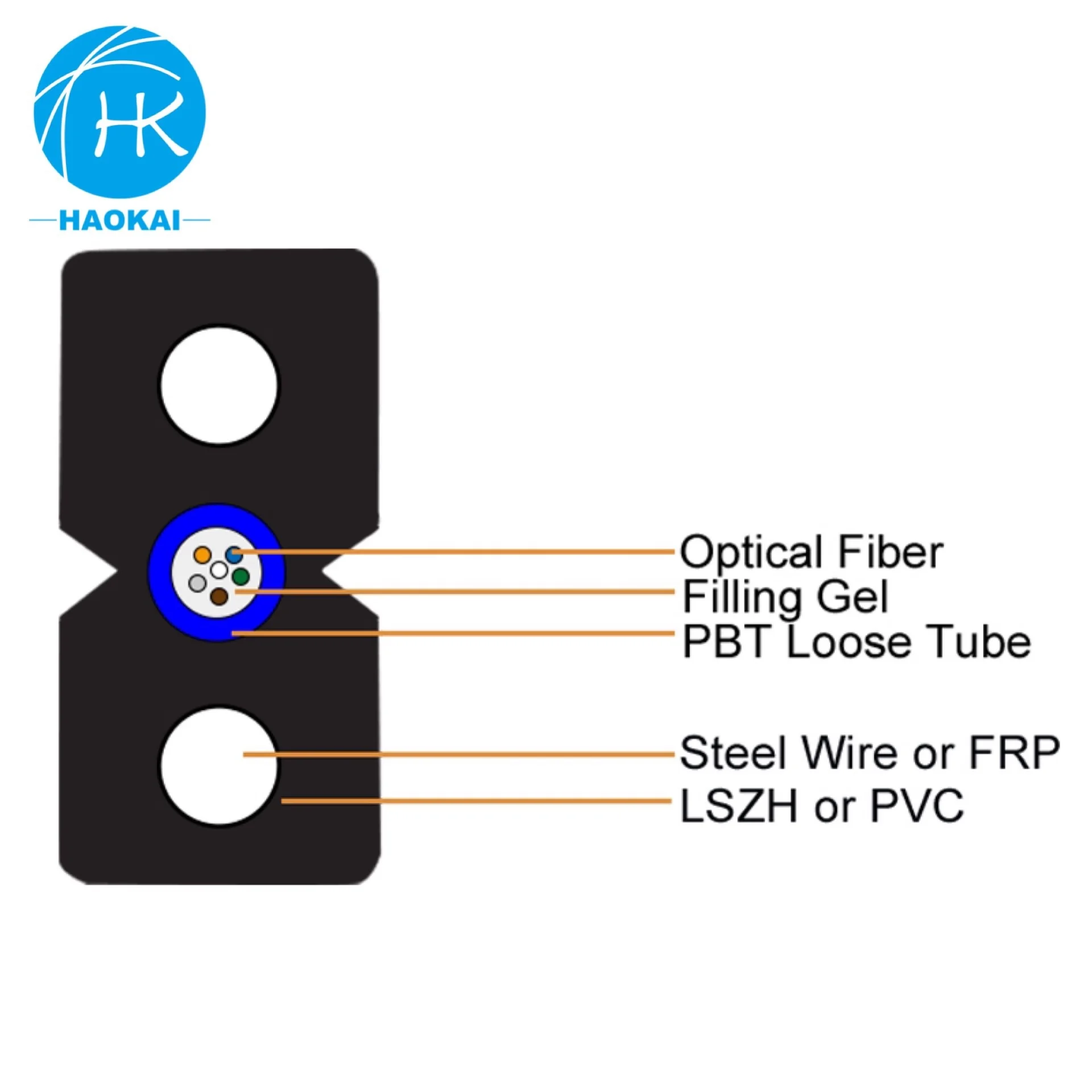

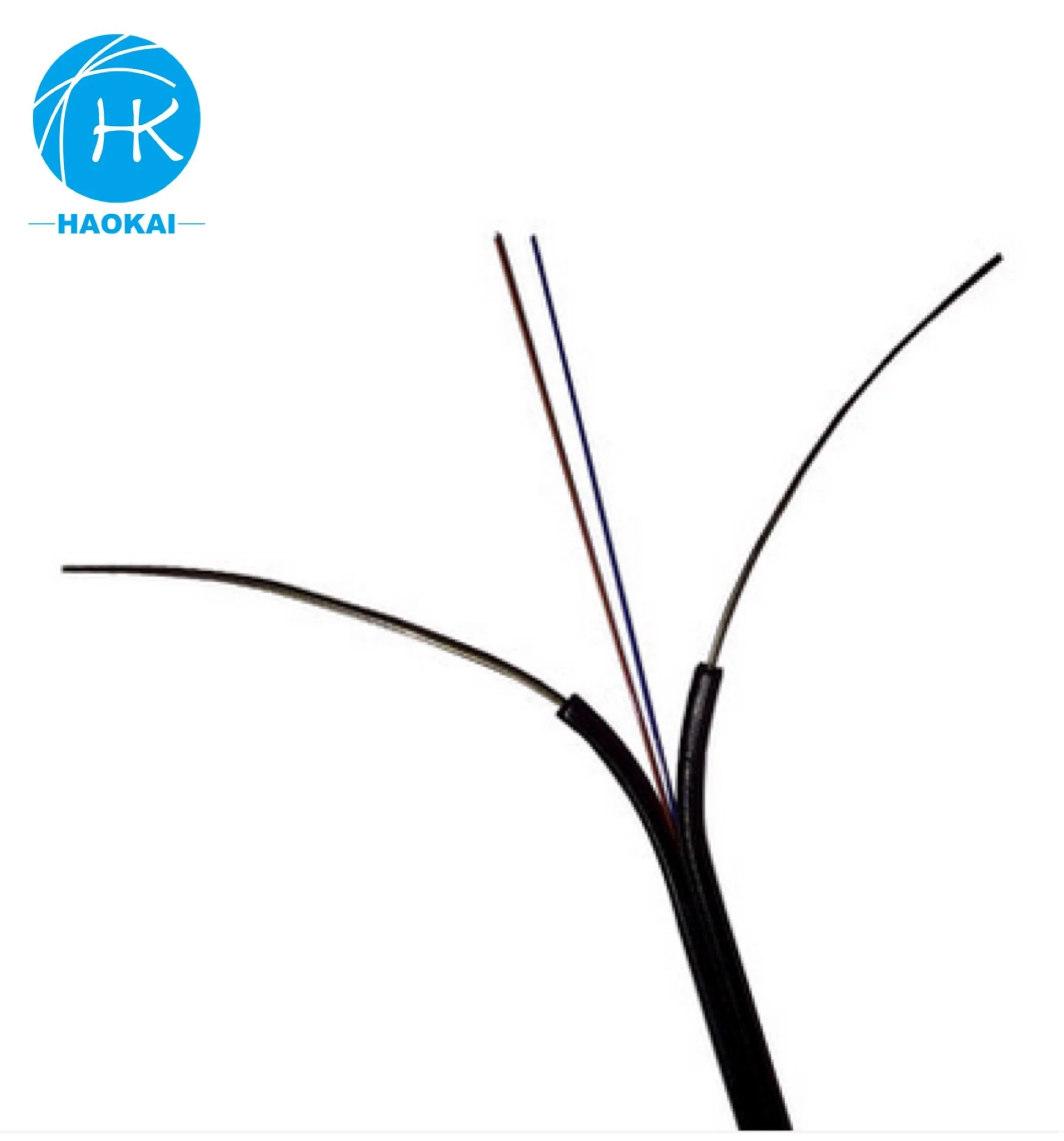

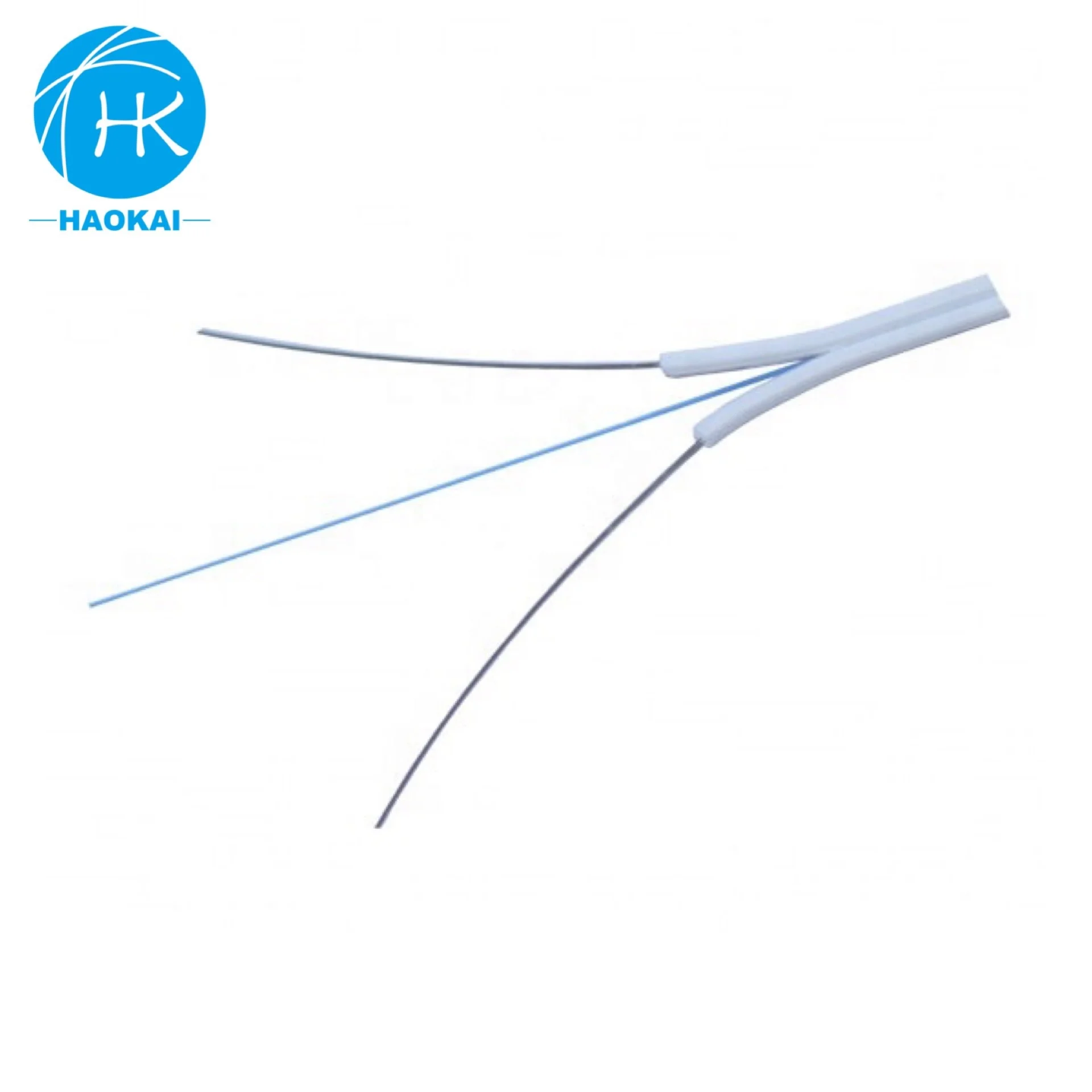

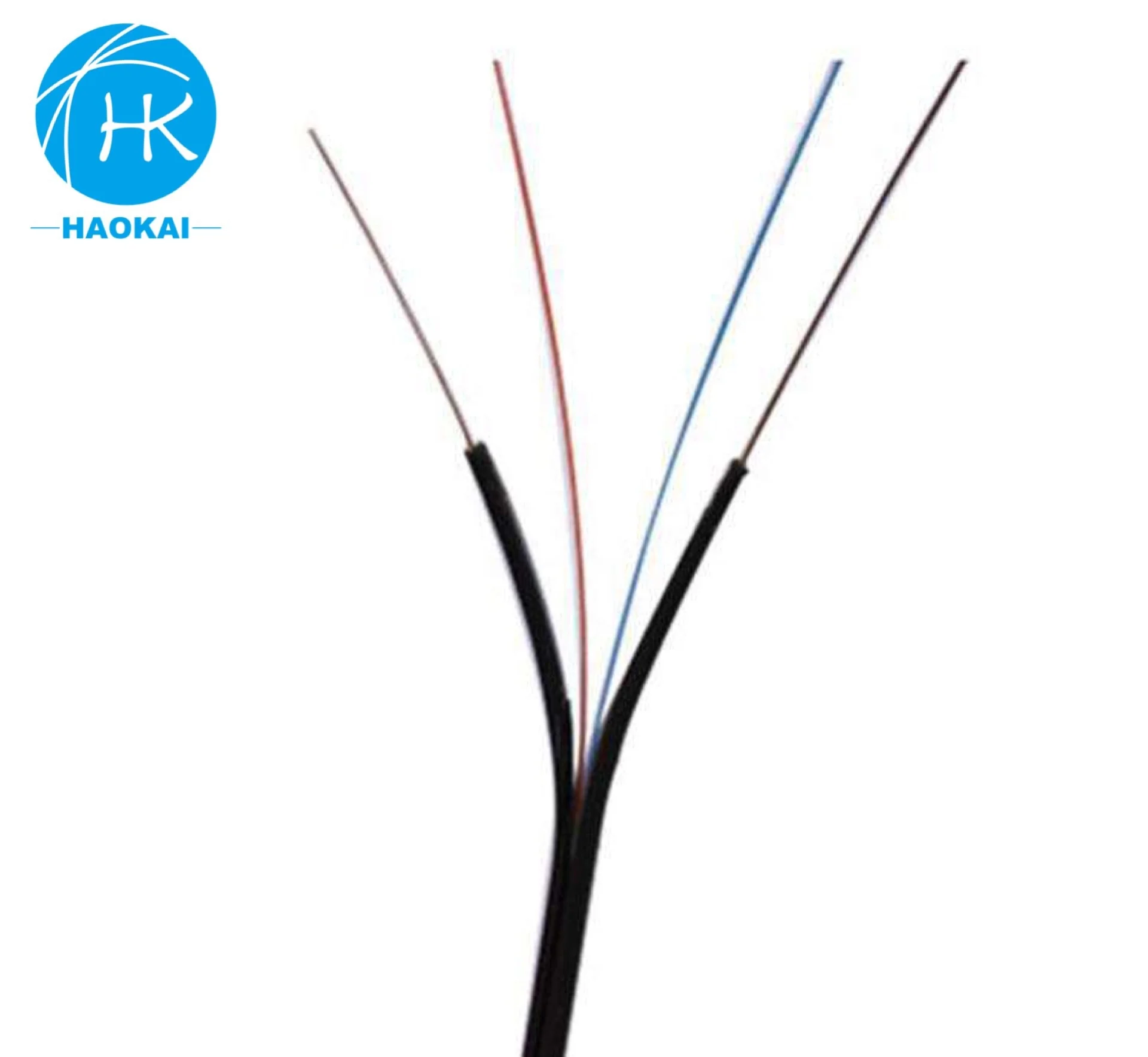

Self Bearing Type Indoor Optical Fibre Communication Gjxfh Singlemode Fiber Optic Cable
| Fiber count | 1F/2F/4F | ||||||||
| Attenuation | 1310nm:≤0.36 1550nm:≤0.22 | ||||||||
| Color Of fiber | Blue Orange Green Brown | ||||||||
| Fiber Type | G652D/G657A1/G657A2 | ||||||||
| Strength member | Steel wire/FRP/KFRP | ||||||||
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti | ||||||||

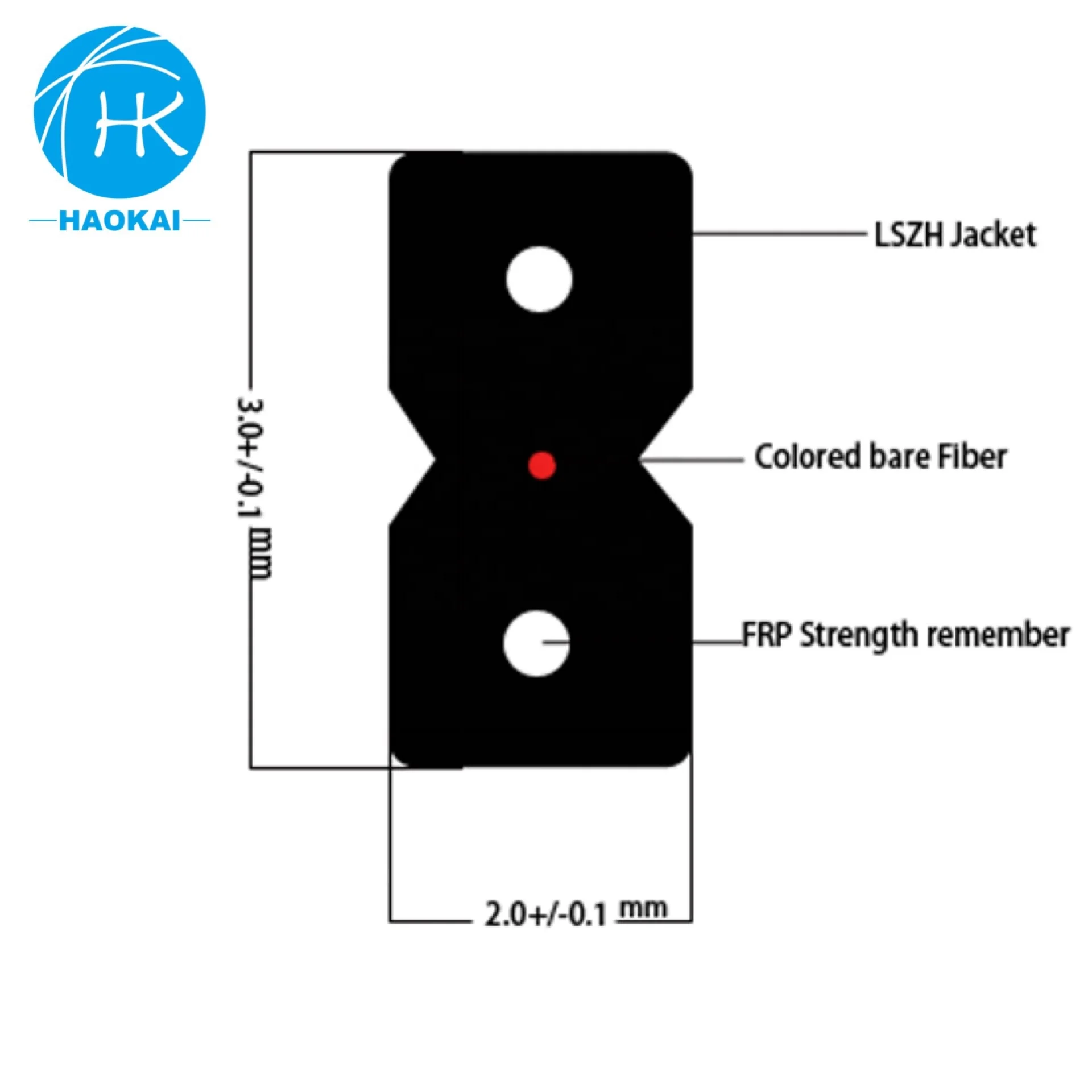

| Cable Diameter dimensions | 2.0( Height) × 3.0W ± 0.1 mm(width) | ||||||||
| Operation temperature range | -20 ℃ to + 70 ℃ | ||||||||
| Installation temperature range | -0 ℃ to + 60 ℃ | ||||||||
| Transport and storage temperature range | -20 ℃ to + 70 ℃ | ||||||||
| Tension Load (N) | Short term :800N Long term :500N | ||||||||
| Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm | ||||||||
| Minimal installation bending radius | 30 x OD | ||||||||
| Minimal operation bending radius | 15 x OD | ||||||||
| Cable marking | The marking length 1meter apart , as required |
Click here for more information
