The DOT PEEN MARKER also known as Dot Marking, micropercussion and indent marking , that is carbide stylus pin dotting on the surface with high frequency than made a mark , it could mark alphanumeric (date , VIN codes , series NO ), logo or 2D barcode information on metal and plastic material --for part identification requirements. such as aerospace, automobile, mechanical, cast, electromechanical.
Model NO :
XG3-C PIN MAKRER
Marking speed
3-5 digital /s
Marking area
110*80/150*100/200*150mm
Marking deepth
0.01-0.3mm
air pressure
0.3-0.6mpa
power
≤100W
Marking Application
XG3-C could marking character , digital , data matrix barcode on flat surface of Stainless steel products .
Marking application

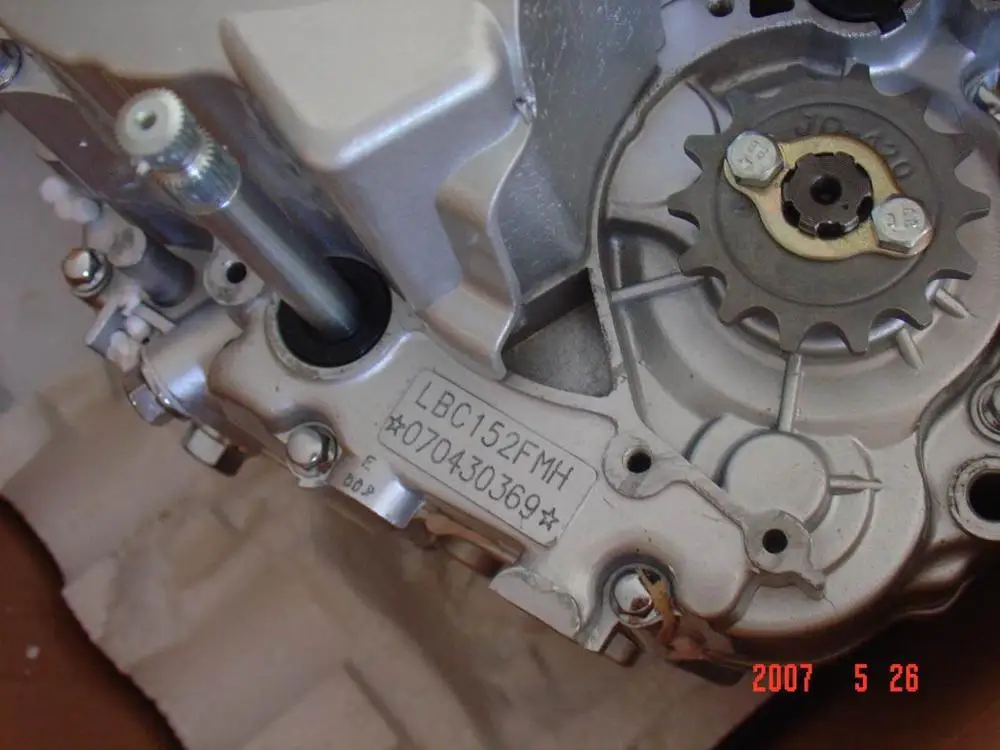

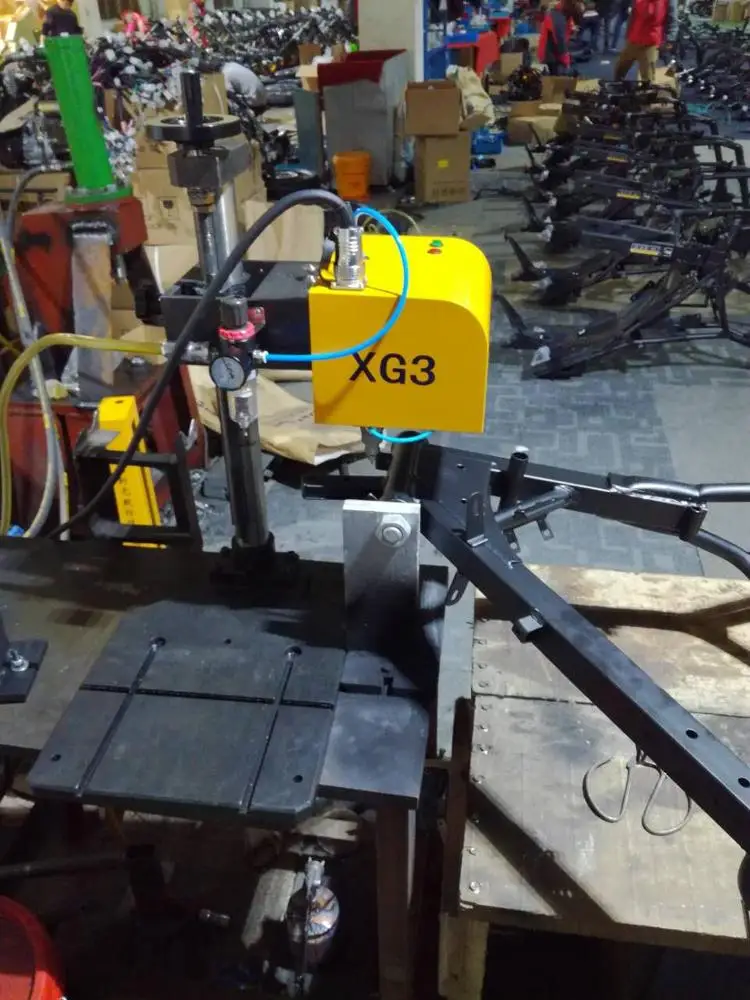

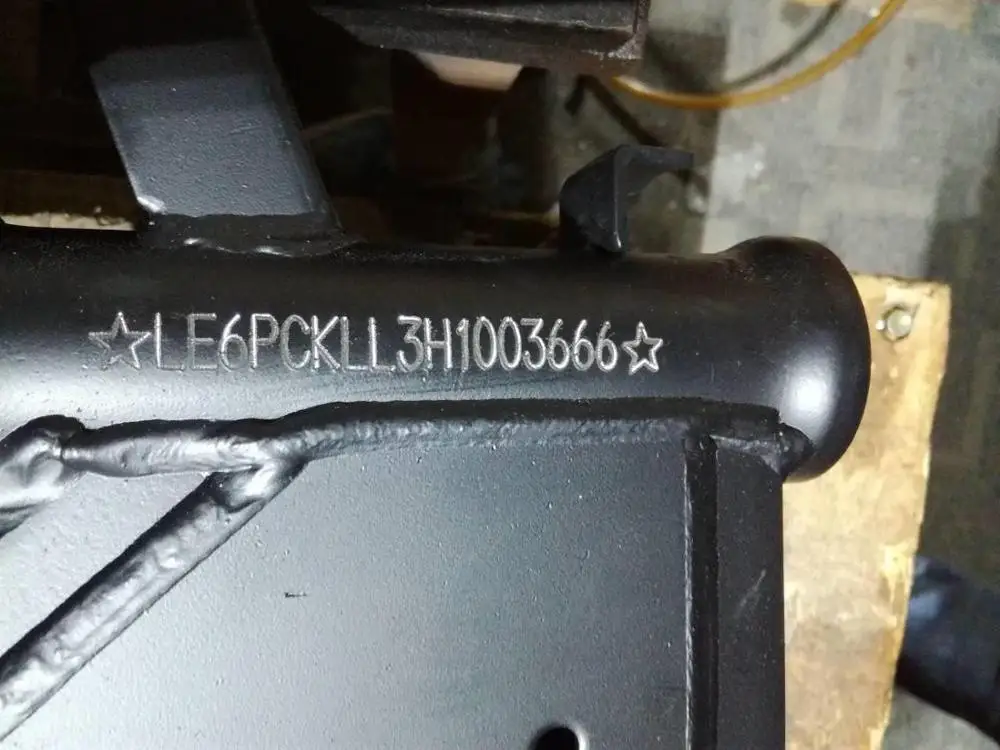

XG3-C pin marker could marking character , digital , logo , VIN code on motorcycle frame .
Detailed Images

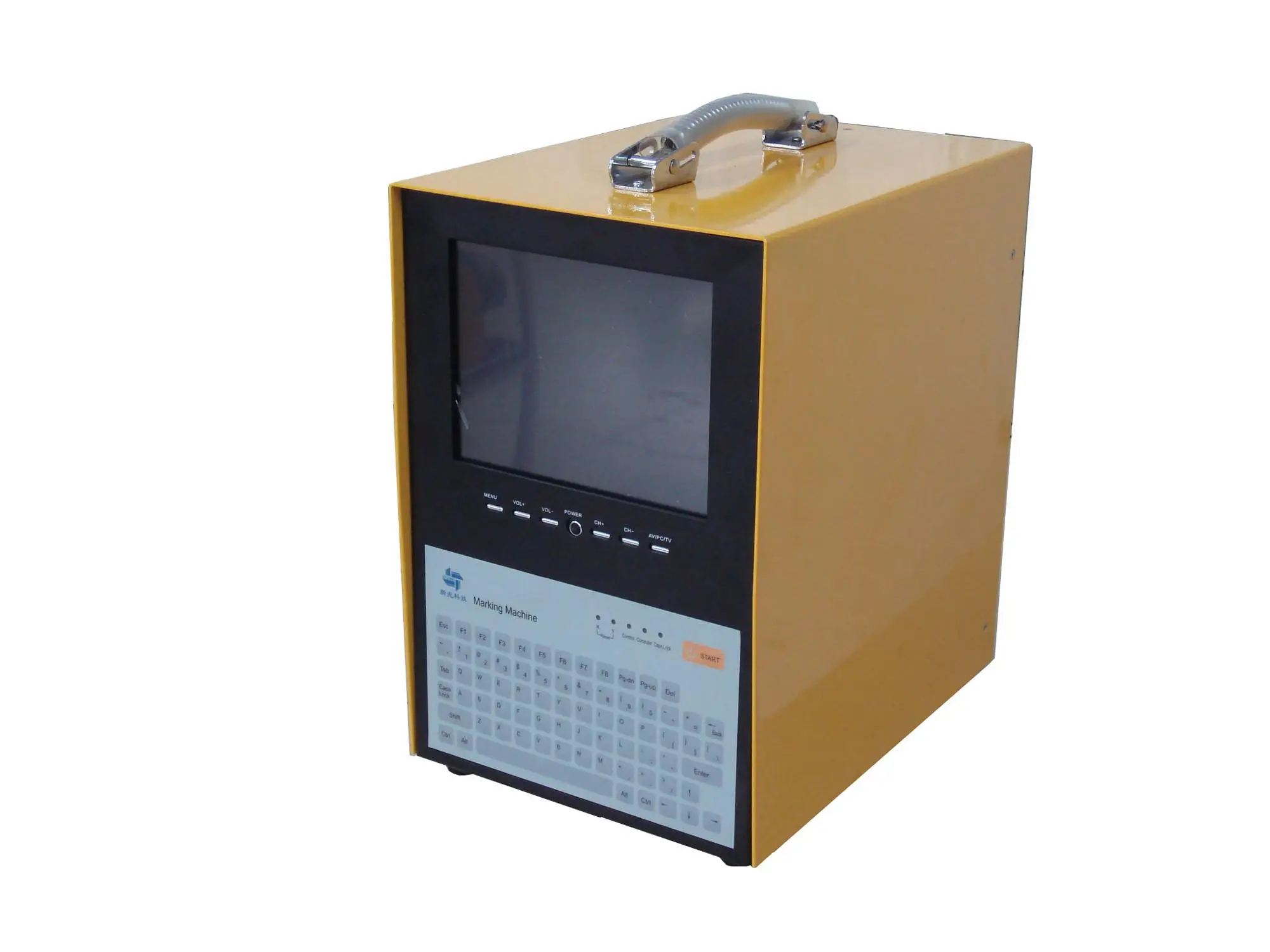

C Controller
*built-in mini computer pcsystem: Win7
* membrane keyboard

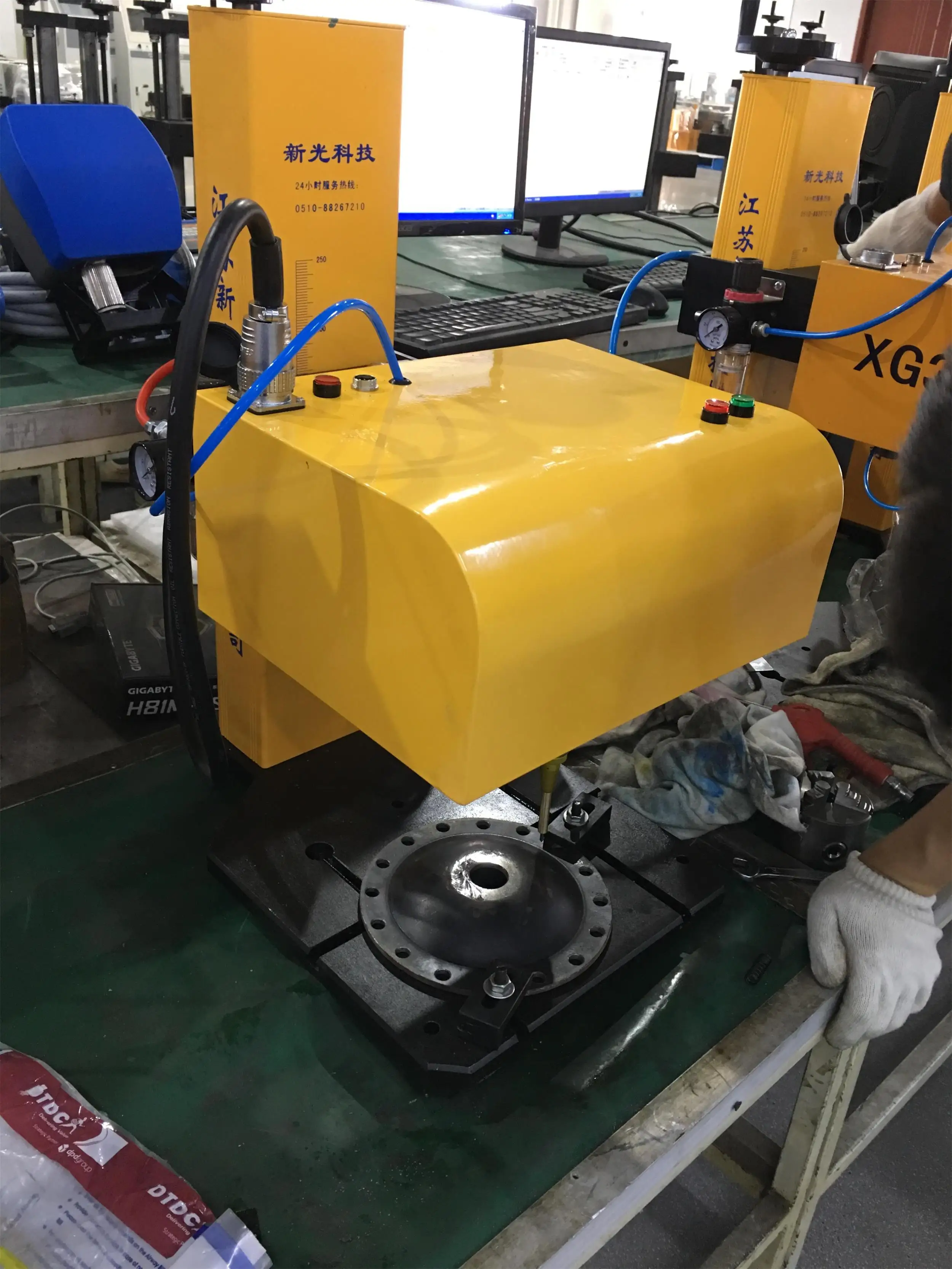

Marking head with column
Marking head
*Lead screw column
*Iron plate marking table more stable
*Tungsten carbide stylus pin
Spare parts
stylus pin
4set
footswitch
1pcs
USB memory disk
1pcs
nameplate fixture
1pcs
extender
1pcs
Related Products
Company Introduction
XG marker , found in 1998, has more than 20 years manufacture experience of the marking machine. Now XG MARKER have air standard dot peen marker , air portable dot peen marker , electric pin marker , fiber laser marker , CO2 Laser marker , UV laser marker ect more than 50 type marker model covering an area more than 40,000 ㎡.Till now our company sold over 6,000 sets marking machines widely in the domestic and overseas market.
Q1. How to match the suitable machine? Tell us your working material, detail requirements by words, pictures or video, We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time? For the standard machine, the delivery time is 3-7 days after the payment. For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it? We have the instruction Book, Operational manual and Training Video about the machine. We also can provide the training on line by free.
Q4. How to do it if we encounter problems during the operation? You can send the descriptions of the problems to us by mail, we can help you solve them by mail, phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide the training? Yes, we can. We can provide the on-line training by video. We also provide free training course in our company.Q1. How to match the suitable machine?
