Алюминиевый корпус для дорожной лампы литья под давлением IP66 SKD, запасные части, античный светодиодный уличный фонарь
- Category: Outdoor Lighting >>>
- Supplier: Zhejiang Alite Lighting Co. Ltd.
Share on (62332032741):
Product Overview
Description

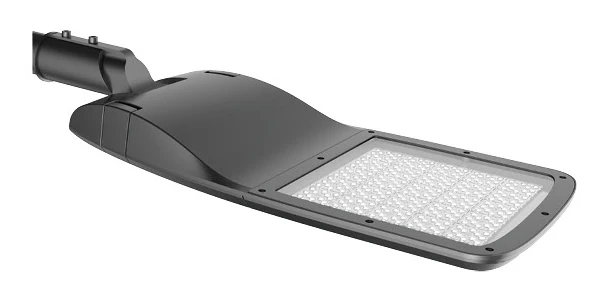

Aluminium Die-casting Shell housing IP66 SKD spare parts led street light
Specification
Item No. | ASL07A | ASL07B | ASL07C | ||
Watts | 20-80W | 80-150W | 180-300W | ||
Efficiency(LM/W) | 130-140LM/W | ||||
IP Rate | IP66 | ||||
IK Rate | IK09 | ||||
Electrical Class | Class II | ||||
Power Factor | ＞0.95 | ||||
Led resource | OSRAM/CREE/PHILIPS/SANAN | ||||
Body & Top Cover | High Pressure Die Casting Aluminum | ||||
Color Range Index | Ra＞75 | ||||
Optical unit | High efficiency performance alum | ||||
Diffuser | 4/5mm thickness ultra-thin glass | ||||
Connection to column | 60/76mm;With degree adjust | ||||

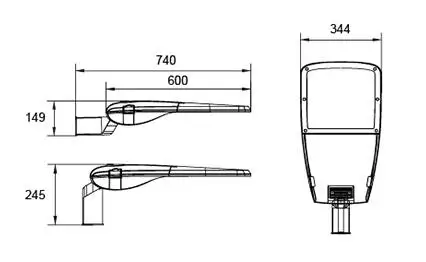

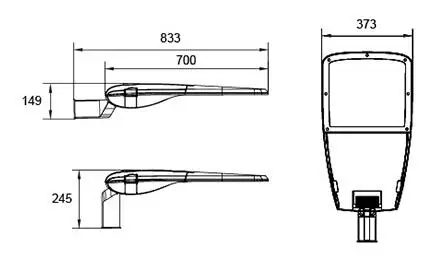

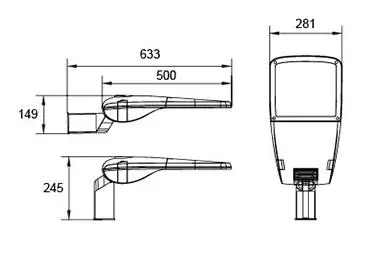

Dimension | 580*240*140mm | 740*344*145mm | 847*400*150mm | ||

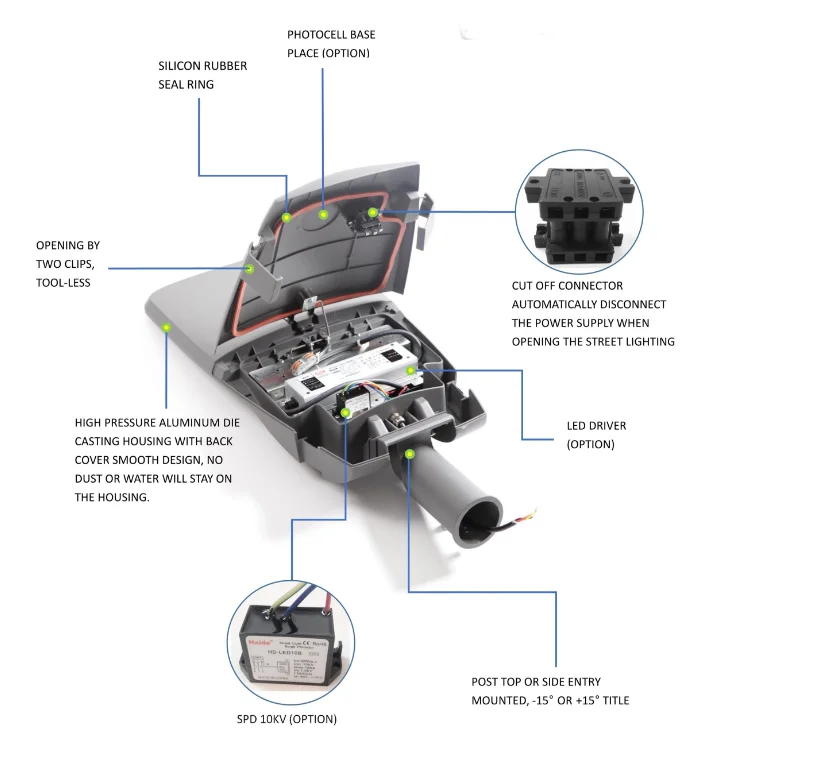

Product Description
ASL07
LED STREET LIGHT
1.Luminaire available from 20-300w
2.Excellent heat radiation, optical and electrical ability
3.Die-cast Aluminum body with power-coating and anti-corrosion treatment
4.Diffuser with 4.00mm/5.00mm super white toughened glass

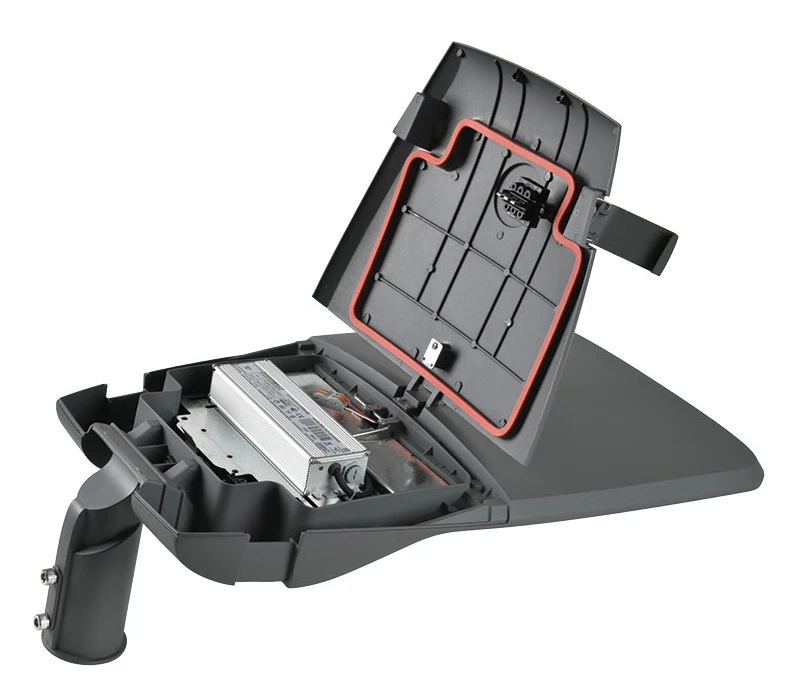

5.Humanized design concept, easy to install and maintain
6.IP66, 3 years warranty or 5 years warranty or 7 years warranty or 10 years warranty
7.Lumileds led high luminous effciency and long life
8.Inventronics or Meanwell LED Driver for choose.

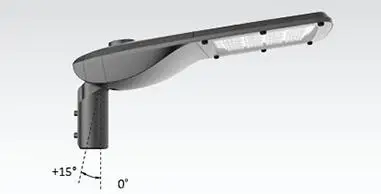

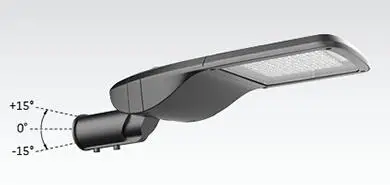

Adjust Angle
When vertical install LED light, adjust angle is from 0-10. When horizontal install LED light, adjust angle is -10~ +10
Installation Instructions
60W
80W
120W
150W

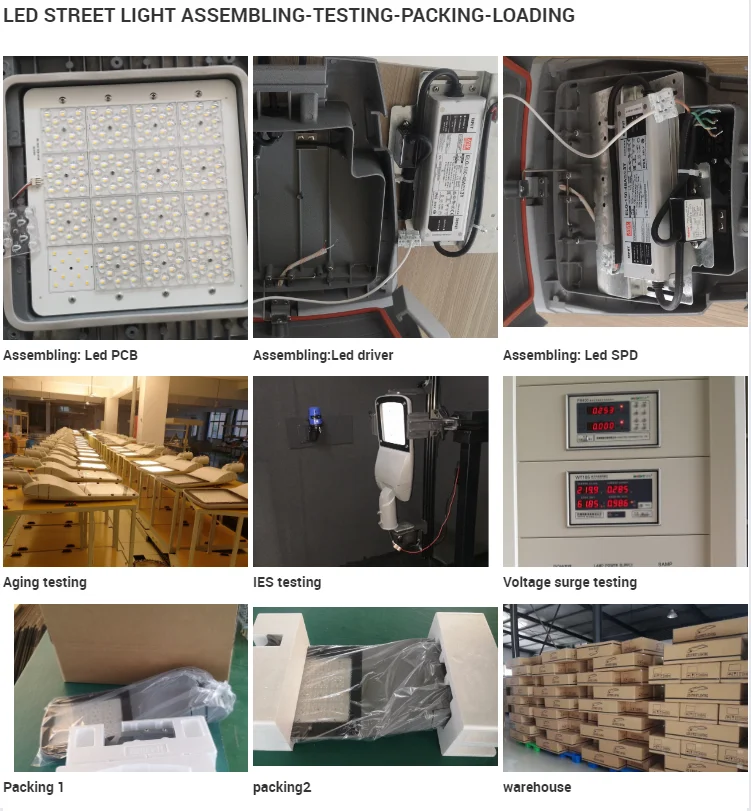

Packing & Loading
Hot Sale

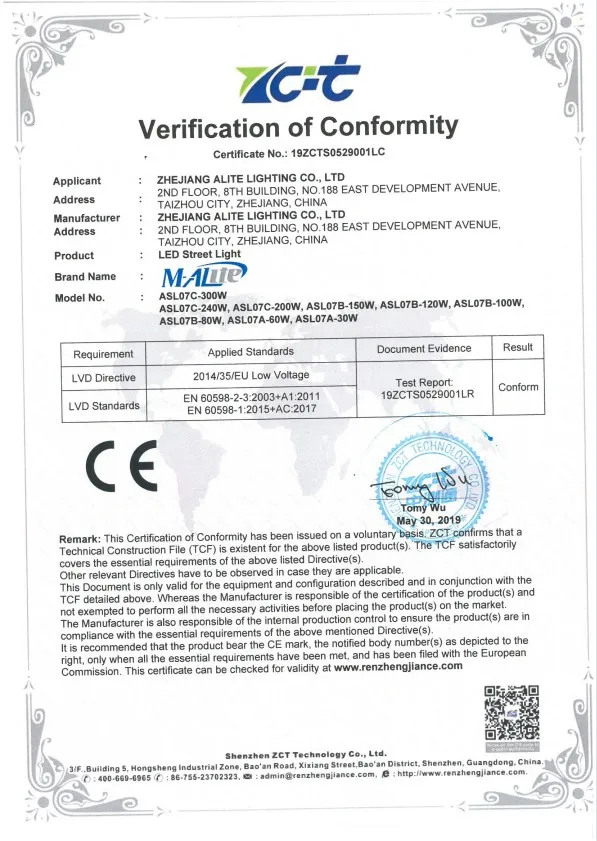

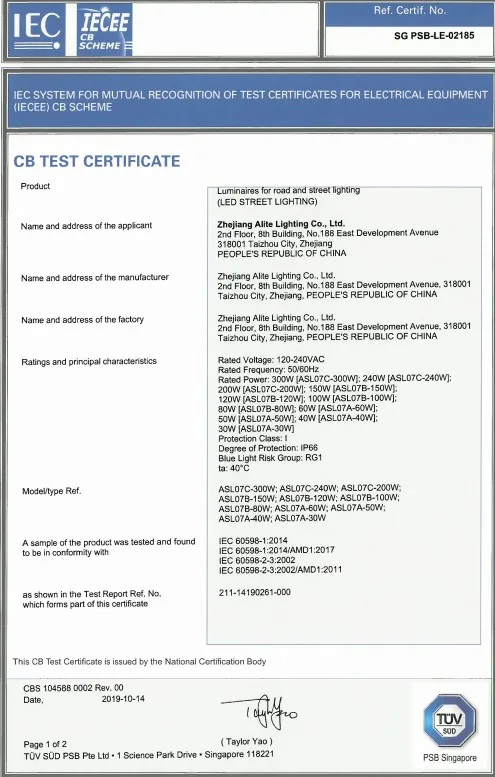

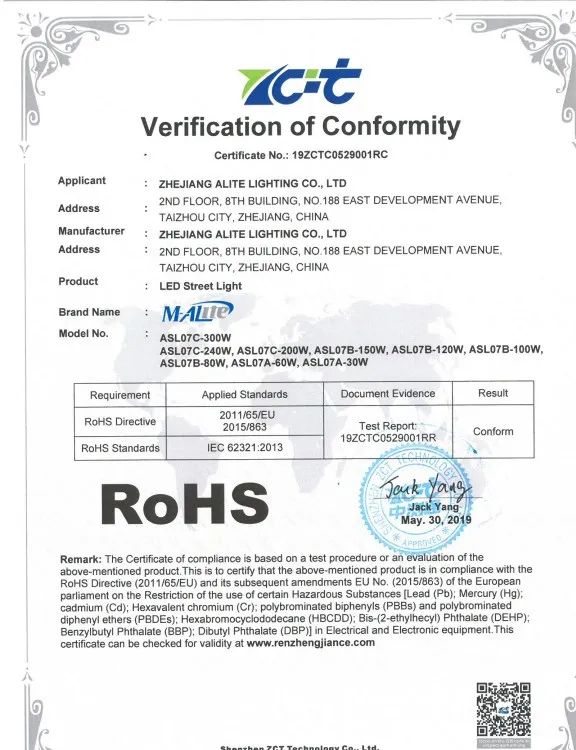

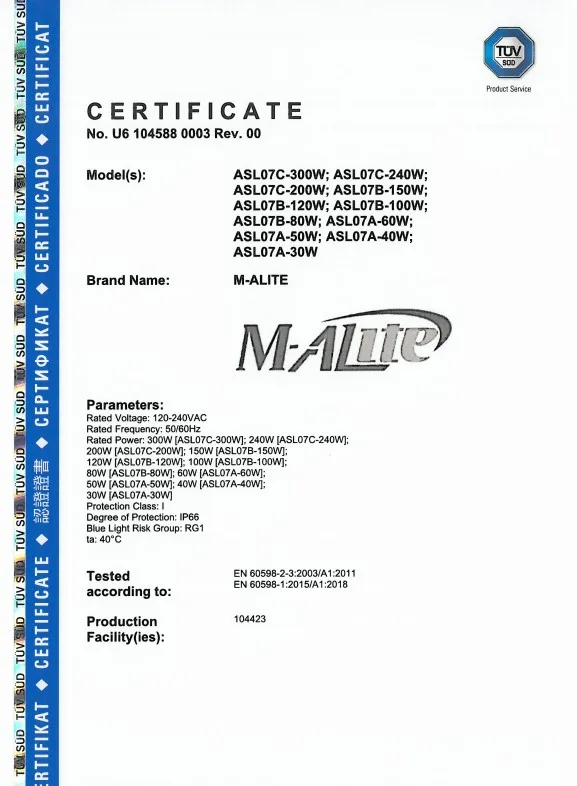

Certifications
