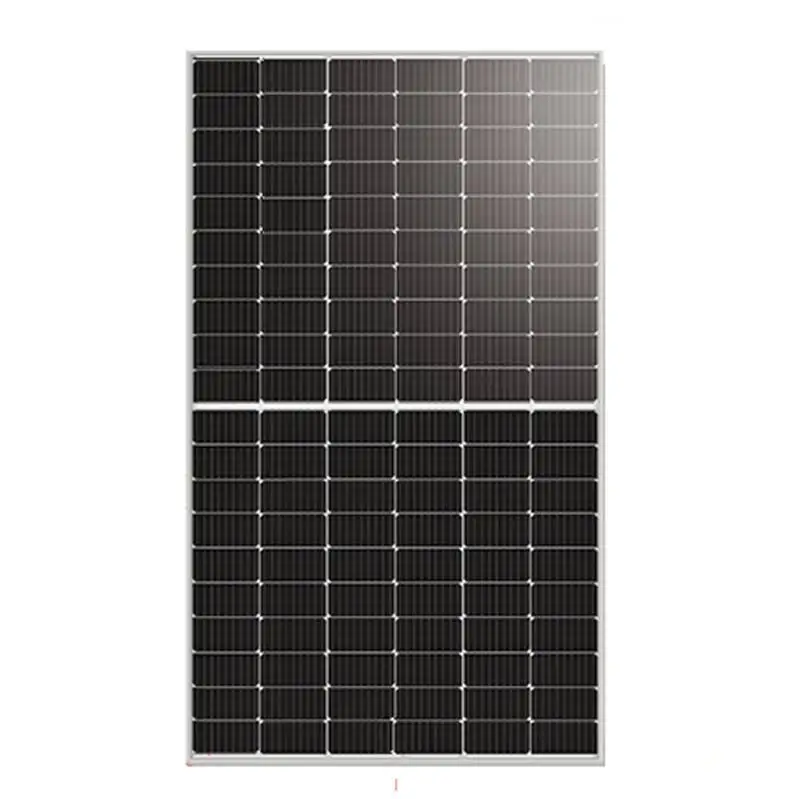

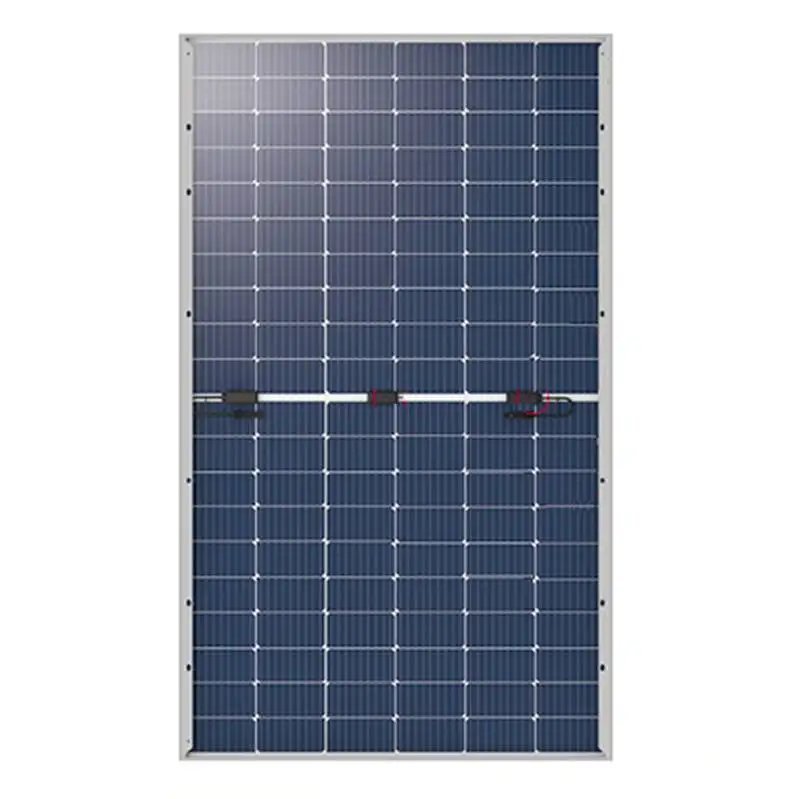

100watt fine solar power product mono solar panel 380w 120 cells 100w 12v
- Category: >>>
- Supplier: Tangshan Jingxin Science And Technology Company Limited
Share on (62332197936):
Product Overview
Description
| ELECTRICAL DATA(STC) | |||
| Peak Power Watts-Pmax(Wp) | 360W | 370W | 380W |
| Power Output Tolerance-P MAX (W) | 0~+5W | ||
| Maximum Power Voltage-V MPP (V) | 33.7 | 34.3 | 34.6 |
| Maximum Power Current-l MPP (A) | 10.69 | 10.67 | 10.98 |
| Open Circuit Voltage-V OC (V) | 40.9 | 41.5 | 42.55 |
| Short Circuit Current-l SC (A) | 11.20 | 11.37 | 11.75 |
| Module Efficiencyηm (%) | 19.3 | 19.8 | 20.34 |
| STC | Irradiance 1000w/m2,module temperature 25℃,air mass 1.5 | ||
| Mechanical Parameters | ||||

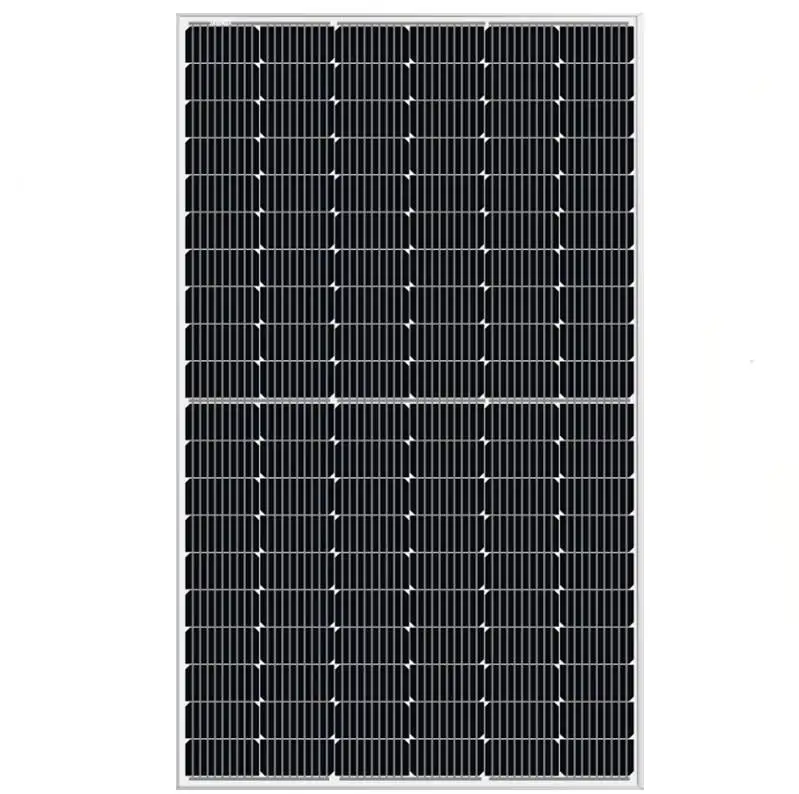

| Cell Type | Mono-crystalline 166*83mm | |||
| No.of Cells | 120(6×20) | |||
| Dimension | 1776*1052*35mm | |||
| Glass | 2mm,high transmission,low iron,tempered glass | |||
| Junction Box | IP68 Rated | |||
| Output Cable | Section size:4mm2,length:300mm | |||
| Frame | anodized aluminum alloy | |||
| No.of Bypass Diodes | 3 | |||
| Connector | MC4 compatible | |||
| Weight | 25kgs | |||
| By sea | From Tianjin Seaport |
| By air | From Beijing Airport |
| By express | By DHL or others |

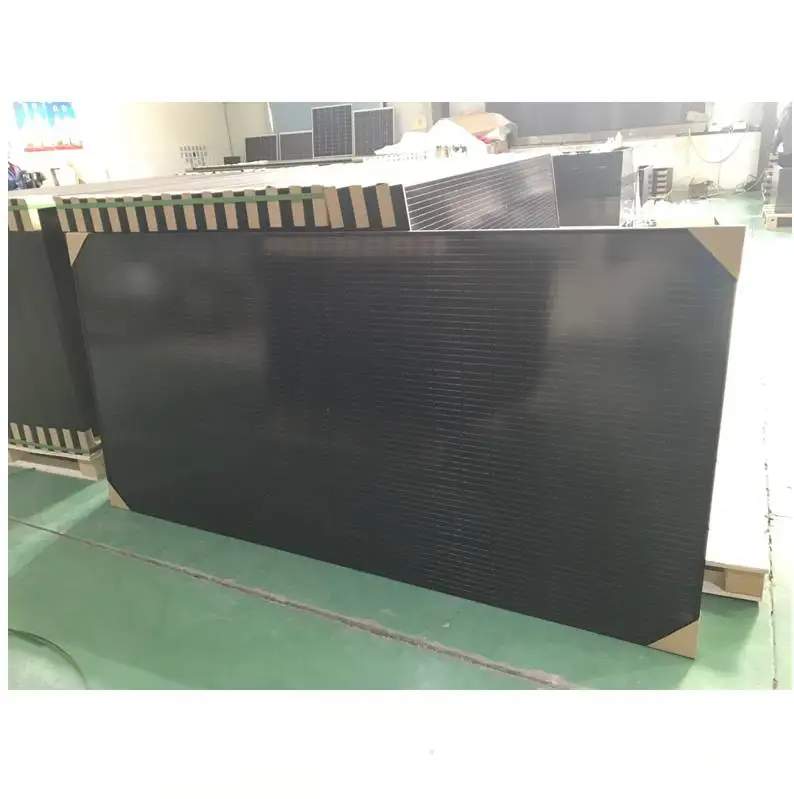

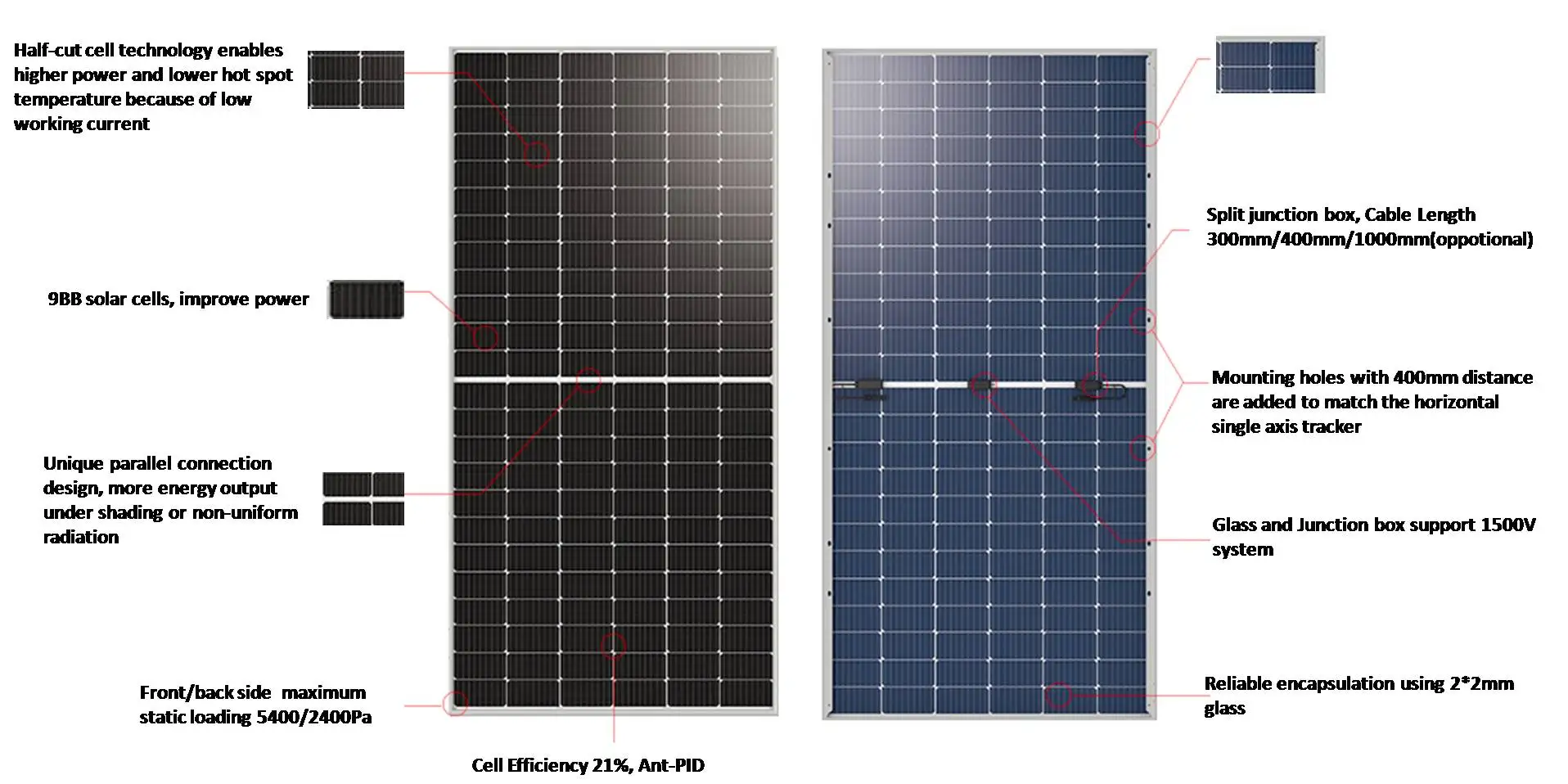

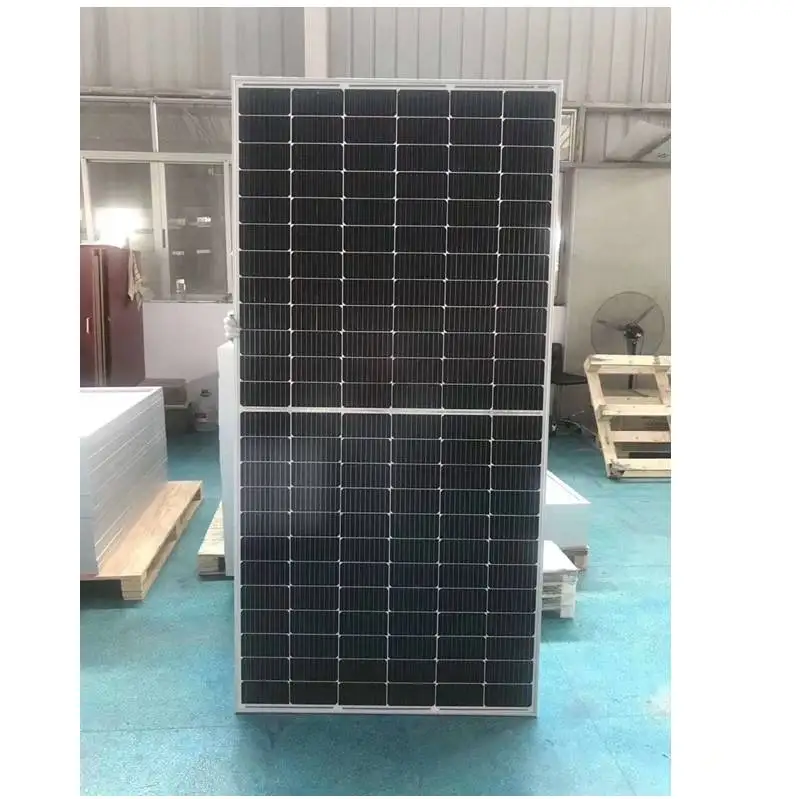

370w Half Cell 450w Half Cell Full Black Half Cell
FAQ
1. Q: Do you have your own factory?

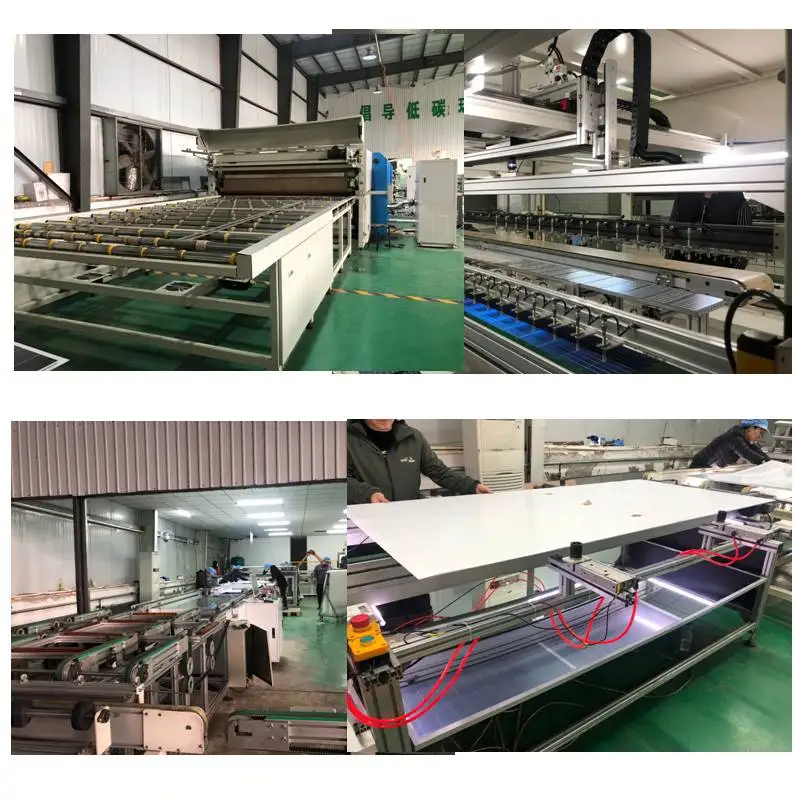

A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Do you provide free sample?
A: Sorry, we can supply the sample,but it is not free charge.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM.
5. Q: How about the package?
A: Plywooden box pallet or carton box pallet.
6. Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
